Auvsoce 65-inch Convertible Sleeper Sofa Bed (Model 1107-Sofa)

1. Introduction

Thank you for choosing the Auvsoce 65-inch Convertible Sleeper Sofa Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

Safety Warnings

• Keep all packaging materials away from children to prevent choking hazards.
• Ensure all components are securely fastened before use. Loose parts can cause injury.
• Do not exceed the maximum weight limit of 500 pounds.
• Avoid standing on the sofa or using it as a step stool.
• Keep sharp objects away from the fabric to prevent damage.
• Always use two people for assembly and moving the sofa to prevent injury.

2. Package Contents

Your Auvsoce Convertible Sleeper Sofa Bed is shipped in multiple boxes for safe delivery. Packages may arrive on different days. Please allow a short time for all boxes to arrive before assembly. Verify that all components listed below are present before beginning assembly.

• Sofa frame components
• Seat and back cushions
• Two small throw pillows
• Side table attachment
• Cup holders
• USB/Type-C charging module
• Assembly hardware (screws, bolts, washers)
• Assembly tools (Allen wrench, etc.)
• Instruction manual

3. Setup & Assembly

The sofa arrives ready for quick and hassle-free assembly. Installation accessories are included for easy setup. Follow these general steps for assembly:

1. Unpack all components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches. Ensure all hardware is accounted for.
2. Assemble the main frame: Connect the base sections of the sofa frame using the provided hardware. Tighten all bolts securely, but do not overtighten.
3. Attach armrests: Secure the armrests to the main frame. Ensure the armrests with the integrated cup holders and USB/Type-C ports are positioned correctly.
4. Install the pull-out bed mechanism: Follow the specific instructions for attaching and testing the pull-out bed mechanism. Ensure it slides smoothly.
5. Place cushions: Position the seat and back cushions onto the frame. The cushions are designed for a snug fit.
6. Attach side table: Secure the 360° swivel side table to the designated armrest.
7. Connect power: Plug the power cord for the USB/Type-C ports into a suitable electrical outlet.
8. Final check: Double-check all connections and ensure the sofa is stable before use.

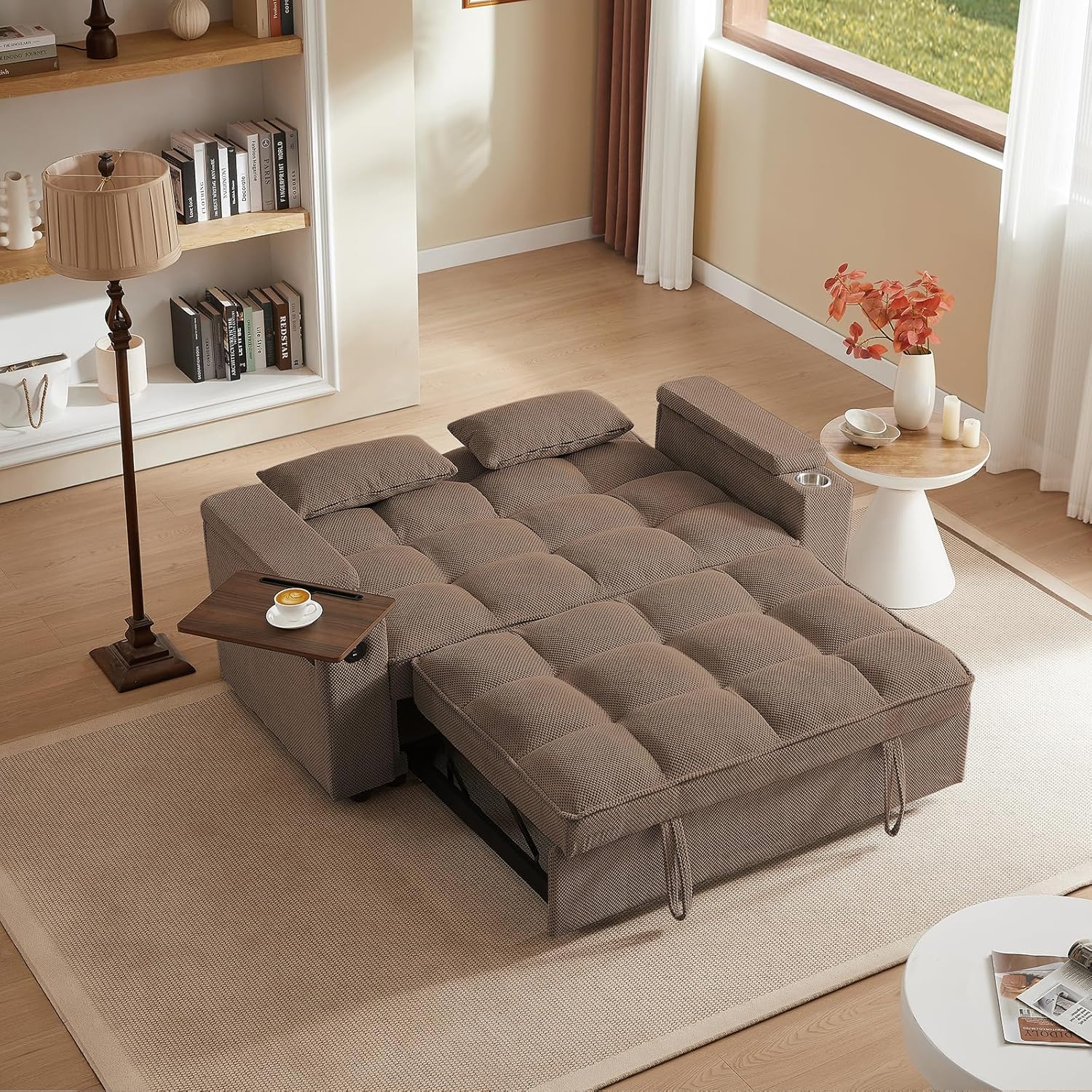

Image: Steps to convert the loveseat into a bed. This image illustrates the simple pull mechanism for transforming the sofa.

4. Operating Instructions

Converting to a Sleeper Bed

To convert the loveseat into a twin bed, locate the pull handles at the front base of the sofa. Gently pull the mechanism outwards until the bed fully extends and locks into place. To revert to a loveseat, push the mechanism back in until it is securely stored under the sofa.

Image: Multi-functional 3-in-1 sofa bed demonstrating its use as an accent chair, chaise lounge, and sofa bed.

Adjusting the Backrest

The sofa features a 3-level adjustable backrest. To adjust, gently push the backrest forward until it clicks into the desired angle (108°, 145°, or 180°). Ensure both sides of the backrest are adjusted evenly for stability.

Image: 3-Level Adjustable Position diagram showing different backrest angles for various activities.

Using the Side Table and Charging Ports

The integrated side table can swivel 360° for convenient access. It is ideal for holding drinks, snacks, or a laptop. The built-in USB and Type-C ports allow you to charge your electronic devices directly from the sofa. Simply plug your device's charging cable into the appropriate port.

Image: Sofa with a 360° rotating side table, perfect for holding items like a cup of coffee.

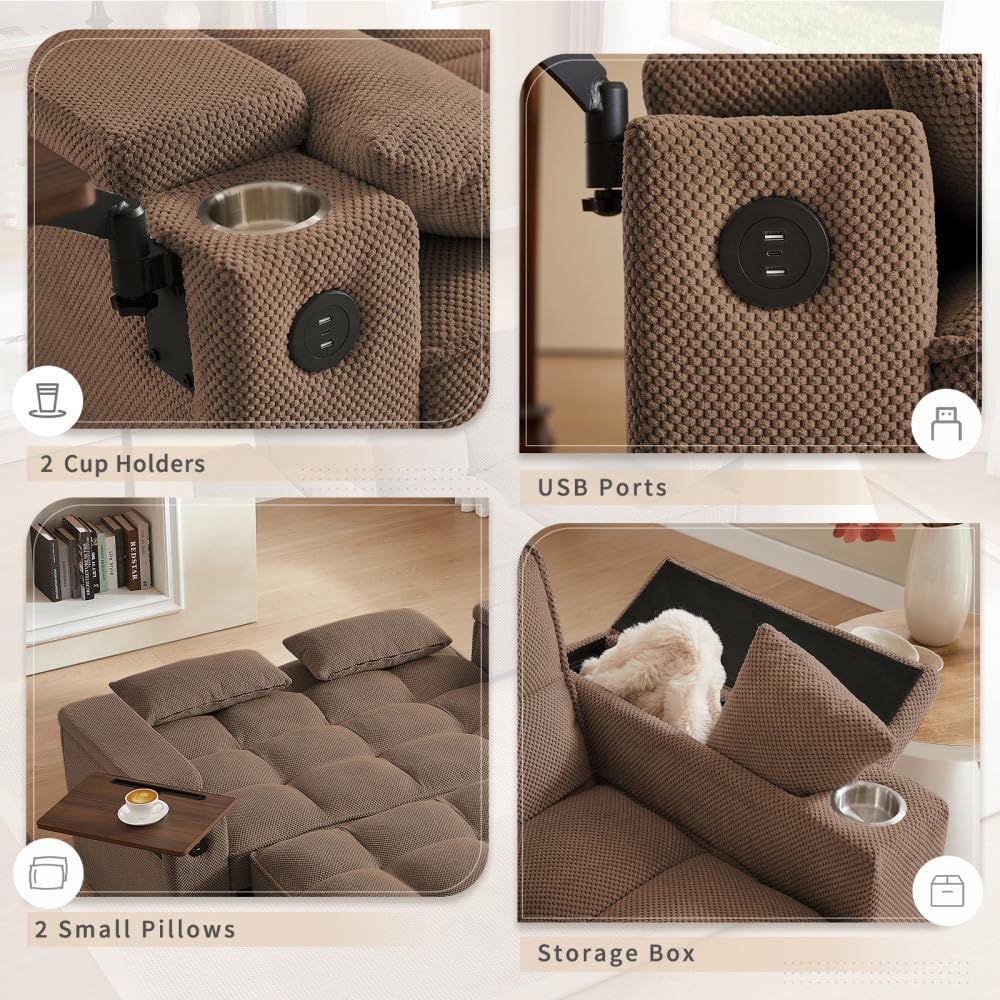

Image: Detailed view of the sofa's features including cup holders, USB ports, and hidden storage.

Armrest Storage

The armrests feature hidden storage compartments. Lift the armrest cushion to access the storage space, suitable for blankets, remote controls, or other small items.

5. Maintenance & Care

Fabric Care

• Regular Cleaning: Vacuum the chenille fabric regularly using a soft brush attachment to remove dust and debris.
• Spot Cleaning: For spills, blot immediately with a clean, dry cloth. Do not rub, as this can spread the stain. For stubborn stains, use a mild fabric cleaner specifically designed for chenille, testing on an inconspicuous area first.
• Removable Cushions: The sofa has removable seat cushion covers. Follow the care label instructions for cleaning these covers.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading. Position your sofa away from direct sun or use curtains/blinds.

Frame and Mechanism Care

• Frame: Wipe the alloy steel frame components with a damp cloth as needed. Avoid harsh chemicals.
• Moving Parts: Periodically check the pull-out mechanism and adjustable backrest for smooth operation. If any squeaking occurs, a small amount of silicone-based lubricant can be applied to moving metal parts (avoiding fabric).
• Tighten Hardware: Periodically check and tighten all assembly hardware to ensure the sofa remains stable.

6. Troubleshooting

• Sofa feels unstable: Ensure all assembly bolts are securely tightened. Check that the sofa is placed on a level surface.
• Pull-out bed mechanism is stiff: Ensure no obstructions are blocking the mechanism. Lightly lubricate moving metal parts with a silicone spray if necessary.
• USB/Type-C ports not working: Verify that the sofa's power cord is securely plugged into a working electrical outlet. Check the connection of your device's charging cable.
• Backrest not adjusting: Ensure no fabric or objects are caught in the adjustment mechanism. Apply gentle, even pressure when adjusting.

7. Specifications

Image: Product dimensions for the Auvsoce 65-inch Convertible Sleeper Sofa Bed.

8. Warranty Information

This Auvsoce product comes with a limited warranty. Please refer to the warranty card included in your package or contact customer support for specific details regarding coverage and duration.

9. Customer Support

If you have any questions, require assistance with assembly, or encounter any issues with your Auvsoce Convertible Sleeper Sofa Bed, please contact our customer support team. Refer to the contact information provided in your product packaging or visit the official Auvsoce website for support options.
