1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Merax 73-inch Freestanding Kitchen Pantry Cabinet. This versatile storage solution is designed to help organize your kitchen or dining room essentials with its spacious compartments, adjustable shelves, and convenient drawers. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation.
2. Safety Information
- Anti-Tipping Devices: For your safety, two anti-tipping devices are included. It is mandatory to install these devices to prevent the cabinet from tipping over, especially in households with children or pets.
- Assembly: Please follow the assembly instructions carefully. Do not over-tighten nuts, as this may cause distortion or breakage of components.
- Weight Capacity: Adhere to the recommended weight capacities for each section to ensure stability and prevent damage. Each door shelf supports 33 lbs, each main shelf supports 53 lbs, and each drawer supports 35 lbs.
- Placement: Place the cabinet on a flat, stable surface. Avoid placing it in areas with high humidity or direct sunlight, which can affect the wood material.
Figure 2.1: Illustration of anti-tipping device and magnetic door mechanism for secure and safe use.
3. Package Contents
Before beginning assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- 1 x Merax 73-inch Freestanding Kitchen Pantry Cabinet (main unit)
- Hardware for assembly (screws, dowels, cam locks, etc.)
- Assembly Manual
- All necessary tools for assembly
4. Setup and Assembly
Assembly is required for this product. Please follow the step-by-step instructions provided in the included assembly manual. An assembly video is also available to assist you with the setup process.
4.1. Preparation
- Clear a spacious, clean area for assembly.
- Lay out all parts and hardware, organizing them according to the assembly manual.
- Ensure you have the included tools readily available.
4.2. Assembly Steps
Refer to the detailed diagrams and instructions in the separate assembly manual for specific steps. Generally, assembly involves:
- Attaching cam locks and dowels to panels.
- Connecting side panels to base and top panels.
- Installing shelves and drawer slides.
- Assembling and inserting drawers.
- Attaching doors and adjusting hinges.
- Installing anti-tipping devices to secure the cabinet to a wall.
Figure 4.1: The cabinet is crafted from durable painted pine wood for long-lasting use.
5. Operating Instructions
The Merax pantry cabinet is designed for versatile storage and easy access to your items.
5.1. Adjustable Shelves
The cabinet features eight adjustable shelves. To adjust a shelf:
- Empty the shelf of all contents.
- Carefully lift the shelf and remove the shelf pins from their current holes.
- Reinsert the shelf pins into the desired new holes, ensuring they are level.
- Place the shelf back onto the pins.
5.2. Drawers
The four middle drawers operate on smooth slides for easy opening and closing. Use them for storing smaller items, utensils, or linens.
5.3. Cabinet Doors
The cabinet doors are equipped with magnetic closures to keep them securely shut when not in use. Gently pull to open and push to close.
Figure 5.1: The cabinet offers versatile storage with adjustable shelves and drawers.
Figure 5.2: Weight capacities for shelves (53 lbs), door shelves (33 lbs), and drawers (35 lbs).
6. Maintenance
Proper care will extend the life and appearance of your Merax pantry cabinet.
- Cleaning: Dust frequently with a clean, soft, dry, lint-free cloth.
- Surface Care: When cleaning the surface, rub in the direction of the wood grain and wipe dry immediately.
- Avoid: Do not use harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the finish.
- Spills: Wipe up spills immediately with a soft, dry cloth to prevent staining or water damage.
7. Troubleshooting
If you encounter any issues with your Merax pantry cabinet, consider the following:
- Instability: Ensure all screws and connections are securely tightened. Verify that the anti-tipping devices are properly installed and anchored to the wall.
- Drawers Sticking: Check that the drawer slides are correctly aligned and free of obstructions. Ensure no items are preventing the drawer from closing fully.
- Doors Not Closing: Inspect the magnetic closures for any damage or misalignment. Ensure hinges are properly tightened and adjusted.
- Missing Parts: If you discover missing parts during assembly, refer to the 'Package Contents' section and contact customer support for replacements.
8. Specifications
| Feature | Detail |
|---|---|
| Overall Product Dimensions (L x W x H) | 66" x 20" x 73" |
| Overall Weight | 218.92 lbs |
| Material | Pine Wood |
| Color | White |
| Weight Capacity (Each Door Shelf) | 33 lbs |
| Weight Capacity (Each Main Shelf) | 53 lbs |
| Weight Capacity (Each Drawer) | 35 lbs |
| Model Number | XY00960 |
| UPC | 199193450577 |
| Country of Origin | Vietnam |

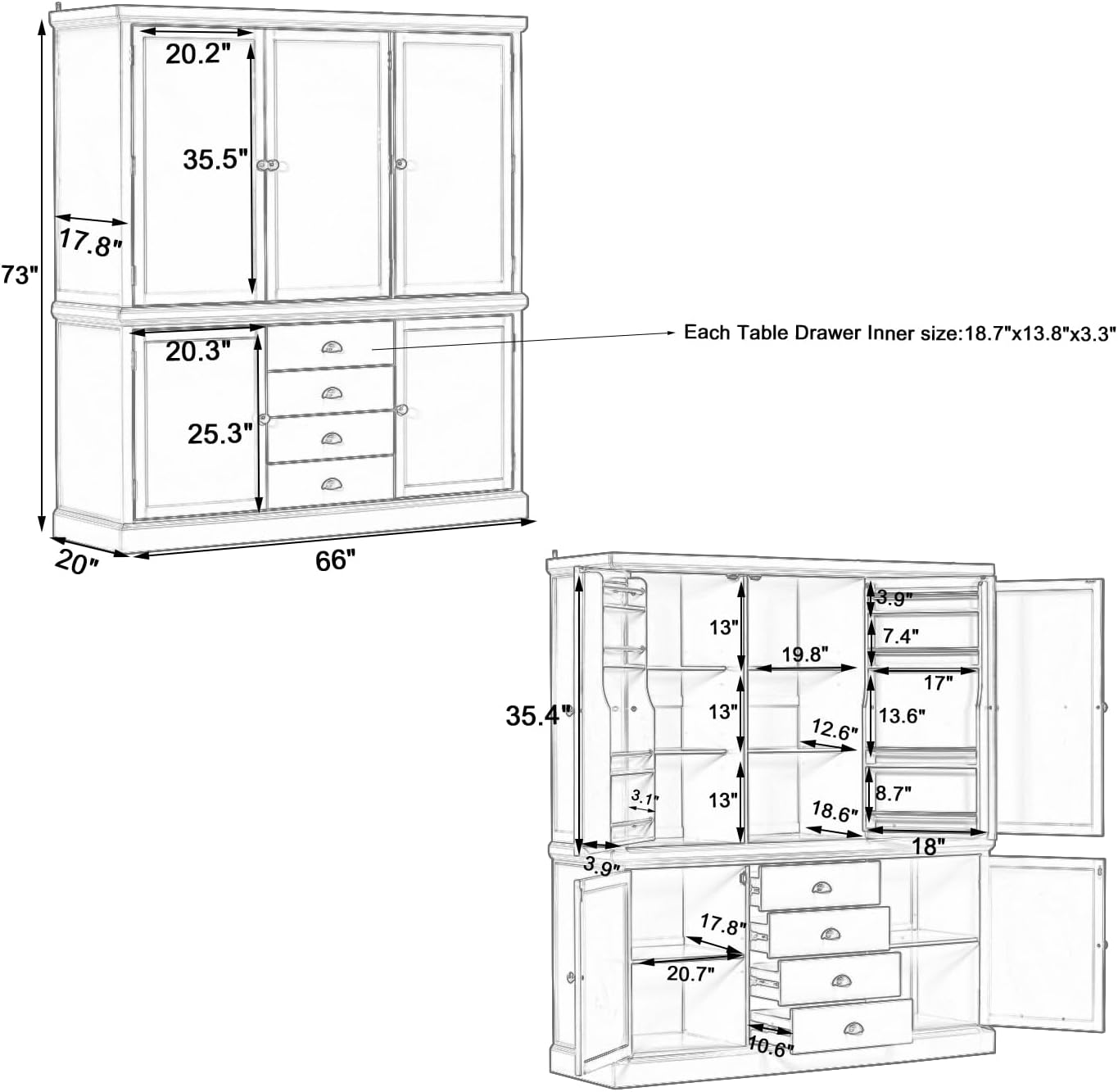

Figure 8.1: Detailed dimensions of the Merax 73-inch Freestanding Kitchen Pantry Cabinet.
9. Warranty and Support
9.1. Product Warranty
For detailed information regarding the product warranty and return policy, please refer to the documentation provided at the time of purchase or visit the Merax website.
9.2. Customer Support
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Merax customer support:
- Website: Merax.com
- Email: csr@merax.com
