Comllen Kitchen Faucet with Pull Out Sprayer

Introduction

Thank you for choosing the Comllen Kitchen Faucet with Pull Out Sprayer. This manual provides essential information for the proper installation, operation, and maintenance of your new faucet. Please read these instructions carefully before installation and retain them for future reference.

Image: Comllen Kitchen Faucet installed in a modern kitchen environment.

Product Features

• Pull-Out Sprayer: Offers extended reach for cleaning tasks and retracts into the spout when not in use.
• Dual Mode Spray Setting: Easily switch between a gentle aerated stream and a powerful spray for various cleaning needs.
• Durable Construction: Made from 304 stainless steel, meeting cUPC standards, and designed to be lead-free, corrosion-preventive, and scratch-resistant.
• Low Profile Design: Suitable for installation under various kitchen cabinets or in spaces with limited height.
• Easy to Clean: The brushed nickel finish allows for simple cleaning with a towel to maintain its appearance.
• Easy Installation: Equipped with modular components for straightforward, tool-free installation.

Image: Diagram illustrating key features such as the two-function sprayer, single handle design, brushed stainless steel finish, and compatibility with one or three-hole installations.

Package Contents

Verify that all components are present before beginning installation:

• Faucet Body with Pull-Out Sprayer
• Deck Plate (for 3-hole installations)
• Mounting Hardware (washer, nut)
• Hot and Cold Water Supply Lines
• Sprayer Hose
• Hose Weight

Image: All components of the Comllen Kitchen Faucet laid out, including the faucet body, deck plate, mounting hardware, and hoses.

Setup and Installation

Pre-Installation Notes:

• Ensure your sink has either a single hole or three holes for installation.
• The mounting hole diameter should be between 1.38 inches and 1.5 inches.
• Maximum countertop thickness for installation is 1.5 inches.
• Turn off the main water supply before starting.

Image: Detailed dimensions of the faucet and illustrations for one-hole and three-hole sink compatibility, along with mounting hole size and maximum countertop thickness.

Installation Steps:

1. If your sink has three holes, place the deck plate over the holes.
2. Insert the faucet body into the mounting hole(s) on the sink or deck plate.
3. From underneath the sink, secure the faucet using the provided washer and hand-tightened mounting nut. Ensure the faucet is oriented correctly before fully tightening.
4. Connect the hot and cold water supply lines from the faucet to your angle stop valves. The lines are typically color-coded (red for hot, blue for cold).
5. Attach the pull-out sprayer hose to the designated connection point under the faucet.
6. Install the hose weight onto the pull-out sprayer hose, ensuring it allows for smooth retraction and extension of the sprayer.
7. Once all connections are secure, slowly turn on the main water supply and check for leaks.

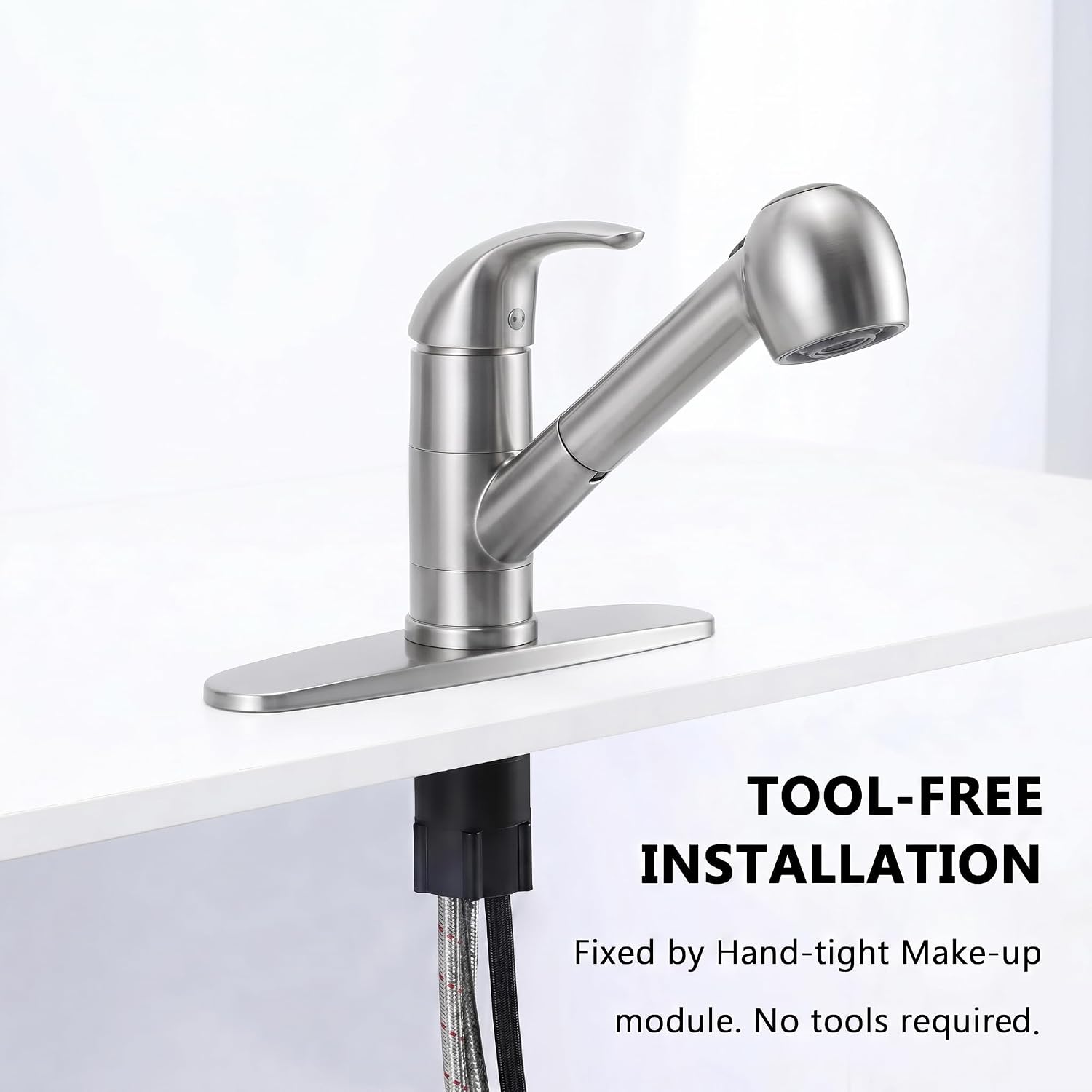

Image: Illustration demonstrating the tool-free installation process, highlighting the hand-tightened make-up module.

Operating Instructions

Water Flow and Temperature Control:

The faucet features a single lever handle for controlling both water flow and temperature. Lift the handle to increase water flow. Move the handle left for hot water and right for cold water.

Using the Pull-Out Sprayer:

Gently pull the sprayer head from the spout to extend the hose. The hose weight will assist in smooth retraction. After use, guide the sprayer head back into the spout until it is fully seated.

Image: A hand demonstrating the use of the pull-out sprayer, extending it from the faucet spout.

Switching Spray Modes:

The sprayer head offers two distinct spray modes. Press the button on the sprayer head to toggle between a gentle aerated stream and a powerful spray. The powerful spray is ideal for rinsing stubborn food residue, while the stream is suitable for general washing.

Image: Two panels illustrating the gentle stream mode and the powerful spray mode from the faucet head.

Image: Detailed close-up of the sprayer head, showing the nozzle and the button for switching between spray modes.

Maintenance

Cleaning the Faucet Finish:

To maintain the brushed nickel finish, wipe the faucet regularly with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. For tougher spots, a mild soap solution can be used, followed by rinsing and drying.

Cleaning the Sprayer Nozzles:

Mineral deposits can accumulate on the sprayer nozzles over time, affecting water flow. To clean, gently rub the rubber nozzles with your finger or a soft brush to dislodge any buildup. For more stubborn deposits, a solution of equal parts white vinegar and water can be applied to the nozzles for a few minutes before scrubbing and rinsing.

Checking Connections:

Periodically inspect all water connections under the sink for any signs of leaks or corrosion. Tighten any loose connections as needed, but do not overtighten.

Troubleshooting

Specifications

Warranty and Support

For warranty information, technical assistance, or to order replacement parts, please contact Comllen customer support. Refer to your purchase documentation or the official Comllen website for the most current contact details.

When contacting support, please have your product model number (COM-QYT007L-NEW) and date of purchase readily available.
