1. Introduction
Thank you for choosing the HEVIRGO 24V Cordless Pressure Washer. This portable and powerful cleaning tool is designed for various tasks, including car washing, floor cleaning, and general outdoor maintenance. Its cordless design, multi-function nozzle, and efficient motor provide convenience and effective cleaning performance. Please read this manual thoroughly before operation to ensure safe and proper use of the product.
2. Safety Information
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Read all instructions before using the pressure washer.
- Do not point the spray nozzle at people, pets, or electrical devices. High-pressure spray can cause injury.
- Wear appropriate personal protective equipment, including eye protection, during operation.
- Ensure the battery is fully charged before use and only use the provided charger.
- Keep the pressure washer away from children and pets.
- Do not operate the pressure washer if any parts are damaged or missing.
- Disconnect the battery before performing any maintenance or cleaning.
- Use only clean water with the pressure washer. Do not use corrosive or flammable liquids.
3. Package Contents
Carefully unpack all items and ensure you have received all components listed below. If any parts are missing or damaged, please contact customer support.
- Cordless Pressure Washer Unit
- 24V Lithium Battery (1500mAh)
- Battery Charger
- Multi-Function Nozzle
- Copper Extension Rod
- Inlet Pipe (5 meters)
- Water Filter
- Foam Jug (approx. 350ml)
- Additional Nozzles (e.g., white, red)
Image 3.1: Overview of the HEVIRGO 24V Cordless Pressure Washer and its complete set of accessories, including the main unit, battery, charger, various nozzles, extension rod, inlet pipe, water filter, and foam jug.
4. Product Overview
Familiarize yourself with the main components of your pressure washer.
- Pressure Washer Body: Main unit housing the motor and controls.
- Battery Compartment: Located at the base for inserting the 24V battery.
- Trigger: Activates the water spray.
- Nozzle Connection: Point where the extension rod and nozzles attach. Features a durable pure copper interface.
- Water Inlet: Connection point for the inlet pipe.
Image 4.1: Visual representation of the HEVIRGO 24V Cordless Pressure Washer with its approximate dimensions: 38.5 cm (15.16 inches) in length and 17 cm (6.69 inches) in height.
Image 4.2: A detailed view of the pressure washer's pure copper nozzle interface, highlighting its durability and resistance to rust. Below it are two interchangeable nozzles (white and red) that can be used with the system.
5. Setup
Follow these steps to prepare your pressure washer for first use.
- Charge the Battery: Connect the 24V lithium battery to the provided charger. Plug the charger into a suitable power outlet (110V-130V for US, 220V-230V for EU/UK/AU). Allow the battery to fully charge before first use.
- Install the Battery: Once charged, slide the battery into the battery compartment at the base of the pressure washer until it clicks securely into place.
- Attach the Water Filter: Connect the industrial-grade water filter to one end of the 5-meter inlet pipe. This filter helps protect the pump from debris.
- Connect Inlet Pipe: Insert the other end of the inlet pipe (with the filter) into the water inlet port on the pressure washer. Ensure a snug fit.
- Attach Extension Rod and Nozzle: Screw the copper extension rod onto the front of the pressure washer. Then, attach your desired nozzle (e.g., multi-function, white, or red) to the end of the extension rod.
- Prepare Water Source: Place the water filter end of the inlet pipe into a clean water source, such as a bucket, pool, or lake. Ensure the filter is fully submerged.

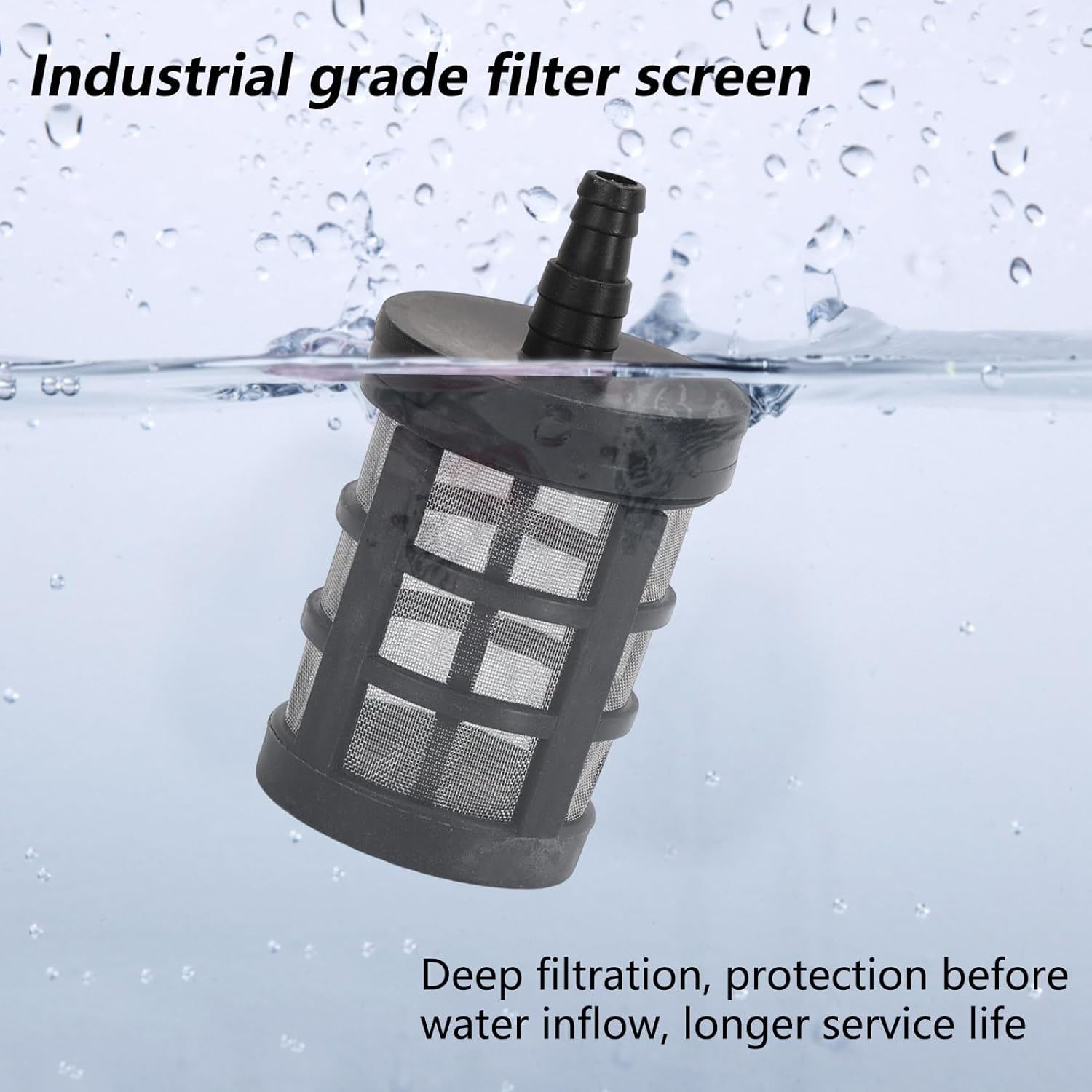

Image 5.1: A close-up view of the industrial-grade filter screen, designed for deep filtration to protect the pressure washer's pump from impurities in the water, thereby extending its service life.
6. Operating Instructions
Learn how to effectively use your cordless pressure washer for various cleaning tasks.
- Prime the Pump: Before starting, hold the trigger down for a few seconds to allow water to flow through the system and expel any air.
- Start Cleaning: Press the trigger to begin spraying. The pressure washer offers 3 adjustable speeds for different cleaning needs.
- Adjust Spray Modes: The multi-function nozzle allows you to switch between high-pressure direct spray, fan spray, and shower spray modes. Rotate the nozzle head to select the desired pattern. For high-pressure direct injection, no additional nozzle is required.
- Using the Foam Jug: Fill the 350ml foam jug with your preferred detergent. Attach it to the pressure washer's nozzle connection. The system will mix the detergent with water to create a rich foam for effective cleaning, especially for vehicles.
- Cleaning Techniques: For best results, start spraying from a distance and move closer as needed. Always spray at an angle to lift dirt and debris.
- Stopping Operation: Release the trigger to stop the water flow. For prolonged breaks or when finished, remove the battery.
Image 6.1: The HEVIRGO pressure washer in action, demonstrating its versatility with different spray patterns, including a wide fan spray for rinsing and the application of foam using the detergent container for car washing.
Image 6.2: The HEVIRGO pressure washer being used to clean a car, illustrating the effective and precise application of water spray for vehicle maintenance.
Image 6.3: The HEVIRGO pressure washer in operation, demonstrating a wide fan spray pattern suitable for rinsing larger surfaces or general cleaning tasks.
7. Maintenance and Storage
Proper maintenance ensures the longevity and optimal performance of your pressure washer.
- After Each Use: Disconnect the water source and run the pressure washer for a few seconds to clear any remaining water from the pump and hose.
- Clean Nozzles: Remove any debris from the nozzle openings. If a nozzle becomes clogged, use a small pin or needle to clear the obstruction.
- Clean Filter: Regularly inspect and clean the water filter to ensure unrestricted water flow and prevent pump damage.
- Battery Care: Store the battery in a cool, dry place. Do not store a fully discharged battery for extended periods. Recharge it periodically if not in use.
- Storage: Store the pressure washer in a dry, frost-free environment. Protect it from direct sunlight and extreme temperatures.
8. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pressure washer does not start. | Battery not charged or not inserted correctly. | Ensure battery is fully charged and securely inserted. |
| Low water pressure. | Clogged nozzle or filter; insufficient water supply. | Clean nozzle and water filter. Ensure water source is adequate and inlet pipe is not kinked. |
| Water leaks from connections. | Loose connections or worn O-rings. | Tighten all connections. Inspect and replace O-rings if damaged. |
| Motor runs but no water sprays. | Air in the system; clogged inlet pipe. | Prime the pump by holding the trigger until water flows. Check inlet pipe for obstructions. |
9. Specifications
Detailed technical specifications for the HEVIRGO 24V Cordless Pressure Washer.
| Feature | Specification |
|---|---|
| Brand | HEVIRGO |
| Model Number | 67DE767DE7BDC26B67 |
| Battery Voltage | 24V |
| Battery Capacity | 1500mAh |
| Rated Power Wattage | 200W |
| Rated Working Pressure | 3.5 Mpa |
| Rated Flow | 240 L/h |
| Motor Rotate Speed | 3300 R/min |
| Maximum Sprayer Distance | 10 Meters |
| Maximum Water Inlet Pressure | 0.5 Mpa |
| Inlet Pipe Length | 5 Meters |
| Item Weight | 3.98 pounds |
| Dimensions (Approx.) | 38.5cm x 17cm x 10cm (15.16" x 6.69" x 3.94") |
10. Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.
