1. Introduction
This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your PURPLE LEAF 13' x 25' Aluminum Louvered Pergola. This outdoor structure features an adjustable louvered roof and an integrated drainage system, designed to enhance your outdoor living space. Please read these instructions thoroughly before beginning assembly or use.

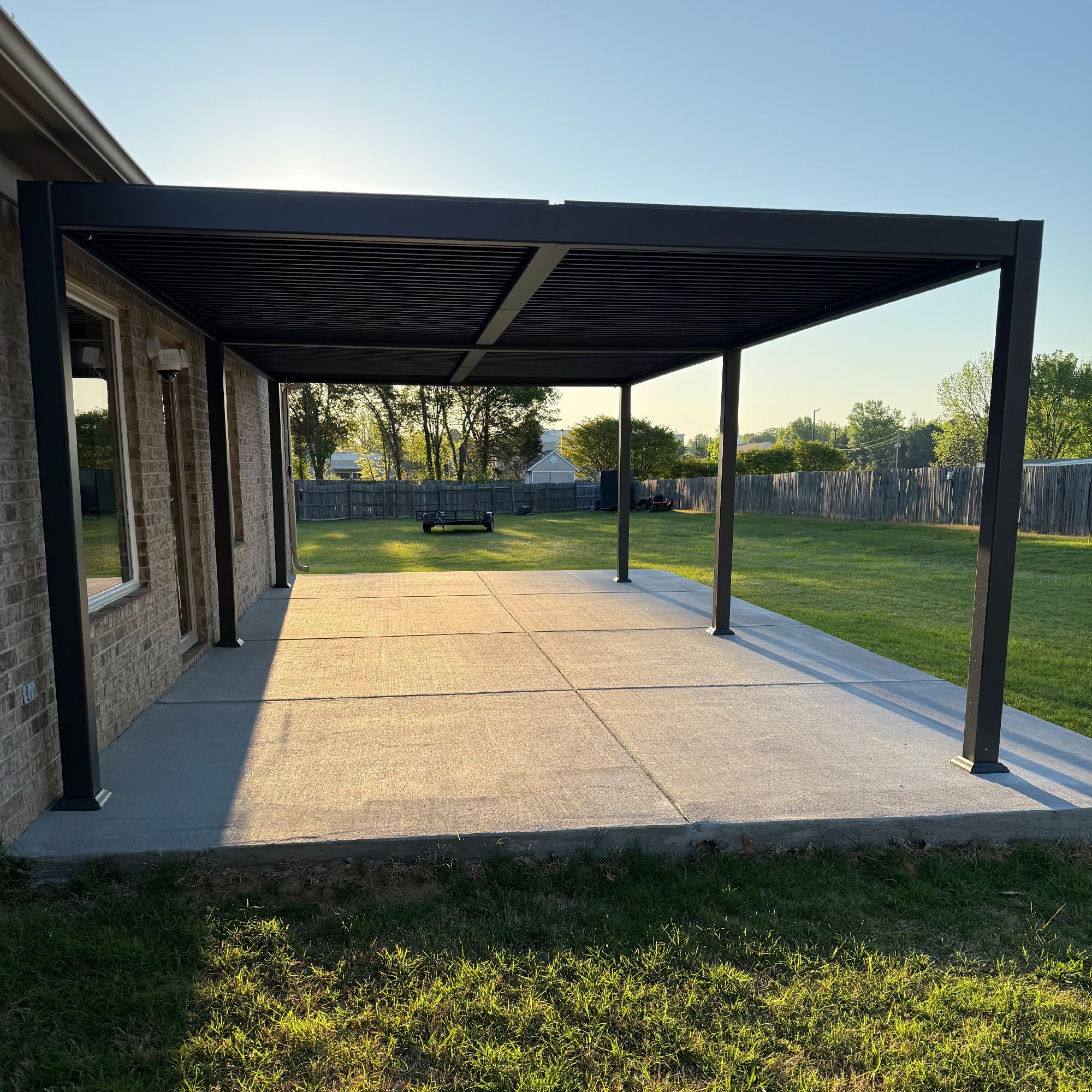

Image 1.1: Overview of the PURPLE LEAF Louvered Pergola in an outdoor setting.
2. Safety Information
Adherence to the following safety guidelines is crucial for preventing damage to the pergola and ensuring user safety:
- Weather Conditions: During high winds, heavy snow, or other extreme weather conditions, open the louvers and remove any shade screen accessories. This action helps prevent structural damage to the pergola.
- Level Surface: Always install the pergola on a level surface. This ensures stability, proper water drainage, and prevents potential structural issues.
- Assembly: Ensure all components are securely fastened according to the assembly instructions. Do not use the pergola if any parts are loose or damaged.
- Weight Capacity: Do not hang heavy objects from the pergola frame or louvers. Refer to the specifications for snow load capacity.
3. Package Contents
Your PURPLE LEAF Louvered Pergola package includes all necessary components for assembly. Please verify all parts are present and undamaged before beginning installation. A detailed parts list is provided in the separate assembly guide.
4. Setup and Assembly
Assembly of the PURPLE LEAF Louvered Pergola requires careful attention to detail. Clear, step-by-step instructions are provided in the dedicated assembly manual included with your product. It is recommended to have at least two people for assembly due to the size and weight of some components.
4.1 Site Preparation
Before assembly, select a suitable location. The pergola must be installed on a level surface to ensure proper function of the drainage system and overall stability. Clear the area of any debris or obstructions.
4.2 Key Assembly Features
- Reinforced Support Poles: The pergola features oversized 4.53" x 4.53" aluminum support poles for superior strength and structural balance, designed for year-round durability.
- All-Aluminum Construction: The frame and louvers are constructed from high-strength, powder-coated aluminum, resisting rust and corrosion.
Image 4.1: Illustration of the 4.53" x 4.53" upgraded support poles.
Image 4.2: All-aluminum louvers for lasting durability and rust-free performance.
4.3 Assembly Video
Video 4.1: This video demonstrates the installation process and highlights key features of the PURPLE LEAF Louvered Pergola.
5. Operating Instructions
Your PURPLE LEAF Louvered Pergola is designed for ease of use, allowing you to control shade and airflow with its adjustable louvered roof.
5.1 Louver Adjustment
The louvers can be rotated from 0° (fully closed) to 85° (nearly fully open) to adjust the amount of sunlight and ventilation. Use the provided crank mechanism to smoothly open or close the louvers to your desired position.
Image 5.1: The pergola features four independent adjustable roof sections for versatile shade control.
5.2 Integrated Drainage System
The pergola is equipped with an efficient drainage system. Rainwater is channeled through integrated gutters and down the four support posts, preventing puddles and keeping your patio area dry. Ensure the pergola is installed on a level surface for optimal drainage performance.
Image 5.2: Visual representation of the integrated rain-collecting, water-guiding, and drain-out system.
6. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your PURPLE LEAF Louvered Pergola.
- Cleaning: Clean the aluminum frame and louvers periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating.
- Drainage System: Periodically check the integrated gutters and downspouts for any blockages (e.g., leaves, debris) and clear them to ensure efficient water drainage.
- Fasteners: Inspect all bolts and fasteners regularly to ensure they remain tight. Tighten any loose connections as needed.
- Winter Care: In areas with heavy snowfall, ensure louvers are open to prevent excessive snow accumulation, which could exceed the pergola's snow load capacity.
7. Troubleshooting
If you encounter any issues with your pergola, please refer to the following general troubleshooting tips:
- Louver Malfunction: If louvers are difficult to adjust, check for any obstructions in the mechanism or debris on the louvers. Ensure the crank system is properly engaged.
- Water Pooling: If water is pooling on the roof, verify that the pergola is installed on a level surface and that the drainage channels are clear of debris.
- Structural Instability: If the pergola feels unstable, immediately check all connection points and ensure all bolts are securely tightened.
For persistent issues or concerns not addressed here, please contact PURPLE LEAF customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | PURPLE LEAF |
| Model Dimensions (L x W x H) | 298.35"L x 156.65"W x 86.93"H (13' x 25') |
| Material | Aluminum |
| Frame Material | Aluminum |
| Style | Modern |
| Water Resistance Level | Waterproof |
| Shape | Rectangular |
| Ultraviolet Light Protection | UPF 50+ |
| Assembly Required | Yes |
| Color | Grey Frame |
| Occupancy | 4-6 People |
| Snow Load Capacity | Up to 8.2 psf |
| Wind Resistance | Up to 70 mph |
| Louver Rotation | 0° to 85° |
9. Warranty and Support
Your PURPLE LEAF Louvered Pergola comes with a 1-year frame warranty, ensuring peace of mind regarding the structural integrity of your product.
For warranty claims, technical assistance, or any questions regarding your pergola, please contact PURPLE LEAF customer support through their official website or the retailer where the product was purchased. Please have your purchase receipt and model information ready when contacting support.
