Introduction
Thank you for choosing the Gadgy 5L Digital Air Fryer. This appliance uses rapid hot air circulation to cook your favorite foods with little to no oil, offering a healthier alternative to traditional frying. Please read this manual thoroughly before using the appliance to ensure safe and optimal operation. Keep this manual for future reference.
Important Safety Instructions
- Always place the air fryer on a stable, heat-resistant surface, away from walls or other appliances to allow for proper ventilation.
- Do not immerse the main unit, cord, or plug in water or any other liquid.
- Ensure the voltage indicated on the appliance matches your local mains voltage before connecting.
- Keep children and pets away from the appliance during operation. The exterior surfaces can become hot.
- Do not block the air inlet or outlet openings.
- Unplug the air fryer from the outlet when not in use and before cleaning. Allow it to cool down completely before handling.
- Do not use the appliance if the plug, power cord, or the appliance itself is damaged.
- Never leave the appliance unattended while it is operating.
- Do not overfill the basket.
- Use only original accessories provided by the manufacturer.
Product Overview
The Gadgy 5L Digital Air Fryer is designed for efficient and healthy cooking. It features a large capacity basket, a digital touchscreen for easy control, and a convenient viewing window to monitor your food without opening the drawer.
Figure 1: Front View of Gadgy 5L Digital Air Fryer. This image shows the main unit of the air fryer, highlighting its sleek black design, the digital display panel, and the transparent viewing window through which cooked fries are visible.
Components:
- Main Unit with Digital Control Panel
- Removable Frying Basket
- Non-stick Crisper Plate
- Viewing Window
- Power Cord
Setup and First Use
Unpacking:
- Remove all packaging materials and stickers from the appliance.
- Check that all components are present and undamaged.
Cleaning Before First Use:
- Wipe the exterior of the air fryer with a damp cloth.
- Wash the frying basket and crisper plate thoroughly with hot water, dish soap, and a non-abrasive sponge.
- Rinse and dry all parts completely before reassembling.

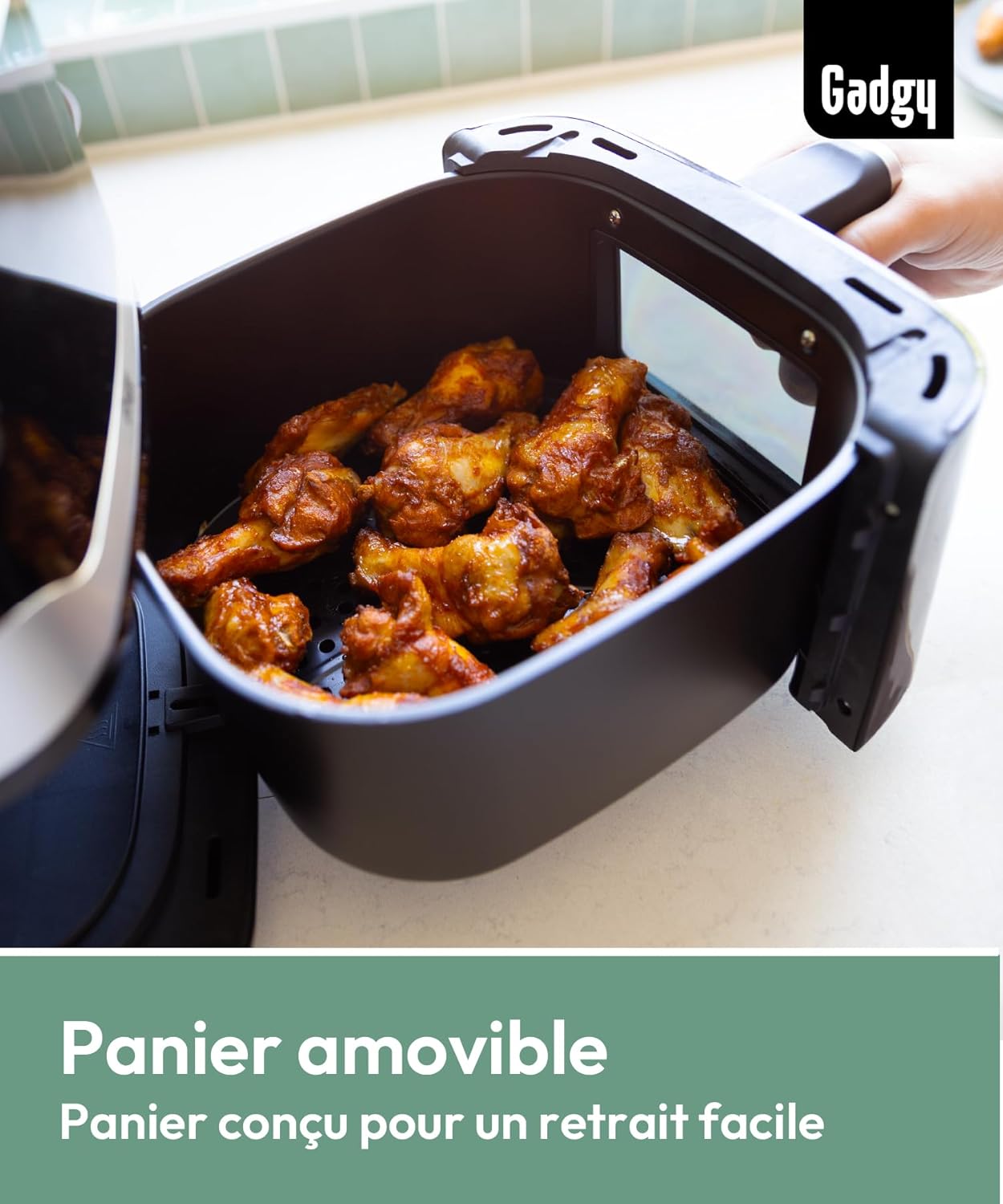

Figure 2: Removable Frying Basket. This image illustrates a hand easily removing the frying basket from the air fryer, demonstrating its user-friendly design for cleaning and food handling.

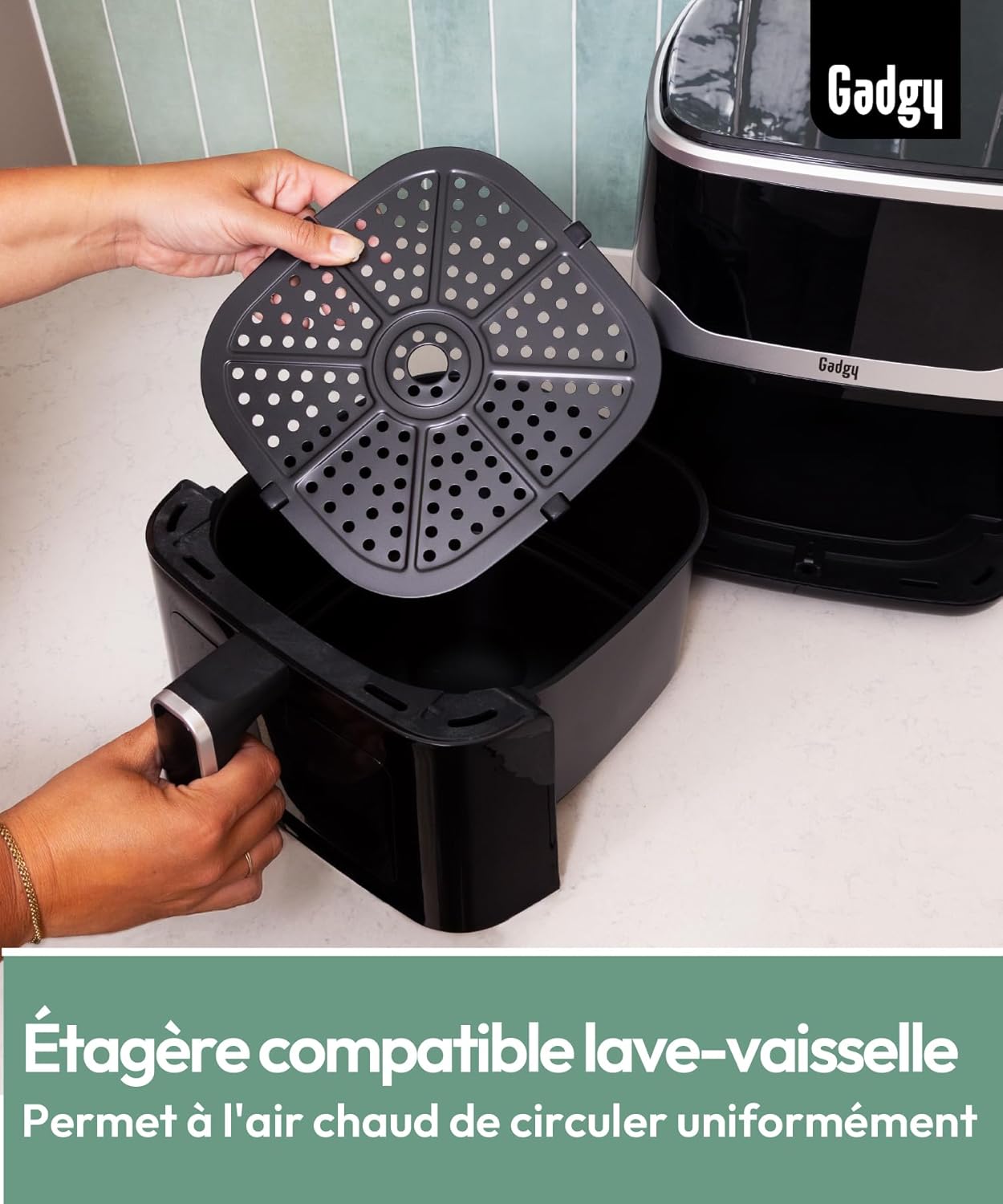

Figure 3: Dishwasher-Safe Crisper Plate. The image shows the crisper plate being held above the frying basket, emphasizing its separate, removable design which facilitates easy cleaning, including dishwasher compatibility.
Placement:
Place the air fryer on a flat, stable, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance for adequate air circulation.
Operating Instructions
Digital Control Panel:
Figure 4: Digital Touchscreen Display. This close-up image highlights the air fryer's digital touchscreen, showing the temperature setting (180°C) and various control icons for intuitive operation.
The air fryer features an intuitive digital touchscreen for setting time, temperature, and selecting preset programs.
Basic Operation:
- Plug the power cord into a grounded wall outlet.
- Pull out the frying basket from the appliance.
- Place the crisper plate inside the basket.
- Place your ingredients into the frying basket. Do not exceed the MAX fill line.
- Slide the frying basket back into the air fryer. Ensure it clicks into place.
- Press the Power button (⏻) to turn on the appliance.
- Manual Setting: Use the temperature control arrows (∧ / ∨) to set the desired temperature (80°C - 200°C) and the time control arrows (∧ / ∨) to set the cooking time.
- Preset Programs: Press the 'M' button to cycle through the 7 preset cooking programs. Each program has a default time and temperature for common foods.
- Press the Start/Pause button (▶ ||) to begin cooking.
- During cooking, you can monitor the progress through the viewing window without opening the basket.
- Some recipes may require shaking the basket halfway through cooking. To do this, carefully pull out the basket, shake it, and then slide it back in. The air fryer will automatically resume cooking.
- When the cooking time is complete, the air fryer will beep. Carefully pull out the basket and transfer the cooked food to a plate.
Figure 5: Viewing Window in Use. This image demonstrates the transparent viewing window, allowing users to check on the cooking process of food inside the air fryer without needing to open the basket, thus maintaining consistent temperature.
Cooking Guide
The Gadgy Air Fryer is versatile and can cook a wide range of foods. Below are general guidelines; cooking times and temperatures may vary based on food quantity, size, and desired crispiness.
Figure 6: Effortless Cooking. This image showcases a variety of perfectly cooked meals, including fries, chicken wings, and vegetables, demonstrating the air fryer's capability to prepare diverse dishes with ease.
| Food Item | Quantity | Temperature | Time | Notes |
|---|---|---|---|---|
| Frozen Fries (thin) | 300-500g | 180°C | 15-20 min | Shake basket halfway. |
| Chicken Drumsticks | 4-6 pcs | 190°C | 20-25 min | Flip halfway. |
| Vegetables (mixed) | 300-400g | 170°C | 12-18 min | Toss with a little oil. |
| Fish Fillet | 2 pcs | 160°C | 10-15 min | Check for doneness. |
Figure 7: Infinite Recipes. This image displays a diverse spread of food items, from baked goods to fried chicken and fresh vegetables, illustrating the wide range of healthy meals and snacks that can be prepared with the air fryer.
Cleaning and Maintenance
Regular cleaning of your Gadgy Air Fryer will ensure its longevity and optimal performance.
Cleaning After Each Use:
- Unplug the air fryer and allow it to cool down completely before cleaning.
- Wipe the exterior with a damp cloth. Do not use abrasive cleaners.
- Remove the frying basket and crisper plate. Wash them with hot water, dish soap, and a non-abrasive sponge. The crisper plate is dishwasher-safe.
- For stubborn food residue, soak the basket and plate in warm, soapy water for about 10 minutes.
- Clean the interior of the appliance with a non-abrasive sponge and warm water.
- Ensure all parts are completely dry before storing or next use.
Note: The non-stick coating on the basket and crisper plate prevents food from sticking and makes cleaning easier. Avoid using metal utensils or abrasive cleaning materials that could damage the coating.
Troubleshooting
If you encounter any issues with your air fryer, please refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Not plugged in; Power button not pressed; Basket not fully inserted. | Ensure plug is securely in outlet; Press the Power button; Push basket firmly until it clicks. |
| Food is not cooked evenly. | Basket overloaded; Food not shaken/flipped. | Cook in smaller batches; Shake or flip food halfway through cooking. |
| White smoke coming from appliance. | Grease from previous use; High-fat ingredients. | Clean basket and crisper plate thoroughly; Drain excess fat from ingredients. |
| Food is not crispy. | Too much moisture; Not enough oil (for certain foods); Temperature too low. | Pat food dry before cooking; Lightly coat with oil; Increase temperature or cooking time. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Gadgy |
| Model Number | GAD-AFR-BLA-005-001-001 |
| Capacity | 5 Liters |
| Power | 1400W |
| Temperature Range | 80°C - 200°C |
| Control Type | Digital Touchscreen |
| Special Features | Viewing Window, Non-stick Coating, Timer, 7 Preset Programs |
| Dimensions (L x W x H) | 31.5 x 25 x 30.5 cm (approx.) |
| Weight | 3 Kilograms |
| Material | Metal |
Figure 8: Product Dimensions. This diagram visually represents the key dimensions of the Gadgy Air Fryer, indicating its width (25cm), height (30cm), and 5-liter capacity, providing a clear understanding of its size.
Warranty and Support
Gadgy products are manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Gadgy website.
If you have any questions, require technical support, or need assistance with your product, please contact Gadgy Customer Service.
- Website: www.gadgy.com (Example, replace with actual if available)
- Email: support@gadgy.com (Example, replace with actual if available)
