1. Introduction and Product Overview
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your WACASA 13x24 FT Portable Garage, Model BY015. This heavy-duty carport is designed to provide superior protection for your vehicles, including RVs, trucks, and boats, from various weather conditions such as wind, rain, hail, and snow. Its robust A-frame steel structure and durable cover ensure long-term reliability and secure outdoor storage.

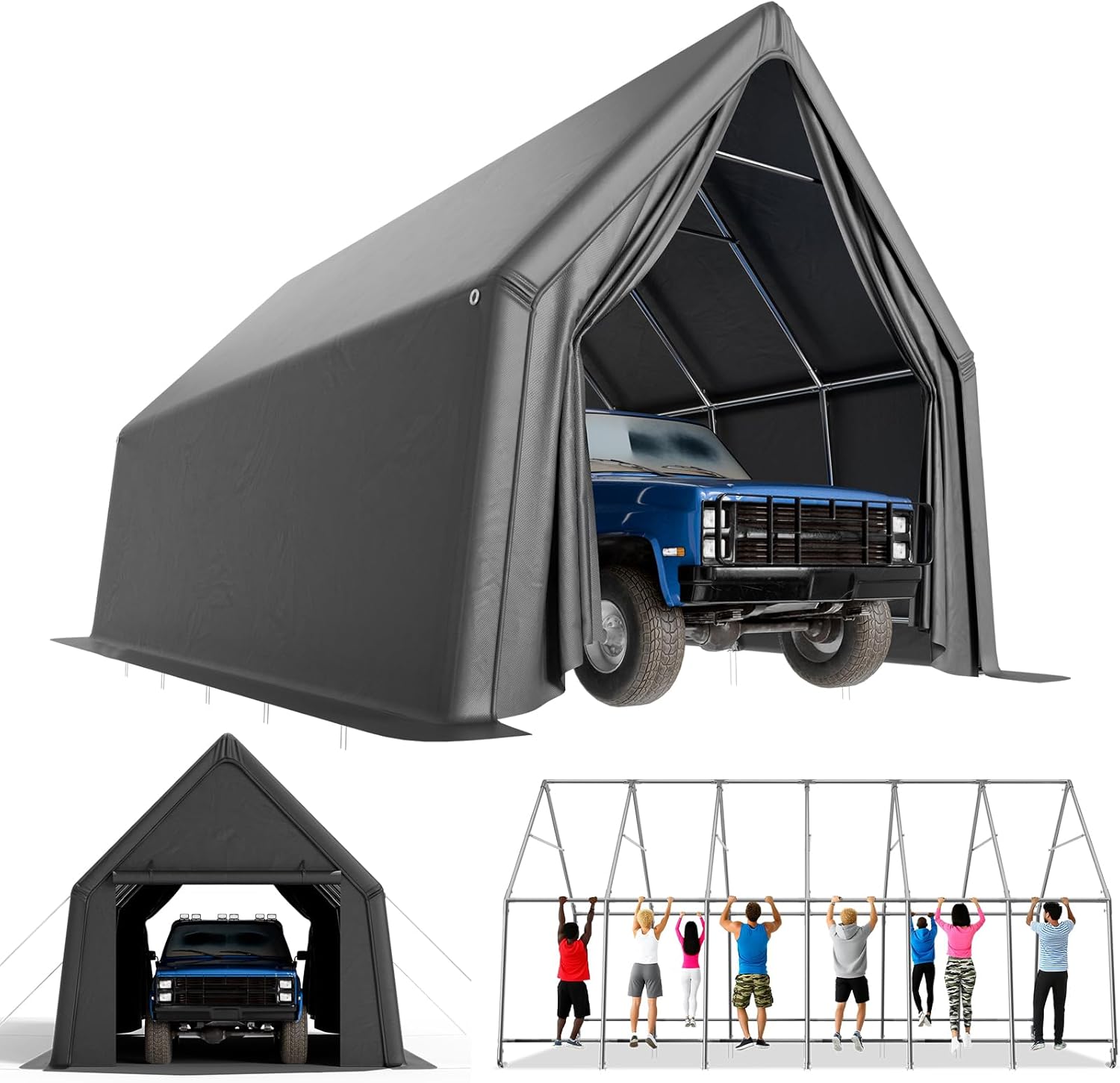

Figure 1.1: The WACASA 13x24 FT Portable Garage, showcasing its spacious interior and A-frame design.
2. Safety Information
Important Safety Precautions:
- Always secure the carport to the ground using the provided ratchet straps and windproof ropes, especially in windy conditions.
- Follow the assembly instructions carefully to ensure the safety and stability of the structure.
- Do not use the carport in thunderstorms or during heavy snowfall. Excessive snow accumulation should be cleared promptly to prevent structural damage.
- Ensure the installation site is level and clear of obstructions.
- Keep children and pets away from the assembly area.
3. Setup and Assembly
Assembly of the WACASA Portable Garage typically requires two people and can be completed within 3-5 hours. Ensure all components are present before beginning. A detailed step-by-step guide is included in the packaging. The following provides a general overview and key considerations:
- Site Preparation: Select a level construction surface. The carport is suitable for various ground types including muddy ground, loose soil, sandy soil, and mixed grassland, provided proper anchoring is performed.
- Frame Assembly: Construct the reinforced steel A-frame using the provided double-sided galvanized steel tubing (1.8" diameter, 1.2mm/12 Gauge). The frame includes 7 top horizontal and 12 base vertical crossbeams for enhanced stability.
- Cover Installation: Carefully unroll and position the 200D ripstop PE cover over the assembled frame. Ensure the heat-sealed seams are properly aligned.
- Securing the Structure: Utilize the 16 heavy-duty steel anchor kits and additional ropes to firmly secure the carport to the ground. This is crucial for stability, especially in high winds.
Figure 3.1: Illustration of the reinforced steel frame, highlighting its robust construction.
Figure 3.2: Physical dimensions of the carport and recommended ground conditions for installation.
4. Operating Instructions
The WACASA Portable Garage is designed for straightforward use as a protective shelter for vehicles and other outdoor items. Its primary function is to shield contents from environmental elements.
- Vehicle Parking: Drive your vehicle, RV, or boat into the carport. The 13x24ft clearance is ample for full-size trucks like a Ford F-350 or Chevy Silverado 3500.
- Weather Protection: The 200D ripstop PE cover is IPX6 waterproof and UPF50+ UV resistant, providing reliable protection against rain, sun, and other elements.
- Access: The carport features a double zipper door for easy entry and exit.
Figure 4.1: Demonstrating the spacious interior, accommodating large vehicles.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your WACASA Portable Garage.
- Regular Inspection: Periodically check all connections, ropes, and anchor points for tightness and wear. Re-tighten as necessary.
- Cover Cleaning: Clean the cover with mild soap and water as needed to remove dirt and debris. Avoid harsh chemicals that could damage the material.
- Snow Removal: In areas with heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive load on the frame. While designed for snow loads, proactive removal is recommended.
- Damage Check: Inspect the cover for any tears or punctures. Small damages can be repaired with appropriate patch kits to maintain waterproofing.
Figure 5.1: The carport demonstrating its resilience in snowy conditions, requiring snow load management.
6. Troubleshooting
This section addresses common issues you might encounter with your portable garage.
| Problem | Possible Cause | Solution |
|---|---|---|
| Carport feels unstable or sways in wind. | Anchors are loose or not properly installed; ropes are not taut. | Ensure all 16 anchor kits are fully engaged with the ground. Tighten all ropes and ratchet straps. Verify the installation site is level. |
| Water pooling on the roof. | Insufficient tension in the cover; improper frame assembly. | Re-tension the cover to ensure a tight fit. Check frame connections to ensure they are fully seated and assembled correctly according to the manual. |
| Tears or holes in the cover. | Abrasion from sharp objects; extreme weather damage. | For small tears, use a heavy-duty repair patch kit suitable for PE material. For large damages, contact customer support for replacement options. |
| Difficulty with zipper operation. | Dirt or debris in zipper teeth; misalignment. | Clean zipper teeth with a brush. Apply a silicone-based lubricant. Ensure the cover is not under excessive tension causing misalignment. |
If you encounter issues not listed here or require further assistance, please contact WACASA customer support.
7. Specifications
Detailed technical specifications for the WACASA 13x24 FT Portable Garage, Model BY015.
| Brand | WACASA |
| Model Number | BY015 |
| Product Dimensions (L x W x H) | 283"L x 137.76"W x 157.2"H (approx. 23.6 FT L x 11.5 FT W x 13.1 FT H) |
| Frame Material | Alloy Steel (Double-sided galvanized steel tubing, 1.8" diameter, 1.2mm/12 Gauge) |
| Cover Material | 200D Ripstop PE (Polyethylene) |
| Water Resistance Level | IPX6 Waterproof |
| UV Protection | UPF50+ (93-95% Ultraviolet Light Protection) |
| Color | Black |
| Assembly Required | Yes |
| Recommended Uses | Anti-Snow Car Canopy, Temporary Shelter, Outdoor Storage, Vehicle Storage |
8. Warranty and Customer Support
WACASA is committed to providing high-quality products and excellent customer service.
- Warranty Information: For specific warranty terms and conditions, please refer to the warranty card included with your product packaging or contact WACASA customer support directly.
- Part Replacements: Our dedicated customer support team is ready to assist with prompt part replacements if needed.
- Contact Support: If you have any questions, concerns, or require assistance with your WACASA Portable Garage, please visit the official WACASA store on Amazon or contact their customer service department through the contact information provided in your product documentation.
9. Official Product Videos
Based on the provided product data, no official seller-created videos were available for embedding in this manual.
