HOOBRO Tree-Shaped Bookshelf Model WW18SJ01G1 Instruction Manual

1. Introduction

Thank you for choosing the HOOBRO Tree-Shaped Bookshelf. This manual provides essential information for the safe assembly, operation, and maintenance of your new bookshelf. Please read these instructions carefully before beginning assembly and retain them for future reference.

Key Features:

• Unique Design: This bookshelf features a distinctive T-shaped design, optimizing vertical space. Its natural, dendritic structure and open design allow for easy access to items.
• Stable and Secure: Constructed from quality particleboard and a robust metal frame, this tree-shaped bookshelf is designed for stability and durability. An exclusive triangular support at the base and an anti-tip kit provide additional security.
• Multi-functional Storage: The compact 9-tier design is versatile for displaying books, magazines, CDs, videos, or other collectibles and decorations in your living room, office, or bedroom.
• Additional Privacy: The semi-enclosed bottom frame perfectly accommodates a drawer, offering private and secure storage space. The drawer can be fully removed and includes a back panel to prevent items from falling out.
• Easy Assembly: All parts are clearly labeled, and the package includes an accessory bag and detailed assembly instructions for a straightforward setup process.

2. Important Safety Information

To ensure safe use of your HOOBRO bookshelf, please observe the following precautions:

• Anti-Tip Kit: It is mandatory to securely fasten the product to the wall using the provided anti-tip kit before use. This prevents accidental tipping, especially in households with children or pets.
• Weight Distribution: Distribute weight evenly across all shelves. Avoid placing heavy items exclusively on upper shelves, which could affect stability.
• Maximum Load Capacity: Do not exceed the maximum load capacity of 27 kg (60 lbs) for the entire unit. Overloading can compromise structural integrity.
• Placement: Place the bookshelf on a flat, level, and stable surface. Uneven surfaces can lead to instability.
• Children Safety: Do not allow children to climb on or play with the bookshelf.
• Assembly: Ensure all screws and fasteners are tightened securely during assembly. Periodically check and re-tighten as needed.

3. Package Contents

Before assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer service.

• Bookshelf panels (various shapes and sizes)
• Metal frame components
• Drawer components
• Accessory bag (screws, dowels, anti-tip kit, screwdriver, etc.)
• Assembly instructions manual

Figure 1: Bookshelf dimensions and components overview. The main unit is 135cm (53") high, 34cm (13.4") wide, and 18.5cm (7.3") deep. The drawer is 31cm (12.2") wide, 16.7cm (6.6") deep, and 14.6cm (5.7") high.

4. Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.

1. Prepare Components: Unpack all parts and lay them out. Identify each part using the labels and the parts list in the included instruction manual.
2. Assemble the Main Frame: Begin by connecting the vertical support beams with the horizontal shelf panels. Ensure the orientation of each panel matches the diagrams to form the tree-shaped structure.

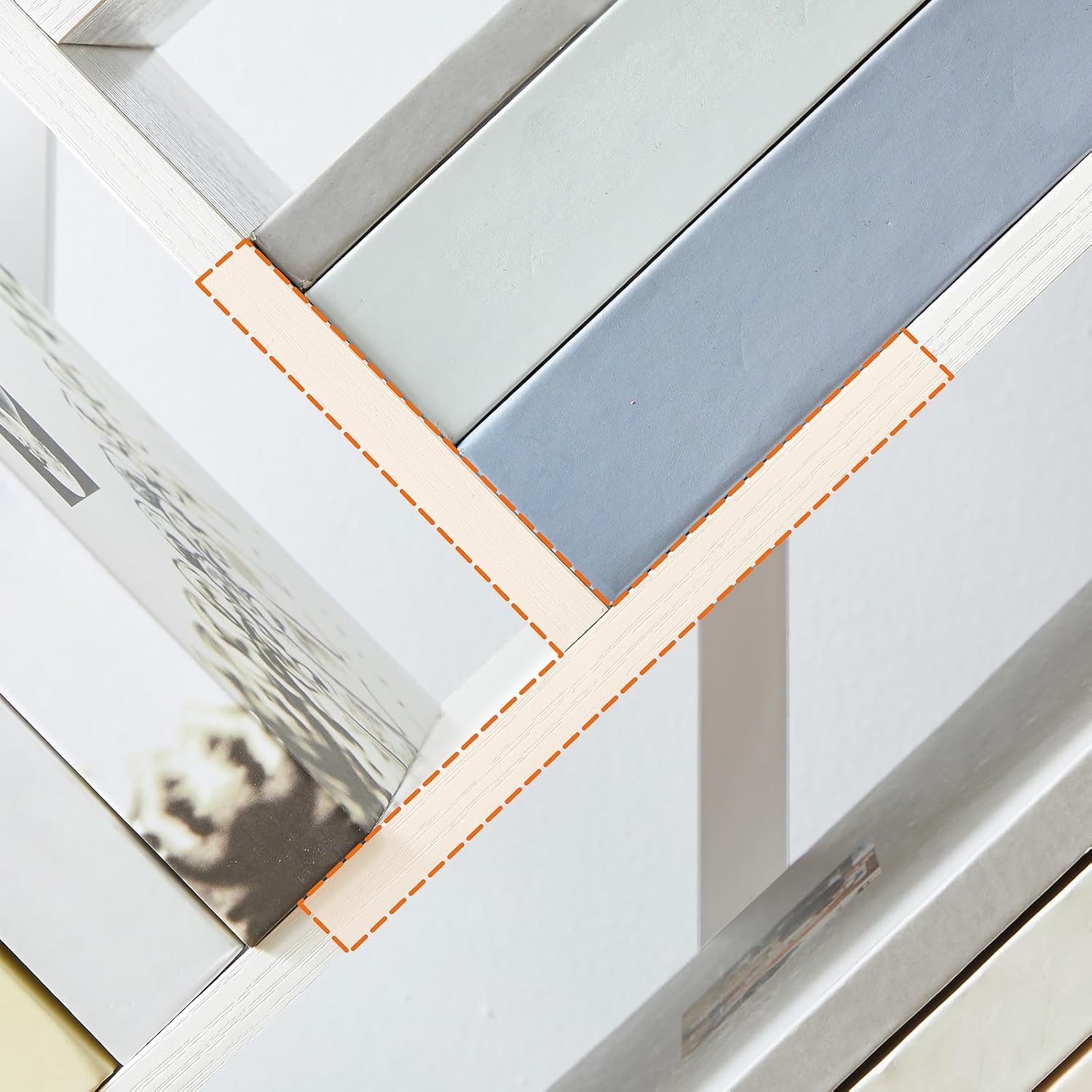

   Figure 2: Detail of the T-shaped shelf connection.

3. Assemble the Drawer Unit: Construct the bottom drawer unit according to the specific instructions for the drawer panels. Insert the drawer slides if applicable.

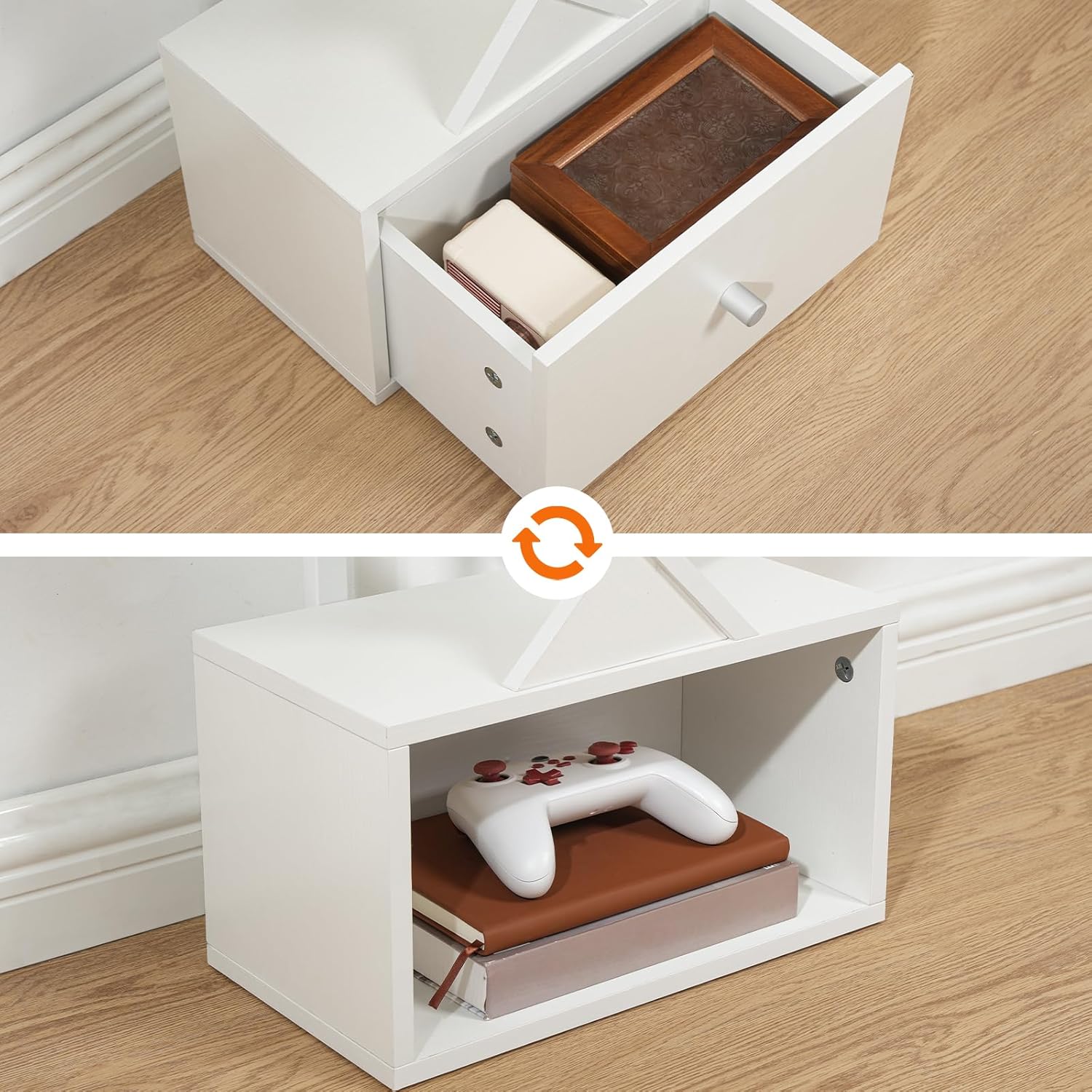

   Figure 3: Assembly and functionality of the bottom drawer.

4. Attach the Drawer Unit to the Bookshelf: Securely attach the assembled drawer unit to the base of the tree-shaped bookshelf structure using the designated fasteners.
5. Install the Anti-Tip Kit: This is a critical safety step. Locate the anti-tip kit components. Attach one bracket to the top rear of the bookshelf and the other to a solid wall stud or using appropriate wall anchors. Connect them with the strap or cable provided.


   Figure 4: Anti-tip kit installation diagram.

6. Final Check: Once assembled, gently shake the bookshelf to ensure all connections are secure and the unit is stable. Re-tighten any loose screws.

Figure 5: The HOOBRO Tree-Shaped Bookshelf after complete assembly.

5. Operating Instructions

Your HOOBRO Tree-Shaped Bookshelf is designed for organizing and displaying various items. Follow these guidelines for optimal use:

• Loading Shelves: Place books, magazines, CDs, or decorative items onto the T-shaped shelves. Distribute items evenly to maintain balance and stability.
• Using the Drawer: The bottom drawer provides enclosed storage for smaller items, offering privacy. It can be fully removed if an open storage cubby is preferred.
• Capacity: Be mindful of the maximum weight capacity per shelf and for the entire unit to prevent damage or instability.

6. Care and Maintenance

Proper care will extend the life and appearance of your bookshelf:

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Regular Checks: Periodically inspect all fasteners and connections to ensure they remain tight. Re-tighten if necessary.
• Avoid Moisture: Keep the bookshelf away from excessive moisture or direct sunlight to prevent warping or discoloration.

7. Troubleshooting

If you encounter any issues with your bookshelf, refer to the following common solutions:

• Bookshelf is Wobbly:
  • Ensure all screws are fully tightened.
  • Verify the bookshelf is on a level surface. Adjust if needed.
  • Confirm the anti-tip kit is properly installed and secured to the wall.
• Missing Parts: If any parts were missing upon unboxing, please contact HOOBRO customer support immediately for assistance.
• Difficulty Assembling: Review the assembly instructions carefully. Ensure all parts are oriented correctly before tightening screws. Do not force parts together.

8. Specifications

9. Warranty and Customer Support

HOOBRO is committed to providing high-quality products. For any questions, concerns, or issues regarding your bookshelf, please contact HOOBRO customer support. Refer to your purchase documentation for specific warranty details and contact information.

Contact Information: Please visit the official HOOBRO website or refer to your purchase platform for the most up-to-date customer service contact details.
