1. Introduction
Thank you for choosing the Chic Muse 20-Inch Shutter Exhaust Fan. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new exhaust fan. Please read this manual thoroughly before installation and use, and retain it for future reference.
This industrial-grade exhaust fan is designed to provide powerful and efficient ventilation, effectively removing heat, moisture, dust, and odors from various environments. Its durable construction and automatic shutter design ensure reliable performance in residential, commercial, industrial, and agricultural settings.

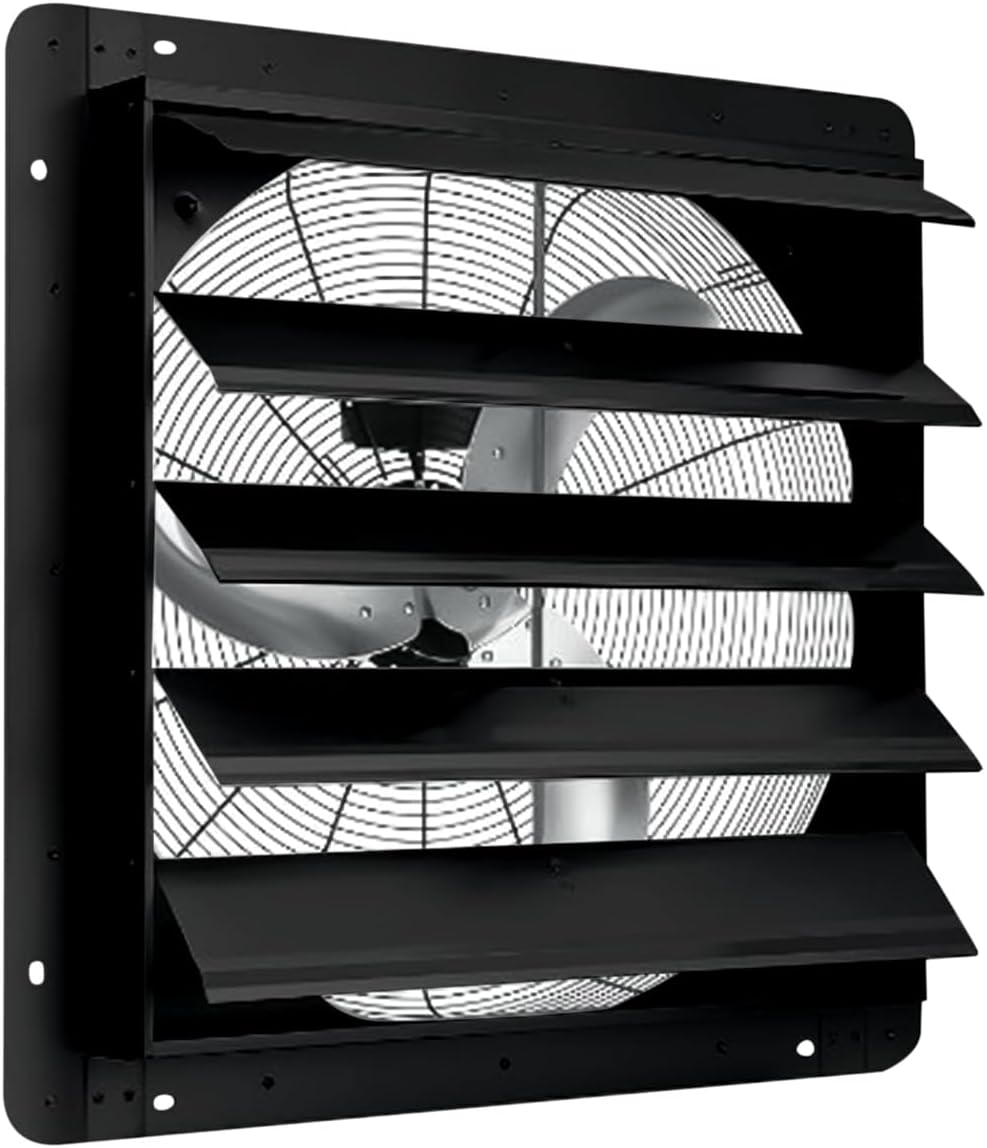

Image 1: Chic Muse 20-Inch Shutter Exhaust Fan. This image displays the front view of the black 20-inch shutter exhaust fan with its automatic louvers closed. The fan blades are visible behind the louvers.
2. Safety Instructions
To reduce the risk of fire, electric shock, or injury to persons, observe the following:
- Read all instructions: Familiarize yourself with the fan's operation and safety warnings before use.
- Electrical Safety: Ensure the power supply matches the fan's requirements (120V, 60Hz). All electrical wiring should be performed by a qualified electrician and comply with local electrical codes. Disconnect power before servicing or cleaning.
- Mounting: Mount the fan securely to a structurally sound wall or window opening. Ensure the mounting surface can support the fan's weight.
- Moving Parts: Keep hands, clothing, and other objects away from moving parts during operation to prevent injury.
- Location: Do not use this fan in areas where flammable or explosive materials are present. Ensure adequate clearance around the fan for proper airflow and maintenance.
- Children and Pets: Keep children and pets away from the fan during operation.
- Damage: Do not operate the fan with a damaged cord or plug, or if the fan malfunctions or has been dropped or damaged in any manner.
3. Package Contents
Upon opening the package, please verify that all components are present and undamaged:
- 1 x Chic Muse 20-Inch Shutter Exhaust Fan (Model PIS_0130spu)
- 1 x User Manual (this document)
Note: Mounting hardware (screws, anchors, wiring connectors) may not be included and should be sourced separately based on your specific installation requirements.
4. Specifications
| Feature | Detail |
|---|---|
| Model | PIS_0130spu |
| Size | 20 Inch |
| Air Volume | 3500 CFM (Cubic Feet Per Minute) |
| Speed | 1500 RPM (Rotations Per Minute) |
| Rated Voltage | AC 120V / 60Hz |
| Power Source | AC (Alternating Current) |
| Product Dimensions (Overall) | 23"D x 8.9"W x 23"H |
| Material | Aluminum Alloy (shutters, blades), Galvanized Sheet (frame) |
| Mounting Type | Wall Mount |
| Special Features | Inverter Compatible, Automatic Gravity Shutters, Corrosion-Resistant |
| Recommended Uses | Exhausting heat, moisture, dust, odors in attics, workshops, factories, warehouses, barns, greenhouses. |
Image 2: Specifications Diagram. This diagram illustrates the dimensions and key technical specifications of an exhaust fan. Please note that this image displays dimensions for a 24-inch model; refer to the table above for the correct 20-inch model specifications.
Image 3: Fan Component Details. This image provides a close-up view of the fan's components, including the 3 rust-proof aluminum blades, safety coated steel wire grille, and automatic gravity aluminum shutters.
5. Installation
The Chic Muse Shutter Exhaust Fan is designed for straightforward installation. It comes pre-assembled, eliminating the need for complex assembly steps.
- Prepare Opening: Create or identify a suitable wall or window opening that accommodates the fan's dimensions (approximately 23"D x 8.9"W x 23"H). Ensure the opening is square and provides sufficient clearance.
- Position Fan: Carefully place the fan into the prepared opening. Ensure the shutters face outwards for proper exhaust.
- Secure Mounting: Secure the fan to the wall or window frame using appropriate mounting hardware (not included). Ensure the fan is level and firmly attached to prevent vibration and noise during operation.
- Electrical Connection:
- WARNING: Disconnect power at the circuit breaker before performing any wiring.
- Connect the fan's electrical wiring to a dedicated 120V, 60Hz power supply circuit.
- All wiring must comply with national and local electrical codes. If you are unsure, consult a qualified electrician.
- Ensure all connections are secure and insulated.
- Remove Protective Film: Before first use, carefully remove any protective film from the fan's surfaces, especially the shutters and blades.
- Test Operation: Restore power and test the fan's operation. The automatic gravity shutters should open when the fan is on and close when it is off.
Image 4: Automatic Shutter Mechanism. This image shows the front and back of the fan's automatic gravity aluminum shutters, highlighting their design for weatherproofing and ease of operation.
6. Operation
Operating your Chic Muse Shutter Exhaust Fan is simple and efficient.
- Power On/Off: The fan is typically controlled by an external wall switch (not included) connected during installation. Flip the switch to the "ON" position to start the fan.
- Automatic Shutters: When the fan is powered on, the automatic gravity shutters will open, allowing air to be exhausted. When the fan is powered off, the shutters will automatically close, providing a barrier against outdoor elements and helping to preserve indoor temperatures.
- Ventilation: The fan will begin to draw air from the indoor space and expel it outdoors, effectively removing heat, humidity, dust, and odors.
- Continuous Operation: For optimal ventilation, especially in high-humidity or high-temperature environments, continuous operation may be beneficial.
Image 5: Powerful Exhaust Airflow. This image visually represents the fan's powerful exhaust capability, demonstrating how it quickly removes indoor air to maintain freshness and unobstructed ventilation.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your exhaust fan.
- WARNING: Always disconnect power to the fan at the circuit breaker before performing any maintenance or cleaning.
- Cleaning Shutters and Blades: Periodically inspect and clean the aluminum shutters and fan blades. Dust and debris can accumulate, reducing airflow efficiency. Use a soft cloth or brush to gently remove buildup. For stubborn dirt, a mild detergent solution can be used, followed by thorough drying.
- Inspect Grille: Check the safety coated steel wire grille for any damage or obstructions. Ensure it is securely in place.
- Check for Obstructions: Ensure there are no foreign objects obstructing the fan blades or the shutter mechanism.
- Corrosion Resistance: The fan is constructed with corrosion-resistant materials. However, regular inspection for any signs of wear or damage is recommended, especially in harsh environments.
- Motor: The motor is designed for maintenance-free operation. Do not attempt to lubricate or disassemble the motor.
Image 6: Durable Fan Construction. This image highlights the fan's waterproof aluminum alloy construction, emphasizing its heavy-duty performance and resistance to rust and corrosion for long-lasting use.
8. Troubleshooting
If you encounter issues with your Chic Muse Shutter Exhaust Fan, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power supply. Faulty wiring. Overload protection tripped. | Check if the wall switch is ON. Verify power at the circuit breaker. Inspect wiring connections (consult electrician if needed). Reset circuit breaker if tripped. |
| Reduced airflow. | Dirty blades or shutters. Obstruction in airflow path. Incorrect fan size for space. | Clean fan blades and shutters (refer to Maintenance section). Remove any obstructions. Ensure proper sealing around the fan frame. |
| Unusual noise or vibration. | Loose mounting. Debris in fan blades. Damaged blades. | Ensure the fan is securely mounted. Disconnect power and remove any debris from blades. Inspect blades for damage; replace if necessary (contact support). |
| Shutters do not open/close properly. | Obstruction in shutter mechanism. Dirt buildup on shutters. Damaged shutter mechanism. | Disconnect power and check for obstructions. Clean shutters thoroughly. If mechanism is damaged, contact support. |
9. Warranty and Support
Chic Muse products are manufactured to high-quality standards. For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you require technical assistance or have questions regarding your Shutter Exhaust Fan, please contact Chic Muse customer support.
You can find more information about Chic Muse products and support options by visiting the official Chic Muse store: Chic Muse Store on Amazon.
