FIXED UP FINDS MaPRO 8212488RC Dishwasher Installation Kit User Manual

1. Introduction

This manual provides detailed instructions for the proper installation and use of the FIXED UP FINDS MaPRO 8212488RC Dishwasher Installation Kit. This kit is designed to facilitate the secure and efficient connection of your dishwasher to the water supply and electrical outlet. Please read all instructions carefully before beginning installation to ensure safety and optimal performance.

2. Safety Information

WARNING: Risk of Electric Shock, Fire, or Water Damage.

• Always disconnect power to the dishwasher and water supply before beginning installation.
• Installation must be performed by a qualified technician or plumber in accordance with all local codes and ordinances.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Inspect all components for damage before installation. Do not use damaged parts.
• Ensure all connections are tight to prevent leaks.

3. Package Contents

Verify that all components listed below are present in your kit:

• Braided Stainless Steel Water Supply Line
• Electrical Power Cord with 3-prong plug
• Brass Compression Tee Fitting
• Hose Clamp
• Wire Nuts (3)
• Rubber Washer/Gasket

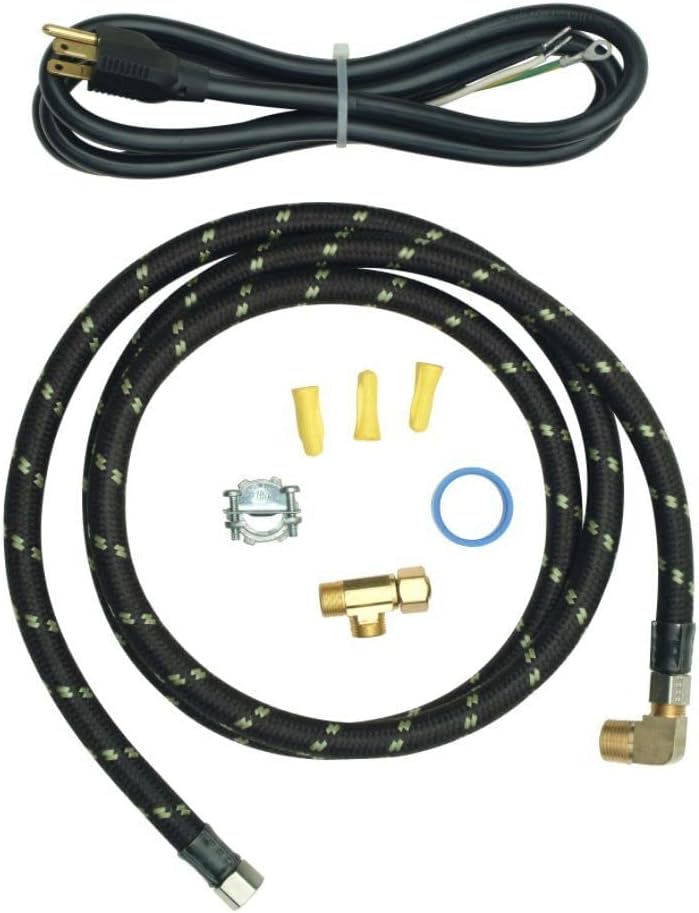

Image 1: All components included in the MaPRO 8212488RC Dishwasher Installation Kit. This includes the water supply hose, electrical cord, brass T-fitting, hose clamp, wire nuts, and a blue rubber washer.

4. Setup and Preparation

1. Turn off Power: Locate the circuit breaker for the dishwasher and turn it off. Verify power is off using a voltage tester.
2. Turn off Water Supply: Locate the main water shut-off valve for your home or the dedicated shut-off valve for the kitchen sink area. Turn it off.
3. Clear Area: Ensure the area around the dishwasher installation site is clear and accessible.
4. Gather Tools: You will need basic plumbing tools (wrenches, pliers), electrical tools (wire strippers, screwdriver), and a bucket for any residual water.

5. Installation Instructions

5.1. Electrical Connection

1. Locate the electrical junction box on the dishwasher. Remove the cover.
2. Feed the electrical power cord from the kit through the strain relief opening on the junction box.
3. Connect the wires:
   • Black wire from cord to Black wire from dishwasher (using a wire nut).
   • White wire from cord to White wire from dishwasher (using a wire nut).
   • Green (ground) wire from cord to Green (ground) screw on the dishwasher chassis.
4. Secure the wire nuts tightly. Ensure no bare wire is exposed.
5. Replace the junction box cover.

5.2. Water Supply Connection

1. Locate the hot water supply line under the kitchen sink.
2. Install the brass compression tee fitting onto the hot water supply line. Ensure the rubber washer/gasket is properly seated to prevent leaks.
3. Connect one end of the braided stainless steel water supply line to the dishwasher's water inlet valve. Hand-tighten, then tighten an additional 1/4 to 1/2 turn with a wrench. Do not overtighten.
4. Connect the other end of the braided stainless steel water supply line to the open port on the brass tee fitting. Hand-tighten, then tighten an additional 1/4 to 1/2 turn with a wrench.

5.3. Drain Hose Connection (If applicable, using existing drain hose)

This kit primarily provides electrical and water supply connections. The dishwasher's drain hose typically connects to an air gap or a garbage disposal inlet. Ensure the drain hose is properly secured with a hose clamp (if provided or existing) and forms a high loop to prevent backflow.

• Connect the dishwasher drain hose to the garbage disposal inlet or air gap.
• Secure with the provided hose clamp.
• Ensure a high loop is formed in the drain hose to prevent dirty water from flowing back into the dishwasher.

5.4. Final Steps

1. Carefully slide the dishwasher into its cabinet opening.
2. Secure the dishwasher to the countertop or cabinet sides using the mounting brackets provided with your dishwasher.
3. Restore Water Supply: Slowly turn on the main water supply valve. Check all water connections for leaks. Tighten any leaking connections.
4. Restore Power: Turn on the circuit breaker for the dishwasher.
5. Run a short cycle on the dishwasher and check for any leaks or operational issues.

6. Maintenance

The components of this installation kit are designed for long-term reliability with minimal maintenance. However, periodic checks are recommended:

• Inspect for Leaks: Periodically check the water supply line connections under the sink for any signs of leaks or drips.
• Check Power Cord: Ensure the power cord is not pinched or damaged.
• Clean Connections: If you notice any mineral buildup around water connections, gently clean them.

7. Troubleshooting

If you encounter issues after installation, consider the following common problems and solutions:

• No Power to Dishwasher:
  • Check if the circuit breaker is ON.
  • Ensure the power cord is securely plugged into the outlet.
  • Verify electrical connections inside the dishwasher junction box are secure.
• Water Leakage:
  • Turn off water supply immediately.
  • Inspect all water supply line connections for tightness. Tighten gently if loose.
  • Ensure the rubber washer/gasket is correctly seated in the brass tee fitting.
• Dishwasher Not Filling with Water:
  • Ensure the main water supply valve is fully open.
  • Check for kinks in the water supply line.

If problems persist, consult a qualified appliance technician or plumber.

8. Specifications

9. Warranty and Support

For warranty information or technical support regarding your FIXED UP FINDS MaPRO 8212488RC Dishwasher Installation Kit, please refer to the original product packaging or contact FIXED UP FINDS customer service directly. Keep your purchase receipt as proof of purchase.

Note: This manual provides general installation guidelines. Always refer to your specific dishwasher's installation manual for model-specific instructions and safety precautions.
