1. Introduction
Thank you for choosing the Oudbo Molartte Fully Frameless Wall Hinge Shower Door. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new shower door. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Image: The Oudbo Molartte Fully Frameless Wall Hinge Shower Door, showcasing its clear glass and brushed nickel hardware in a bathroom setting.
2. Safety Information
- Always wear safety glasses during installation.
- Handle glass panels with extreme care. Tempered glass is strong but can shatter if struck at the edges.
- This product is heavy. Two or more people are required for safe handling and installation of glass panels.
- Ensure the wall structure can support the weight of the shower door. Reinforcement may be necessary.
- Use appropriate tools and hardware for installation. Do not overtighten screws.
- Ensure all seals are properly installed to prevent water leakage.
- If you are unsure about any part of the installation process, consult a qualified professional.
3. Product Features
-
GlassShield Coating Technology: The glass panels are treated with a proprietary GlassShield coating. This technology helps repel water, soap scum, and grime, significantly reducing cleaning time by up to 90%.
Image: A visual comparison demonstrating the effectiveness of GlassShield Coating Technology, showing water beading on the treated glass surface.
- Tempered Safety Glass: Features 5/16" (8mm) thick clear tempered glass, certified to ASNIZ97.1 standards for safety and durability.
-
180-Degree Rotating Hinges: High-quality hinges allow the door to rotate 180 degrees, enabling it to swing both inward and outward. This design provides flexibility and can help save space in smaller bathrooms.
Image: An overhead view illustrating the 180-degree rotation capability of the shower door hinges, allowing the door to open both inwards and outwards.
-
Reversible Installation: The door is designed for reversible installation, allowing for either a left-hand or right-hand opening configuration to suit your bathroom layout.
Image: Diagrams demonstrating the reversible design of the shower door, showing configurations for both left-hand and right-hand opening.
- Durable Handle: The door handle is constructed from SUS304 stainless steel, providing excellent corrosion and rust resistance for long-lasting performance.
-
Waterproof Design: Engineered with a waterproof design to minimize water leakage outside the shower enclosure.
Image: A cross-section view highlighting the waterproof design elements at the base of the shower door, intended to prevent water egress.
4. Package Contents
Please verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact customer support immediately.
Image: An exploded diagram showing all components of the shower door kit, accompanied by a numbered packing list for verification.
Packing List:
- 1. Hinge: X2
- 2. Gasket-A: X3
- 3. Door Panel: X1
- 4. Handle: X1
- 5. Gasket-B: X1
- 6. Drip Rail: X1
- 7. Bottom Bracket: X1
- 8. Gasket-C: X1
- 9. Fixed Panel: X1
- 10. Gasket-D: X1
- 11. Wall Jamb: X1
5. Setup and Installation
Installation of this shower door requires careful measurement and adherence to instructions. While designed for ease of installation, professional assistance is recommended if you are not experienced with such projects.
Key Installation Considerations:
- Wall Preparation: Ensure the wall surface is plumb, level, and capable of securely holding the door's weight. Reinforcement may be required.
- Measurement: Accurately measure your shower opening. This model offers a 1-inch adjustment range (47-48 inches) for fitting.
- Hardware: The kit includes anti-rust stainless steel hardware. It is crucial to use appropriate fasteners that anchor securely into your wall studs. Some users have reported needing longer screws for optimal security, especially when attaching to studs.
- Sealing: Proper application of silicone sealant is critical to prevent leaks. Follow the sealant manufacturer's instructions for application and curing time.

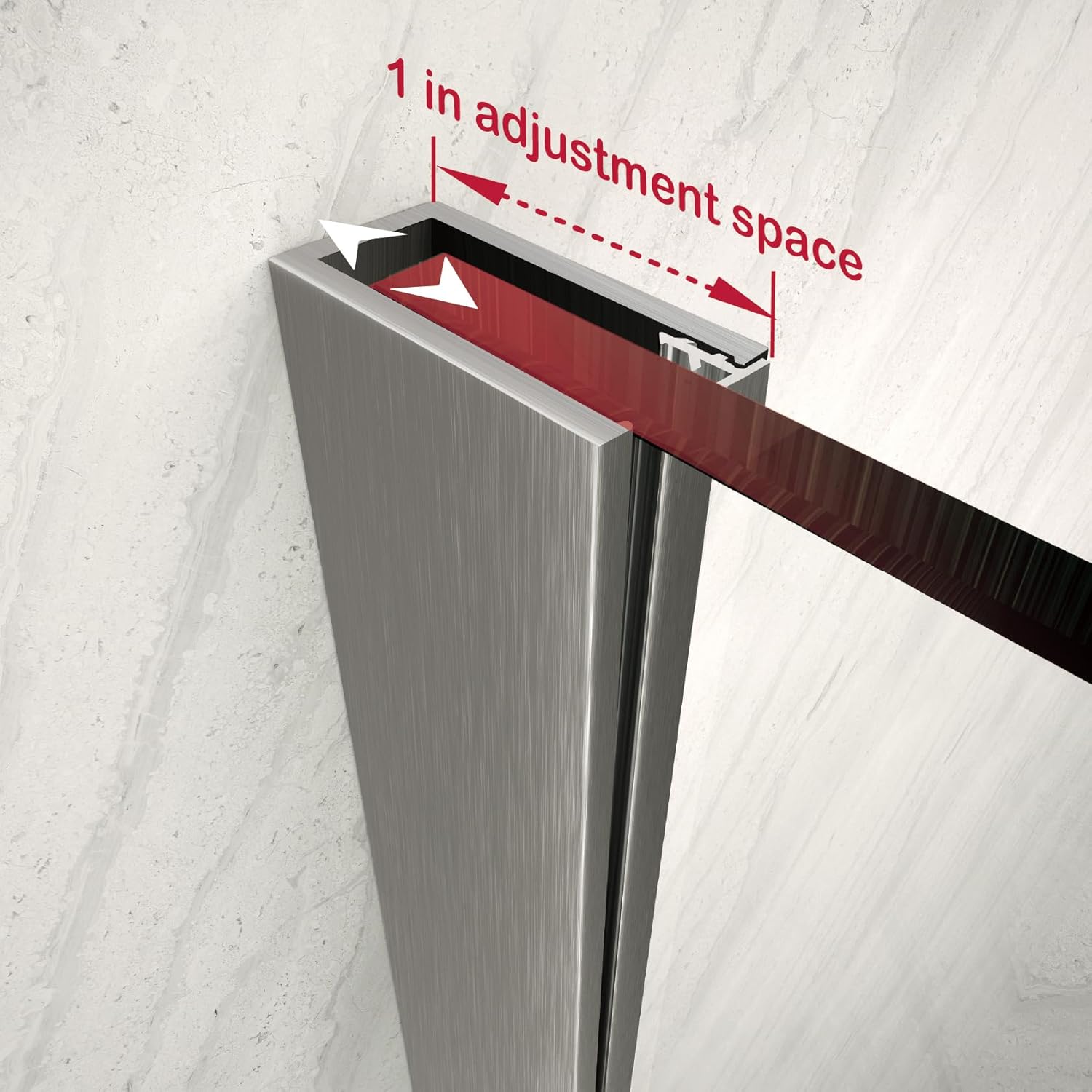

Image: A detailed view illustrating the 1-inch adjustment space provided for precise fitting of the shower door during installation.
Detailed step-by-step installation instructions are included with your product packaging. Please refer to those documents for specific guidance on each step.
6. Operating Instructions
The Oudbo Molartte shower door is designed for simple operation. Due to its 180-degree rotating hinges, the door can be opened either inward or outward, depending on your preference and bathroom layout. Gently push or pull the handle to open and close the door. Avoid forcing the door or allowing it to slam shut to prevent damage to the glass or hinges.
7. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and appearance of your shower door.
- Glass Cleaning: Thanks to the GlassShield coating, cleaning is simplified. For daily maintenance, simply wipe down the glass with a soft cloth or squeegee after each use to remove water spots. For deeper cleaning, use a mild, non-abrasive glass cleaner. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can damage the coating and glass surface.
- Hardware Cleaning: Clean the brushed nickel hardware with a soft, damp cloth. Do not use abrasive cleaners, ammonia-based products, or bleach, as these can damage the finish.
- Seals and Gaskets: Periodically inspect the seals and gaskets for wear or damage. Replace them if necessary to maintain a watertight enclosure.
- Hinges: Check hinges periodically for tightness. If they become loose, gently tighten the screws. Do not overtighten.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leakage from door edges. | Improperly installed seals/gaskets, insufficient sealant, or door not closing properly. | Inspect and adjust seals/gaskets. Reapply silicone sealant if necessary. Ensure door closes completely. |
| Door does not close or open smoothly. | Loose or misaligned hinges, debris in hinges, or door not plumb. | Check hinge alignment and tightness. Clean hinges. Verify door frame is plumb. |
| Door feels unstable or wobbly. | Loose wall mounts or inadequate wall support. | Ensure all wall mounting screws are securely fastened into studs. Consider professional wall reinforcement if needed. |
| Screws pulling out from the wall. | Screws too short or not anchored into studs. | Use longer, appropriate screws that can securely anchor into wall studs. Professional installation is recommended. |
9. Specifications
Image: A diagram illustrating the overall dimensions of the shower door, including width and height.
| Brand | Oudbo Molartte |
| Model Number | TMW4872-MB |
| Dimensions (W x H) | 47"-48" x 72" |
| Glass Thickness | 5/16" (8mm) |
| Glass Type | Tempered Safety Glass (ASNIZ97.1 Certified) |
| Material | Aluminum, Stainless Steel (SUS304), Tempered Glass |
| Finish | Brushed Nickel |
| Item Weight | 100 Pounds |
| Assembly Required | Yes |
10. Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact Oudbo Molartte customer service. Refer to the contact information provided with your purchase documentation or visit the official Oudbo Molartte website.
