Introduction
This manual provides guidance for the identification and installation of the Generic replacement drive hub for Kenmore washer model 110.28002012. This component is crucial for the proper agitation and spinning functions of your washing machine. Please read all instructions carefully before proceeding with installation.
Safety Warning: Always disconnect power to the appliance before performing any service or maintenance. If you are unsure about any step, consult a qualified appliance technician.
Product Overview
The drive hub is a critical component that connects the washer's transmission to the agitator or wash plate, enabling the washing action. This replacement part is designed to be compatible with Kenmore washer model 110.28002012.

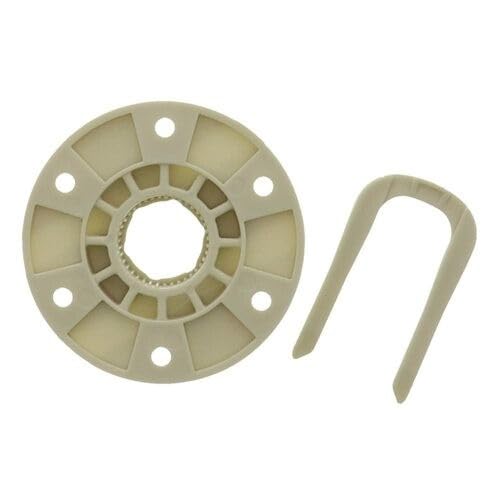

Figure 1: View of the drive hub and accompanying U-shaped clip. The drive hub is a circular component with multiple holes and a central splined opening, typically beige or off-white in color. The clip is used for securing the hub.

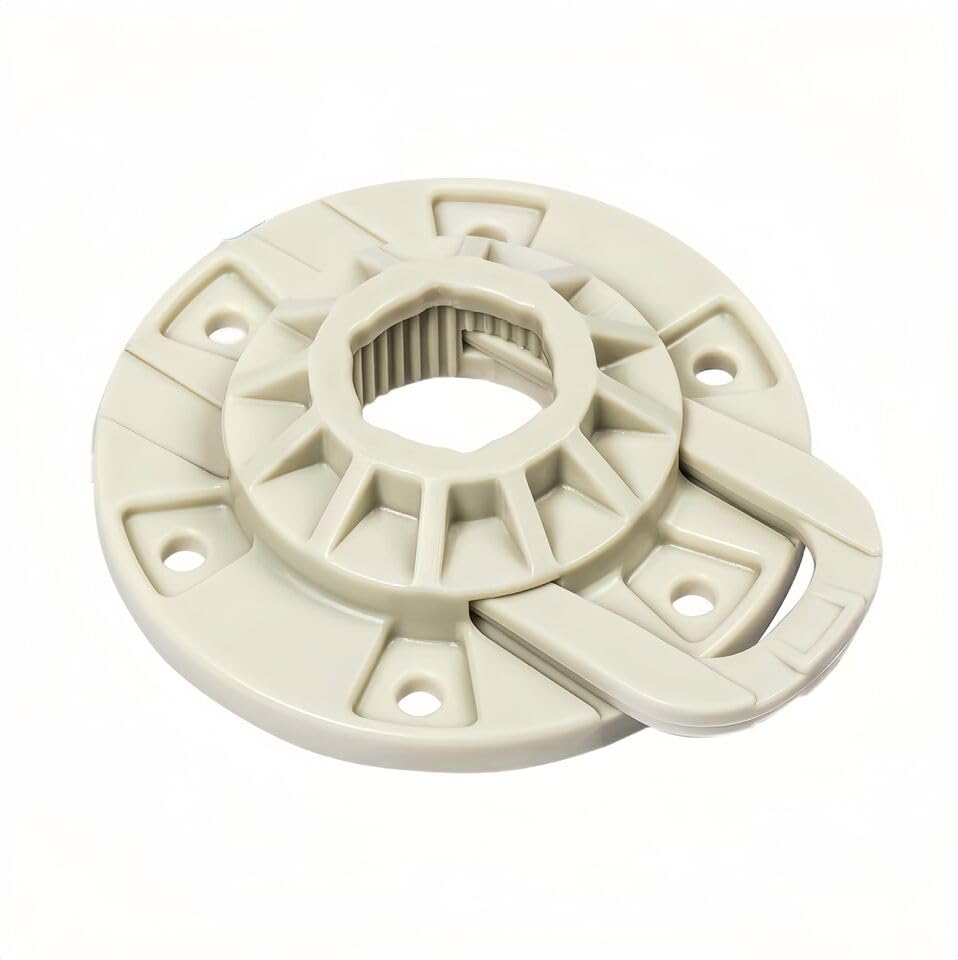

Figure 2: Angled view of the drive hub, highlighting the internal splined structure. This splined center engages with the washer's transmission shaft.
Installation
Replacing a washer drive hub typically involves accessing the agitator or wash plate area. The following steps are general guidelines. Always refer to your specific Kenmore washer's service manual for detailed instructions, as procedures may vary by model.
- Disconnect Power: Unplug the washer from the electrical outlet to prevent electric shock.
- Access the Agitator/Wash Plate: Depending on your washer model, you may need to remove the agitator cap, fabric softener dispenser, or the entire agitator/wash plate to expose the drive hub.
- Remove Old Drive Hub: Carefully inspect how the old drive hub is secured. It may be held in place by a bolt, a clip (similar to the one provided), or simply pressed onto the shaft. Remove any fasteners and gently pull the old drive hub off the transmission shaft.
- Clean the Shaft: Clean any debris or corrosion from the transmission shaft before installing the new hub.
- Install New Drive Hub: Align the splines of the new drive hub with the transmission shaft and press it firmly into place. Ensure it seats correctly. Secure it with the provided clip or any original fasteners.
- Reassemble: Reinstall the agitator/wash plate, cap, and any other components removed during disassembly.
- Restore Power: Plug the washer back into the electrical outlet.
- Test Operation: Run a short cycle to ensure the washer agitates and spins correctly.
Tools You Might Need: Screwdrivers (Phillips and flathead), socket wrench set, pliers, and potentially a spanner wrench for the agitator nut.
Operating
The drive hub is an internal mechanical component and does not have direct user operating controls. Once correctly installed, your Kenmore washer should operate according to its original manufacturer's instructions. If the washer does not function as expected after installation, refer to the Troubleshooting section.
Maintenance
The drive hub itself requires no specific routine maintenance. However, to ensure the longevity of your washer and its components:
- Avoid consistently overloading the washer, as this can put excessive strain on mechanical parts.
- Periodically inspect the agitator or wash plate for any looseness, which could indicate wear on the drive hub or its connection.
- Keep the washer's interior clean to prevent buildup that might affect component function.
Troubleshooting
If your washer exhibits issues after replacing the drive hub, consider the following:
- Washer Not Agitating: Ensure the drive hub is fully seated and secured on the transmission shaft. Check if the agitator/wash plate is properly attached to the drive hub.
- Unusual Noises During Agitation/Spin: This could indicate improper installation, a loose component, or a damaged part. Re-check all connections.
- Washer Not Spinning: While a drive hub primarily affects agitation, issues with its connection can sometimes impact spin cycles if the agitator is not properly disengaged or if there's excessive friction.
If problems persist, it is recommended to consult a professional appliance repair technician or refer to your Kenmore washer's original troubleshooting guide.
Specifications
| Attribute | Detail |
|---|---|
| Product Type | Washer Drive Hub Replacement Part |
| Compatible Model | Kenmore 110.28002012 |
| Part Number | 110.28002012 |
| Color | As pictured (typically beige/off-white) |
| Manufacturer | Actome-Parts |
| ASIN | B0F1XZM26F |
Warranty Information
Specific warranty details for this Generic replacement part are not provided in the product information. For any warranty-related inquiries, please contact the seller directly.
Support
For further assistance regarding this replacement part, please contact the seller, Actome, through your purchase platform. For general operation and maintenance of your Kenmore washer, refer to the original appliance manual or contact Kenmore customer support.
