TANGME Commercial Deep Fryer 12.7Qt (Model EF-12) Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using the TANGME Commercial Deep Fryer. Retain this manual for future reference. Failure to follow these safety guidelines may result in electric shock, fire, or serious injury.

• Electrical Safety: This appliance is UL Certified, indicating it meets safety standards. Always ensure the fryer is plugged into a grounded outlet with the correct voltage (120V for 1750W models). Do not use extension cords unless absolutely necessary and ensure they are rated for the appliance's wattage.
• Oil Handling: Never fill the oil tank above the 'MAX' line or below the 'MIN' line. Use appropriate cooking oil with a high smoke point. Do not mix different types of oil. Always allow oil to cool completely before handling or cleaning.
• Temperature Control: The fryer features precise temperature control from 175°F to 390°F. Do not exceed recommended temperatures for specific foods to prevent overheating and potential fire hazards.
• Overheating Protection: The unit is equipped with an automatic shut-off feature and an overheating protection reset button for enhanced safety. If the unit shuts off unexpectedly, allow it to cool and press the reset button.
• Placement: Place the fryer on a stable, heat-resistant, and level surface. Ensure adequate clearance around the unit for ventilation. Do not operate near flammable materials.
• Water and Moisture: Keep electrical components, including the control panel and heating element, away from water. Never immerse the control panel in water.
• During Operation: Always use the basket with the cool-touch handle to lower and raise food. Avoid direct contact with hot oil or heating elements. Keep children and pets away from the appliance during operation and while it is cooling.
• Cleaning: Always unplug the fryer and allow it to cool completely before cleaning. Detachable components are designed for easy cleaning.

2. Product Components

The TANGME Commercial Deep Fryer is designed for durability and ease of use. Below is an overview of its main components:

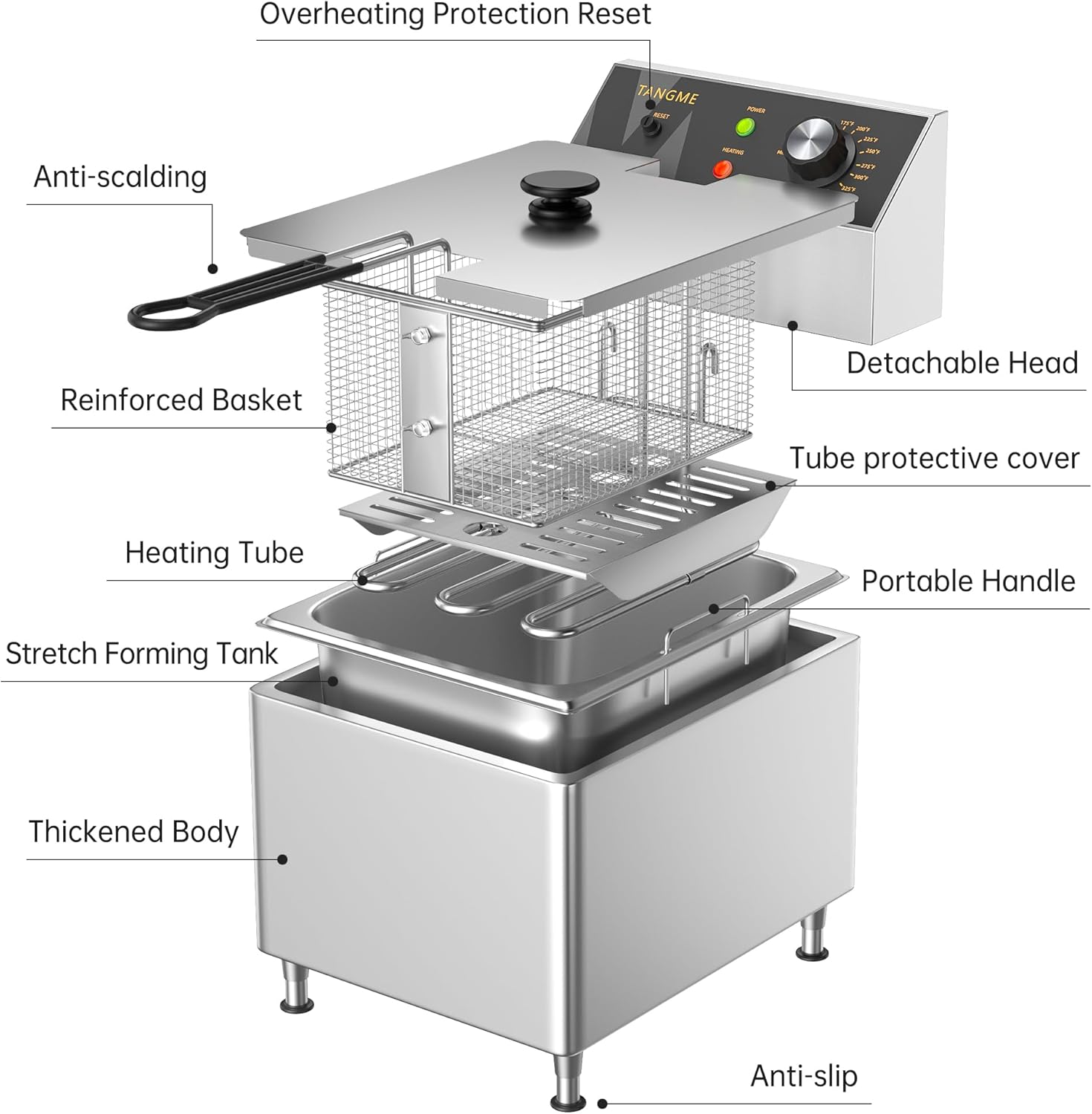

Image 1: Exploded view illustrating the various components of the TANGME Commercial Deep Fryer, including the control panel, basket, heating element, oil tank, and main body.

• Detachable Head (Control Panel): Houses the temperature control dial, power indicator, heating indicator, and reset button. Designed for easy removal for cleaning.
• Reinforced Basket: Features a cool-touch handle for safe handling of food during frying.
• Tube Protective Cover: Sits above the heating element to prevent food from directly contacting it.
• Heating Tube: Made from food-grade 304 stainless steel, providing efficient and even heating.
• Stretch Forming Tank (Oil Tank): A removable stainless steel tank for holding cooking oil, featuring MIN and MAX fill lines.
• Thickened Body: The main housing of the fryer, constructed from durable stainless steel, resistant to denting, rusting, and scratches.
• Adjustable High Legs: Provides stability and allows for height adjustment up to 3 inches. Equipped with anti-slip feet.
• Lid: Covers the oil tank to prevent splattering and maintain oil temperature when not in use.

3. Setup and Assembly

Follow these steps to properly set up your TANGME Commercial Deep Fryer before initial use:

1. Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the 'Product Components' section are present and undamaged.
2. Position the Fryer: Place the main body of the fryer on a stable, level, and heat-resistant countertop or surface. Ensure there is sufficient space around the unit for ventilation. Adjust the high legs if necessary to achieve desired height and stability.
3. Install Oil Tank: Insert the stainless steel oil tank into the main body of the fryer. Ensure it sits securely and flush.
4. Install Heating Element/Control Panel: Carefully place the detachable head (control panel with heating element) onto the back edge of the oil tank. Ensure the heating element is fully submerged in the tank and securely seated.
5. Assemble Basket: If the frying basket handle is not pre-assembled, attach it securely to the basket using the provided hardware.
6. Add Oil: Pour cooking oil into the oil tank. Ensure the oil level is between the 'MIN' and 'MAX' fill lines indicated on the inside of the tank. Do not overfill or underfill.

Image 2: Visual guide demonstrating the assembly process for the frying basket, showing how to attach the handle securely.

Image 3: Close-up of the oil tank, highlighting the 'MIN' and 'MAX' indicators for proper oil level management.

4. Operating Instructions

Once the fryer is set up and filled with oil, follow these steps for safe and effective operation:

1. Connect Power: Plug the fryer into a suitable electrical outlet. The green 'POWER' indicator light on the control panel will illuminate.
2. Set Temperature: Turn the temperature control dial to your desired frying temperature, ranging from 175°F to 390°F. The orange 'HEATING' indicator light will turn on, signifying that the oil is heating.
3. Preheat Oil: Allow the oil to preheat until the 'HEATING' light turns off, indicating the set temperature has been reached. This may take several minutes depending on the oil volume and desired temperature.
4. Prepare Food: Ensure food items are dry before placing them in the frying basket. Excess moisture can cause oil to splatter. Do not overload the basket; fry in small batches for optimal results and to maintain oil temperature.
5. Begin Frying: Carefully lower the frying basket containing the food into the hot oil. The 'HEATING' light may cycle on and off during frying to maintain the set temperature.
6. Monitor Frying: Fry food until it reaches the desired crispness and color. Refer to specific recipes for recommended frying times.
7. Remove Food: Once cooked, carefully lift the basket from the oil. Allow excess oil to drain back into the tank before transferring food to a serving dish.
8. Power Off: After use, turn the temperature control dial to the 'MIN' position and unplug the fryer from the outlet.

Image 4: Close-up of the control panel, showing the temperature dial, power indicator, heating indicator, and reset button for precise temperature management.

5. Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your deep fryer and ensure hygienic operation:

1. Cool Down: Always unplug the fryer and allow the oil and unit to cool completely before attempting any cleaning. This can take several hours.
2. Drain Oil: Once cooled, carefully remove the oil tank. Dispose of used oil responsibly according to local regulations.
3. Disassemble: Remove the frying basket, lid, and the detachable head (control panel with heating element).
4. Clean Components: The cooking basket, lid, and oil tank are dishwasher-safe. For manual cleaning, wash with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely.
5. Clean Body: Wipe down the exterior stainless steel body with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads, as these can scratch the surface. Ensure no water enters the electrical components.
6. Reassemble: Once all parts are clean and dry, reassemble the fryer by reversing the setup steps. Store in a clean, dry place.

Image 5: This image highlights the design features that contribute to easy cleaning, such as the thickened stainless steel construction, well-matched lid, basket with handles, and clear oil reminder lines.

6. Troubleshooting Guide

If you encounter issues with your TANGME Commercial Deep Fryer, consult the following table for common problems and solutions:

Image 6: The control panel, indicating the location of the 'RESET' button for overheating protection.

7. Product Specifications

• Brand: TANGME
• Model: EF-12
• Power: 1750 Watts
• Oil Capacity: 12.7 Quarts (approximately 12 Liters)
• Food Capacity: Up to 10 Pounds
• Temperature Range: 175°F to 390°F
• Material: 304 Stainless Steel
• Product Dimensions: 29"D x 12"W x 27"H
• Item Weight: 15 Pounds
• Certifications: UL Certified

Image 7: Dimensional diagram of the TANGME Commercial Deep Fryer, including measurements for the overall unit, oil tank, and frying basket.

8. Warranty and Support

TANGME is committed to providing high-quality products and reliable after-sales support. For any warranty claims, technical assistance, or product inquiries, please contact TANGME customer service directly.

Please refer to your purchase documentation or the product listing for specific warranty period details and terms. Keep your proof of purchase for warranty validation.

For additional information and support, you may visit the official TANGME Store on Amazon.
