FammyLoft 13x20ft Portable Prefabricated Tiny Home (Model RTH04) User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your FammyLoft 13x20ft Portable Prefabricated Tiny Home, Model RTH04. Please read these instructions carefully before installation and operation to ensure proper setup and longevity of your unit. This unit is designed as a versatile, expandable structure suitable for various applications.

2. Safety Information

Adherence to the following safety guidelines is crucial for preventing damage to the unit and ensuring user safety.

• Wind Load: The unit can withstand wind speeds up to 70 mph. This capacity is dependent on the foundation and specific installation circumstances. It is highly recommended to pour concrete on the legs to maximize stability.
• Snow Load: The unit is designed for outdoor use and can withstand heavy snow loads. It is safe before snow accumulation reaches 6.6 feet high on the roof. Regular snow removal is recommended.
• Extreme Weather: Do not occupy the unit during extreme weather conditions such as severe storms, tornadoes, hurricanes, floods, or blizzards.
• Electrical Safety: Ensure all electrical connections are made by a qualified professional and comply with local electrical codes.
• Foundation: A stable and level foundation is critical for the structural integrity of the unit.

3. Product Components and Features

The FammyLoft RTH04 is a portable, expandable structure designed for various uses, featuring a robust construction and functional interior layout.

Key Features:

• Spacious Design: Dimensions of L13.8 x W20 x H8.3 feet (276 Sqft) provide ample space.
• Durable Construction: Features a steel frame structure and 50mm EPS flame-retardant composite wall panels.
• Weather Resistance: Waterproof, thermally insulated, and resistant to earthquakes (grade 8) and strong winds (grade 10).
• Foldable & Portable: Designed for easy relocation, assembly, and disassembly.
• Integrated Restroom: Includes a washbasin, ceramic toilet, toilet brush, drawer box, blind ventilation fan, shower faucet, and plumbing.
• Natural Lighting: Equipped with multiple plastic steel sliding lattice windows and broken bridge opening windows.
• Electrical Ready: Full USA-standard electrical wiring is pre-installed.

Structural Components:

• Frame Structure: Steel Frame with plastic spraying surface treatment.
• Wall Panel: 50mm EPS flame retardant composite wall panel.
• Roof: 40mm EPS flame retardant composite wall panel.
• Floor: Ecological board + PVC floor leather.
• Outer Door: Broken bridge double door.
• Bathroom Door: Wooden door + emulsified tempered glass + door rail.
• Hydraulic Strut: 3500N.
• Hinge Block: 1200 lbs.
• Doorstep: Steel body + non-slip mat.

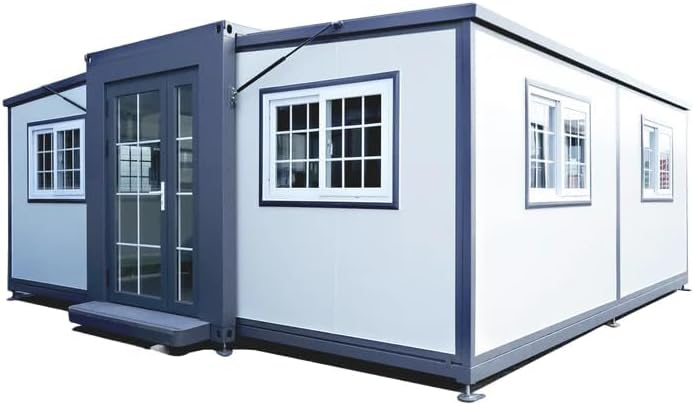

Figure 3.1: Front view of the FammyLoft 13x20ft Portable Prefabricated Tiny Home, showing the main entrance and a side window.

Figure 3.2: Side view of the FammyLoft 13x20ft Portable Prefabricated Tiny Home, highlighting the multiple windows.

Figure 3.3: Collage of interior spaces, including a kitchen area with sink, a bedroom, and a wardrobe. Note: Furniture is not included.

Figure 3.4: Interior view of the restroom, featuring a shower and toilet area.

4. Specifications

Figure 4.1: Internal dimension diagram of the FammyLoft Tiny Home, showing layout and measurements.

5. Setup and Installation

The FammyLoft RTH04 is designed for buyer assembly. Please review all components and instructions before beginning the installation process.

Important Notes:

• Crane Required: This prefabricated house is an oversized shipment and requires a crane for safe unloading at the delivery site. Ensure appropriate equipment and personnel are available.
• Buyer Assembly: Installation services are not included. The buyer is responsible for assembling the unit according to the provided instructions.
• Foundation: Prepare a level and stable foundation prior to assembly. Pouring concrete on the unit's legs is highly recommended for enhanced stability.
• Electrical Connections: All electrical wiring is USA-standard. However, final connections to a power source should be performed by a certified electrician to ensure safety and compliance with local codes.
• Plumbing Connections: The restroom includes PPR water inlet pipe (20) and PPR drain pipe (40+50). Connect these to your water supply and drainage system as per local plumbing regulations.
• Furniture: Furniture and interior decorations are not included with the unit.

General Assembly Steps (Summary - refer to detailed assembly guide for full instructions):

1. Prepare the site and ensure a level foundation.
2. Unload the unit using a crane.
3. Carefully unfold and expand the main structure.
4. Secure all structural connections and panels.
5. Install doors and windows.
6. Connect electrical and plumbing systems.
7. Perform final inspections for stability and weatherproofing.

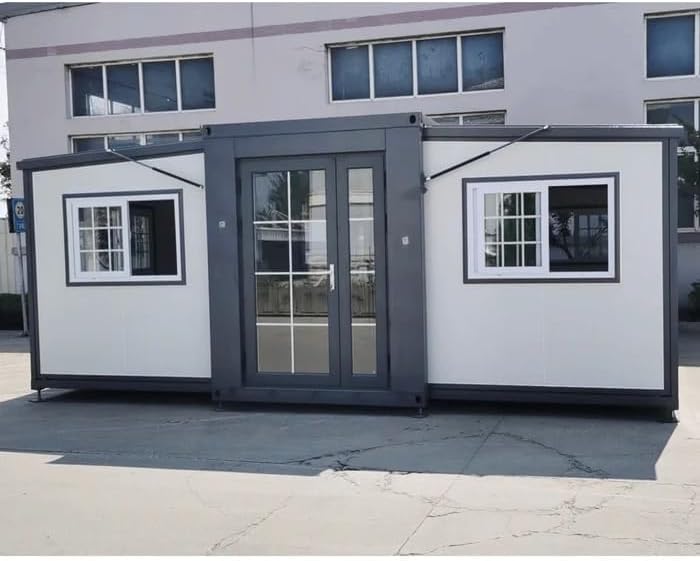

Figure 5.1: The FammyLoft Tiny Home fully expanded in an outdoor environment, demonstrating its final setup.

6. Operation

Once assembled and connected to utilities, your FammyLoft Tiny Home is ready for use. The interior is designed to be customizable for various residential, commercial, or temporary housing applications.

• Electrical System: The unit includes USA-standard electrical wiring. Connect to a suitable power source. Use appropriate circuit breakers and ensure all appliances are compatible with the installed electrical system.
• Plumbing System: The restroom is equipped with standard plumbing fixtures. Ensure water supply and drainage connections are secure and leak-free before use.
• Windows and Doors: Operate windows and doors gently. Ensure they are properly latched and sealed when closed to maintain insulation and security.
• Ventilation: Utilize the blind ventilation fan in the restroom to ensure proper air circulation and prevent moisture buildup.

7. Maintenance

Regular maintenance will help preserve the condition and extend the lifespan of your FammyLoft Tiny Home.

• Exterior Cleaning: Clean the exterior panels periodically with mild soap and water. Avoid abrasive cleaners or high-pressure washers that could damage the surface.
• Interior Cleaning: Clean interior surfaces as needed. The PVC floor leather can be cleaned with standard floor cleaning products.
• Snow Removal: In areas with heavy snowfall, regularly remove snow from the roof to prevent excessive load, especially if snow depth approaches 6.6 feet.
• Seal Inspection: Periodically inspect all seals around windows, doors, and panel joints for any signs of wear or damage. Repair or replace as necessary to maintain weatherproofing.
• Plumbing Check: Inspect plumbing for leaks or blockages. Ensure the ventilation fan is operating correctly.
• Structural Check: Annually inspect the steel frame and connections for any signs of corrosion or loosening. Address any issues promptly.

8. Troubleshooting and FAQs

Common Questions:

• Can I hang items on the wall?
  The wall panels are composite with foam in the middle, which means you cannot directly screw into them. For hanging items, use self-adhesive hooks. The load capacity will depend on the specific hook used. Drywall anchors and screws can be used for more stable, long-term installations where appropriate.
• Can I combine two units without a dividing wall?
  Technically, combining two units without a gap between them is not feasible due to their design. There will always be a gap between two separate units.
• What if I experience a leak?
  Check all seals around windows, doors, and panel connections. Ensure proper drainage from the roof and around the base of the unit. If the issue persists, consult a professional.

9. Warranty and Support

For specific warranty information, please refer to your purchase documentation or contact FammyLoft customer support directly. If you encounter any issues not covered in this manual or require technical assistance, please reach out to the manufacturer.

Manufacturer: Bastone
Brand: FammyLoft
