FTOPBTB AMY25318 Oversized Power Lift Rocker Recliner Chair User Manual
Model: AMY25318
1. Introduction
Thank you for choosing the FTOPBTB AMY25318 Oversized Power Lift Rocker Recliner Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new recliner. Please read it thoroughly before use and retain it for future reference.
Image 1.1: The FTOPBTB Oversized Power Lift Rocker Recliner Chair, showcasing its design and integrated massage points.
2. Safety Instructions
To ensure safe operation and prevent injury or damage, please adhere to the following guidelines:
- Weight Capacity: Do not exceed the maximum weight capacity of 330 lbs (150 kg). Overloading can cause instability and damage.
- User Height: This chair is recommended for individuals between 5'1" and 5'9" (155 cm - 175 cm) for optimal comfort and safety.
- Assembly: Follow all assembly instructions carefully. Ensure all components are securely fastened before use. Improper assembly can lead to instability.
- Children and Pets: Keep children and pets away from the chair's moving parts, especially during operation of the lift and recline functions.
- Power Cord: Ensure the power cord is not pinched, tangled, or placed under the chair. Keep it away from heat sources and sharp objects.
- Clearance: Maintain adequate clearance around the chair to allow for full recline and lift functions without obstruction.
- Cleaning: Disconnect the power supply before cleaning. Use a dry cloth or follow specific care instructions.
- Medical Conditions: Consult a physician before using the massage and heat functions if you have any medical conditions, especially those related to circulation, heart, or skin sensitivity.
3. Package Contents
Please check the package contents against the list below. If any items are missing or damaged, contact customer support immediately.
- Recliner Base
- Backrest
- Armrests (Left and Right)
- Power Adapter
- Remote Control for Massage/Heat
- Assembly Hardware Kit
- User Manual (This Document)
4. Assembly Instructions (Setup)
Assembly of this recliner is designed to be straightforward and typically takes less than 10 minutes without the need for additional tools. Follow these steps:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratching.
- Attach Backrest: Slide the backrest onto the base until it clicks securely into place. Ensure both sides are fully engaged.
- Connect Armrests: Attach the left and right armrests to the main body, ensuring they are firmly seated.
- Connect Power: Locate the power cable from the chair and connect it to the power adapter. Plug the adapter into a standard electrical outlet.
- Final Check: Before first use, gently rock and recline the chair to ensure all parts are stable and functioning correctly.
Image 4.1: Key features of the recliner, including integrated arms, two cup holders, a large side pocket, and a wide backrest.
5. Operating Instructions
5.1. Power Lift Function
The power lift function assists users in standing up from the chair. Use the wired remote control to activate this feature.
- Press and hold the "Lift" button on the remote control. The chair will slowly tilt forward and lift, helping you to a standing position.
- Release the button when you reach the desired height or are ready to stand.
- To return to a seated position, press and hold the "Down" button.
5.2. Reclining Function
The chair offers multiple reclining positions from 90° to 150° for reading, watching TV, or napping.
- To recline, locate the reclining pull tab (typically on the side of the chair). Pull the tab to release the footrest.
- Lean back gently to adjust the backrest to your desired angle (between 90° and 150°).
- To return to an upright position, push back with your legs to retract the footrest and lean forward.

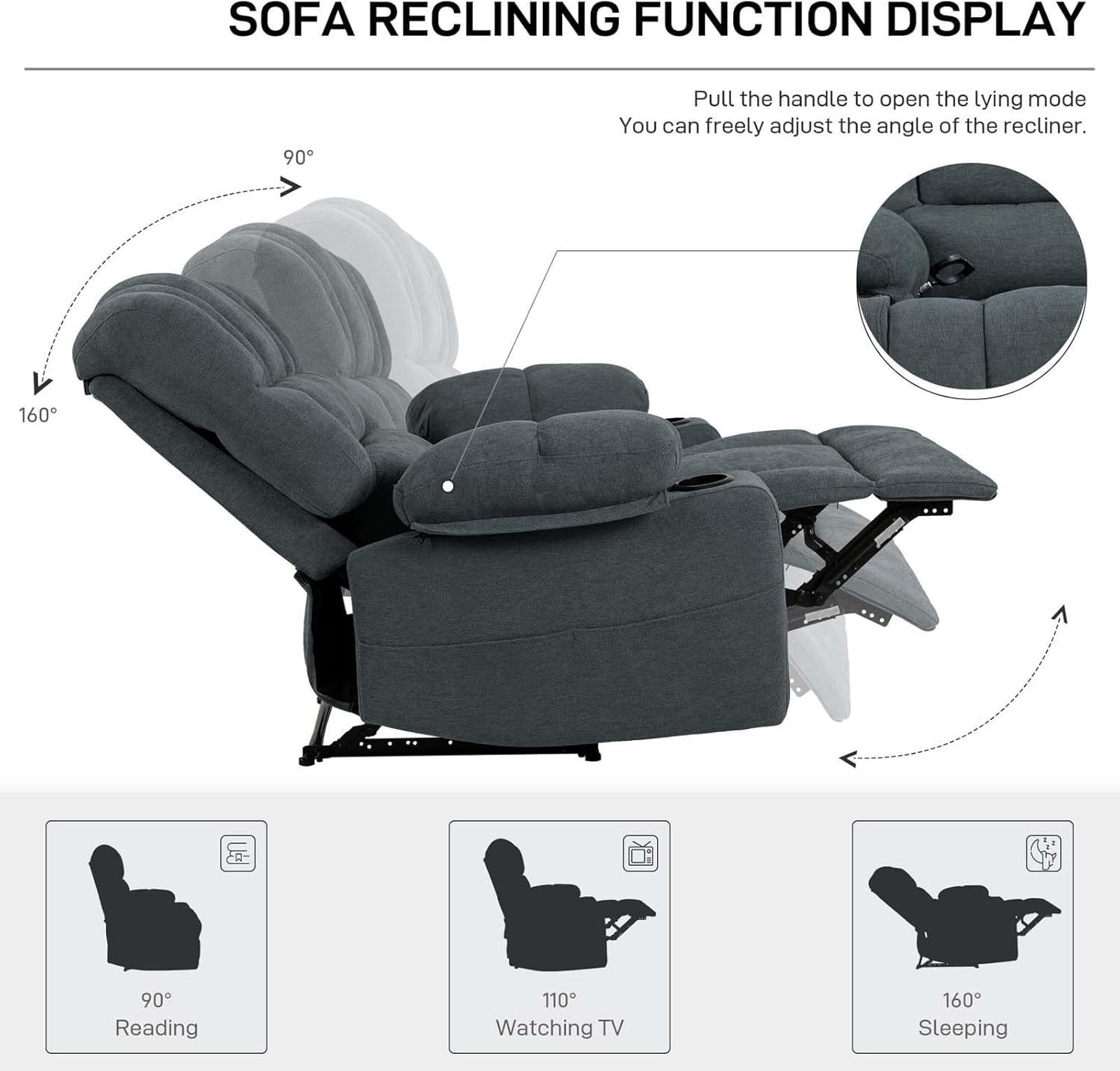

Image 5.2.1: Illustration of the recliner's adjustable angles for various activities like reading, watching TV, and sleeping.
Image 5.2.2: The FTOPBTB recliner in a fully reclined position, demonstrating the extended footrest.
5.3. Massage and Heat Functions
The chair features 8 massage units with 5 modes and 2 intensity levels, along with a waist heating function. These are controlled via the dedicated remote.
- Power On/Off: Press the "Power" button on the massage remote to activate or deactivate the massage and heat functions.
- Massage Modes: Use the "Mode" button to cycle through the 5 available massage modes.
- Intensity Levels: Adjust the massage intensity using the "Intensity" button (2 levels available).
- Target Areas: Select specific massage areas (back, waist, thigh, legs) using the corresponding buttons on the remote.
- Heat Function: Press the "Heat" button to activate the lumbar heating function. Press again to turn off.
- Timer: Set the massage duration using the "Timer" button (15, 30, or 60 minutes).
Image 5.3.1: The remote control for the heated vibration massage system, showing controls for modes, intensity, target areas, and timer.
6. Care and Maintenance
Proper care will extend the life and appearance of your recliner.
- Cleaning: For general cleaning, wipe the chair with a clean, damp cloth. For stubborn stains, use a mild fabric cleaner and test on an inconspicuous area first. Do not use harsh chemicals or abrasive cleaners.
- Spills: Blot spills immediately with a clean, dry cloth.
- Dusting: Regularly dust the chair with a soft cloth or vacuum with a brush attachment.
- Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading of the fabric.
- Inspections: Periodically check all connections and fasteners to ensure they are tight. Tighten if necessary.
7. Troubleshooting
If you encounter issues with your recliner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not power on. | Power cord not connected; outlet not working; power adapter faulty. | Ensure power cord is securely plugged into the chair and a working outlet. Test the outlet with another device. Contact support if adapter is suspected faulty. |
| Lift/Recline function not working. | Power issue; remote control issue; obstruction. | Check power connection. Ensure no objects are obstructing the chair's movement. If remote is unresponsive, ensure it's connected properly. |
| Massage/Heat not working. | Power issue; remote control issue; internal connection. | Verify the main power is on. Check the massage remote's connection. Ensure the "Power" button on the massage remote is pressed. |
| Chair feels unstable. | Loose assembly; uneven floor. | Re-check all assembly connections and tighten any loose fasteners. Ensure the chair is on a flat, level surface. |
If the problem persists after attempting these solutions, please contact FTOPBTB customer support for assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | FTOPBTB |
| Model Name | Oversized Power Lift Rocker Recliner Chair |
| Model Number | AMY25318 |
| Color | Grey |
| Overall Dimensions (D x W x H) | 36.02" x 27.95" x 40.94" (91.49 cm x 70.99 cm x 103.99 cm) |
| Seat Dimensions (W x D) | 22" x 21" (55.88 cm x 53.34 cm) |
| Fully Reclined Length | 63" (160 cm) |
| Maximum Weight Recommendation | 330 lbs (150 kg) |
| Recommended User Height | 5'1" - 5'9" (155 cm - 175 cm) |
| Special Features | 8-Point Vibration Massage, Lumbar Heating, Power Lift, Foot Rest, 2 Cup Holders, Side Pockets |
| Reclining Positions | Adjustable from 90° to 150° |
| Fill Material | Cotton |
| Product Care Instructions | Wipe Clean |
| Item Weight | 87.7 pounds (39.78 kg) |
| UPC | 768904192459 |

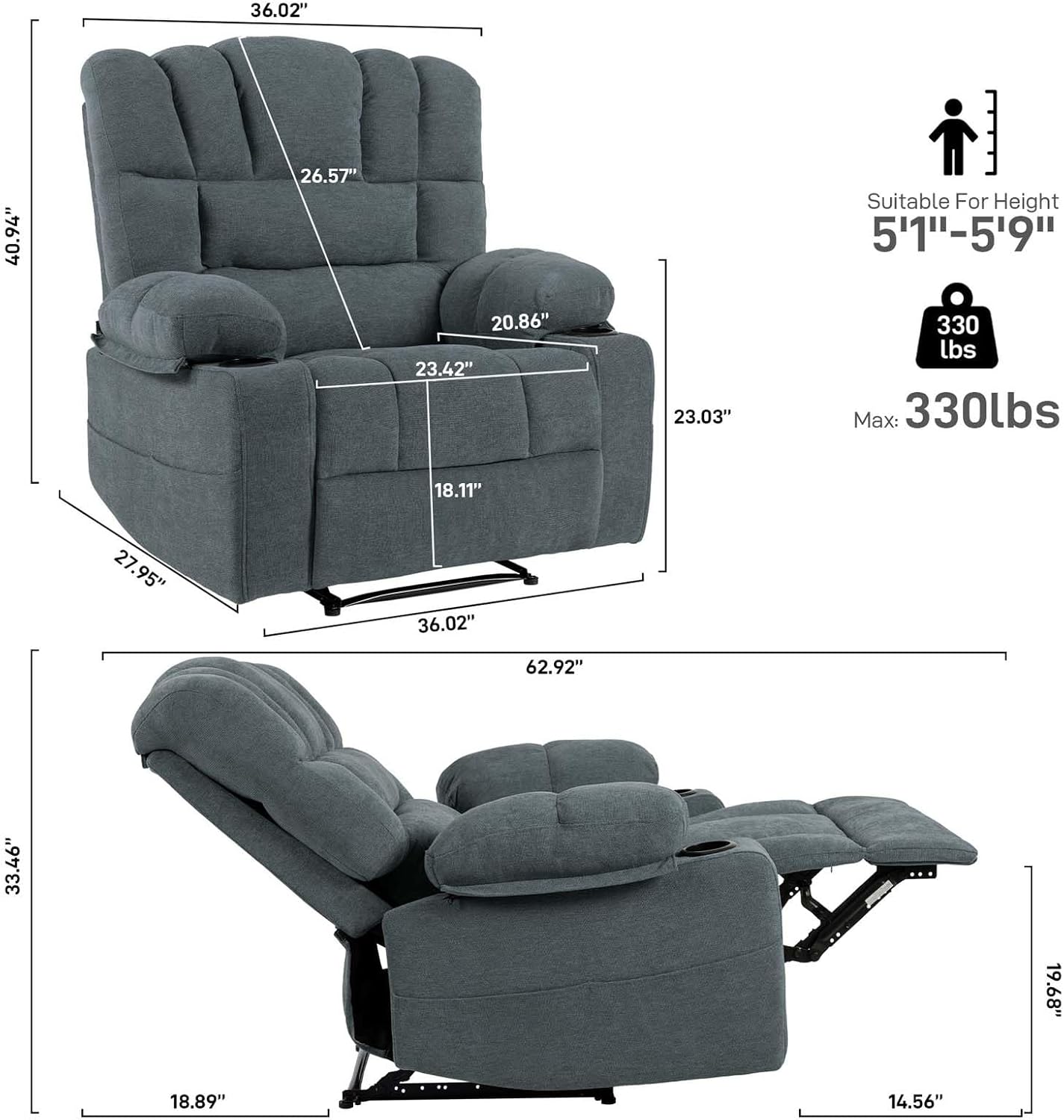

Image 8.1: Detailed dimensions of the recliner, including seat width, depth, overall height, and recommended user height and weight capacity.
9. Warranty and Support
For warranty information, technical support, or to inquire about replacement parts, please contact FTOPBTB customer service directly. Refer to your purchase documentation for specific contact details or visit the official FTOPBTB website.
Please have your model number (AMY25318) and purchase date ready when contacting support.
