Bootime GT73 Electric Dirt Bike User Manual

1. Introduction

Welcome to the Bootime GT73 Electric Dirt Bike user manual. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric dirt bike. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

2. Safety Information

Your safety is paramount. Always wear a helmet and appropriate protective gear (gloves, knee pads, elbow pads) when riding. Familiarize yourself with local regulations regarding electric bike usage. Do not operate the bike under the influence of alcohol or drugs. Regular maintenance checks are crucial for safe operation.

• Always perform a pre-ride inspection: check brakes, tire pressure, battery charge, and all connections.
• Ride within your skill level and be aware of your surroundings.
• Avoid riding in extreme weather conditions or on excessively slippery surfaces.
• Ensure all fasteners are tightened before each ride.

3. Components Overview

The Bootime GT73 features a robust design with key components designed for off-road performance. Understanding these components is essential for proper operation and maintenance.

Figure 3.1: Handlebar controls including Left Brake Lever, Combination Switch, Rear Turn Signal, Left Grip, LED Display, Right Brake Lever, Accelerate Handle Bar, and Key Switch.

Key Components:

• 2500W Peak Mid-Drive Motor: Provides powerful acceleration and hill-climbing capability.
• Dual Removable 48V 36Ah Batteries: Offers extended range and flexible charging options.
• 25-inch Fat Tires: Designed for stability and traction across various terrains.
• Dual Hydraulic Brakes: Ensures strong, responsive stopping power.
• Dual Suspension System: Features a rear air shock and hydraulic front fork for a smooth ride.
• LCD Display: Provides real-time riding data including speed, battery level, and distance.

4. Setup

The Bootime GT73 Electric Dirt Bike arrives 90% pre-built. Follow these steps for final assembly and initial preparation.

4.1 Unboxing and Initial Inspection

1. Carefully remove all components from the packaging.
2. Check for any visible damage during transit. Contact customer support immediately if damage is found.
3. Verify all parts listed in the packing list are present.

4.2 Assembly

Minor assembly is required, primarily for the handlebars and pedals. Refer to the installation video for detailed guidance.

4.3 Battery Installation and Charging

The GT73 comes with dual removable 48V 36Ah batteries. Ensure they are fully charged before your first ride.

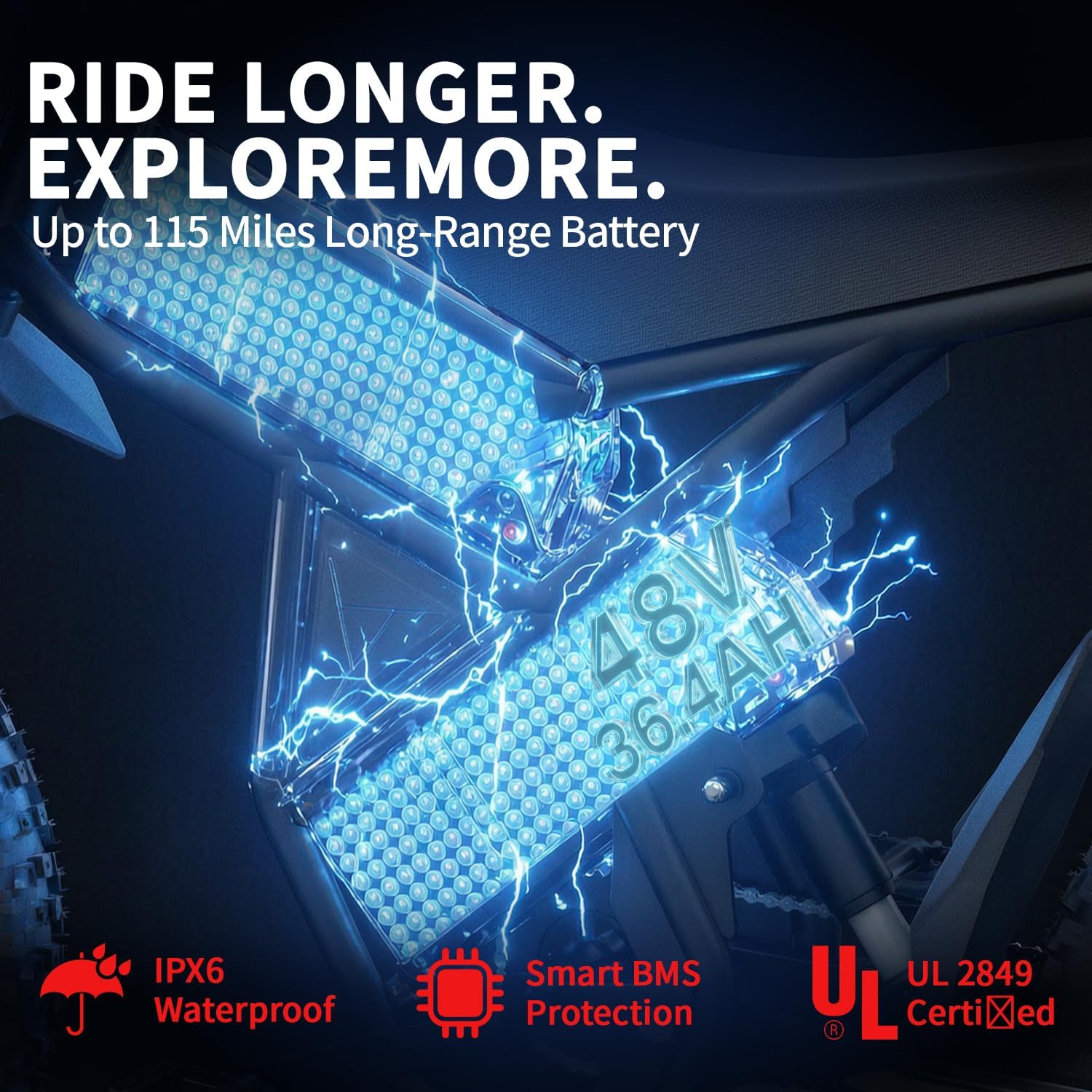

Figure 4.2: The dual removable 48V 36Ah batteries, providing up to 115 miles of range.

1. Locate the battery compartments on the bike frame.
2. Insert the batteries securely until they click into place.
3. Connect the dual charger to a standard power outlet and then to the bike's charging ports.
4. Allow batteries to charge completely (indicator light on charger will change).

5. Operating Instructions

Learn how to power on, control, and ride your Bootime GT73 Electric Dirt Bike safely and effectively.

5.1 Powering On/Off

1. Insert the key into the ignition and turn it to the 'ON' position.
2. Long-press the 'Power' button on the handlebar control panel for 2 seconds to start up the bike and enter 'P' (Park) gear.
3. To power off, long-press the 'Power' button again.

5.2 Understanding the LCD Display

The LCD display provides critical information at a glance.

Figure 5.2: The LCD display showing real-time data such as battery level, current speed, trip distance, and selected speed mode.

• Battery Indicator: Shows remaining battery charge.
• Speed Display: Current riding speed (MPH).
• Distance: Trip distance or total odometer.
• Speed Mode Indicator: Displays the currently selected riding mode (Eco, Standard, Sport).

5.3 Speed Modes

The GT73 offers three distinct speed modes to suit different riding conditions and preferences.

Figure 5.3: Overview of the three speed modes: Sport (up to 37 MPH), Standard (up to 25 MPH), and Eco (up to 15 MPH).

• Eco Mode (Up to 15 MPH): Ideal for beginners, longer rides to conserve battery, or casual cruising.
• Standard Mode (Up to 25 MPH): A balanced mode for everyday riding and moderate trails.
• Sport Mode (Up to 37 MPH): Provides maximum power and speed for experienced riders and challenging terrain.

Switch between modes using the control panel on the left handlebar.

5.4 Riding Modes

Beyond speed modes, the GT73 offers flexible riding options:

• Pure Electric (Throttle-on-demand): Engage the throttle for motor-assisted propulsion without pedaling.
• Pedal Assist System (PAS): The motor provides assistance as you pedal, extending range and reducing effort.
• Classic Bike: Ride without any motor assistance, relying solely on pedal power.

5.5 Braking

The GT73 is equipped with front and rear hydraulic disc brakes for reliable stopping power.

Figure 5.4: Close-up of the front and rear hydraulic disc brakes, designed for strong and consistent stopping.

• The left lever controls the rear brake, and the right lever controls the front brake.
• Apply both brakes simultaneously for optimal stopping performance.
• Avoid sudden, hard braking, especially at high speeds or on loose surfaces, to prevent skidding.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your Bootime GT73.

6.1 Battery Care

• Charge batteries regularly, even if not in use, to maintain optimal health.
• Avoid fully discharging the batteries.
• Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.
• Use only the provided Bootime charger.

6.2 Tire Maintenance

• Check tire pressure before each ride. Maintain pressure within the recommended range (typically found on the tire sidewall).
• Inspect tires for wear, cuts, or punctures. Replace worn tires promptly.

6.3 Brake System

• Regularly check brake pads for wear and replace them when necessary.
• Ensure brake levers provide firm and responsive braking. Adjust cable tension if needed.
• Inspect brake rotors for damage or warping.

6.4 General Cleaning

• Clean the bike with a damp cloth and mild soap. Avoid high-pressure washing, especially near electrical components.
• Lubricate the chain regularly to ensure smooth operation and prevent rust.

7. Troubleshooting

This section addresses common issues you might encounter with your Bootime GT73.

If you encounter issues not listed here or cannot resolve a problem, please contact Bootime customer support.

8. Specifications

Detailed technical specifications for the Bootime GT73 Electric Dirt Bike.

9. Warranty and Support

Bootime stands behind the quality of its products.

9.1 Warranty Information

The Bootime GT73 Electric Dirt Bike comes with a 1-Year VIP Warranty, with some components covered for up to 2 Years as per the full warranty description. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

9.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact Bootime customer support. Our 24/7 BOOTIME squad backup is available to assist you.

For the most up-to-date contact information, please visit the official Bootime website or refer to the contact details provided with your purchase.
