BUPPLEE 5-in-1 Outdoor Swing Set Instruction Manual

Introduction

Thank you for choosing the BUPPLEE 5-in-1 Outdoor Swing Set. This manual provides essential information for the safe assembly, operation, and maintenance of your swing set. Please read all instructions carefully before assembly and use. Retain this manual for future reference.

Image: The BUPPLEE 5-in-1 Outdoor Swing Set installed in a green backyard, featuring a basketball hoop, saucer swing, rope swing, belt swing, and glider, with several children enjoying the various activities.

Safety Information

Your child's safety is paramount. Adhere to all safety guidelines to prevent injury.

• Age Recommendation: Suitable for children aged 3-12 years.
• Adult Supervision: Constant adult supervision is required at all times when children are using the swing set.
• Weight Capacity: The swing set has a maximum weight capacity of 440 pounds (approximately 200 kg). Do not exceed this limit.
• Clearance Area: Ensure a safe clearance area of at least 6 feet (1.8 meters) around all sides of the swing set.
• Installation Surface: Install the swing set on level ground with a shock-absorbing surface such as wood chips, sand, or rubber mulch. Avoid concrete, asphalt, or other hard surfaces.
• Anchoring: Always use the provided ground anchors to secure the swing set firmly to the ground.
• Inspection: Regularly inspect all components for wear, damage, or loose connections before each use. Replace damaged parts immediately.
• Proper Use: Instruct children on proper use of each swing and activity. Avoid standing on swings, excessive swinging, or jumping off moving swings.
• Weather Conditions: Do not use the swing set during strong winds, heavy rain, or lightning storms.

Image: Detailed view of safety features, highlighting heavy-duty galvanized locking carabiners, sturdy textile fabric for the saucer swing, triple protection at connection points, and vinyl-covered swing chains to prevent pinching.

Parts List

Before assembly, verify that all components are present and undamaged. Refer to the diagram for identification.

Image: An exploded diagram illustrating all individual parts of the swing set, each numbered for clear identification during assembly. This includes frame components, swings, and accessories.

Note: Hardware (bolts, nuts, washers, soft silicone screw covers) is included but not individually listed here. Refer to the assembly steps for specific hardware usage.

Setup and Assembly

Assembly requires two adults and approximately 1-2 hours. All necessary tools are included. Follow these steps carefully.

1. Prepare the Area: Choose a level outdoor surface with adequate clearance (at least 6 feet around the entire structure). Ensure the ground is suitable for anchoring.
2. Assemble the A-Frames: Connect the upper (Part 9) and lower (Part 10) leg frames using the provided bolts and nuts. Repeat for all four leg sections to form two A-frames.
3. Attach Crossbars: Secure the crossbars (Part 11) between the lower sections of each A-frame.
4. Connect Top Bars: Join the long (Part 1), medium (Part 2), and short (Part 3) top bars. Ensure swing hangers (Part 4) are correctly oriented.
5. Attach A-Frames to Top Bar: Carefully lift and attach the assembled A-frames to the ends of the top bar assembly. Secure with bolts and nuts.
6. Install Basketball Hoop: Attach the basketball hoop support bar (Part 8) to the main frame. Then, secure the backboard (Part 5), rim (Part 6), and net (Part 7).
7. Assemble Glider: Connect the glider seats (Part 19) to the seat supports (Part 17) and handlebars (Part 18). Attach the connecting rod (Part 21) and pivot points (Part 22). Mount the assembled glider to the designated hangers on the main frame.
8. Attach Swings:
   • Saucer Swing: Attach the saucer swing ropes (Part 14) to the saucer swing seat (Part 15) and then to the main frame hangers. Adjust height as desired.
   • Belt Swing: Attach the belt swing (Part 12) to the main frame hangers. Adjust height as desired.
   • Rope Swing: Attach the rope swing (Part 13) to the main frame hanger. Adjust height as desired.
9. Secure with Ground Anchors: Drive the four metal ground anchors (Part 23) 13.5 inches into the ground at the base of each A-frame leg. Ensure the swing set is stable and does not wobble.
10. Final Inspection: Double-check all bolts, nuts, and connections to ensure they are tight. Apply soft silicone screw covers to any exposed sharp edges. Verify that all swings are securely attached and move freely.

Operating Instructions

Ensure children understand how to use each component safely under adult supervision.

• General Use: Only one child per swing seat (belt swing, rope swing). The saucer swing can accommodate multiple children if within the weight limit and used appropriately. The glider is designed for two children.
• Swinging: Encourage children to sit properly on the swings. Avoid twisting chains or ropes, and do not allow children to stand on the swings.
• Glider: Children should sit facing each other, holding onto the handlebars, and push off the ground with their feet to initiate movement.
• Rope Swing: Children should grip the rope firmly with both hands and use their feet to climb or swing.
• Basketball Hoop: Use a soft, lightweight ball. Ensure children do not hang on the rim or net.
• Exiting Swings: Instruct children to wait until the swing has come to a complete stop before dismounting.

Image: An illustration detailing the five distinct play features of the swing set: a basketball hoop, a glider for two, a traditional belt swing, a rope swing for climbing, and a large saucer swing.

Maintenance

Regular maintenance ensures the longevity and safety of your swing set.

• Monthly Inspection: Check all nuts, bolts, and connections for tightness. Tighten as necessary. Inspect all ropes, chains, and seats for signs of wear, fraying, or cracking.
• Rust Prevention: The frame is powder-coated for rust resistance. However, inspect for any chips or scratches in the paint that could lead to rust. Touch up with rust-inhibiting paint if needed.
• Cleaning: Clean the frame and plastic components with mild soap and water. Avoid abrasive cleaners.
• Ground Anchors: Periodically check that ground anchors remain firmly embedded. Re-secure if they become loose.
• Winter Storage (Optional): In areas with harsh winters, consider disassembling and storing the swing set indoors to prolong its life.

Image: The swing set depicted in two scenarios: under clear skies and during rainfall, emphasizing its powder-coated, rust and weather-resistant finish designed for outdoor durability.

Troubleshooting

Specifications

• Model: YOXZOT057BU
• Dimensions (L x W x H): 147 inches x 79 inches x 80 inches (373.4 cm x 200.7 cm x 203.2 cm)
• Frame Material: High-strength Metal (2-inch steel pipes)
• Finish: Powder Coated
• Color: Red/Blue
• Item Weight: 79.4 pounds (36 kg)
• Maximum Weight Capacity: 440 pounds (200 kg)
• Recommended Age: 3-12 years
• Included Activities: Saucer Swing, Belt Swing, Rope Swing, Glider, Basketball Hoop

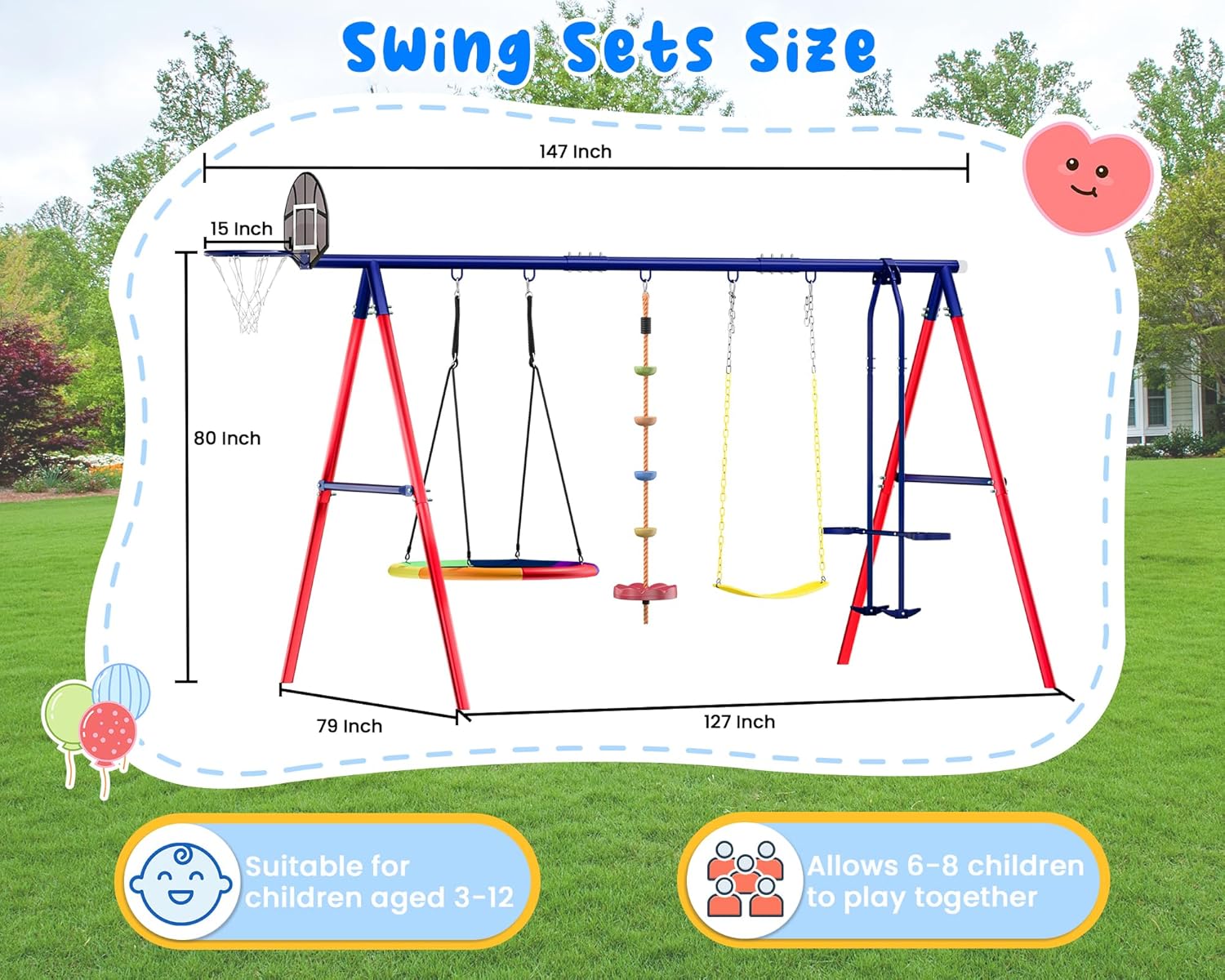

Image: A diagram providing the overall dimensions of the swing set, including its length (147 inches), width (79 inches), and height (80 inches), along with the basketball hoop height (15 inches).

Warranty and Customer Support

BUPPLEE is committed to customer satisfaction. If you encounter any issues, such as defective or missing parts, please contact our customer service team.

• Contact: For assistance, please reach out to our support team. We aim to respond to all inquiries within 24 hours.
• Returns: This product is eligible for 30-day easy returns. Refer to your purchase platform's return policy for details.
