1. Introduction
This instruction manual provides essential information for the assembly, use, and maintenance of your new Generic Pine Wood Bed Frame, sized 140x190 cm. Please read this manual thoroughly before beginning assembly and retain it for future reference. This bed frame is designed to provide a stable and comfortable foundation for your mattress.

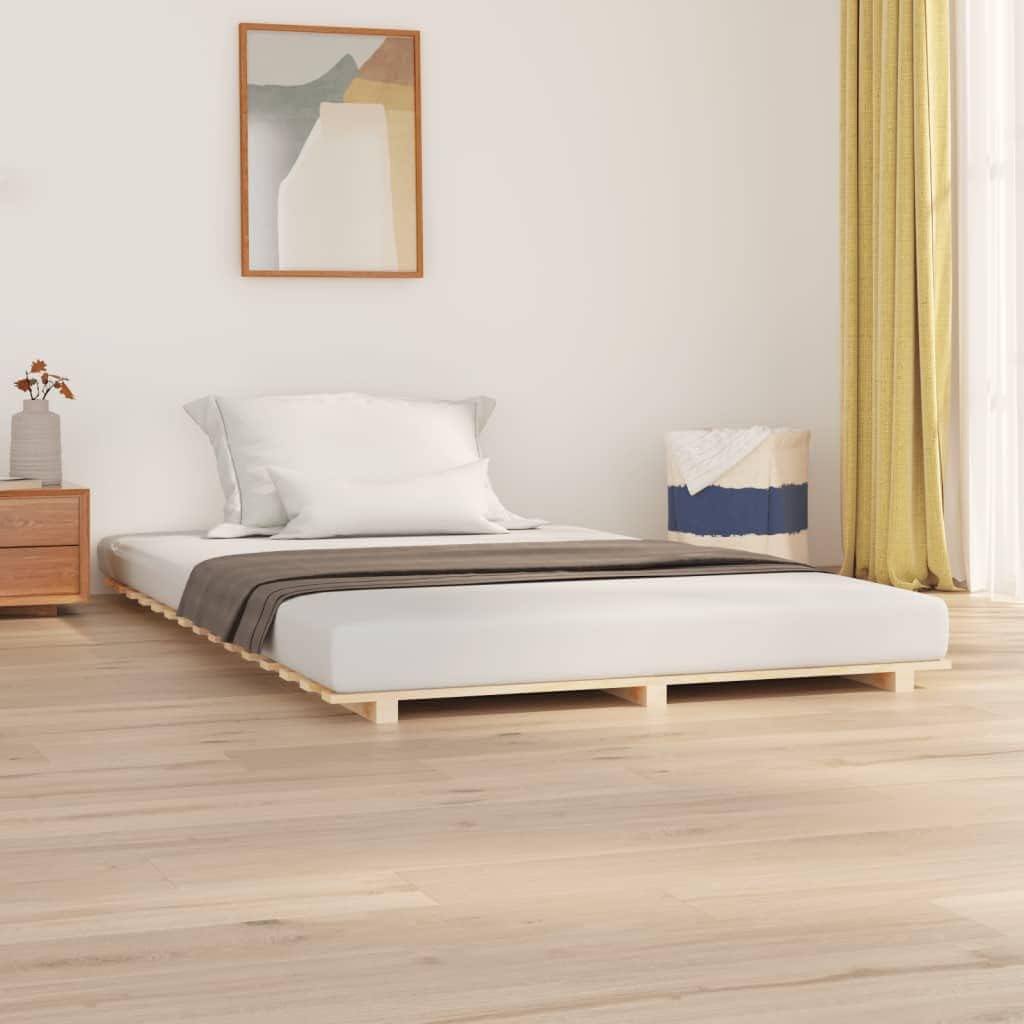

Image 1.1: The Generic Pine Wood Bed Frame, fully assembled with a mattress, shown in a bedroom setting. This image illustrates the product's appearance when ready for use.
2. Safety Information
Please observe the following safety precautions to prevent injury or damage to the product:
- Handle all components with care to avoid damaging items or causing personal injury.
- Ensure all screws and fasteners are tightened securely during assembly. Periodically check and re-tighten if necessary.
- Do not exceed the recommended weight capacity of the bed frame.
- Keep small parts away from children during assembly to prevent choking hazards.
- Assemble the bed frame on a soft, clean surface to prevent scratches.
Image 2.1: A warning label indicating the importance of careful handling to avoid damage. The warning is provided in multiple languages, including English, German, French, Italian, Spanish, Dutch, Swedish, and Polish.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. The package for the Generic Pine Wood Bed Frame (140x190 cm) includes:
- Bed frame components (solid pinewood beams and supports)
- Plywood slats
- Assembly hardware (screws, bolts, etc.)
- Assembly manual
Note: A mattress is not included with this bed frame and must be purchased separately. This bed frame is suitable for a mattress measuring 140 x 190 cm.
4. Specifications
- Model: Generic Pine Wood Bed Frame
- Dimensions: 190 x 140 x 5 cm (Length x Width x Height)
- Bed Frame Material: Solid Pinewood
- Slat Material: Plywood
- Recommended Mattress Size: 140 x 190 cm

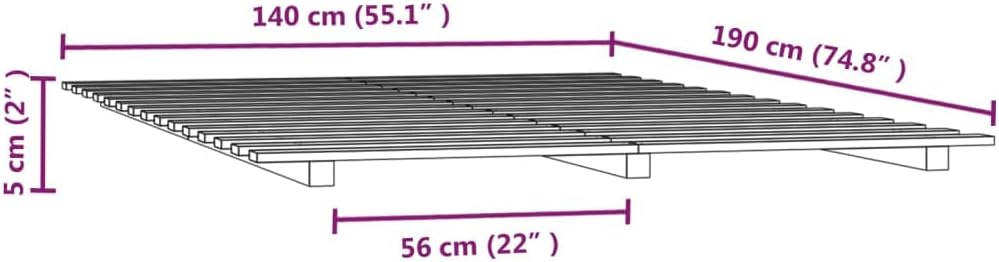

Image 4.1: A technical diagram illustrating the key dimensions of the bed frame, including its overall length (190 cm / 74.8"), width (140 cm / 55.1"), height (5 cm / 2"), and the spacing of the support legs (56 cm / 22").
Image 4.2: A close-up view of the natural pine wood material, highlighting its straight grain and characteristic knots, which contribute to its rustic appearance.
5. Assembly Instructions
Follow these steps carefully to assemble your bed frame. It is recommended to have two people for assembly.
- Unpack Components: Carefully unpack all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches. Verify all parts listed in Section 3 are present.
- Assemble the Main Frame: Connect the main side rails and end rails using the provided hardware. Ensure all connections are snug but do not overtighten until the frame is fully aligned.
- Attach Support Legs: Securely attach the central support legs to the main frame. These legs provide crucial stability and weight distribution.
- Install Plywood Slats: Place the plywood slats across the assembled frame. Ensure they are evenly spaced and securely seated in their designated positions. The slats provide support for your mattress.
- Final Tightening: Once all components are in place and aligned, fully tighten all screws and bolts. Do not overtighten to avoid stripping the wood.
- Place Mattress: Carefully place your 140x190 cm mattress onto the assembled bed frame.
Image 5.1: The assembled bed frame base, viewed from the front, clearly showing the arrangement of the wooden slats and the sturdy support legs underneath.
Image 5.2: A detailed view of the plywood slats, which form the supportive surface for the mattress. This image highlights the individual slats and their construction.
Image 5.3: The bed frame fully assembled with a mattress, presented from an elevated angle, demonstrating its low-profile design and readiness for use.
6. Operating Instructions
The Generic Pine Wood Bed Frame is designed for static use as a foundation for a mattress. No specific operational steps are required beyond its initial assembly and placement. Ensure the bed frame is placed on a level surface to maintain stability.
7. Maintenance
To ensure the longevity and appearance of your bed frame, follow these maintenance guidelines:
- Cleaning: Wipe the wood surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the wood finish.
- Dusting: Regularly dust the frame with a dry, soft cloth.
- Fastener Check: Periodically (e.g., every 6 months) check all screws and bolts to ensure they remain tight. Re-tighten if any looseness is detected.
- Avoid Moisture: Protect the bed frame from excessive moisture and direct sunlight to prevent warping or fading of the wood.
8. Troubleshooting
Most issues with a bed frame are related to assembly or placement. If you encounter any problems, consider the following:
- Squeaking Noises: Check all connections and ensure they are securely tightened. Ensure the bed frame is on a level surface.
- Instability: Verify that all support legs are firmly on the ground and that the frame is assembled correctly according to the instructions.
- Damaged Parts: If any part is damaged upon arrival, do not proceed with assembly. Contact customer support for assistance.
9. Warranty and Support
Information regarding specific warranty terms for this Generic Pine Wood Bed Frame is not provided in the product details. For any support inquiries, missing parts, or warranty claims, please refer to the retailer or manufacturer's contact information provided at the point of purchase.
