1. Introduction
This instruction manual provides essential information for the proper identification and installation of the Generic Washer Screw, designed as a replacement part for specific Kenmore washer models. Please read this manual thoroughly before attempting any installation to ensure correct procedure and compatibility.
2. Product Overview
The Generic Washer Screw is a replacement component for Kenmore washing machines. It is designed to secure specific parts within the washer assembly. The screw features a hexagonal head and a threaded shaft, accompanied by a rubber washer for sealing or vibration dampening.

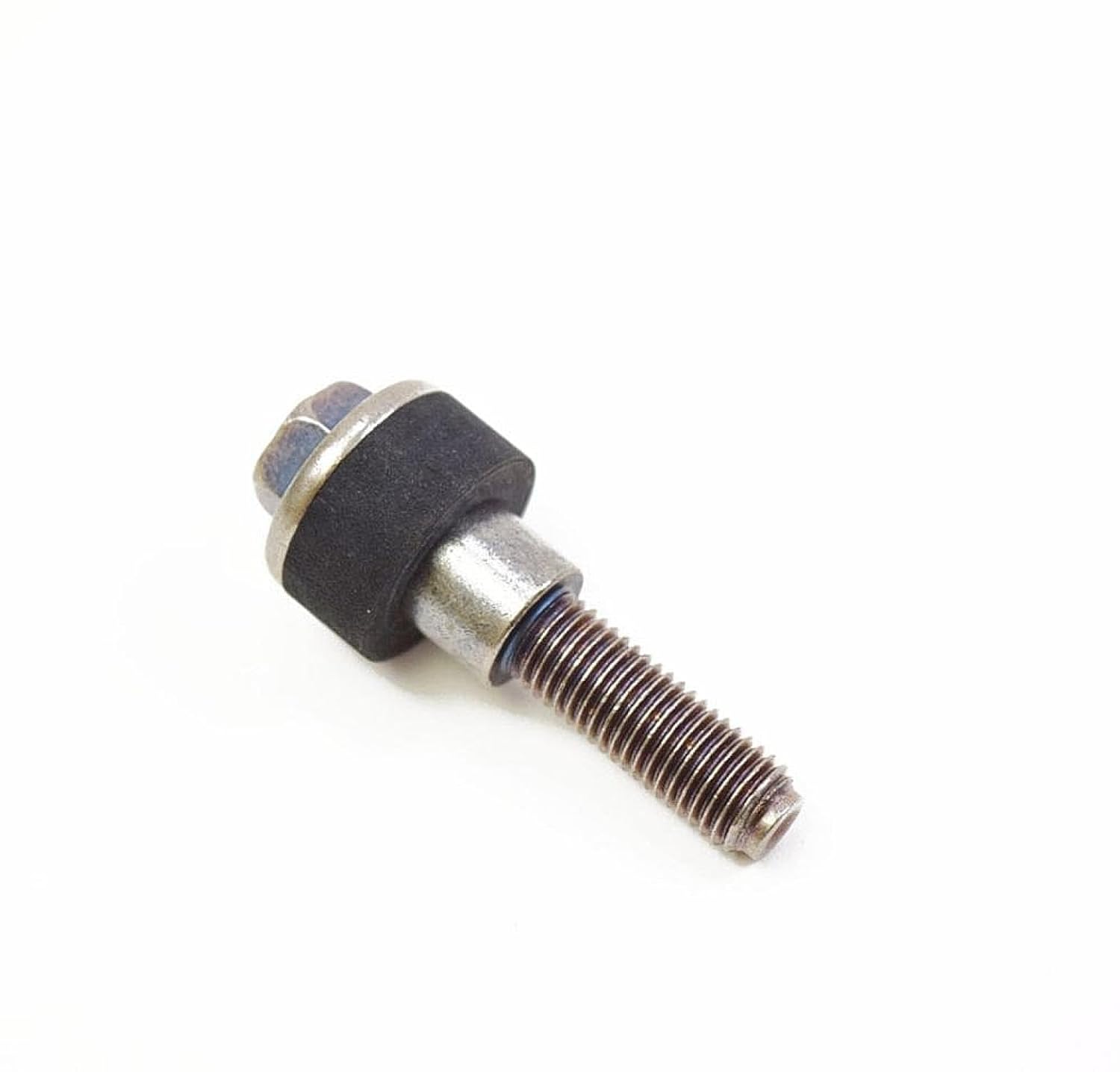

Figure 1: The Generic Washer Screw. This image displays the metal screw with a hexagonal head, a metal washer, and a black rubber washer positioned beneath the head, above the threaded shaft.
3. Compatibility
This washer screw is an aftermarket replacement part compatible with the following Kenmore Washer models:
- Kenmore Washer Model 11028102310
- Kenmore Washer Model 11028103310
Note: If your specific washer model is not listed, or if you are uncertain about compatibility, please contact the seller for assistance before proceeding with installation.
4. Setup and Installation
Installation of this washer screw typically involves replacing an existing, damaged, or missing screw. Due to the variety of applications within a washing machine, specific installation steps may vary. Always refer to your washing machine's original service manual for detailed, model-specific instructions.
General Installation Guidelines:
- Safety First: Before beginning any repair, ensure the washing machine is unplugged from the power outlet and the water supply is turned off.
- Identify Location: Locate the specific area where the screw needs to be installed or replaced.
- Remove Old Screw (if applicable): If replacing an existing screw, carefully remove the old one using appropriate tools.
- Insert New Screw: Position the new Generic Washer Screw into the designated hole.
- Tighten: Hand-tighten the screw initially, then use a wrench or screwdriver (depending on the screw head type) to tighten it securely. Avoid over-tightening, which can strip threads or damage components.
- Verify: Ensure the component secured by the screw is stable and properly fastened.
Disclaimer: If you are not comfortable performing this repair, it is recommended to consult a qualified appliance technician.
5. Maintenance
As a replacement fastener, the Generic Washer Screw requires no routine maintenance. Periodically inspect the area where the screw is installed for any signs of loosening or wear. If the screw appears loose, gently re-tighten it. If the screw or surrounding components show signs of damage, consider replacement.
6. Troubleshooting
If you encounter issues after installing the washer screw, such as continued component instability or unusual noises, first re-verify that the screw is properly tightened and that all surrounding components are correctly assembled. If problems persist, it may indicate an issue beyond the screw itself or an incorrect installation. In such cases:
- Double-check compatibility with your specific washer model.
- Consult your washing machine's service manual for further diagnostic steps.
- Contact a professional appliance repair technician.
7. Specifications
- Product Type: Washer Screw (Replacement Part)
- Brand: Generic
- Color: As pictured (typically metallic with a black rubber component)
- Size: As pictured (standard dimensions for specified models)
- Manufacturer: Generic
8. Support and Inquiries
For any questions regarding product compatibility, installation, or if you require further assistance, please contact the seller or manufacturer directly. Provide your washer's full model number when making an inquiry to ensure accurate support.
We aim to resolve any issues within 24 hours of your inquiry.
