Generic Electric Air Fryer User Manual

1. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before operating this appliance.

• DO NOT immerse the appliance, cord, or plug in water or other liquids.
• DO NOT block any ventilation openings.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting the appliance.
• Keep all ingredients in the basket to prevent contact with heating elements.
• DO NOT place the appliance against a wall or other appliances. Leave at least 10 cm (4 inches) free space on the back and sides and 10 cm (4 inches) free space above the appliance.
• Always unplug the appliance when not in use and before cleaning. Allow it to cool down before handling.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.

2. Product Overview

The Generic Electric Air Fryer FD-1013B is a compact digital kitchen appliance designed for frying, baking, roasting, and reheating food with rapid hot air circulation technology.

Figure 2.1: Front view of the Generic Electric Air Fryer FD-1013B, showcasing its sleek white exterior and compact design.

Key Features:

• Advanced Hot Air Circulation: Cooks food evenly with minimal oil.
• Compact Design: Space-saving white exterior suitable for various kitchen decors.
• Digital Controls: Precise temperature and time settings via a touch panel.
• Versatile Use: Capable of frying, baking, roasting, and reheating.
• Viewing Window: Allows monitoring of cooking progress without opening the unit.

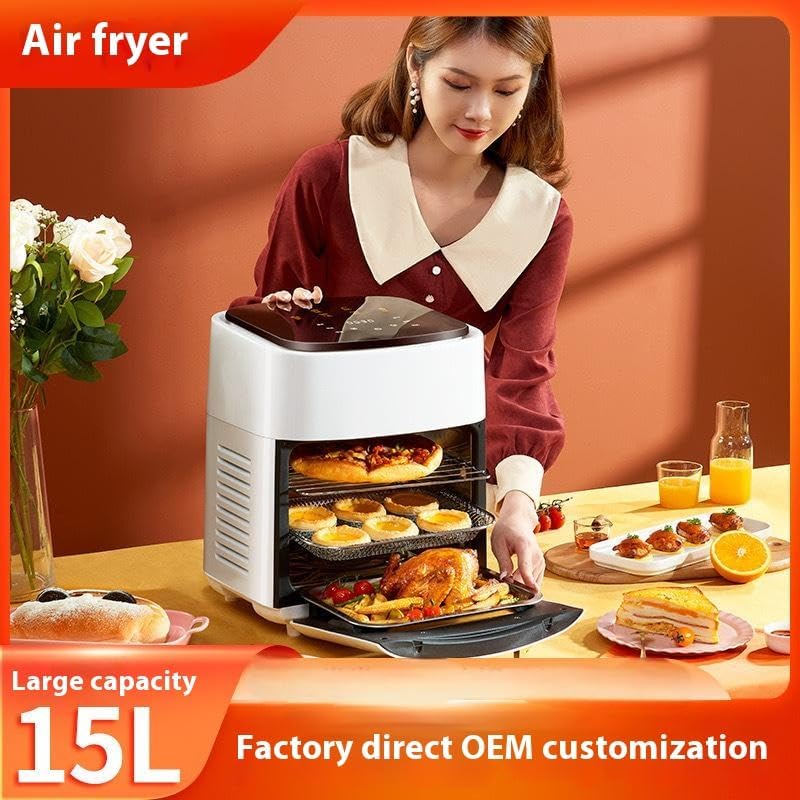

Figure 2.2: The air fryer loaded with food on its internal racks, demonstrating its capacity and multi-level cooking capability.

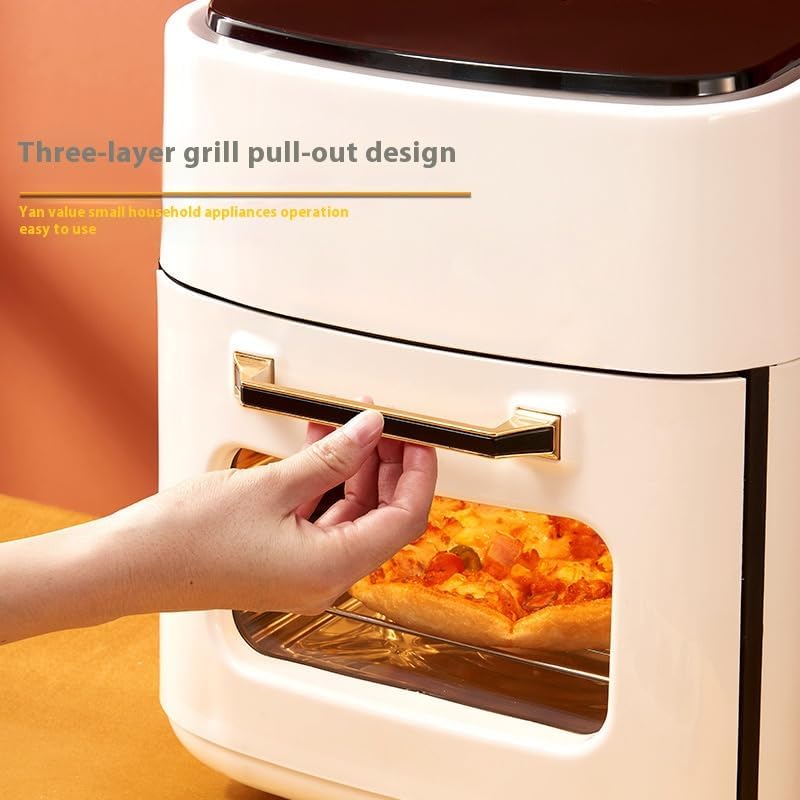

Figure 2.3: A close-up view of the pull-out design, highlighting the handle and the ease of access to the cooking racks.

3. Setup

1. Unpack: Carefully remove the air fryer and all packaging materials. Retain packaging for future storage or transport.
2. Initial Cleaning: Before first use, wipe the exterior of the appliance with a damp cloth. Wash the removable cooking basket and racks with warm, soapy water. Rinse and dry thoroughly.
3. Placement: Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is adequate air circulation around the appliance (at least 10 cm / 4 inches clearance on all sides).
4. Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the outlet voltage matches the appliance's requirements (110 Volts).

4. Operating Instructions

The air fryer features a user-friendly digital touch control panel for easy operation.

Figure 4.1: The Smart Touch Panel, providing intuitive controls for temperature, time, and cooking presets.

Basic Operation:

1. Power On: Plug in the appliance. The display will illuminate.
2. Preheating (Optional): For best results, preheat the air fryer. Set the desired temperature (e.g., 180°C / 350°F) and time (e.g., 5 minutes) and press start.
3. Load Food: Carefully place food into the cooking basket or onto the racks. Do not overfill to ensure even cooking.
4. Set Temperature and Time: Use the digital controls to adjust the temperature (Min: 10°C, Max: 200°C) and cooking time.
5. Start Cooking: Press the start button to begin the cooking cycle.
6. Monitor Progress: Use the viewing window to check on your food without interrupting the cooking process.
7. Shake/Flip (If needed): For some foods, shaking or flipping halfway through cooking ensures even crispiness.
8. Finish: The appliance will beep when the cooking time is complete. Carefully remove the food.

5. Cooking Guide

The air fryer offers versatile cooking options, functioning as a multi-purpose kitchen tool. Refer to the suggested settings below for common foods. Adjust times and temperatures as needed based on food quantity and desired crispiness.

Figure 5.1: Illustration of the air fryer's capability to perform multiple cooking functions beyond just frying.

Figure 5.2: Examples of cooking presets available on the digital control panel for various food items.

Suggested Cooking Times and Temperatures:

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer. Always unplug the appliance and allow it to cool completely before cleaning.

Cleaning Instructions:

• Exterior: Wipe the exterior with a damp cloth. Do not use abrasive cleaners.
• Cooking Basket and Racks: These components have a nonstick coating. Wash them with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry. Note: These parts are NOT dishwasher safe.
• Interior: Wipe the interior with a damp cloth. For stubborn food residue, use a mild detergent and a soft brush. Ensure the interior is completely dry before next use.
• Heating Element: Gently clean the heating element with a soft brush to remove any food particles.

7. Troubleshooting

If you encounter issues with your air fryer, refer to the following common problems and solutions:

8. Specifications

Detailed technical specifications for the Generic Electric Air Fryer FD-1013B.

9. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. Keep your proof of purchase for any warranty claims.
