1. Introduction
Thank you for choosing the EDISHINE KH 2401 DN Outdoor Wall Light. This modern and durable fixture is designed to provide reliable illumination for your outdoor spaces. Please read this manual carefully before installation and use to ensure proper function and safety. Keep this manual for future reference.
2. Safety Information
- Always turn off the power supply at the main circuit breaker before beginning any electrical work.
- Installation should be performed by a qualified electrician or a competent person.
- Ensure the voltage and frequency of your power supply match the product specifications (220-240V/50Hz).
- Do not exceed the maximum wattage for the E27 bulb (15W LED or 40W incandescent).
- This product is rated IP44 for outdoor use, protecting against splashing water and solid objects larger than 1mm. Do not immerse in water.
- Handle glass components with care to prevent breakage.
- Keep children away from electrical components during installation and maintenance.
3. Package Contents
Please check that all components are present and undamaged:
- 1 x EDISHINE KH 2401 DN Outdoor Wall Light
- 3 x Wall Plugs (Kunststoffdübel)
- 4 x Screws (Schrauben)
- 1 x Instruction Manual (Bedienungsanleitung)
Image 3.1: Contents of the package, showing the wall light, three wall plugs, four screws, and the instruction manual.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | EDISHINE |
| Model Number | KH 2401 DN |
| Color | Black |
| Material | Metal, Glass |
| Dimensions (L x W x H) | 19L x 12W x 15H cm |
| Weight | 1.03 kg |
| Power Source | Wired Electric |
| Voltage/Frequency | 220-240V/50Hz |
| Bulb Base | E27 |
| Max. Wattage | 15W (LED), 40W (Incandescent) |
| IP Rating | IP44 (Waterproof) |
| Luminous Efficacy | 800 Lumen (with compatible bulb) |
| Energy Label | A |
| Mounting Type | Wall Mount |
Image 4.1: The light features a pure aluminum frame, designed to be anti-rust and corrosion-resistant, ensuring durability.

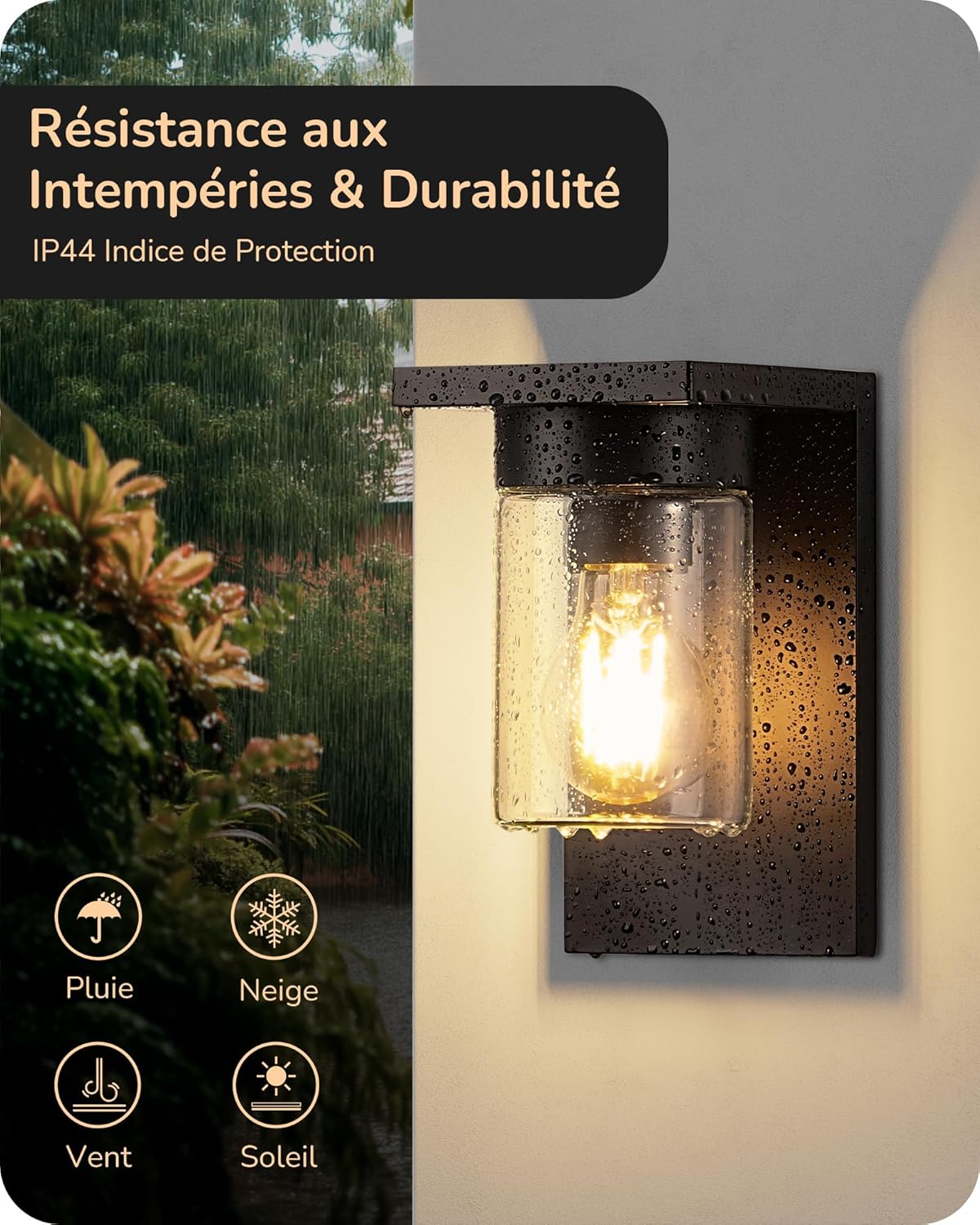

Image 4.2: The light is built to withstand various weather conditions, including rain, snow, wind, and sun, thanks to its IP44 protection rating.
Image 4.3: The fully enclosed design ensures the light is waterproof and prevents insects from entering, maintaining its performance and appearance.
5. Installation
Follow these steps for safe and correct installation:
- Preparation: Turn off the main power supply at the circuit breaker. Gather necessary tools (screwdriver, drill, wire strippers, etc.).
- Marking: Hold the light fixture against the desired wall location and mark the drilling points for the mounting bracket.
- Drilling: Drill holes at the marked points. Insert the provided wall plugs into the holes.
- Wiring: Connect the household electrical wires to the fixture's wires according to local electrical codes (Live to Live, Neutral to Neutral, Earth to Earth). Ensure connections are secure.
- Mounting: Secure the fixture's mounting bracket to the wall using the provided screws.
- Attach Fixture: Carefully attach the main body of the light fixture to the mounting bracket.
- Install Bulb: Screw an E27 bulb (max 15W LED or 40W incandescent, not included) into the socket.
- Restore Power: Turn the main power supply back on.

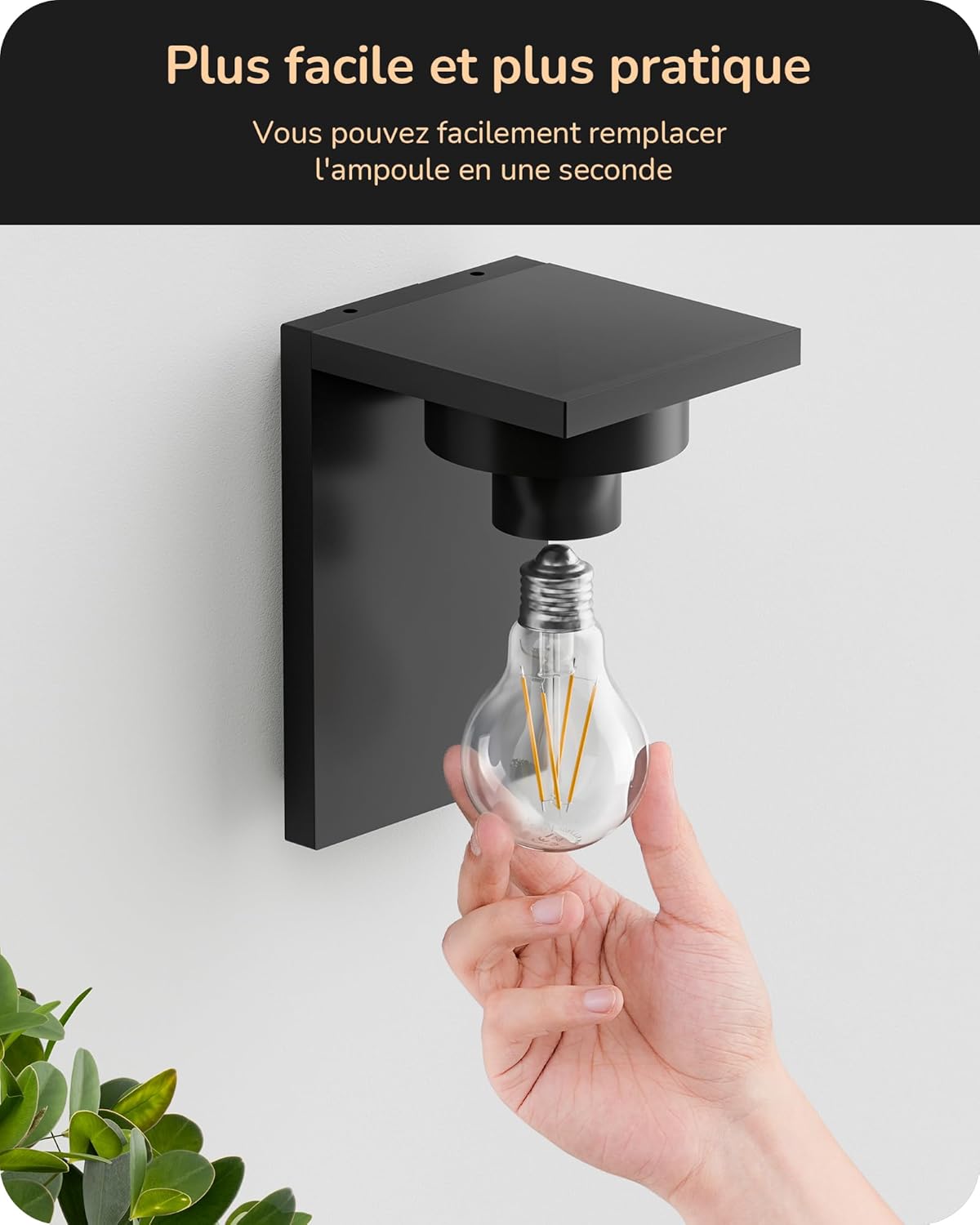

Image 5.1: The design allows for easy and quick replacement of the E27 bulb.
6. Operating Instructions
The EDISHINE KH 2401 DN Outdoor Wall Light operates as a standard wired fixture. Once installed and powered, it will illuminate when the connected wall switch is turned on. There are no complex controls or settings for this model.
Image 6.1: The light provides illumination during the night, enhancing visibility and ambiance.
Image 6.2: The fixture is compatible with various E27 bulbs, allowing you to choose between warm white or cool white light (bulb not included).
Image 6.3: The standard E27 socket supports various bulb types, including LED, CFL, incandescent, and smart bulbs (max 15W LED).
7. Maintenance
- Cleaning: To clean the fixture, ensure the power is off. Wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or glass.
- Bulb Replacement: Ensure the power is off and the bulb has cooled down. Unscrew the old E27 bulb and screw in a new one (max 15W LED or 40W incandescent).
- Inspection: Periodically check the fixture for any signs of wear, damage, or loose connections. If any issues are found, turn off the power and consult a qualified electrician.
Image 7.1: The durable glass shade maintains clarity over time, unlike plastic shades that can yellow.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply, faulty bulb, loose wiring. | Check circuit breaker. Replace bulb. Inspect wiring connections (with power off). |
| Light flickers | Loose bulb, incompatible bulb, unstable power. | Tighten bulb. Ensure bulb is compatible. Consult electrician for power issues. |
| Water inside fixture | Improper installation, damaged seal. | Turn off power. Inspect seals and re-install carefully. If damaged, replace fixture. |
9. Product Video
Video 9.1: An official product video showcasing the EDISHINE Outdoor Wall Light's features and applications, including its weather resistance and design.
10. Warranty and Support
EDISHINE products are manufactured to high-quality standards. For warranty information, technical support, or any questions regarding your product, please refer to the contact information provided on your purchase receipt or visit the official EDISHINE website. Please retain your proof of purchase for warranty claims.
