Rpzloila 3-Light Crystal Semi Flush Mount Ceiling Light Instruction Manual

Important Safety Information

Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other injuries that can be fatal or cause property damage.

WARNING: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installation or servicing.
All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Contact a qualified electrician if you are unfamiliar with proper electrical wiring installations.
Ensure the mounting surface is capable of supporting the fixture's weight.
Do not connect this fixture to an ungrounded electrical system.
Do not use bulbs exceeding the maximum wattage specified.
Handle crystal components with care to prevent breakage.

Package Contents

Verify that all components are present before beginning installation.

1 x Light Fixture Body (Black Metal Frame with Crystal Shade)
1 x Mounting Hardware Kit (includes screws, wire nuts, etc.)
1 x Instruction Manual (this document)

Specifications

Feature	Detail
Brand	Rpzloila
Model Number	8102-3X-BK
Color	Black17 (Black Metal, Clear Crystal)
Material	Metal, Crystal
Dimensions (L x W x H)	12.2"L x 12.2"W x 14"H
Weight	5 Pounds
Number of Light Sources	3
Bulb Base	E12
Max Wattage per Bulb	60W
Voltage	120 Volts (AC)
Installation Type	Semi Flush Mount
Room Type	Bathroom, Bedroom, Dining Room, Home Office, Kitchen, Entryway, Hallway, Foyer, Porch

Note: Bulbs and dimmer switch are not included. Some large-sized bulbs, such as Edison bulbs, may not fit this fixture.

Installation Instructions (Setup)

This fixture is designed for easy installation. Follow these steps carefully.

Prepare for Installation: Turn off power at the circuit breaker. Ensure the mounting surface is clean and dry.
Attach Mounting Bracket: Secure the mounting bracket to the junction box in the ceiling using the provided screws.
Wire Connections: Connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground) using wire nuts. Ensure all connections are secure.
Secure Fixture to Mounting Bracket: Carefully lift the fixture and attach it to the mounting bracket. Secure it with the provided screws or nuts.
Install Bulbs: Screw three E12 base bulbs (max 60W each, not included) into the sockets.
Restore Power: Turn power back on at the circuit breaker.

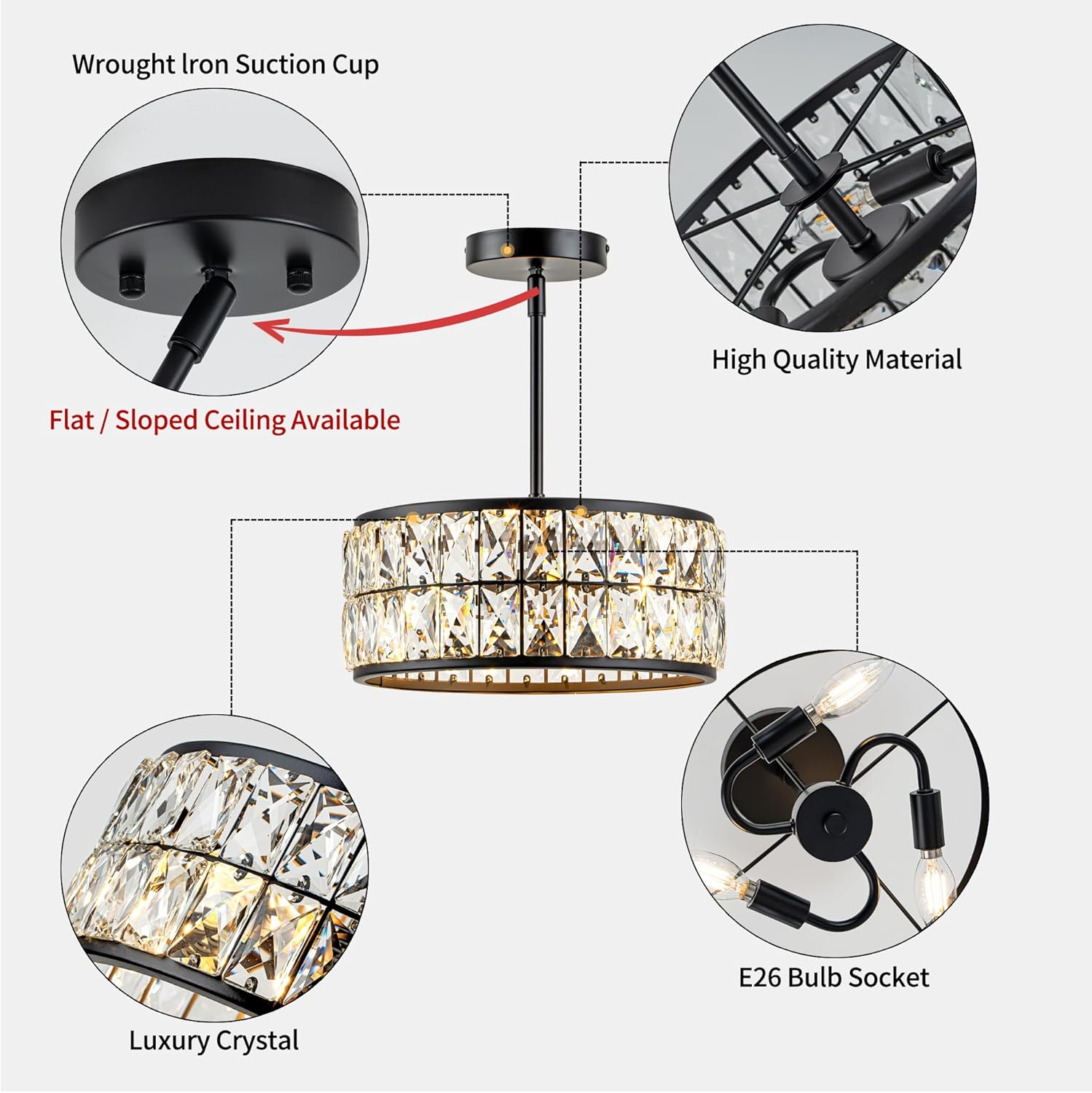

Diagram showing components of the Rpzloila ceiling light, including the wrought iron suction cup, high-quality material, E26 bulb socket, and luxury crystal details. It also indicates compatibility with flat/sloped ceilings.

Figure 1: Key components and features for installation. This diagram highlights the wrought iron suction cup for ceiling attachment, the overall high-quality material, the E26 bulb socket (note: product specifications state E12, this image may be generic), and the luxury crystal elements. It also shows the fixture's adaptability for flat or sloped ceilings.

Diagram showing the dimensions of the Rpzloila ceiling light and recommended E12 bulb types.

Figure 2: Product dimensions (12.2 inches diameter, 14 inches height) and visual examples of compatible E12 bulb types.

Operating Instructions

Once installed, operate the light fixture using a standard wall switch.

Bulb Compatibility: This fixture requires 3 E12 base bulbs, with a maximum wattage of 60W per bulb. Compatible bulb types include incandescent, LED, CFL, and halogen.
Dimmable Functionality: The light fixture is dimmable when used with compatible dimmable E12 bulbs and a dimmer switch (both sold separately).

Image showing the Rpzloila ceiling light in both OFF and ON states, demonstrating its illumination. The image also indicates that the light is dimmable with a compatible bulb and dimmer switch.

Figure 3: Visual representation of the light fixture in both off and illuminated states, highlighting its dimmable capability with appropriate bulbs and a dimmer switch.

Maintenance

To maintain the appearance and functionality of your Rpzloila ceiling light, follow these simple maintenance guidelines:

Cleaning: Turn off power before cleaning. Use a soft, dry cloth to wipe the metal frame. For the crystal components, a slightly damp cloth can be used, followed by a dry cloth to prevent water spots. Do not use abrasive cleaners or solvents.
Bulb Replacement: Ensure power is off before replacing bulbs. Allow bulbs to cool completely before handling. Replace with E12 base bulbs, maximum 60W.
Inspection: Periodically check all connections and mounting hardware to ensure they remain secure.

Troubleshooting

If you encounter issues with your light fixture, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Light does not turn on.	1. Power is off at the circuit breaker. 2. Loose wire connections. 3. Faulty bulb(s).	1. Check the circuit breaker and ensure power is on. 2. Turn off power, then check and secure all wire connections. 3. Replace bulb(s) with new, compatible E12 bulbs.
Light flickers.	1. Loose bulb. 2. Incompatible dimmer switch or bulb.	1. Turn off power, tighten the bulb. 2. Ensure dimmable bulbs are used with a compatible dimmer switch.
Crystals appear dull.	Dust or residue buildup.	Clean crystals as per maintenance instructions.

Warranty and Support

This Rpzloila product comes with a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any questions regarding your product, please contact Rpzloila customer service through the retailer where the product was purchased. Please have your model number (8102-3X-BK) and proof of purchase ready.
