PURPLE LEAF 9' x 12' Cantilever Patio Umbrella Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF 9' x 12' Cantilever Patio Umbrella. This umbrella is designed to enhance your outdoor living space by providing shade and comfort. It features an upgraded polyester fabric for durability and UV resistance, along with mechanisms for easy opening, closing, and angle adjustment.

Image 1.1: The PURPLE LEAF 9' x 12' Cantilever Patio Umbrella, showing the canopy, frame, and weighted base.

2. Safety Information

Please read and understand all safety warnings and instructions before assembling or operating this umbrella. Failure to follow these instructions may result in injury or damage to the product.

• Secure the Base: Always ensure the umbrella base is properly weighted and stable before opening the canopy. The included base should be filled with water and sand to achieve the recommended weight of approximately 280 lbs.
• Wind Conditions: Do not use the umbrella in strong wind conditions. High winds can cause the umbrella to tip over or become damaged. Close and secure the umbrella when not in use or during inclement weather.
• Clearance: Ensure adequate clearance around the umbrella when opening, closing, or rotating to avoid contact with objects or people.
• Children and Pets: Keep children and pets away from the umbrella during operation to prevent accidents.
• Inspection: Regularly inspect all components for wear, damage, or loose parts. Do not use the umbrella if any part is damaged.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Umbrella Canopy (Polyester Fabric)
• Cantilever Frame Assembly (Main Pole, Ribs, Crank Mechanism)
• Weighted Base (Fillable sections)
• Hardware Pack (Bolts, washers, tools if included)
• Instruction Manual (This document)

Image 3.1: The cantilever umbrella providing shade for an outdoor dining area, demonstrating its function and the included weighted base.

4. Assembly Instructions

Assembly typically requires two people due to the size and weight of the components. Follow these general steps:

1. Prepare the Base: Place the weighted base sections in the desired location. Fill the base sections with water and sand according to the manufacturer's recommendations to achieve the necessary stability (approx. 280 lbs). Ensure the base is level.
2. Attach the Main Pole: Secure the main pole of the cantilever frame to the weighted base using the provided hardware. Ensure all bolts are tightened securely.
3. Mount the Canopy Frame: Attach the umbrella canopy frame to the main pole. This usually involves sliding the frame onto a bracket and securing it with pins or bolts.
4. Install the Canopy: Carefully spread the polyester canopy over the umbrella ribs. Secure the canopy to the frame as instructed (e.g., tie-downs, pockets).
5. Final Check: Before first use, double-check all connections and ensure the umbrella is stable and securely assembled.

Image 4.1: Detailed dimensions of the fillable weighted base, indicating its size for proper placement and filling.

5. Operating Instructions

Your PURPLE LEAF cantilever umbrella offers multiple adjustments for optimal shade coverage.

• Opening the Umbrella: Use the crank mechanism located on the main pole to smoothly open the umbrella canopy. Continue cranking until the canopy is fully extended and taut.
• Closing the Umbrella: Turn the crank mechanism in the opposite direction to retract the canopy. Ensure the canopy is fully closed and secured with any integrated straps when not in use.
• Tilting the Canopy: The umbrella features 6 height adjustments for tilting. Locate the tilt handle or button on the frame and adjust the canopy to your desired angle to block the sun.
• 360° Rotation: To rotate the umbrella, release the locking mechanism (if present) at the base of the main pole. Gently rotate the entire umbrella assembly to the desired position, then re-engage the lock.

Image 5.1: Visual representation of the umbrella's six tilt settings, allowing for precise shade control throughout the day.

6. Maintenance

• Cleaning the Canopy: Clean the polyester fabric canopy regularly with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing. Do not use harsh chemicals or abrasive cleaners.
• Frame Care: Wipe the aluminum frame with a damp cloth to remove dirt and debris. Avoid scratching the finish.
• Lubrication: Periodically lubricate moving parts of the crank and tilt mechanisms with a silicone-based spray to ensure smooth operation.
• Base Maintenance: If the base is filled with water, ensure it is drained and dried before storing in freezing temperatures to prevent cracking.

Image 6.1: A close-up view of the umbrella's high-quality polyester fabric, highlighting its fade-resistant properties and colorfastness at AATCC level 4.

7. Storage

When not in use for extended periods or during off-season, proper storage will prolong the life of your umbrella:

• Ensure the canopy is clean and completely dry to prevent mold and mildew.
• Close the umbrella fully and secure it with any attached straps.
• Consider using a protective cover designed for cantilever umbrellas.
• Store the umbrella in a cool, dry place, away from direct sunlight and extreme temperatures.

8. Troubleshooting

9. Specifications

• Model: 9' x 12' Cantilever Patio Umbrella
• Brand: PURPLE LEAF
• Canopy Material: 240gsm Polyester fabric
• UV Resistance: 50+
• Colorfastness: AATCC level 4
• Frame Material: Aluminum (Shaft, Handle, Ribs)
• Main Pole Diameter: 3.38 inches
• Base Weight (Filled): Approximately 280 lbs (water and sand)
• Special Features: Vented canopy, 6 tilt adjustments, 360° rotation, triangular structure for stability.
• Shape: Rectangular

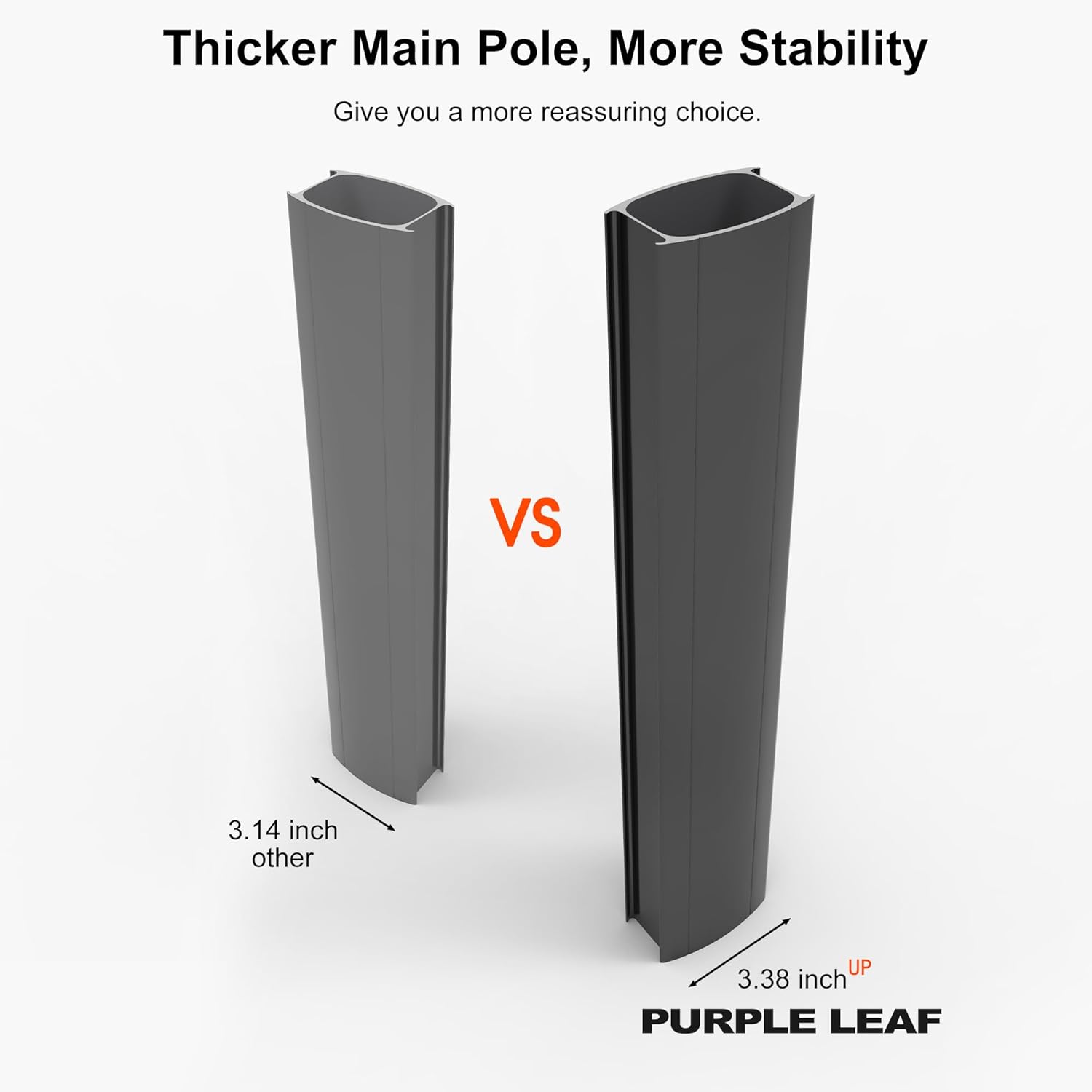

Image 9.1: Illustration comparing the thicker 3.38-inch main pole of the PURPLE LEAF umbrella to a standard 3.14-inch pole, indicating enhanced stability.

Image 9.2: Detail of the double top design, which contributes to better ventilation, increased stability, and overall durability.

Image 9.3: Illustration of the triangular structure, a wind-resistant design feature that enhances the umbrella's stability and durability.

10. Warranty and Support

PURPLE LEAF provides the following warranty for this product:

• Umbrella Fabric: Covered for 3 years from the date of purchase.
• Accessories: Covered for 1 year from the date of purchase.

For warranty claims, missing parts, or technical support, please contact PURPLE LEAF customer service. Refer to your purchase documentation for specific contact details.
