Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Rpzloila Crystal Flush Mount Ceiling Light Fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.

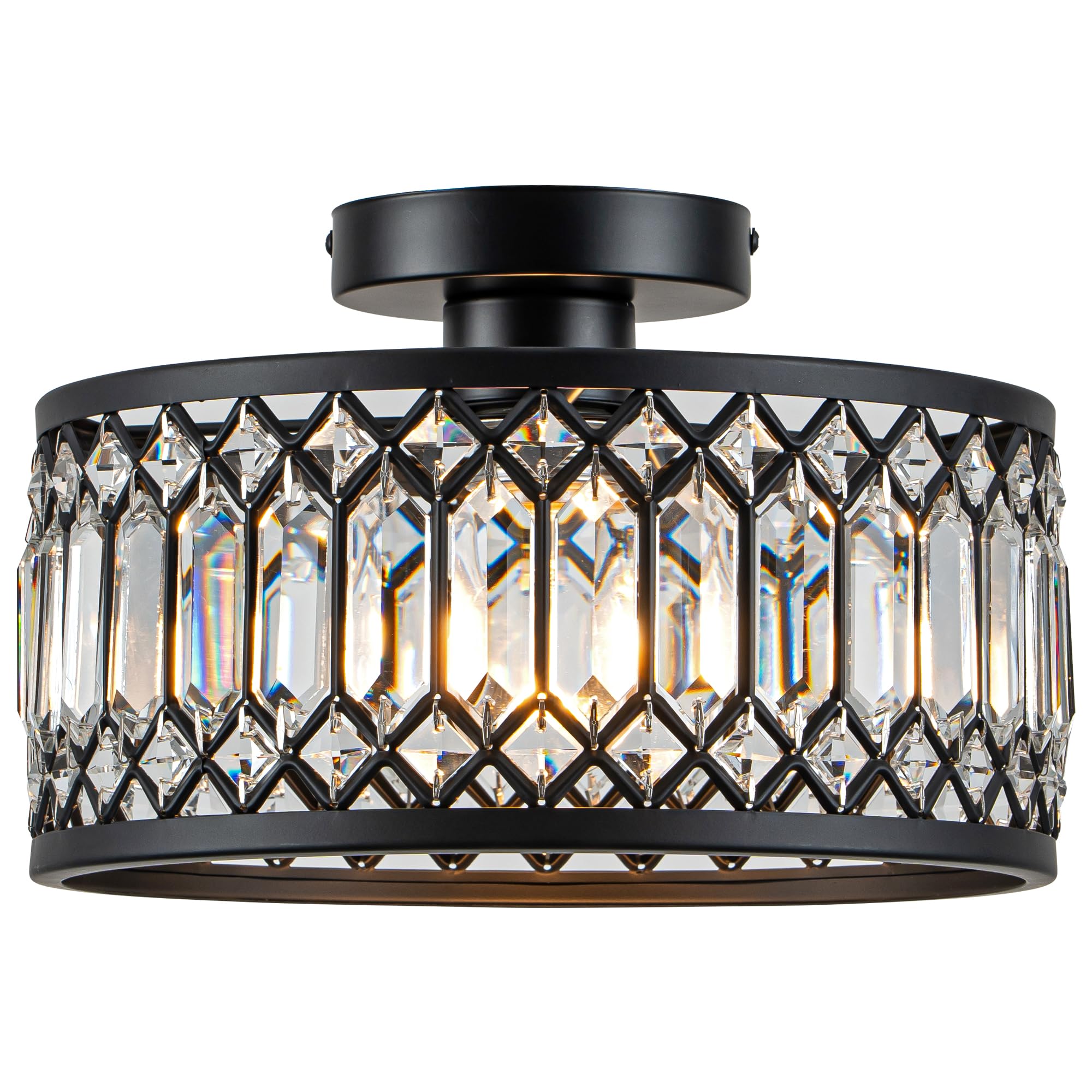

Image: Rpzloila Crystal Flush Mount Ceiling Light Fixture, showcasing its elegant design.
Safety Information
- Always turn off the power at the main circuit breaker before installation, maintenance, or bulb replacement.
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure all electrical connections are secure and comply with local electrical codes.
- Do not exceed the maximum wattage specified for the light bulbs.
- Handle crystal components with care to prevent breakage.
Package Contents
Verify that all components are present before beginning installation:
- Light Fixture Assembly
- Mounting Hardware (screws, wire nuts, mounting bracket)
- Instruction Manual
Setup and Installation
Follow these steps to install your ceiling light fixture:
- Prepare for Installation: Turn off power at the circuit breaker. Ensure the mounting surface is clean and dry.
- Attach Mounting Bracket: Secure the mounting bracket to the junction box in the ceiling using the provided screws.
- Wire Connections: Connect the fixture's wires to the household electrical wires. Connect the black wire (live) to the black wire, the white wire (neutral) to the white wire, and the ground wire to the ground wire. Secure connections with wire nuts.
- Mount the Fixture: Carefully align the fixture base with the mounting bracket and secure it with the provided screws.
- Install Light Bulbs: Insert one E26 base light bulb (not included) into the socket. Do not exceed 60 watts.
Image: Detailed view of the light fixture components, including the wrought iron suction cup, high-quality material, luxury crystal, and E26 bulb socket.
Image: Diagram showing the dimensions (11.4" diameter, 7.08" height) and recommended E26 bulb types for the fixture.
Operating Instructions
This light fixture operates via a standard wall switch (not included). For dimming functionality, use a dimmable E26 bulb and a compatible dimmer switch (both sold separately).
Image: Visual comparison of the light fixture when turned OFF and ON, demonstrating its illumination.
Maintenance
- Cleaning: To clean the fixture, turn off the power and wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Bulb Replacement: Ensure power is off before replacing the bulb. Allow the bulb to cool completely before touching. Use only E26 base bulbs, not exceeding 60 watts.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power, loose wiring, faulty bulb | Check circuit breaker, verify wire connections, replace bulb. |
| Light flickers | Loose bulb, incompatible dimmer, faulty wiring | Tighten bulb, ensure dimmer compatibility, check wiring. |
| Crystals appear dull | Dust or residue buildup | Clean crystals with a soft, dry cloth. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 8802-1XL-BK |
| Brand | Rpzloila |
| Color | Black |
| Material | Glass, Metal |
| Style | Modern |
| Light Fixture Form | Close to Ceiling |
| Room Type | Bathroom, Bedroom, Dining Room, Home Office, Kitchen |
| Power Source | Corded Electric |
| Light Source | LED (Bulb not included) |
| Number of Light Sources | 1 |
| Voltage | 120 Volts (AC) |
| Wattage | 60 watts (Max) |
| Bulb Base | E26 |
| Dimensions (L x W x H) | 11.4"L x 11.4"W x 7.1"H |
| Installation Type | Semi Flush Mount |
| Required Assembly | Yes |
Warranty and Support
This Rpzloila product comes with a 2-year manufacturer's limited warranty. For warranty claims or technical support, please contact the retailer where the product was purchased or refer to the contact information provided on the product packaging.
