Space Saver Utility Sink User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Space Saver Utility Sink. Please read this manual thoroughly before installation and use, and retain it for future reference.

Product Overview

The BANEBONE Space Saver Utility Sink is a freestanding laundry tub designed for versatile use in various settings, including homes, commercial laundries, and utility rooms. It features a durable construction, a 360° rotatable faucet, and an integrated soap dispenser for enhanced functionality.

Figure 1.1: The BANEBONE Space Saver Utility Sink in use, demonstrating its large basin and rotatable faucet for washing items like vegetables.

2. Safety Information

Always follow basic safety precautions when using this product to reduce the risk of injury or damage.

• Ensure all connections are secure and leak-free before use.
• Do not overload the sink basin beyond its stated capacity (refer to specifications).
• Keep children and pets away from the sink during operation.
• Use appropriate tools for installation and maintenance.
• Do not use abrasive cleaners or harsh chemicals that may damage the sink's finish.

3. Specifications

Figure 3.1: Key dimensions of the sink basin for planning and installation.

4. Package Contents

Please verify that all components are present and undamaged before beginning assembly.

• Free Standing Laundry Sink (1)
• Faucet (1)
• Soap Dispenser (1)
• Water Inlet Pipe (1)
• Drain Pipe (1)
• Allen Key (1)
• All necessary assembly accessories (nuts, bolts, washers, etc.)

5. Setup and Installation

This section provides step-by-step instructions for assembling and installing your utility sink. It is recommended to have a second person assist with lifting and positioning the sink.

5.1 Tools Required (Not Included)

• Adjustable Wrench
• Screwdriver (Phillips head)
• Pliers
• Level
• Sealant Tape (Teflon tape)

5.2 Assembly Steps

1. Attach Legs to Sink Basin: Carefully invert the sink basin. Align the four iron legs with the designated mounting points on the underside of the basin. Secure each leg using the provided bolts and nuts. Ensure they are tightened firmly with the Allen key.
2. Install Faucet: Insert the faucet into the single hole on the sink basin. Secure it from underneath with the provided washer and nut, tightening with an adjustable wrench. Ensure the faucet is oriented correctly.


   Figure 5.1: Proper installation of the faucet and soap dispenser.

3. Install Soap Dispenser: Insert the soap dispenser into the smaller hole next to the faucet. Secure it from underneath with the provided nut.

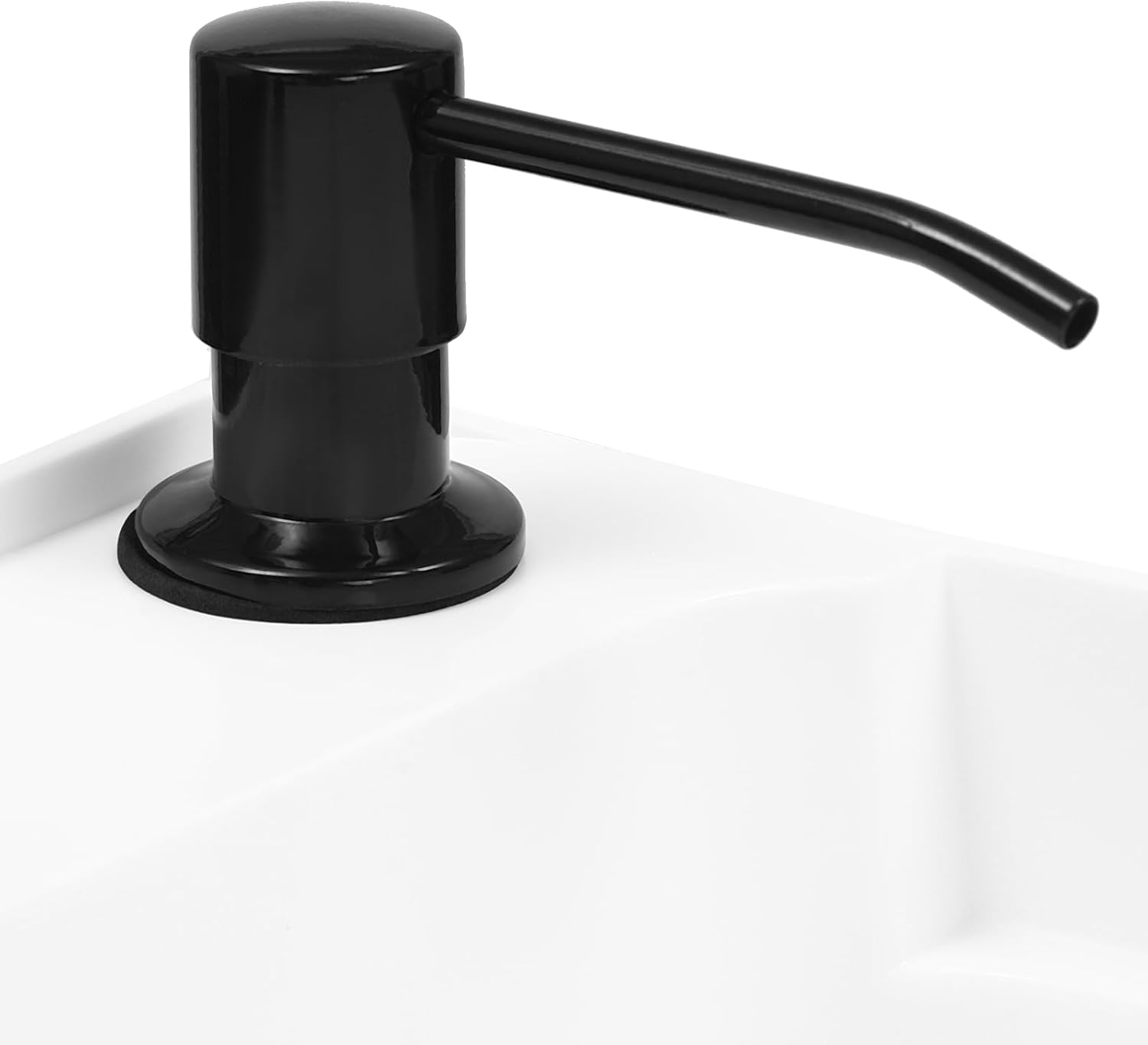

   Figure 5.2: Detail of the soap dispenser installation.
4. Install Drain Assembly: Place the drain strainer into the drain hole from the top of the basin. From underneath, attach the rubber gasket and tightening nut. Secure tightly to prevent leaks.


   Figure 5.3: Components of the drain assembly.

5. Connect Water Inlet Pipe: Attach the provided water inlet pipe to the faucet's inlet connection underneath the sink. Use sealant tape on the threads to ensure a watertight seal. Connect the other end to your cold water supply line.
6. Connect Drain Pipe: Attach the flexible drain pipe to the drain assembly underneath the sink. Extend the drain pipe to your floor drain or wall drain connection. Ensure a proper slope for drainage.


   Figure 5.4: Rear view showing water and drain connections.

7. Position and Level: Carefully turn the assembled sink upright and place it in its desired location. Use a level to ensure the sink is stable and level on all sides. Adjust leg feet if necessary.
8. Test for Leaks: Turn on the water supply slowly and check all connections for any leaks. Tighten connections as needed.

6. Operating Instructions

6.1 Using the Faucet

• The faucet features a single handle for controlling water flow and temperature.
• Rotate the faucet spout 360 degrees to direct water flow as needed.
• Adjust the handle to achieve desired water pressure and temperature.

6.2 Using the Soap Dispenser

• To fill, remove the pump head from the top. Pour liquid soap directly into the reservoir.
• Press down on the pump head to dispense soap.

6.3 General Use

• The large basin is suitable for washing clothes, pets, large dishes, and various items.
• The raised edges of the basin are designed to minimize water splashing during use.
• The ample bottom space beneath the sink can be utilized for storage of cleaning supplies or other items.

Figure 6.1: The sink's large basin is ideal for various tasks, including pet bathing.

7. Maintenance

7.1 Cleaning

• Regularly wipe the sink basin and faucet with a damp cloth and mild soap.
• For stubborn stains, use a non-abrasive cleaner specifically designed for plastic or stainless steel surfaces.
• Rinse thoroughly with clean water and wipe dry with a soft cloth to prevent water spots.
• Do not use abrasive pads, harsh chemicals, or solvents as these can damage the finish.

7.2 Drain Maintenance

• Periodically remove the drain strainer and clean any accumulated debris to prevent clogs.
• If a clog occurs, use a drain snake or a chemical drain cleaner suitable for plastic pipes.

7.3 Faucet Maintenance

• Check faucet connections periodically for leaks and tighten if necessary.
• Clean the aerator at the tip of the faucet if water flow becomes restricted. Unscrew the aerator, rinse out any mineral deposits or debris, and reattach.

8. Troubleshooting

9. Warranty and Support

For warranty information or technical support, please contact BANEBONE customer service. Refer to your purchase documentation for specific warranty terms and conditions.

Manufacturer: Roustory

For assistance, please visit the official BANEBONE website or contact their customer support channels.
