1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your ANKEWAY XBH-8801 car radio. Please read this manual thoroughly before use to ensure proper functionality and safety.
1.1 Product Overview
The ANKEWAY XBH-8801 is an advanced car radio system designed for specific Opel models. It integrates modern features such as wireless Apple CarPlay, Android Auto, Bluetooth 5.0, FM/RDS radio, and supports a rearview camera. The system runs on an Android operating system, allowing for internet connectivity via Wi-Fi and installation of various applications.
Image 1.1: ANKEWAY XBH-8801 Car Radio and included accessories.
1.2 Vehicle Compatibility
This car radio is specifically designed for the following Opel models and years:
- Astra (2004-2009)
- Antara (2006-2011)
- Vectra (2003-2008)
- Corsa (2006-2011)
- Zafira (2005-2011)
- Meriva (2006-2011)
- Combo (2004-2011)
- Signum (2003-2011)
- Tigra Twin Top (2004-2011)

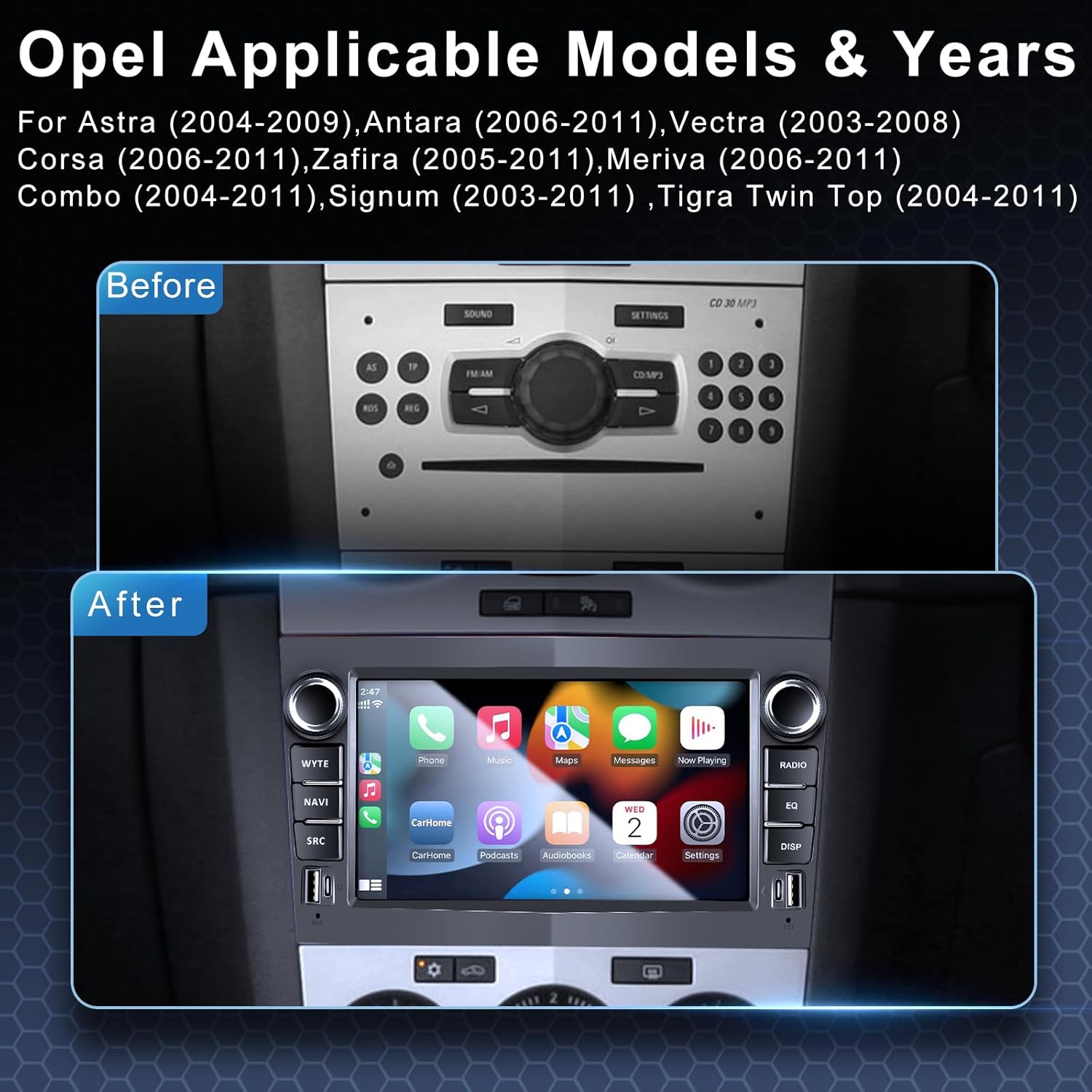

Image 1.2: Visual comparison of the original Opel dashboard and the ANKEWAY XBH-8801 installed.
2. Package Contents
Verify that all items listed below are included in your package. If any items are missing or damaged, please contact customer support.
- 1x ANKEWAY XBH-8801 Car Radio Unit
- 1x Rearview Camera
- 1x Microphone
- 1x CANBUS Decoder
- 2x Panel Removal Tools
- 2x Camera Cables
- 2x Power Cables
- 1x Radio Antenna Adapter
- 1x AHD Camera
- 1x GPS Antenna
- 1x RCA Cable
- 1x USB Cable
Image 2.1: Product dimensions and a visual list of all included components.
3. Installation
Professional installation is recommended. Ensure the vehicle's power is disconnected before beginning installation. The included CANBUS adapter ensures compatibility with original steering wheel controls.
3.1 General Installation Steps
- Carefully remove the original car radio using the provided panel removal tools.
- Connect the power cables, CANBUS decoder, and other necessary wiring harnesses to the vehicle's original connectors. The cables are pre-grouped for easier connection.
- Install the GPS antenna in a location with a clear view of the sky.
- Connect the rearview camera cable and install the camera at the rear of the vehicle.
- Mount the ANKEWAY XBH-8801 unit into the dashboard opening.
- Reconnect the vehicle's power and test the unit.
3.2 Rearview Camera Installation
The included rearview camera supports high-definition input and night vision. Connect the camera to the designated input on the car radio. The system will automatically display the camera feed when the vehicle is in reverse gear.
Image 3.1: Rearview camera connection and display functionality.
4. Setup
4.1 Initial Power-On and Language Selection
Upon first power-on, the system may guide you through initial setup steps, including language selection. The system supports multiple languages, including Italian, Spanish, German, and French.
4.2 Wi-Fi Connection
To access internet-dependent features and install applications, connect the unit to a Wi-Fi network. This can be done by tethering to your mobile phone's hotspot or connecting to an available Wi-Fi network.
- Navigate to the system settings.
- Select 'Network & Internet' or 'Wi-Fi'.
- Turn on Wi-Fi and select your desired network.
- Enter the password if prompted.

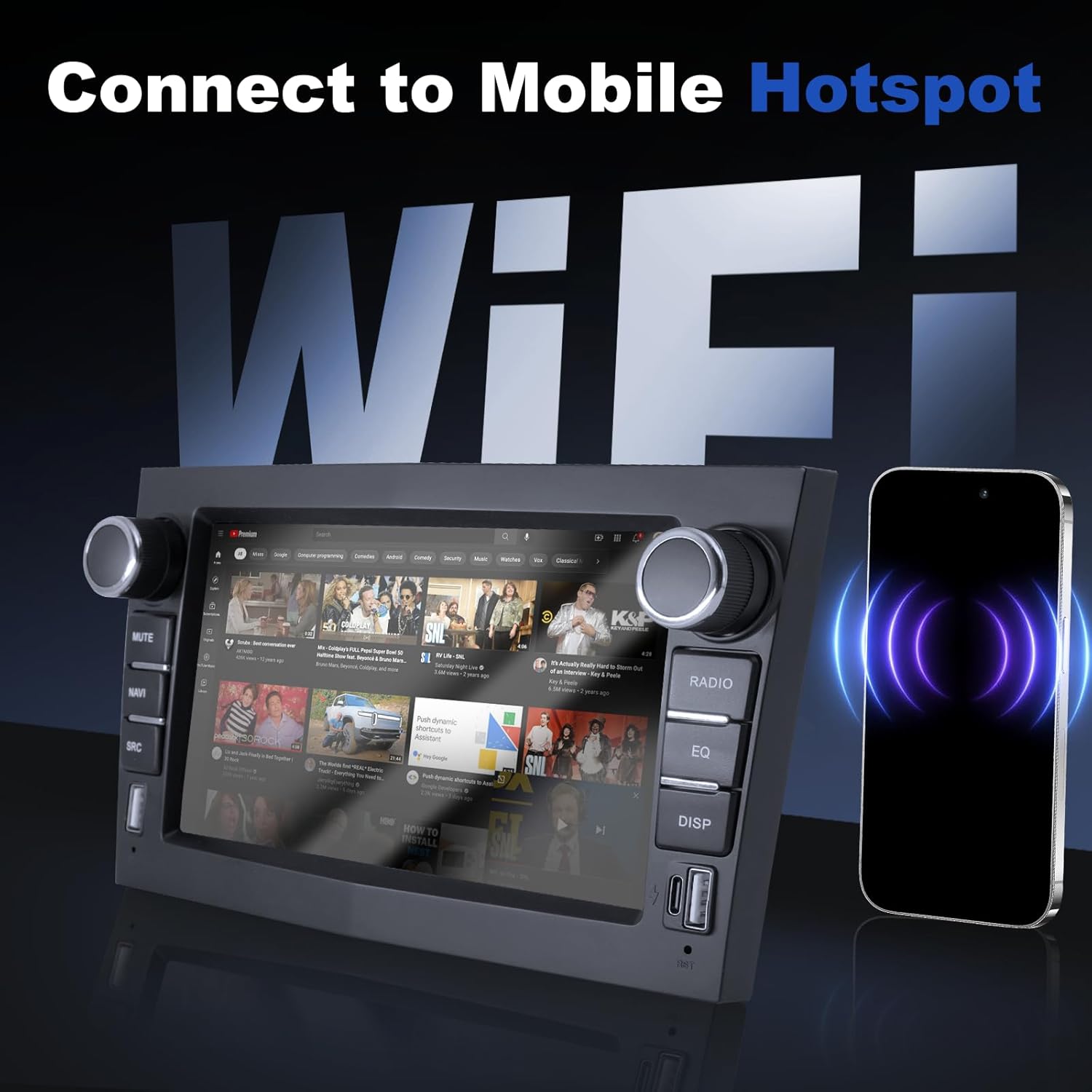

Image 4.1: Connecting the car radio to a mobile hotspot via Wi-Fi.
5. Operating Instructions
5.1 CarPlay and Android Auto
The unit supports both wireless and wired Apple CarPlay and Android Auto. This allows seamless integration with your smartphone for navigation, music, calls, and other applications.
- Ensure Bluetooth and Wi-Fi are enabled on your smartphone.
- On the car radio, select the CarPlay or Android Auto application.
- Follow the on-screen prompts to connect your device. For wired connection, use a USB cable.
Image 5.1: Apple CarPlay interface displayed on the car radio.
5.2 Bluetooth Functions
Bluetooth 5.0 enables hands-free calling and audio streaming.
- Go to the Bluetooth settings on the car radio.
- Enable Bluetooth on your smartphone and search for available devices.
- Select the car radio from your phone's list and pair.
- Once paired, you can make/receive calls and stream audio.
5.3 FM/RDS Radio
The radio supports FM with RDS (Radio Data System) for displaying station information.
- Select the 'Radio' application from the main menu.
- Use the on-screen controls or physical buttons to scan for stations.
- Adjust audio settings using the built-in DSP and equalizer.
Image 5.2: FM/RDS Radio interface and Equalizer settings.
5.4 USB Ports
The unit features 2 USB-A ports and 1 USB-C port for charging devices and playing media from USB storage.
- Connect USB drives to play audio or video files.
- Use the ports to charge compatible electronic devices.
5.5 System Settings and UI
The Android system allows for customization, including split-screen functionality and various user interface themes.
- Access the 'Settings' menu to configure system preferences, display, sound, and network options.
- Utilize the split-screen feature to run two applications simultaneously.
- Explore different UI interfaces available in the system settings.
Image 5.3: Examples of various Android user interfaces.
6. Specifications
| Feature | Specification |
|---|---|
| Model | XBH-8801 |
| Operating System | Android |
| Memory (RAM+ROM) | 2GB RAM + 32GB ROM |
| Connectivity | Wi-Fi, Bluetooth 5.0, USB, USB-C |
| Smartphone Integration | Wireless CarPlay, Android Auto, Mirror-Link |
| Audio Features | FM/RDS Radio, DSP, Equalizer |
| Camera Support | Rearview Camera (included), Front Camera (optional) |
| CANBUS Adapter | Included (for steering wheel controls) |
| Dimensions (Unit) | Approximately 20.3 cm (width) x 12 cm (height) x 1 cm (depth) |
| Weight | 1.1 kg |
7. Troubleshooting
7.1 Common Issues and Solutions
- No Power: Check all power connections and fuses. Ensure the vehicle's ignition is on.
- No Sound: Verify speaker connections. Check volume levels and audio output settings. Ensure the correct audio source is selected.
- CarPlay/Android Auto Not Connecting: Ensure Bluetooth and Wi-Fi are active on your phone and the car radio. Try restarting both devices. For wired connections, try a different USB cable.
- Steering Wheel Controls Not Working: Confirm the CANBUS decoder is correctly installed and configured in the system settings.
- Poor Radio Reception: Check the radio antenna connection. Ensure the antenna is properly installed and not obstructed.
- Rearview Camera Not Displaying: Check the camera's power and video signal connections. Ensure the vehicle is in reverse gear.
8. Maintenance
8.1 Cleaning
Use a soft, dry cloth to clean the screen and exterior of the unit. Avoid abrasive cleaners or solvents that may damage the surface.
8.2 Software Updates
The manufacturer regularly releases firmware updates to optimize system performance and add new features. To receive update packages, please contact customer support.
9. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. For technical assistance, troubleshooting, or software updates, please reach out to ANKEWAY customer support. They are available to assist with installation and operational queries.
