PPT120W
Beautiful by PUR 12 Cup Water Filtration Pitcher User Manual
Model: PPT120W
Introduction
Thank you for choosing the Beautiful by PUR 12 Cup Water Filtration Pitcher. This pitcher is designed to provide clean, great-tasting water by reducing various contaminants. Its elegant design with a white icing finish and signature gold accents makes it a stylish addition to any kitchen. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your new water pitcher.

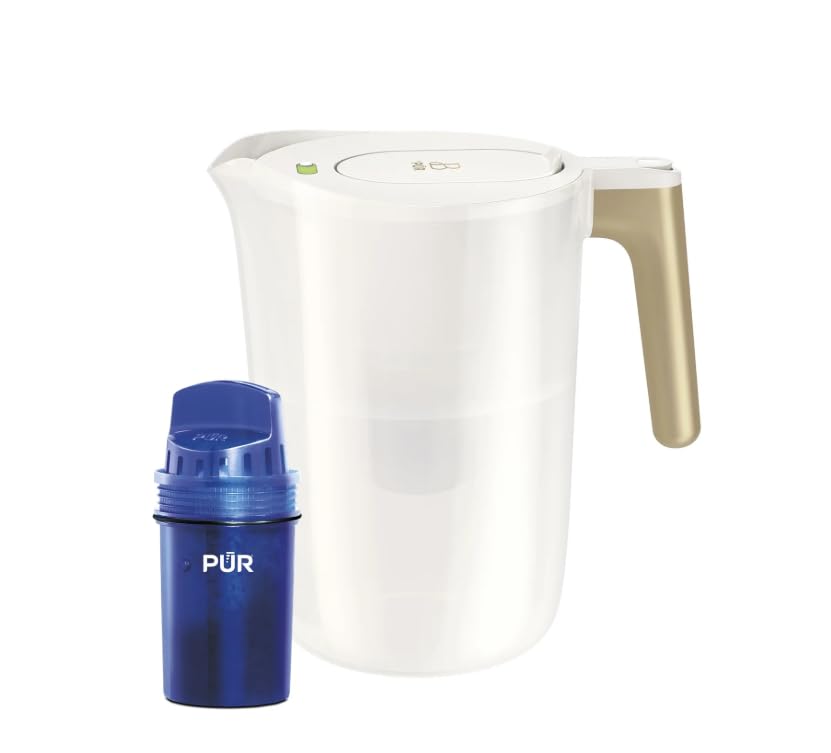

Image: The Beautiful by PUR 12 Cup Water Filtration Pitcher in white icing with gold accents, shown alongside its blue PUR filter.
Setup
1. Unpacking
Carefully remove all components from the packaging. Ensure you have the pitcher, lid, and one PUR PPF900Z filter. Dispose of packaging materials responsibly.
2. Filter Preparation
- Remove the PUR filter from its packaging.
- Submerge the filter in cold water for 15 minutes. This helps to remove any air bubbles and prepare the filter for optimal performance.
- Rinse the filter under cold tap water for 10 seconds.
3. Filter Installation
Insert the prepared filter into the designated slot in the pitcher's reservoir. Push down firmly to ensure a secure, LockFit™ seal. The filter should sit snugly in place, preventing unfiltered water from bypassing it.

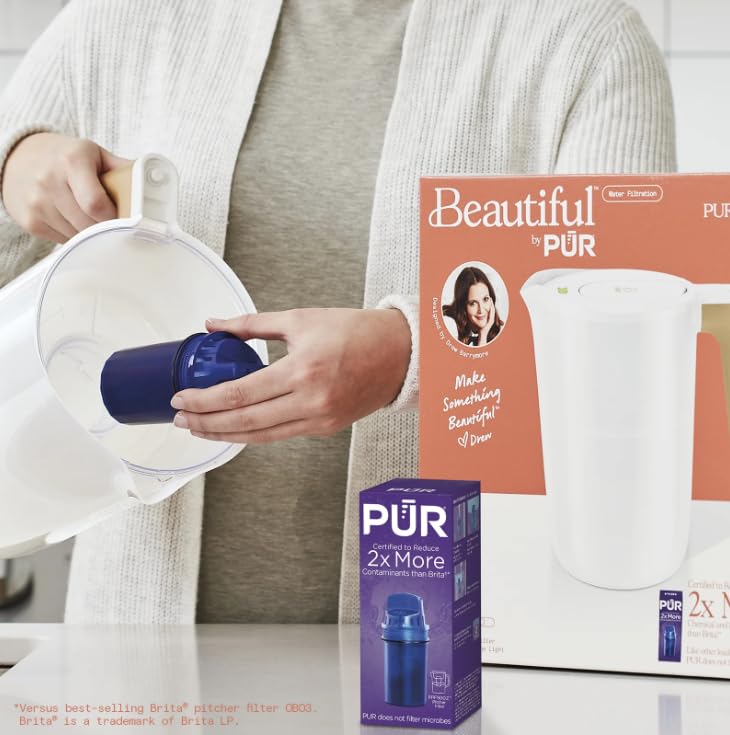

Image: A hand demonstrating the proper way to insert the PUR filter into the pitcher's reservoir.
4. Initial Use and Flushing
Fill the pitcher with tap water. The first two pitchers of filtered water may contain carbon dust; this is normal and harmless. Discard the first two pitchers of filtered water or use them for watering plants. Your pitcher is now ready for use.
Operating Instructions
1. Filling the Pitcher
Open the large fill door on the lid and fill the pitcher with cold tap water. The semi-translucent body allows you to easily monitor the water level. Close the fill door once filled.
2. Pouring Filtered Water
The pitcher features a stay-tight lid and an ergonomic handle for comfortable pouring. You can pour water even while it is still filtering. The pour spout cover helps prevent odors and particulates from entering your water.

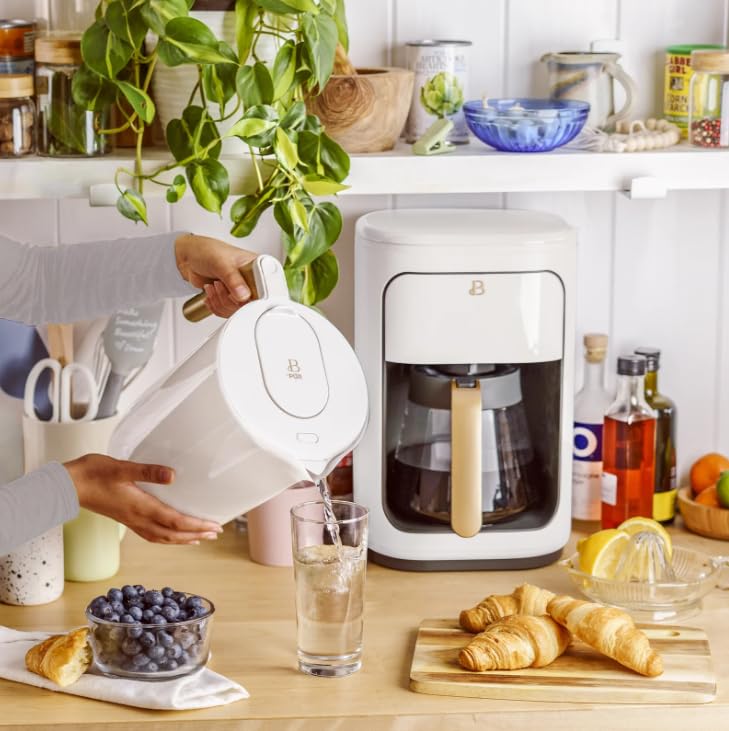

Image: A person pouring filtered water from the Beautiful by PUR pitcher into a drinking glass.
3. Filter Change Light
Your pitcher is equipped with a Filter Change Light located on the lid. This light will turn red when it is time to replace the filter, typically after filtering approximately 40 gallons of water or every two months, whichever comes first.

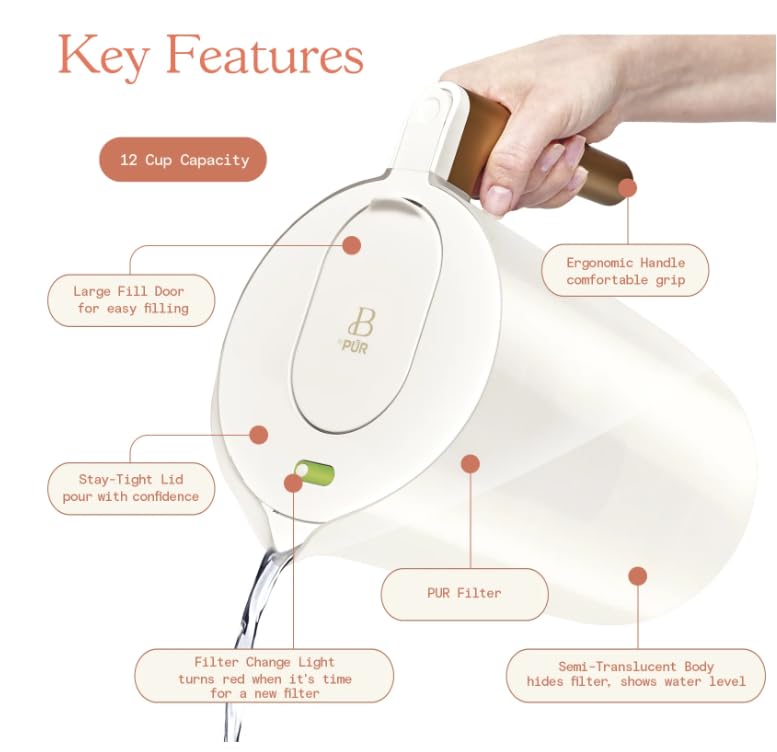

Image: A detailed diagram of the pitcher, pointing out key features such as the 12-cup capacity, large fill door, ergonomic handle, stay-tight lid, PUR filter, filter change light, and semi-translucent body.
Maintenance
1. Cleaning the Pitcher
The pitcher and lid (excluding the filter) should be hand-washed regularly with mild detergent and warm water. Do not wash the filter with soap. Rinse thoroughly. Do not place the pitcher or lid in a dishwasher.
2. Filter Replacement
Replace the PUR filter when the Filter Change Light turns red, or approximately every two months, or after filtering 40 gallons of water. Follow the "Filter Preparation" and "Filter Installation" steps from the Setup section for replacing your filter. Always use genuine PUR PPF900Z replacement filters.
Image: A hand demonstrating the process of inserting a new PUR filter into the pitcher's reservoir, which is the same process for replacement.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow filtration | Air bubbles in filter; filter nearing end of life; clogged filter. | Re-submerge filter in water to remove air; replace filter if it's old or heavily used. |
| Filter Change Light not working | Battery issue (if applicable, though this model is manual); sensor obstruction. | Ensure lid is properly seated. If issue persists, contact customer support. Replace filter every two months regardless of light. |
| Water tastes or smells unusual | Filter not properly installed; filter needs replacement; pitcher needs cleaning. | Ensure filter is securely seated; replace filter; clean pitcher thoroughly. |
| Unfiltered water bypassing filter | Filter not securely installed. | Remove and re-install filter, ensuring it is pushed down firmly for a LockFit™ seal. |
Specifications
- Model Number: PPT120W
- Capacity: 12 Cups
- Filter Type: PUR PPF900Z (Genuine PUR Filter)
- Filter Life: Approximately 40 gallons or 2 months
- Product Dimensions: 11.2"L x 6.8"W x 11.6"H
- Item Weight: 2.8 Pounds
- Power Source: Manual (no electricity required)

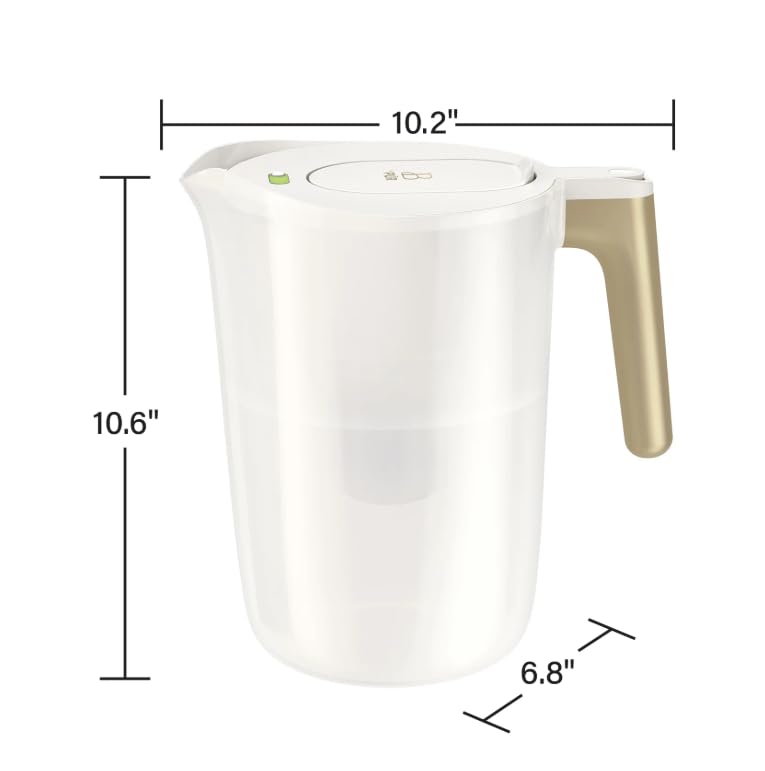

Image: A diagram illustrating the dimensions of the Beautiful by PUR pitcher: 10.2 inches wide, 10.6 inches high, and 6.8 inches deep.
Warranty & Support
This Beautiful by PUR product is backed by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, replacement parts, or warranty claims, please contact the manufacturer's customer service.
Customer Support: For assistance, please visit the official PUR website or contact their customer service line. (Specific contact details are not provided in this manual. Please refer to product packaging or manufacturer's website for current contact information.)
