Generic ZTU ZigBee Module Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Generic ZTU ZigBee Module. This module is a compact Surface Mount Device (SMD) designed for integration into various electronic systems requiring ZigBee wireless communication capabilities. Please read this manual thoroughly before using the module to ensure safe and efficient operation.

2. Safety Information

• Always handle the module with care to prevent damage from electrostatic discharge (ESD). Use appropriate ESD protection measures.
• Ensure proper power supply voltage and current are applied as specified in the technical documentation. Incorrect power can damage the module.
• Do not expose the module to extreme temperatures, humidity, or corrosive environments.
• Modifications to the module are not recommended and may void any potential warranty.
• Installation should be performed by qualified personnel familiar with electronic components and soldering techniques.

3. Product Overview

The Generic ZTU ZigBee Module (Model ZTU(ujzh)) is a compact wireless communication module designed for low-power, short-range data transmission. Its small form factor makes it suitable for integration into space-constrained applications.

3.1. Features

• Compact SMD design.
• Integrated ZigBee wireless communication.
• Suitable for various IoT and embedded applications.

3.2. Dimensions and Identification

The module measures approximately 15.8mm x 20.8mm. Key identification markings include 'Model: ZTU', 'P/N 2.01.03.00300', and 'S/N 10004042800012'.

Figure 1: Top view of the Generic ZTU ZigBee Module, showing model and serial number markings.

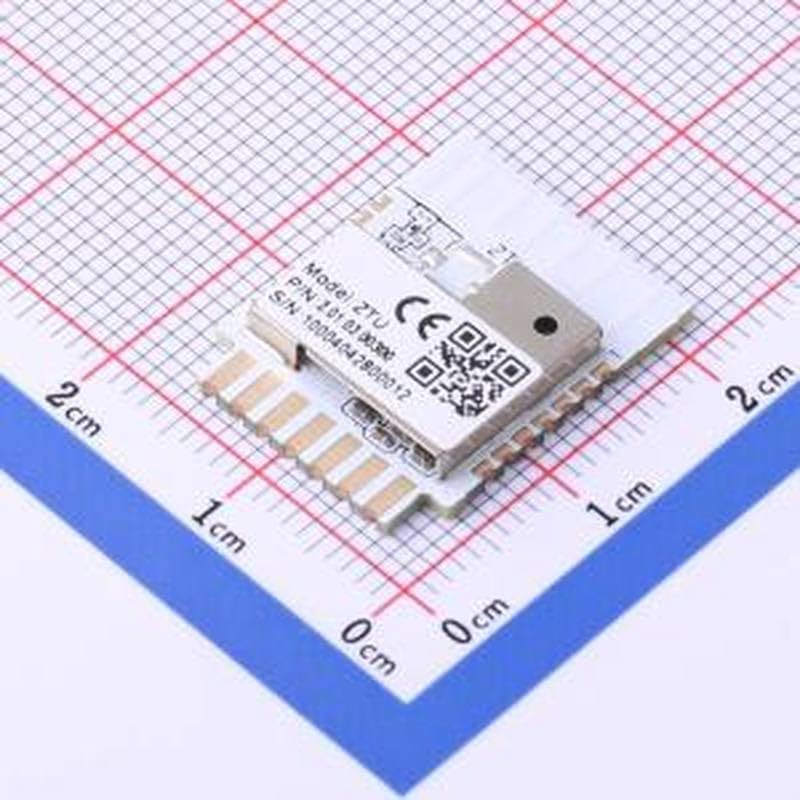

Figure 2: Top view of the module placed on a centimeter grid, illustrating its compact size of approximately 15.8mm x 20.8mm. The serial number 10004042800012 is visible.

Figure 3: Bottom view of the module on a centimeter grid, showing the solder pads and additional identification markings.

4. Setup and Installation

Integrating the ZTU ZigBee Module requires careful attention to power, data connections, and antenna placement.

4.1. Power Supply

Connect the module to a stable power supply within the specified voltage range. Refer to the module's datasheet for exact voltage requirements. Ensure proper grounding.

4.2. Data Interface

The module typically communicates via a serial interface (e.g., UART). Connect the module's data pins (TX, RX) to the host microcontroller or system. Verify pin assignments from the module's datasheet.

4.3. Antenna Connection

If an external antenna is required, connect it to the designated antenna port on the module. Ensure the antenna is suitable for the ZigBee frequency band and is positioned for optimal signal strength, away from metallic obstructions.

4.4. Software Configuration

After hardware installation, configure the host system's software to communicate with the ZigBee module. This typically involves setting up serial port parameters (baud rate, parity, stop bits) and implementing the ZigBee protocol stack or API calls to control the module and manage network communication.

5. Operating Instructions

Once installed and configured, the ZTU ZigBee Module operates as a wireless transceiver within a ZigBee network.

5.1. Network Joining

To join an existing ZigBee network, the module must be instructed by the host system to scan for available networks and initiate a join request. This process is typically managed through specific AT commands or API functions provided by the module's firmware.

5.2. Data Transmission and Reception

Data can be sent and received over the ZigBee network once the module is part of a network. The host system sends data to the module via its serial interface, and the module transmits it wirelessly. Received data is passed from the module to the host system via the serial interface.

5.3. Power Management

The module supports various power modes to optimize energy consumption. Refer to the module's datasheet for details on entering and exiting low-power modes, which can be crucial for battery-powered applications.

6. Maintenance

The ZTU ZigBee Module is designed for long-term, maintenance-free operation under normal conditions. However, certain practices can help ensure its longevity.

• Keep the module and its surrounding environment clean and free from dust and debris.
• Avoid exposing the module to moisture or extreme temperature fluctuations.
• Regularly check power supply stability to prevent voltage spikes or drops.
• Ensure proper ventilation if the module is enclosed within a housing to prevent overheating.

7. Troubleshooting

If you encounter issues with the ZTU ZigBee Module, consider the following troubleshooting steps:

7.1. Module Not Powering On

• Verify the power supply connections and ensure the voltage is within the specified range.
• Check for any short circuits on the power lines.

7.2. No Communication with Host System

• Confirm that the serial data lines (TX/RX) are correctly connected.
• Check the serial port settings (baud rate, parity, stop bits) on the host system to match the module's requirements.
• Ensure the module is receiving power.

7.3. Unable to Join ZigBee Network

• Verify that the antenna is properly connected and positioned.
• Check if there are other active ZigBee networks in range.
• Ensure the network key and PAN ID (if applicable) are correctly configured.
• Check for excessive interference from other wireless devices.

8. Specifications

• Model: ZTU(ujzh) SMD
• Dimensions: 15.8mm x 20.8mm
• Part Number: P/N 2.01.03.00300
• Serial Number: 10004042800012
• Wireless Protocol: ZigBee
• Form Factor: Surface Mount Device (SMD)
• Manufacturer: Generic
• ASIN: B0F18MLFPT
• Date First Available: March 12, 2025

Note: For detailed electrical characteristics, pinout diagrams, and specific operating parameters, please refer to the official datasheet provided by the manufacturer.

9. Warranty and Support

For warranty information, please contact the seller or manufacturer directly. Specific warranty terms and conditions may vary depending on the region and point of purchase.

For technical support or further assistance, please refer to the manufacturer's official support channels or the vendor from whom the module was purchased.
