Huuger 12-Drawer Fabric Dresser and TV Stand Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Huuger 12-Drawer Fabric Dresser and TV Stand. Please read this manual thoroughly before assembly and use to ensure safe and correct operation. Keep this manual for future reference.

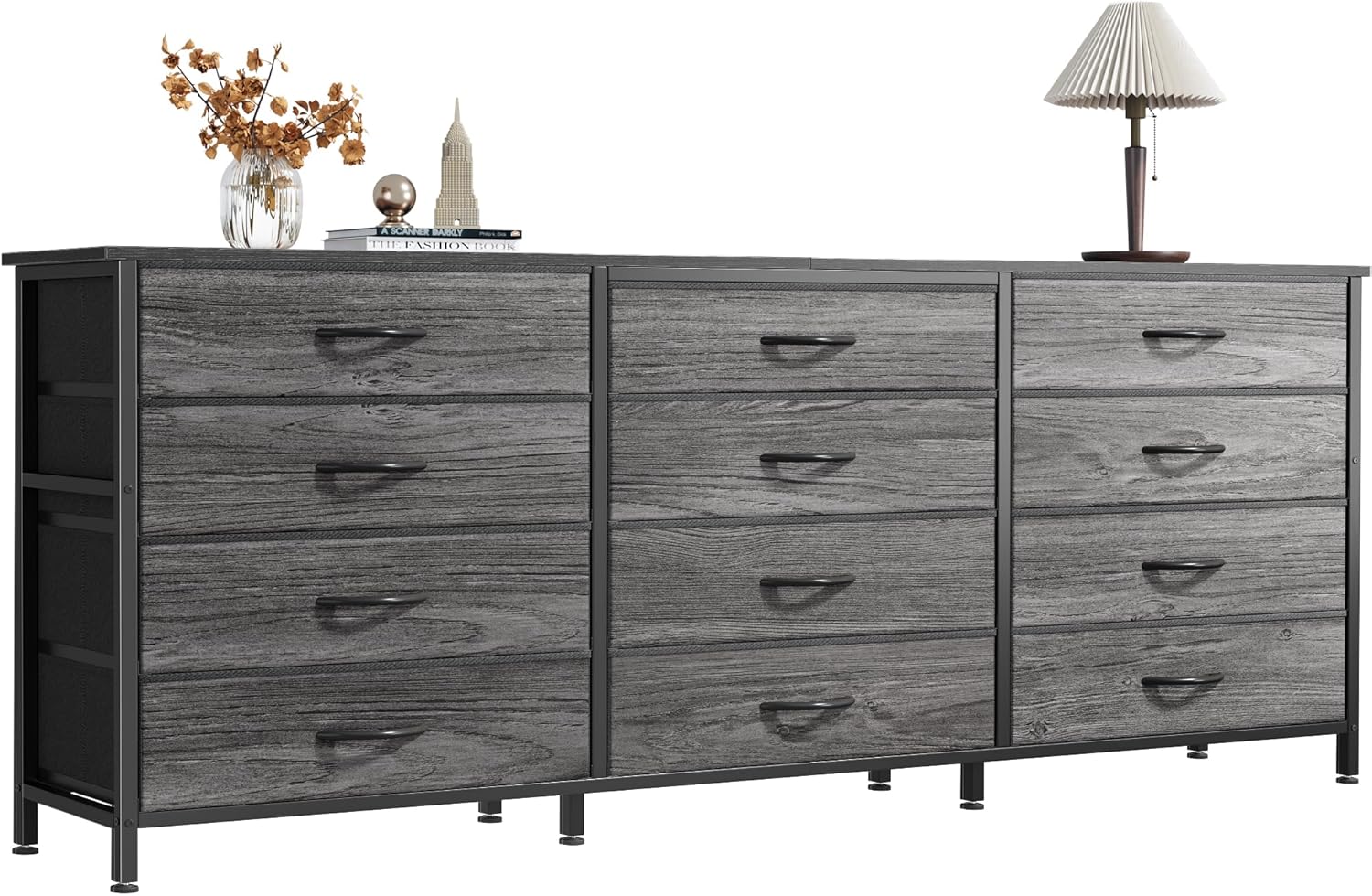

Image 1.1: The Huuger 12-Drawer Fabric Dresser and TV Stand, showcasing its grey woodgrain finish and twelve fabric drawers.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or property damage.

• Always assemble the unit on a soft, clean surface to prevent scratches.
• Ensure all parts are securely fastened before use.
• Do not overload drawers. Distribute weight evenly.
• Anti-Tip Device: It is crucial to attach the anti-tip device to the wall as instructed. This prevents the dresser from tipping over, which can cause severe injury, especially to children.

Image 2.1: Diagram illustrating the correct installation of the anti-tip device to secure the dresser to the wall, preventing accidental tipping.

3. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

• Metal Frame Components (various sizes)
• Particleboard Top Panel
• Fabric Drawers (12 units)
• Drawer Handles (12 units)
• Adjustable Feet (multiple units)
• Anti-Tip Kit (straps, screws, anchors)
• Assembly Hardware (screws, bolts, Allen wrench)
• Instruction Manual

4. Assembly Instructions

Assembly typically takes approximately 40 minutes with the provided tools. Follow these steps carefully.

4.1 Tools Required

• Included Allen Wrench
• Phillips Head Screwdriver (not included, for handles)

4.2 Step-by-Step Assembly

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a clean, soft surface. Refer to the parts list to ensure all items are present.
2. Assemble the Metal Frame: Connect the main metal frame components using the provided screws and Allen wrench. Ensure all connections are tight and stable.
3. Attach the Top Panel: Secure the P2-grade particleboard top panel to the assembled metal frame using the designated screws.
4. Install Adjustable Feet: Screw the adjustable feet into the bottom of the metal frame. Adjust them as needed to ensure the dresser is level on uneven floors.
5. Prepare Fabric Drawers: Insert the bottom support panel into each fabric drawer. Attach the metal handles to the front of each drawer using a Phillips head screwdriver.
6. Insert Drawers: Slide the assembled fabric drawers into their respective slots within the metal frame. Each drawer includes a back stopper to prevent it from being pulled out completely.
7. Install Anti-Tip Device: Following the instructions provided with the anti-tip kit, securely attach the device to the back of the dresser and to a wall stud. This step is critical for safety.

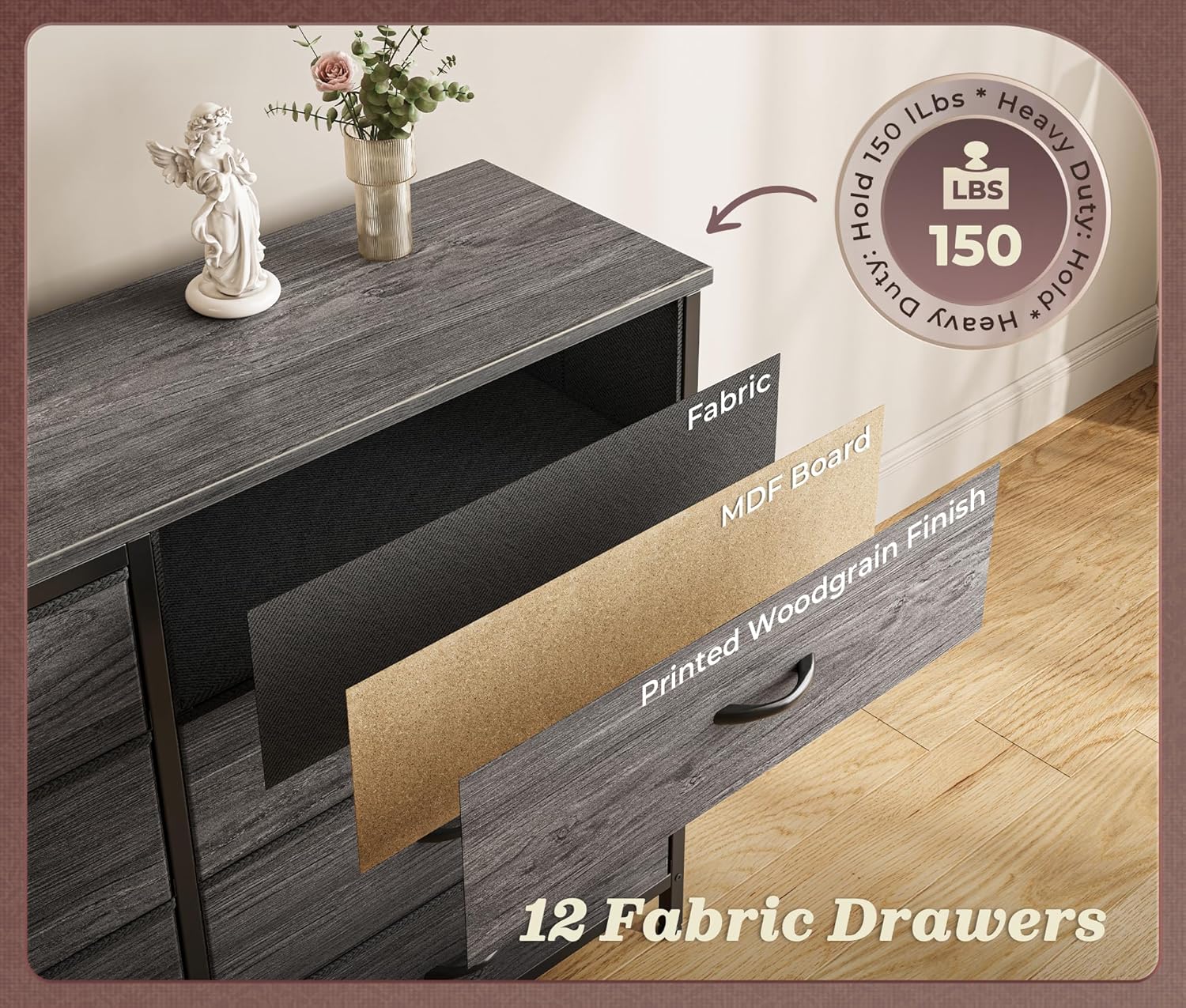

Image 4.1: Illustration of the dresser's construction, showing the fabric drawer, MDF board, and printed woodgrain finish of the top panel, highlighting its sturdy design.

5. Operating Instructions

5.1 Drawer Usage

The 12 fabric drawers are designed for organized storage. Each drawer features smooth-glide rails and a back stopper for ease of use and safety.

• To open a drawer, gently pull the metal handle.
• To close, push the drawer back into its slot until it is flush with the frame.
• Avoid forcing drawers open or closed if they encounter resistance. Check for obstructions.
• Distribute items evenly within drawers to maintain balance and prevent wear.

Image 5.1: Example of organized storage within the dresser drawers, suitable for items like toys, media, snacks, and clothing.

5.2 TV Stand Functionality

The dresser's top surface is designed to accommodate TVs ranging from 43 to 70 inches. Ensure the TV's base fits within the dimensions of the top panel (63"W x 11.7"D) and that the TV's weight does not exceed the dresser's weight capacity (150 lbs).

Image 5.2: The Huuger dresser functioning as a TV stand, supporting a 55-inch television in a living room setting.

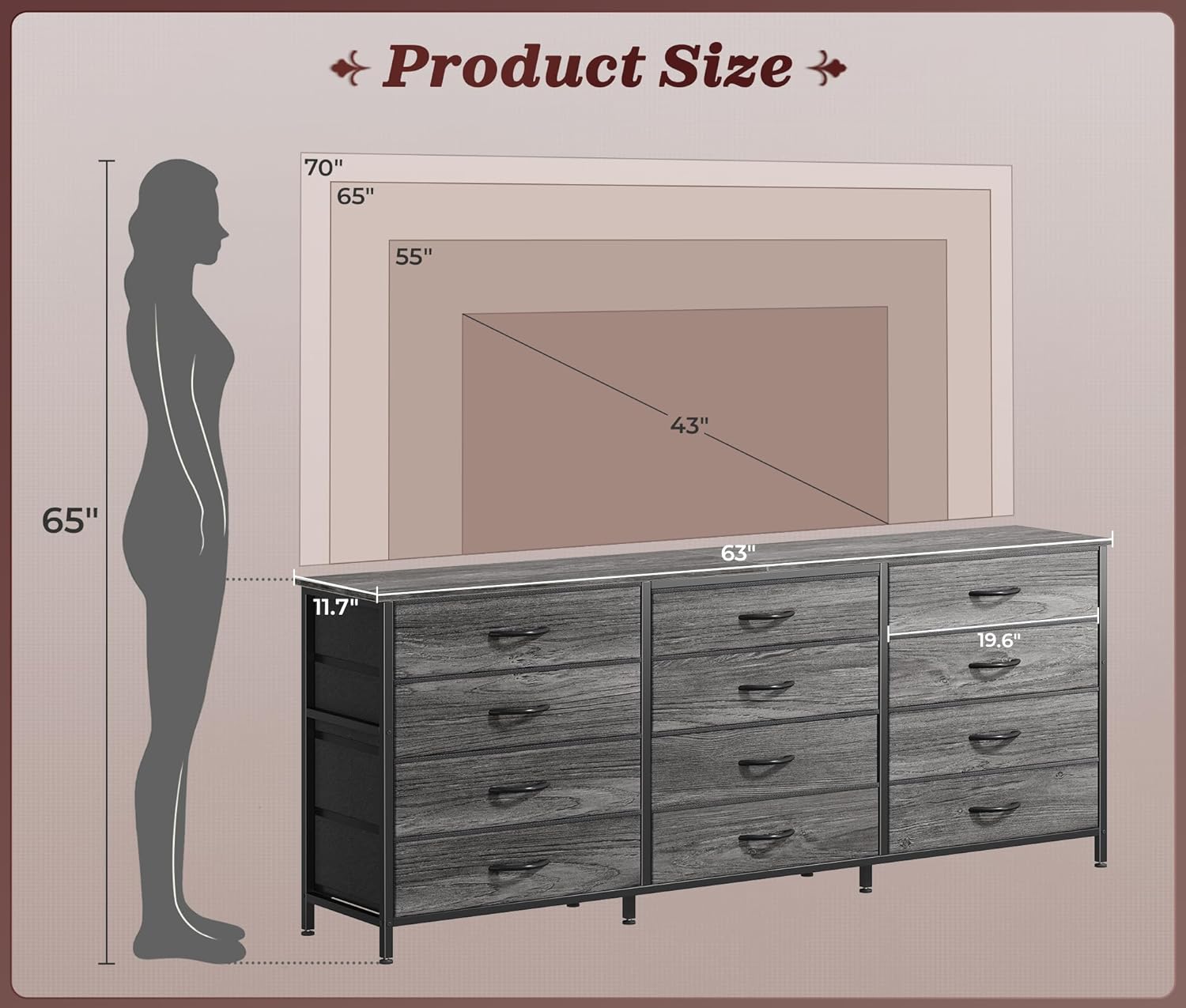

Image 5.3: Visual reference for product dimensions (63"W x 11.7"D x 26.7"H) and compatible TV sizes (43" to 70").

6. Maintenance

6.1 Cleaning

• Top Panel: Wipe clean with a damp cloth. Avoid abrasive cleaners.
• Fabric Drawers: Spot clean with a mild detergent and a damp cloth. Allow to air dry completely. Do not machine wash.
• Metal Frame: Wipe with a soft, dry cloth.

6.2 General Care

• Periodically check all screws and bolts to ensure they remain tight.
• Avoid exposing the dresser to direct sunlight or extreme humidity to prevent material degradation.
• Do not place hot items directly on the top panel without protection.

7. Troubleshooting

8. Specifications

• Brand: Huuger
• Model: 12 Drawers
• Dimensions (Overall): 63"W x 11.7"D x 26.7"H
• Color: Grey
• Material: P2-grade Particleboard (top), Metal Frame, Fabric Drawers
• Item Weight: Approximately 44.5 pounds
• Drawer Count: 12
• Assembly Required: Yes
• Care Instructions: Clean with a Damp Cloth
• TV Size Compatibility: 43-70 inches (ensure TV base fits top panel dimensions)

9. Warranty and Support

Huuger products are manufactured with quality and customer satisfaction in mind. For any questions, missing parts, or concerns regarding your product, please contact Huuger customer support. Please have your purchase information and model number ready when contacting support.

For specific warranty details, please refer to the warranty card included with your product or visit the official Huuger website.

Contact Information:

• Website: Visit the Huuger Store on Amazon
• Email: Refer to product packaging or official website.
• Phone: Refer to product packaging or official website.
