Hukën Fresh+ MasterChef Juicer (Model MK-J-SS) Instruction Manual

Introduction

Thank you for choosing the Hukën Fresh+ MasterChef Juicer, Model MK-J-SS. This powerful 400W juicer features a compact and premium stainless steel design, a 2-speed control knob, a wide 60mm feeding tube, and a stainless steel filter for pure juice extraction. It also includes a dual-switch protection system and a 600ml pulp collector for convenience and safety. This manual provides essential information for safe operation, maintenance, and optimal performance of your juicer.

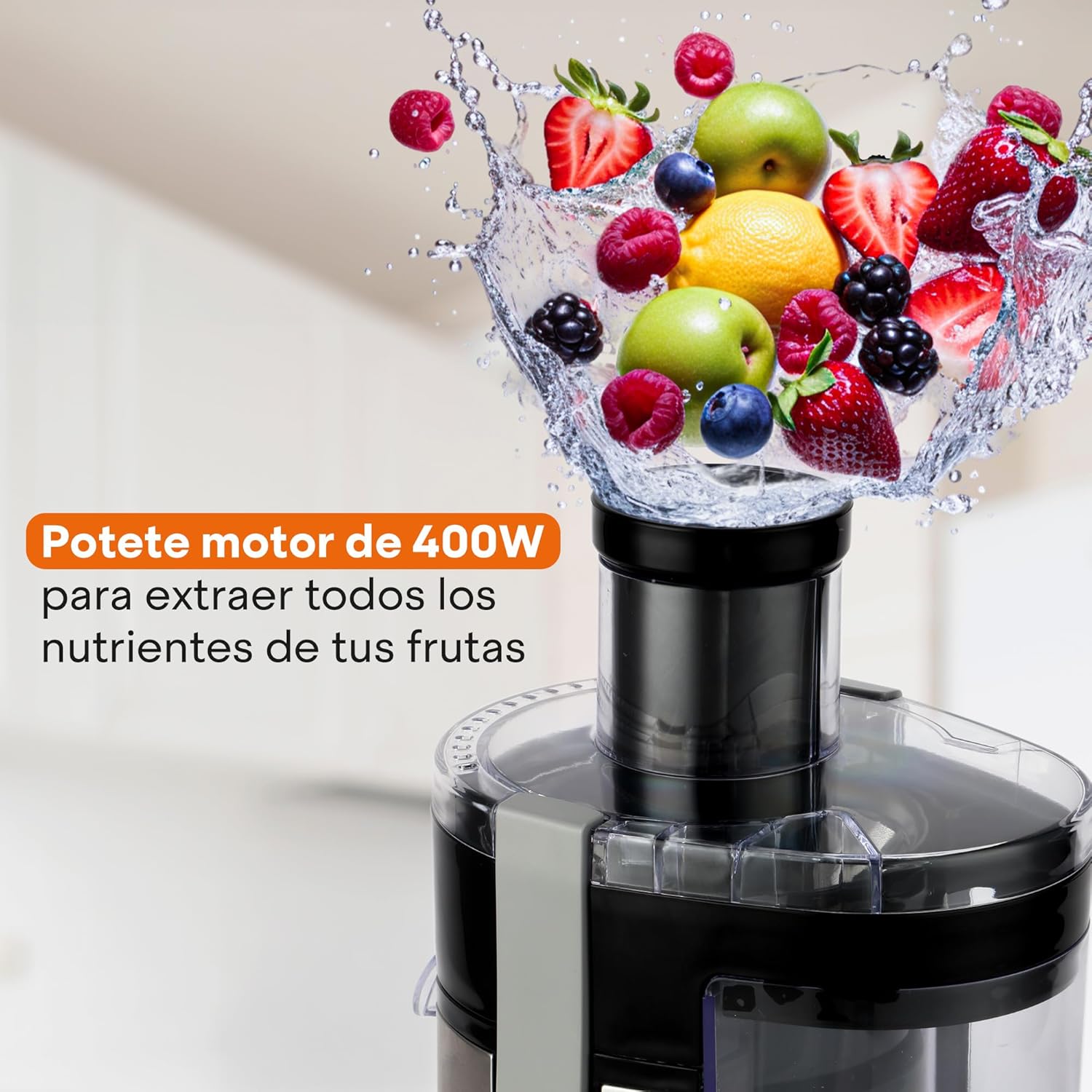

Image: The Hukën Fresh+ MasterChef Juicer, Model MK-J-SS, showcasing its sleek stainless steel design.

Important Safety Instructions

Please read all instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the juicer is properly assembled and the safety locking arm is securely in place before operating.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Keep hands and utensils out of the feeding tube during operation to prevent injury. Use the food pusher provided.
• Ensure the appliance is switched off and unplugged from the outlet before cleaning or disassembling.
• Do not immerse the motor base in water or other liquids.
• This appliance is for household use only. Do not use outdoors.
• Children should be supervised to ensure that they do not play with the appliance.

Parts and Components

Familiarize yourself with the parts of your Hukën Fresh+ MasterChef Juicer:

Image: All components of the Hukën Fresh+ MasterChef Juicer laid out for easy identification.

1. Food Pusher: Used to guide fruits and vegetables into the feeding tube.
2. Feeding Tube: Wide 60mm opening for whole fruits and vegetables.
3. Juicer Cover: Transparent cover that secures the feeding tube and prevents splashing.
4. Stainless Steel Filter Basket: Separates juice from pulp.
5. Pulp Collector (600ml): Collects discarded pulp.
6. Juice Spout: Where the extracted juice flows out.
7. Motor Base: Contains the 400W motor and control knob.
8. 2-Speed Control Knob: Adjusts juicing speed for different ingredients.
9. Safety Locking Arm: Secures the juicer cover to the motor base for safe operation.

Setup and Assembly

Follow these steps to assemble your juicer before first use:

1. Place the motor base on a clean, dry, and stable surface.
2. Insert the stainless steel filter basket onto the motor base, ensuring it is seated correctly.
3. Place the juicer cover over the filter basket and align the juice spout with the opening on the motor base.
4. Lift the safety locking arm and secure it into the grooves on the juicer cover until it clicks into place. The juicer will not operate if the arm is not locked.
5. Position the 600ml pulp collector under the pulp outlet.
6. Place a juice collection container (not included) under the juice spout.
7. Insert the food pusher into the feeding tube.

Operating Instructions

Prepare your ingredients and follow these steps for optimal juicing:

• Wash all fruits and vegetables thoroughly. For ingredients with hard skins (e.g., pineapple, melon), peel them first. Remove large seeds or pits (e.g., peaches, cherries).
• For the wide 60mm feeding tube, most fruits and vegetables can be inserted whole or with minimal pre-cutting.

Image: A person preparing fruits, demonstrating the ease of use with the wide feeding tube.

• Plug the juicer into a power outlet.
• Turn the 2-speed control knob to the desired speed:
• Speed 1 (Low): Ideal for soft fruits and vegetables like berries, grapes, tomatoes, and leafy greens.
• Speed 2 (High): Best for harder fruits and vegetables such as apples, carrots, celery, and ginger.

Image: A close-up view of the juicer's 2-speed control knob, allowing selection for various ingredients.

• Gradually feed the prepared ingredients into the feeding tube using the food pusher. Do not force ingredients down.
• Allow the juicer to process the ingredients completely before adding more.

Image: A user demonstrating the juicing process with broccoli, highlighting the efficient extraction.

• Once juicing is complete, turn the control knob to '0' (Off) and unplug the appliance.

Maintenance and Cleaning

Regular cleaning ensures the longevity and hygiene of your juicer:

1. Always unplug the juicer before cleaning.
2. Disengage the safety locking arm and remove the food pusher, juicer cover, and filter basket.
3. Empty the pulp collector (600ml).
4. Rinse all removable parts (food pusher, juicer cover, filter basket, pulp collector) under running water immediately after use to prevent pulp from drying and sticking.

Image: The stainless steel filter and wide feeding tube, designed for easy cleaning after use.

5. Use a cleaning brush (if provided) to thoroughly clean the mesh of the stainless steel filter basket.
6. Wash all removable parts with warm, soapy water. Rinse thoroughly and dry completely before reassembling or storing.
7. Wipe the motor base with a damp cloth. Never immerse the motor base in water.
8. The dual-switch protection system ensures the unit only operates when correctly assembled, simplifying cleaning by preventing accidental starts.

Image: The dual-switch protection system and the 600ml pulp collector, both contributing to safe and easy maintenance.

Troubleshooting

If you encounter any issues, refer to the table below for common problems and solutions:

Specifications

Technical details for your Hukën Fresh+ MasterChef Juicer:

Warranty and Support

For warranty information, product registration, or technical support, please refer to the warranty card included in your product packaging or visit the official Hukën website. Keep your purchase receipt as proof of purchase for any warranty claims.
