VCRAZE Pond Aerator Pump Instruction Manual

1. Introduction & Product Overview

The VCRAZE Pond Aerator Pump (Model AP2400P) is designed to efficiently oxygenate water features and outdoor ponds up to 1000 gallons. Proper aeration is crucial for promoting biological processes, supporting aquatic life, and maintaining a healthy pond ecosystem. This pump operates at 4-Watts, providing a flow rate of 0.21 CFM (96 GPH) and an air pressure of 2.3 PSI (0.016 Mpa). Its design focuses on robust performance and quiet operation, with additional benefits such as preventing ice formation during colder months.

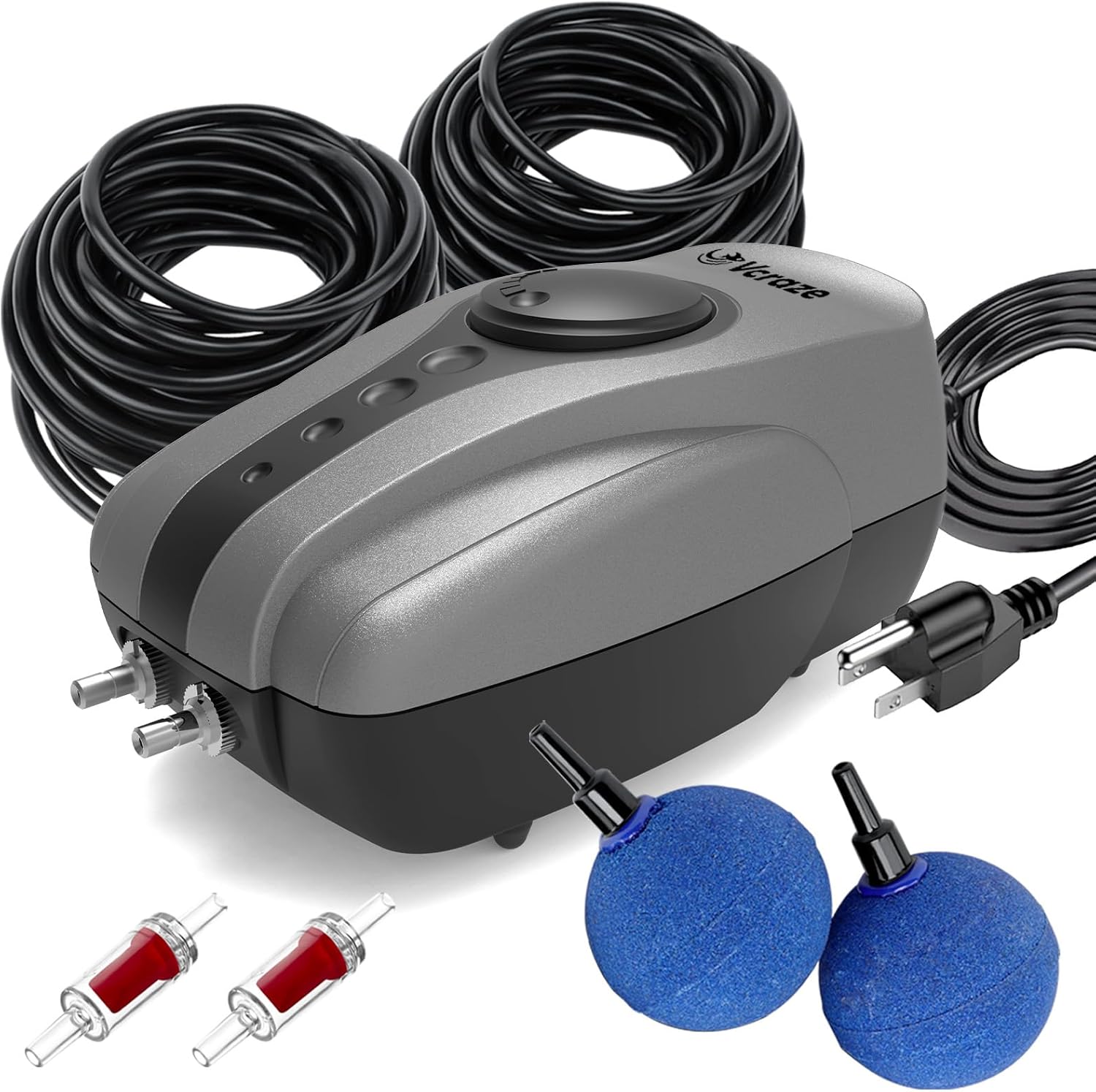

The complete VCRAZE Pond Aerator Pump kit, including the main pump unit, two rolls of airline tubing, two spherical air stones, and two check valves for preventing water backflow.

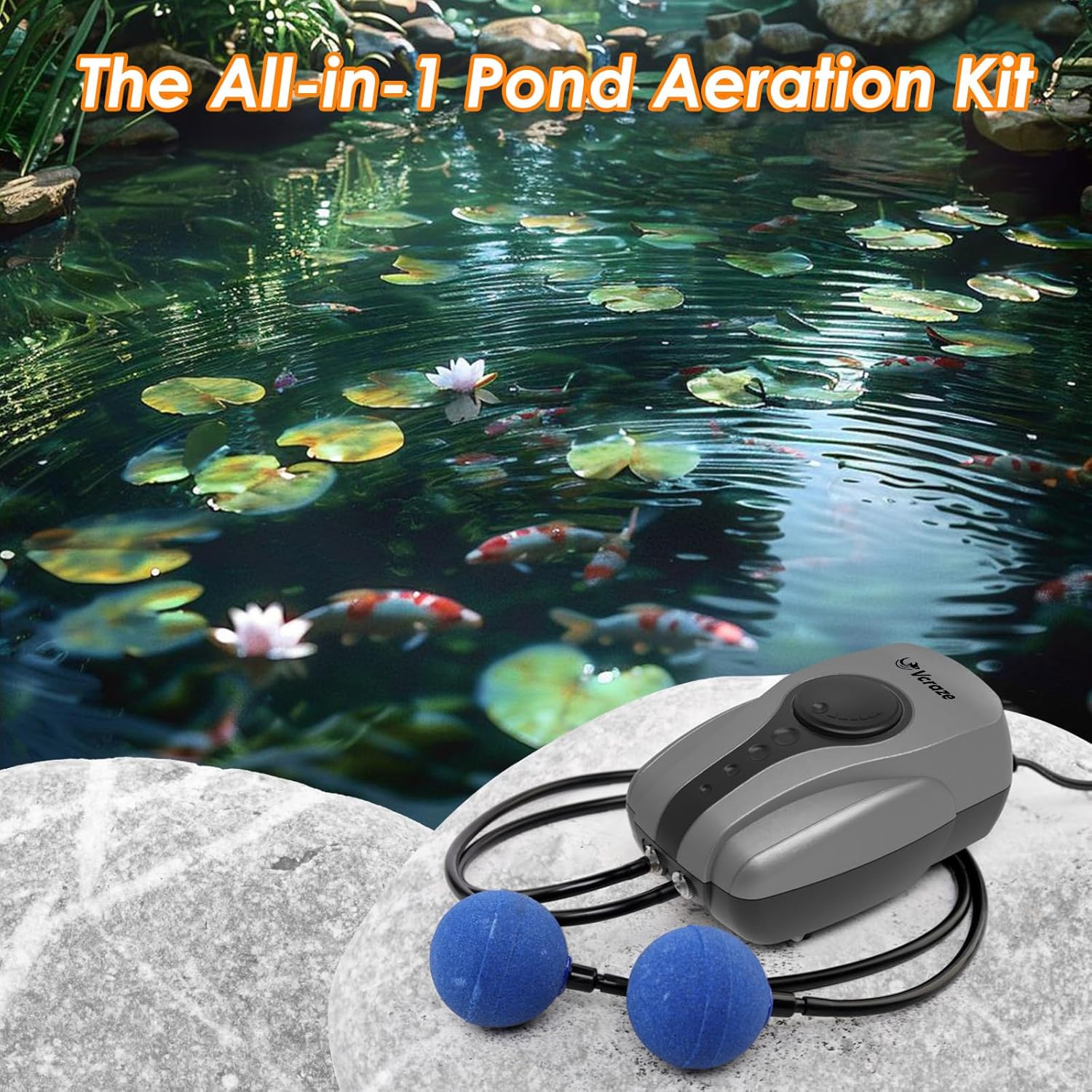

The aerator pump unit is shown in an outdoor pond setting, demonstrating its integration with a water feature containing koi fish, highlighting its role in oxygenating the water.

2. Package Contents

The VCRAZE Pond Aeration Kit is supplied with all necessary components for effective pond aeration. Please verify that all items listed below are present in your package:

• 1 x VCRAZE Pond Aerator Pump (Model AP2400P)
• 2 x 30ft Vinyl Airline Tubing rolls
• 2 x 2-inch Diameter Air Stones
• 2 x Check Valves
• 2 x Replacement Air Filter Pads

A visual representation of the comprehensive kit, detailing each included item: check valves, air stones, air filter pads, and airline tubing, ensuring users have everything needed for installation.

3. Specifications

4. Setup Instructions

1. Pump Placement: Position the aerator pump in a dry, protected location above the pond's water level. This prevents water from flowing back into the pump.
2. Tubing Connection: Connect one end of each 30ft vinyl airline tubing to the chrome-plated air outlets on the pump. Ensure a snug fit.
3. Check Valve Installation: Install a check valve into each airline tubing line, between the pump and the air stone. The arrow on the check valve should point towards the air stone (away from the pump) to ensure proper airflow and prevent water backflow.
4. Air Stone Attachment: Attach one 2-inch air stone to the free end of each airline tubing.
5. Air Stone Placement in Pond: Carefully place the air stones into the pond. For general aeration, distribute them evenly. For winter ice prevention, place air stones at approximately half the maximum pond depth to avoid disturbing warmer water at the bottom, which is vital for fish.
6. Power Connection: Plug the pump's power cord into a grounded 120-Volt electrical outlet.

This image provides a detailed view of the pump's control features, including the dial for adjusting air output and the durable metal hose adapters for secure connections.

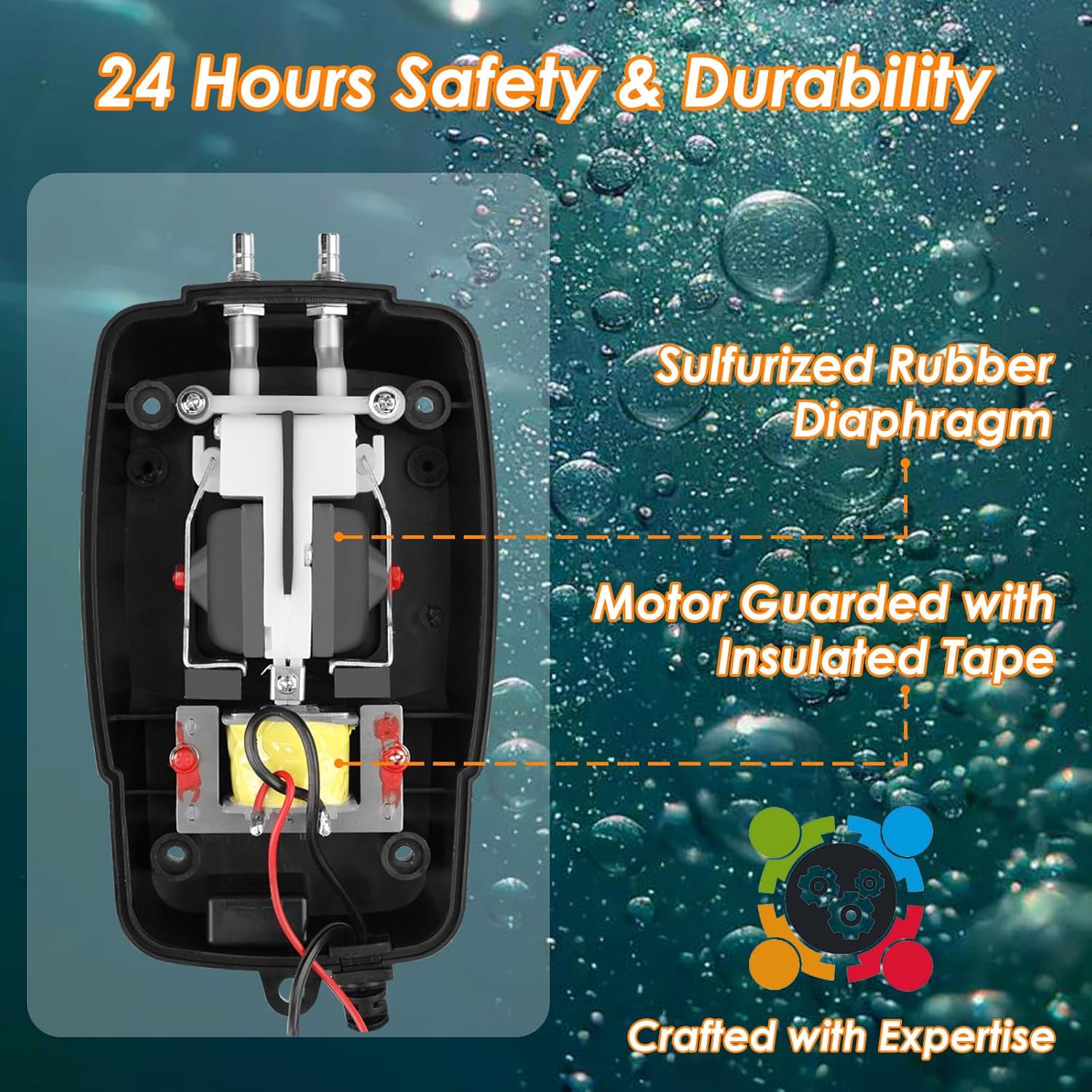

An inside look at the pump reveals its robust construction, featuring a sulfurized rubber diaphragm designed for enhanced durability and a motor protected by insulated tape.

5. Operating Instructions

1. Power On: Once all connections are secure and the air stones are placed in the pond, plug the pump into the electrical outlet. The pump will begin operating immediately.
2. Adjusting Airflow: The pump features an adjustable dial on its top surface. Rotate this dial to increase or decrease the air output to suit your pond's specific needs.
3. Continuous Operation: For optimal pond health and continuous ice prevention during winter, the pump is designed for continuous operation.
4. Monitoring: Periodically observe the air stones to ensure consistent bubble production and proper aeration throughout the pond.

This image demonstrates the primary function of the aerator: infusing the pond water with oxygen, crucial for aquatic life and overall pond health.

6. Maintenance

Regular maintenance ensures the longevity and efficient performance of your VCRAZE Pond Aerator Pump.

• Air Filter Replacement: The air filter pads should be inspected monthly and replaced every 3-6 months, or more frequently in dusty environments. To replace, open the pump casing, remove the old filter, and insert a new one.
• Tubing and Air Stone Cleaning: Periodically check the airline tubing and air stones for blockages caused by algae or debris. Clean them as needed to maintain optimal airflow.
• Winter Care: During winter, ensure air stones are positioned at approximately half the pond's maximum depth. This helps create an ice-free area for gas exchange without disrupting the warmer water layer at the bottom, which is essential for fish survival.

A close-up of the replacement air filter pads, essential for maintaining clean air intake and optimal pump performance.

7. Troubleshooting

8. Warranty and Support

VCRAZE products are manufactured to high-quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty details, including duration and coverage, please refer to the warranty card included in your product packaging or visit the official VCRAZE website.

If you encounter any issues or have questions regarding the installation, operation, or maintenance of your VCRAZE Pond Aerator Pump, please contact our customer support team. Our representatives are available to assist you with troubleshooting and provide guidance.

Customer Support Contact: Please refer to your product packaging or the VCRAZE website for the most current contact information.
