Pumptiva CZK-8611 Portable Tire Inflator User Manual

1. Introduction

The Pumptiva CZK-8611 Portable Tire Inflator is a versatile air compressor designed for various inflation and deflation needs. Featuring dual powerful motors and both 12V DC and 110V AC power options, it provides efficient and convenient operation for car tires, bicycle tires, air mattresses, and other inflatables. This manual provides essential information for safe and effective use of your device.

2. Safety Information

• Read Instructions: Always read and understand the user manual before operating the device.
• Children and Pets: Keep the air compressor away from children and pets during operation.
• Ventilation: Ensure adequate ventilation during use to prevent overheating. Do not operate in enclosed spaces.
• Over-inflation: Do not over-inflate items. Always refer to the manufacturer's recommended pressure for the item being inflated.
• Continuous Use: The device can operate continuously for up to 15 minutes. Allow for cool-down periods between extended uses to prevent damage.
• Power Source: Use only the provided power cords and adapters. Disconnect the power source when not in use or before maintenance.
• Electrical Safety: Do not expose the device to rain or moisture. Store indoors in a dry place.

3. Package Contents

Verify that all items are present in the package:

• Pumptiva CZK-8611 Tire Inflator Unit
• Ball Needle
• Nozzle for Swimming Ring
• Nozzle for Air Mattress
• Presta Valve Adapter
• Spare Fuse
• Type-C Charging Cable
• User Manual (this document)

Figure 3.1: All accessories included with the Pumptiva CZK-8611 Tire Inflator.

4. Product Overview

The Pumptiva CZK-8611 features a compact design with integrated storage for hoses and cords, making it easy to transport and store. The unit includes a digital LED display for real-time pressure monitoring and intuitive controls.

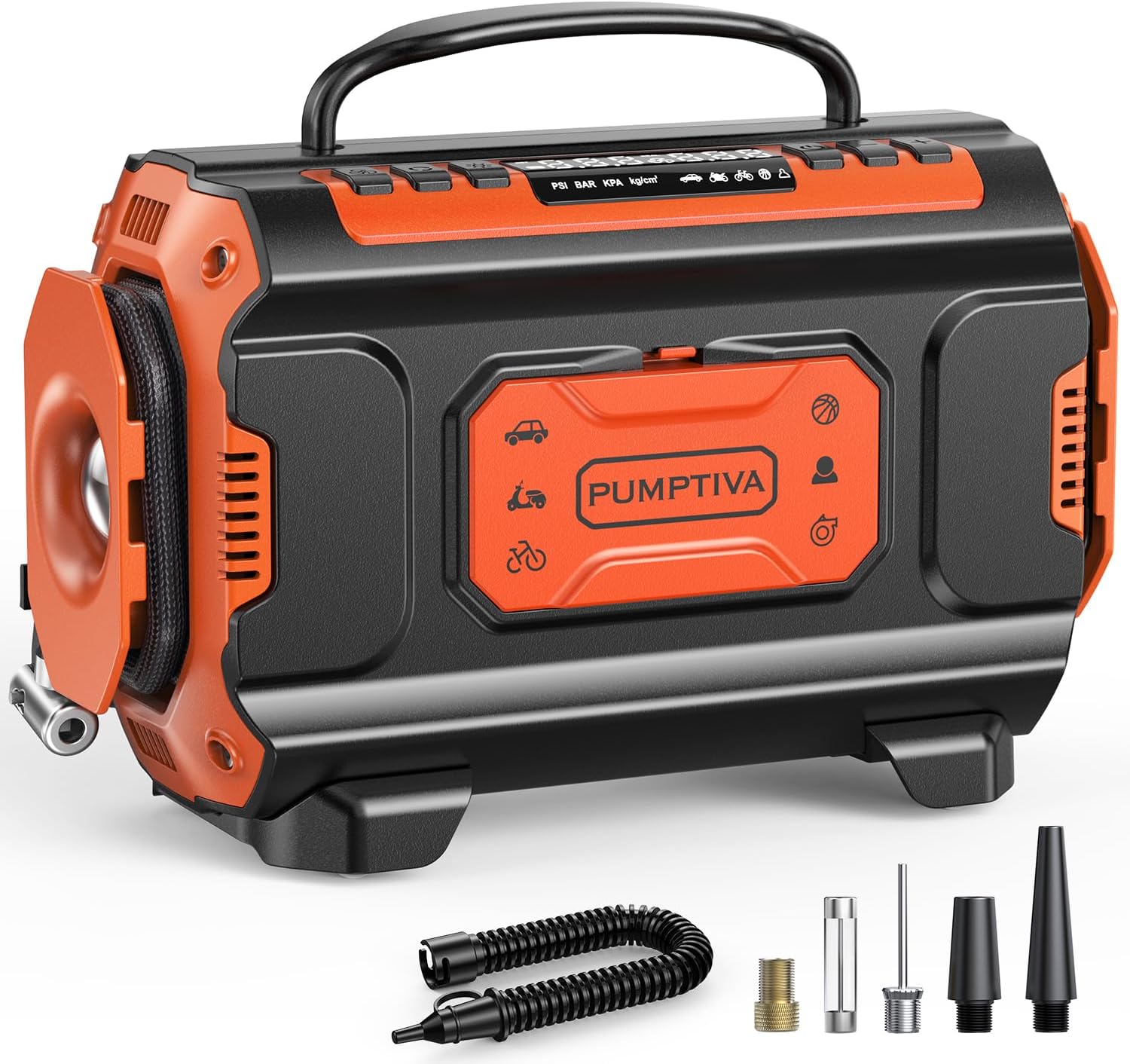

Figure 4.1: Front view of the Pumptiva CZK-8611 Portable Tire Inflator.

Figure 4.2: Integrated hose and cord storage for portability.

5. Setup

5.1 Powering the Device

The Pumptiva CZK-8611 offers dual power options for maximum flexibility:

• 12V DC (Car Cigarette Lighter): Connect the 12V DC power cord to your vehicle's cigarette lighter socket. This is ideal for on-the-go use.
• 110V AC (Household Outlet): Connect the 110V AC power cord to a standard household electrical outlet. This is suitable for home or garage use.

Figure 5.1: Dual power supply options for the inflator.

5.2 Attaching Hoses and Nozzles

The inflator comes with two types of hoses for different applications:

• High-Pressure Hose: This hose is used for inflating tires (car, bicycle, motorcycle) and sports equipment. Securely attach it to the appropriate port on the inflator and to the valve stem of the item.
• High-Volume Hose: This hose is designed for inflating or deflating larger, low-pressure items such as air mattresses, air rafts, and floats. Connect it to the designated high-volume port on the unit.

6. Operating Instructions

6.1 Inflation Modes

The device features two distinct inflation modes:

• High-Pressure Mode: Ideal for items requiring high pressure, such as car, bicycle, and motorcycle tires, as well as sports balls. It can pump up to 150 PSI.
• Large-Volume Mode: Suitable for inflating large, low-pressure items like air mattresses, air rafts, and pool floats. This mode provides a maximum inflation rate of 350 L/min.

Figure 6.1: Illustration of dual inflation modes.

6.2 Setting Pressure and Auto Shut-off

1. Connect the appropriate hose and nozzle to the item to be inflated.
2. Power on the inflator. The digital LED screen will display the current pressure.
3. Use the '+' and '-' buttons to set your desired pressure (PSI, Bar, or KPA).
4. Press the start button to begin inflation. The device will automatically shut off once the preset pressure is reached.
5. The power cut memory function will automatically recall the last set pressure for convenience.

Figure 6.2: Auto shut-off feature with digital display.

6.3 Deflation Mode

To deflate large, low-pressure items, connect the high-volume hose to the 'Air Out' port on the device and to the item. Activate the deflation function using the mode switch on the control panel.

6.4 Using the LED Light

The built-in LED light provides illumination for various scenarios:

• Flash Bright: Provides constant bright illumination.
• SOS Mode: Emits a red flashing light for emergency signaling.
• Blinking Mode: Provides a blinking light for increased visibility.

Activate the light using the dedicated button on the control panel.

Figure 6.3: Multi-functional LED light for various scenarios.

7. Maintenance

• Cleaning: Wipe the unit with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the inflator in a cool, dry place, away from direct sunlight and extreme temperatures. Utilize the integrated hose and cord storage to keep accessories organized.
• Fuse Replacement: If the device stops working, check and replace the fuse if necessary. A spare fuse is included in the package.

8. Troubleshooting

• Device Not Turning On:
  • Check power connections (12V DC or 110V AC) to ensure they are secure.
  • Verify the power source is active.
  • Check the fuse and replace if blown.
• Slow Inflation/No Inflation:
  • Ensure the hose and nozzle are securely attached to both the inflator and the item's valve.
  • Check for leaks in the hose or connections.
  • Verify the correct inflation mode is selected for the item.
  • Ensure the item's valve is fully open.
• Overheating:
  • If the unit feels hot, turn it off and allow it to cool down for at least 15-20 minutes before resuming operation.
  • Avoid continuous operation beyond 15 minutes.

9. Specifications

10. Warranty and Support

Pumptiva is committed to providing high-quality products and excellent customer service. Your CZK-8611 Portable Tire Inflator comes with the following:

• 2-Year Warranty Service: Enjoy peace of mind with a 2-year warranty covering manufacturing defects and malfunctions.
• Lifetime After-Sales Service: Pumptiva offers lifetime after-sales support for any questions or issues you may encounter with your product.

For any inquiries or support, please refer to the contact information provided on the product packaging or the official Pumptiva website.
