TREEYX 600W Electric Planer Model 815 User Manual

Introduction

Thank you for choosing the TREEYX 600W Electric Planer Model 815. This powerful and versatile woodworking tool is designed for efficient and precise material removal from wood surfaces. This manual provides essential information for safe operation, proper maintenance, and effective use of your electric planer. Please read it thoroughly before first use and keep it for future reference.

Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

• Wear Eye Protection: Always wear safety goggles or safety glasses with side shields.
• Wear Hearing Protection: Use ear protection during operation.
• Keep Work Area Clean: Cluttered areas invite accidents.
• Avoid Dangerous Environments: Do not use power tools in damp or wet locations, or expose them to rain.
• Keep Children Away: All visitors should be kept at a safe distance from the work area.
• Secure Workpiece: Always clamp or otherwise secure the workpiece to prevent movement during planing.
• Inspect Blades: Before each use, check the planer blades for sharpness and damage. Replace dull or damaged blades immediately.
• Disconnect Power: Always disconnect the planer from the power source before making any adjustments, changing accessories, or performing maintenance.
• Use Both Hands: Always hold the planer firmly with both hands during operation.
• Avoid Overreaching: Maintain proper footing and balance at all times.
• Do Not Force Tool: Let the tool do the work at its intended speed.
• Check for Obstructions: Ensure there are no nails, screws, or other foreign objects in the workpiece before planing.

Product Overview

The TREEYX 600W Electric Planer Model 815 is a robust tool designed for various woodworking tasks. Key components include:

• 600W All-Copper Motor: Provides high power for efficient material removal and durability.
• Depth Adjustment Knob: Allows precise control over planing depth from 0 to 2.6mm.
• Aluminum Mirror-Grade Flat Bottom Plate: Ensures smooth and accurate planing.
• High-Toughness Transmission Belt: Designed for wear resistance and long life.
• Auxiliary Guide: For more precise and straight planing.

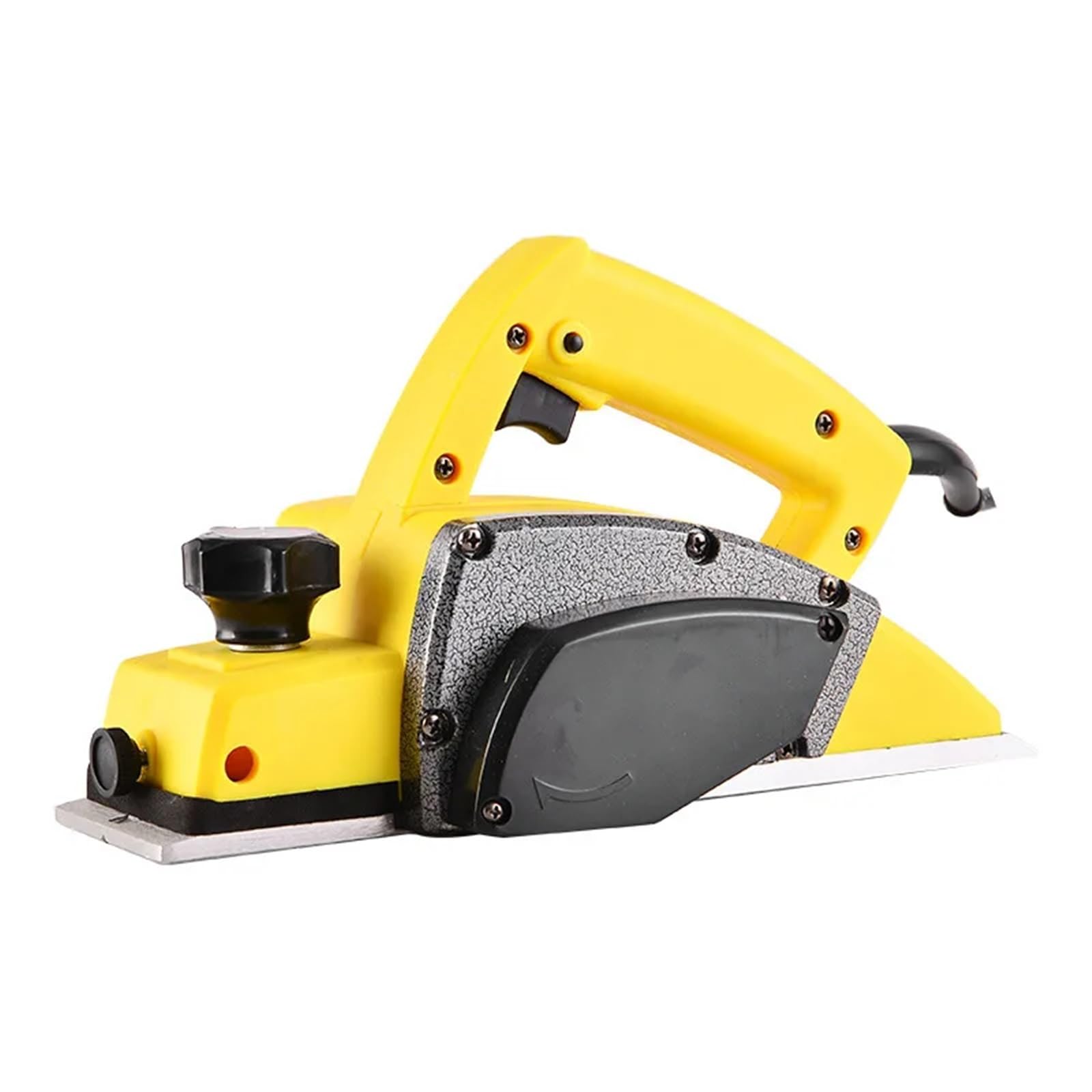

Figure 1: Overview of the TREEYX 600W Electric Planer. This image displays the main body of the planer, highlighting its compact and ergonomic design.

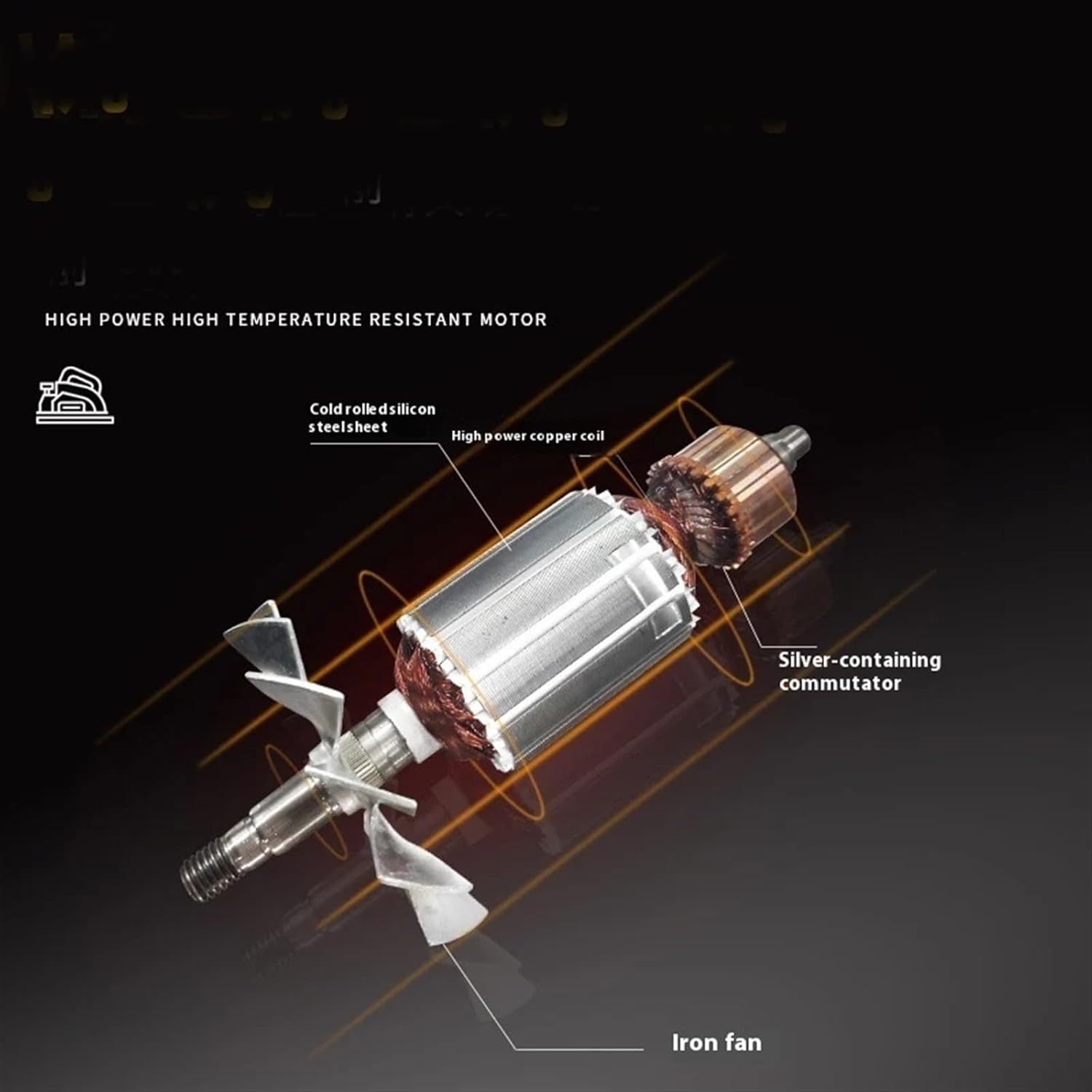

Figure 2: Internal components of the high-power, high-temperature resistant motor. This diagram illustrates the cold-rolled silicon steel sheet, high-power copper coil, silver-containing commutator, and iron fan, which contribute to the planer's robust performance.

Setup

1. Adjusting Planing Depth

The planing depth can be adjusted using the depth adjustment knob located at the front of the planer. Rotate the knob to select the desired depth between 0mm and 2.6mm. A smaller depth setting is recommended for initial passes and fine finishing.

2. Attaching the Auxiliary Guide

For precise, straight planing along an edge, attach the auxiliary guide. Slide the guide into the designated slot on the side of the planer and secure it with the locking mechanism. Ensure it is firmly in place before operation.

Figure 3: The auxiliary guide ruler attached to the planer. This guide helps maintain a consistent planing depth and straight line along the edge of a workpiece.

Operating Instructions

1. Prepare Workpiece: Ensure the workpiece is securely clamped and free of any metal objects.
2. Set Depth: Adjust the planing depth using the front knob to your desired setting.
3. Power On: Hold the planer firmly with both hands. Press the trigger switch to start the motor. Allow the blades to reach full speed before contacting the workpiece.
4. Begin Planing: Place the front shoe of the planer flat on the workpiece. Apply steady, even pressure and move the planer smoothly across the surface. Maintain a consistent speed for best results.
5. Finish Pass: As you reach the end of the workpiece, maintain pressure on the rear shoe to prevent the planer from tipping.
6. Power Off: Release the trigger switch to stop the motor. Wait for the blades to stop rotating completely before setting the planer down.

Figure 4: Demonstrating the TREEYX Electric Planer in operation. The image shows the planer being guided across a wooden surface, illustrating proper handling during use.

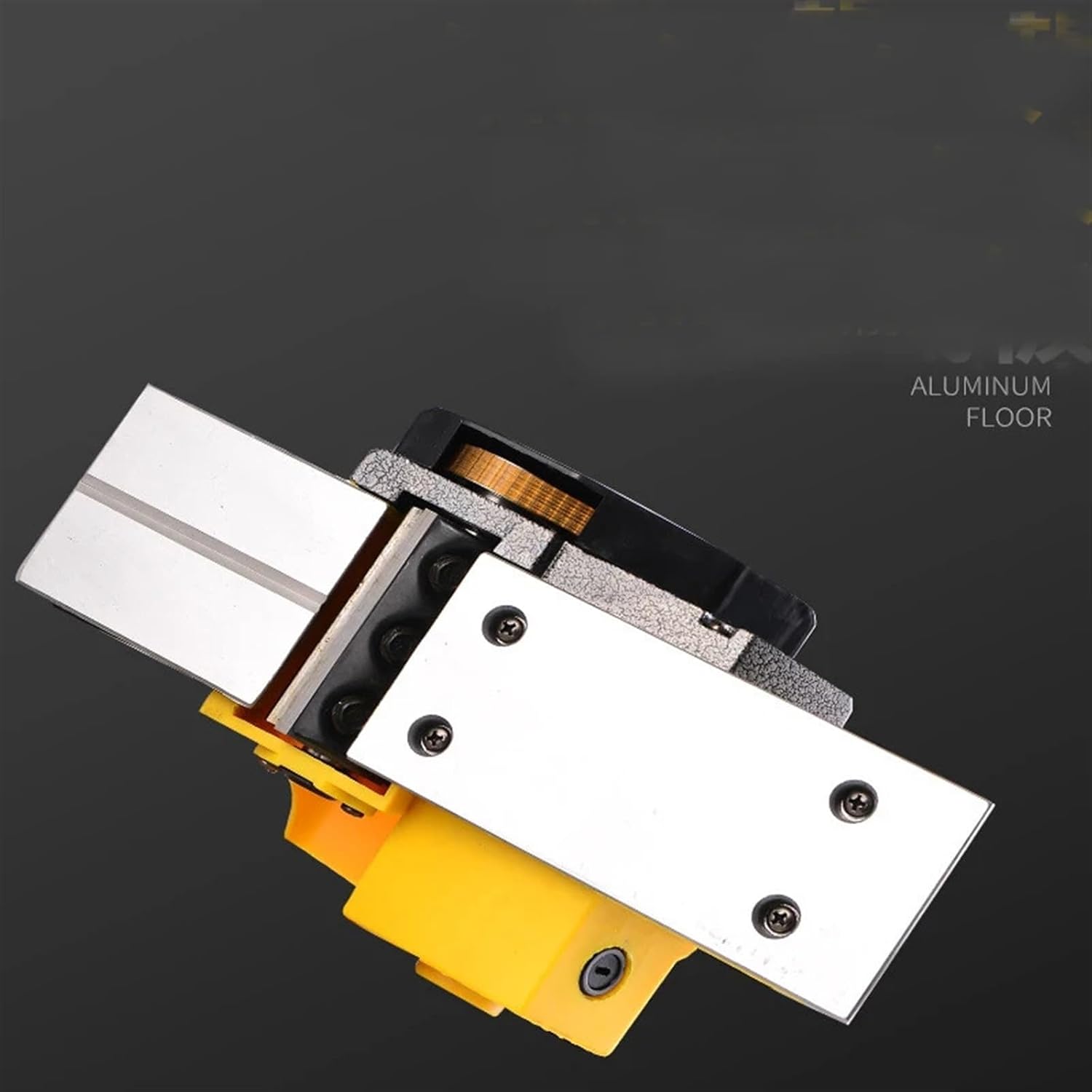

Figure 5: Close-up of the aluminum mirror-grade flat bottom plate. This smooth surface ensures minimal friction and precise contact with the workpiece for superior planing results.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your planer.

• Always Disconnect Power: Before any cleaning or maintenance, unplug the planer from the power outlet.
• Clean Dust and Debris: After each use, use a brush or compressed air to remove sawdust and chips from the planer, especially around the blade area and ventilation slots.
• Inspect Blades: Regularly check the blades for sharpness, nicks, or damage. Replace dull or damaged blades promptly. Refer to the blade replacement instructions (if applicable, not detailed here).
• Check Carbon Brushes: Periodically inspect the carbon brushes for wear. Replace them when they are worn down to their limit.
• Store Properly: Store the planer in a dry, secure location out of reach of children.

Troubleshooting

Specifications

Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the documentation included with your purchase or contact TREEYX customer service directly. Keep your proof of purchase for warranty claims.
