Introduction
This manual provides essential instructions for the installation, operation, and maintenance of your Huayi OEM Carburetor Kit. This kit is specifically designed for Craftsman M105 21" Push Model 11A-A2SD791 Lawn Mowers. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.
Safety Information
- Always disconnect the spark plug wire before performing any maintenance or installation to prevent accidental starting.
- Work in a well-ventilated area when handling fuel.
- Wear appropriate personal protective equipment, such as gloves and eye protection.
- Ensure the engine is cool before working on the carburetor.
- Refer to your lawn mower's original owner's manual for specific safety precautions.
Package Contents
Verify that all components are present before beginning installation:
- 1 x Huayi OEM Carburetor
- 2 x Fuel Filters
- 3 x Gaskets (various shapes)
- 1 x Spark Plug (F6TC)

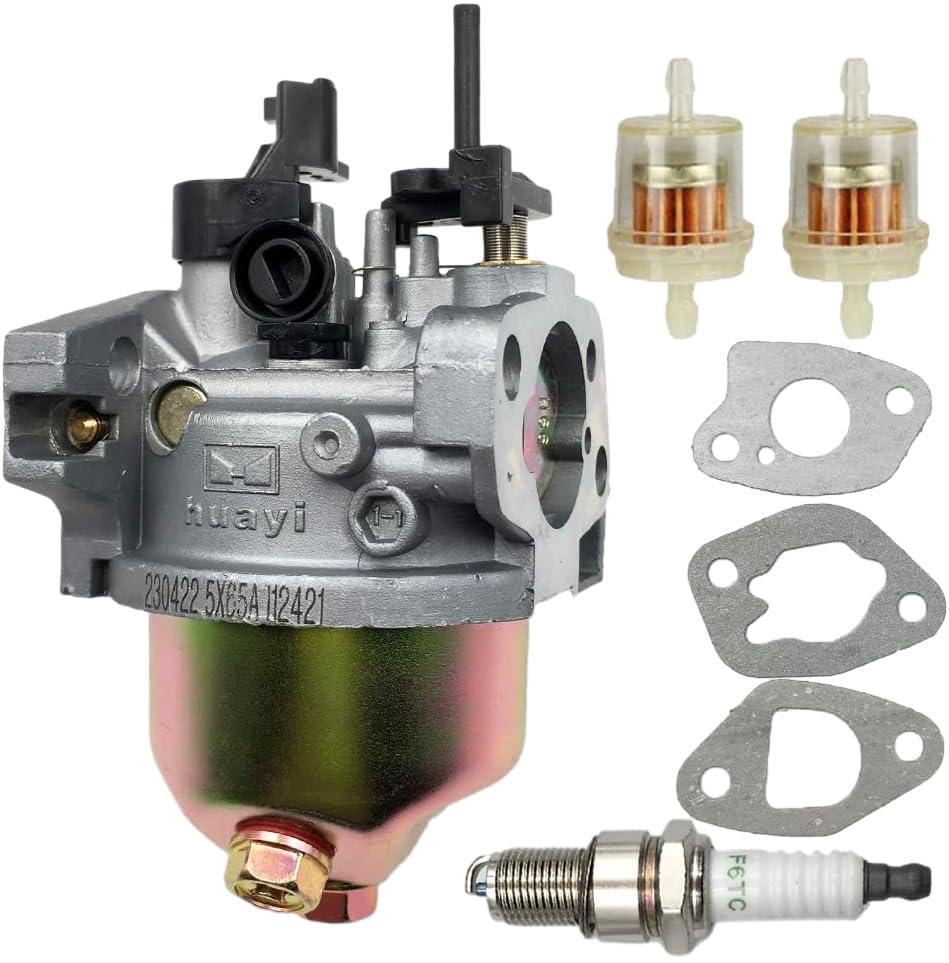

Image 1: Contents of the Huayi OEM Carburetor Kit. This image displays the main carburetor unit, two clear fuel filters, three different shaped gaskets, and a spark plug labeled F6TC. All components are laid out on a white background.
Setup and Installation
This carburetor kit is designed for secure and straightforward installation. If you are unfamiliar with carburetor replacement, it is recommended to consult a professional or refer to detailed video tutorials available online (e.g., YouTube) for guidance specific to your Craftsman M105 model.
- Preparation: Ensure the lawn mower engine is cool. Disconnect the spark plug wire. Drain the fuel tank or clamp the fuel line to prevent spills.
- Remove Air Filter Assembly: Carefully remove the air filter housing and air filter to access the carburetor.
- Disconnect Fuel Line and Linkages: Disconnect the fuel line from the old carburetor. Note the routing of any throttle or choke linkages before detaching them.
- Remove Old Carburetor: Unscrew the mounting bolts holding the old carburetor in place. Remove the old carburetor and any old gaskets.
- Install New Gaskets: Place the new gaskets from the kit in their correct positions between the engine, carburetor, and air filter housing. Ensure they are properly aligned to prevent air leaks.
- Mount New Carburetor: Position the new Huayi carburetor and secure it with the mounting bolts. Do not overtighten.
- Reconnect Linkages and Fuel Line: Reattach the throttle and choke linkages exactly as they were on the old carburetor. Reconnect the fuel line. If replacing fuel filters, install the new ones in the fuel line.
- Replace Spark Plug: Remove the old spark plug and install the new F6TC spark plug provided in the kit. Ensure it is tightened to the manufacturer's specifications.
- Reassemble Air Filter: Reinstall the air filter and air filter housing.
- Final Check: Double-check all connections, ensuring they are secure and there are no loose parts or fuel leaks.
Operating Instructions (After Installation)
After successful installation, follow these steps to operate your lawn mower:
- Refuel: Fill the fuel tank with fresh, appropriate fuel for your lawn mower.
- Reconnect Spark Plug: Reconnect the spark plug wire.
- Choke/Prime: If your mower has a choke or primer bulb, use it according to your mower's original instructions.
- Start Engine: Start the engine as you normally would. It may take a few pulls for the fuel to fully circulate through the new carburetor.
- Idle Adjustment (if necessary): If the engine idles too high or too low, consult your mower's service manual for carburetor idle adjustment procedures.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your carburetor and lawn mower.
- Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a common cause of carburetor issues. Consider using a fuel stabilizer.
- Fuel Filters: Replace fuel filters annually or more frequently if operating in dusty conditions. The kit includes two fuel filters for convenience.
- Air Filter: Regularly inspect and clean or replace the air filter to ensure proper air-fuel mixture.
- Spark Plug: Inspect the spark plug periodically for wear or fouling. Replace as needed, typically annually. The kit includes a new spark plug.
- Storage: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel tank and carburetor bowl to prevent gumming.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, clogged fuel filter, incorrect choke setting, faulty spark plug, improper carburetor installation. | Check fuel level, replace fuel filter, adjust choke, check/replace spark plug, re-check carburetor installation and linkages. |
| Engine runs rough or stalls | Dirty fuel, clogged fuel filter, air leak around carburetor gaskets, incorrect idle adjustment. | Drain and replace fuel, replace fuel filter, check and replace gaskets, adjust idle screw. |
| Engine lacks power | Clogged air filter, dirty spark plug, fuel delivery issue. | Clean or replace air filter, clean or replace spark plug, check fuel flow to carburetor. |
Specifications
- Product Type: OEM Carburetor Kit
- Compatibility: Craftsman M105 21" Push Model 11A-A2SD791 Lawn Mower
- Manufacturer: Huayi (OEM) / FYNORA-REVIXO (Brand)
- Model Number: M105 A2SD791
- Included Components: Carburetor, Fuel Filters, Gaskets, Spark Plug
Warranty and Support
This Huayi OEM Carburetor Kit is backed by a 12-month warranty, ensuring quality and reliability. The manufacturer, FYNORA-REVIXO, also provides a 60-day manufacturer warranty description. For technical support or warranty claims, please contact the seller or manufacturer directly. Refer to your purchase documentation for contact information.
