XIBEIKE Front Relay Fuse Box User Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your XIBEIKE Front Relay Fuse Box. This component is designed as a direct replacement for specific Mercedes-Benz models, ensuring reliable electrical system management. Please read these instructions thoroughly before proceeding with installation or any related procedures.

Compatibility: This front relay fuse box is compatible with the following Mercedes-Benz models from 2006-2013:

• Mercedes-Benz W164
• Mercedes-Benz X164
• Mercedes-Benz W251 R350
• Mercedes-Benz W251 R500
• Mercedes-Benz ML550
• Mercedes-Benz GL550

Part Number: A1645400072, 1645400072

Safety Information

WARNING:

• Always disconnect the vehicle's battery before working on any electrical components to prevent electrical shock or damage to the vehicle's electrical system.
• Ensure the vehicle is turned off and the ignition key is removed.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• If you are unsure about any step, consult a qualified automotive technician.
• Do not attempt to modify the fuse box or its components.

Setup and Installation

The installation of the XIBEIKE Front Relay Fuse Box is designed to be straightforward, offering perfect compatibility with original equipment. However, proper procedure is crucial for safety and functionality.

Tools Required:

• Socket wrench set
• Screwdriver set
• Battery terminal wrench
• Multimeter (optional, for testing)

Installation Steps:

1. Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and turn off the engine. Remove the ignition key.
2. Disconnect Battery: Locate the vehicle's battery (typically in the trunk or under the hood) and disconnect the negative (-) terminal first, followed by the positive (+) terminal. This prevents accidental electrical shorts.
3. Locate Existing Fuse Box: Identify the front relay fuse box in your Mercedes-Benz. Its location can vary by model, but it is typically found under the hood, near the engine compartment.
4. Remove Old Fuse Box: Carefully disconnect all electrical connectors attached to the existing fuse box. Note their positions or take photos for reference. Unfasten any mounting screws or clips securing the old fuse box and remove it.
5. Inspect New Fuse Box: Before installation, visually inspect the new XIBEIKE Front Relay Fuse Box for any signs of damage. Ensure all relays and fuses are correctly seated.
6. Install New Fuse Box: Position the new fuse box in the designated location. Secure it with the original mounting screws or clips.
7. Connect Electrical Connectors: Reconnect all electrical connectors to the new fuse box. Ensure each connector is firmly seated and locked into place. Refer to your photos if necessary.
8. Reconnect Battery: Reconnect the positive (+) battery terminal first, then the negative (-) terminal. Ensure connections are tight.
9. Test System: Start the vehicle and check all electrical functions that are controlled by the front fuse box (e.g., lights, wipers, horn, engine functions) to ensure proper operation.

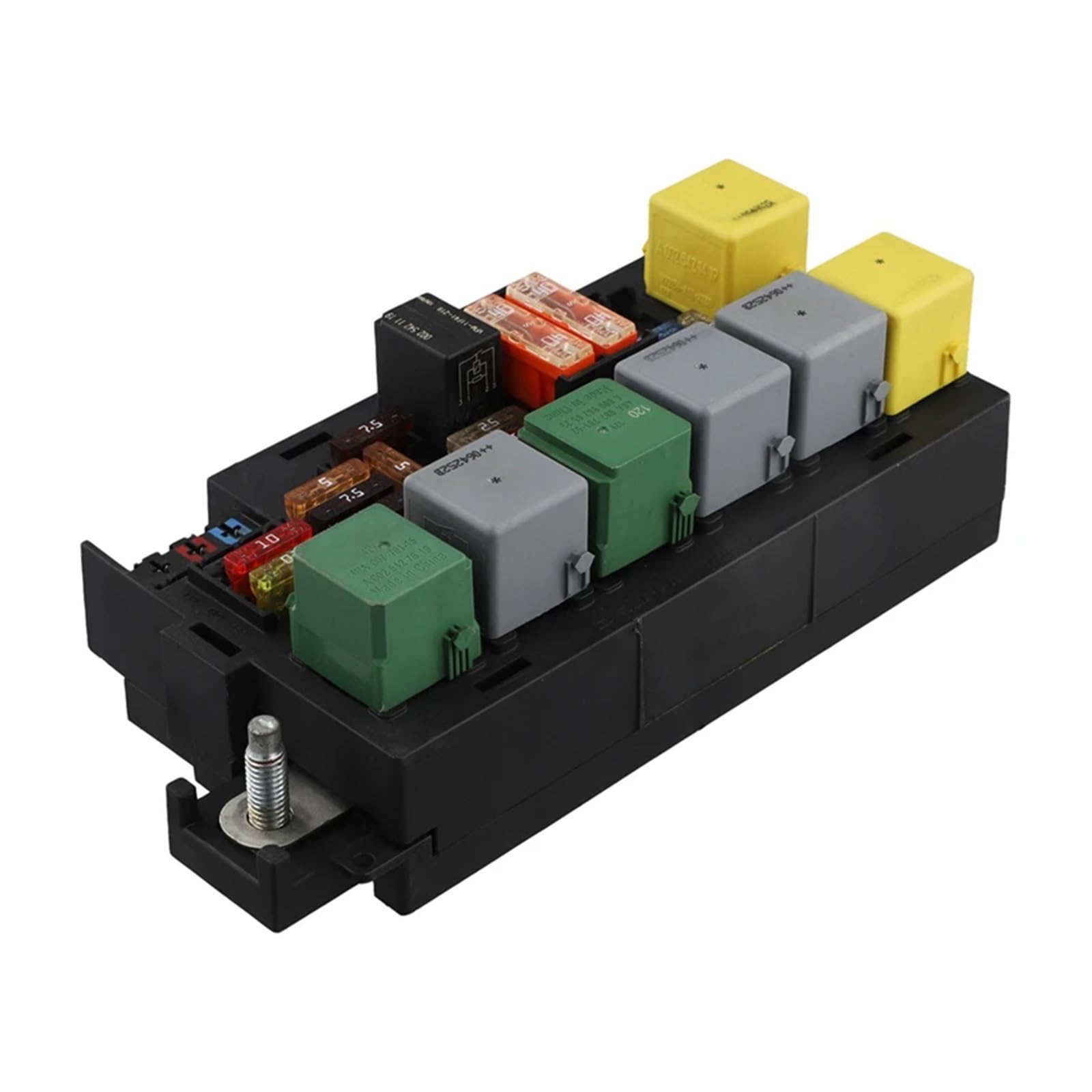

Image 1: Top view of the XIBEIKE Front Relay Fuse Box, showing the arrangement of relays and fuses.

Image 2: Top and bottom views of the XIBEIKE Front Relay Fuse Box, highlighting the electrical connectors on the underside.

Operation

The XIBEIKE Front Relay Fuse Box functions as a critical component in your vehicle's electrical distribution system. It houses various fuses and relays that protect and control different electrical circuits, such as lighting, engine management, and other auxiliary systems.

Once correctly installed, the fuse box operates passively, continuously protecting your vehicle's electrical circuits from overcurrents and short circuits. Relays within the box switch higher current loads based on signals from the vehicle's control modules.

There are no user-operable controls on the fuse box itself. Its primary function is to provide a centralized and protected hub for electrical connections.

Maintenance

The XIBEIKE Front Relay Fuse Box is designed for long-term reliability and typically requires minimal maintenance. However, periodic checks can help ensure its continued performance.

• Visual Inspection: Periodically inspect the fuse box for any signs of corrosion, loose connections, or physical damage. Ensure the cover is securely in place to protect against moisture and debris.
• Fuse Replacement: If an electrical component stops working, a blown fuse may be the cause. Refer to your vehicle's owner's manual for the fuse diagram to identify the correct fuse. Always replace a blown fuse with a new fuse of the exact same amperage rating. Using a fuse with a higher rating can lead to severe electrical damage or fire.
• Relay Checks: Relays generally have a longer lifespan than fuses. If a specific electrical function controlled by a relay fails, and the fuse is intact, the relay might be faulty. Relays can be tested with a multimeter or by temporarily swapping with a known good, identical relay (if available and safe to do so).
• Cleaning: Keep the fuse box area clean and free from dirt, dust, and moisture. Use a dry cloth to wipe down the exterior. Avoid using harsh chemicals or excessive liquids.

Troubleshooting

If you experience electrical issues after installing or while using the fuse box, consider the following troubleshooting steps:

• No Power to a Component:
  • Check the corresponding fuse in the fuse box. A blown fuse will have a broken wire inside. Replace with a fuse of the correct amperage.
  • Verify that the electrical connector for that component is securely attached to the fuse box.
  • Inspect the wiring leading to and from the fuse box for any visible damage or corrosion.
• Intermittent Electrical Issues:
  • Check for loose connections at the fuse box terminals or battery terminals.
  • Inspect relays for signs of overheating or damage. Sometimes, tapping a relay can temporarily restore function if it's failing.
• Fuse Blows Immediately After Replacement:
  • This indicates a short circuit in the electrical system. Do not continue replacing fuses with higher amperage ratings. This requires professional diagnosis to locate and repair the short circuit.
• Vehicle Not Starting / Electrical System Dead:
  • Ensure battery terminals are clean and tightly connected.
  • Check the main fuses (often larger, cartridge-style fuses) within the fuse box or near the battery.
  • Verify the battery itself is charged and in good condition.

For complex electrical problems, it is highly recommended to consult a certified automotive technician.

Specifications

Warranty and Support

Specific warranty information for this product is not provided in the available documentation. Please refer to the retailer or manufacturer's official website for details regarding warranty coverage and terms.

For technical support or inquiries, please contact XIBEIKE customer service through their official channels or the retailer from whom the product was purchased.
