PATOOLIO Electric Pressure Washer User Manual
Model: PA4000-B
Introduction
Thank you for choosing the PATOOLIO Electric Pressure Washer. This powerful and versatile cleaning tool is designed to provide efficient and effective cleaning for a variety of outdoor surfaces, including concrete, pavements, driveways, patios, decks, walkways, RVs, cars, boats, homes, fences, and furniture. With a maximum pressure of 4000 PSI and a water flow of 2.6 GPM, this unit offers professional-grade cleaning performance. This manual provides essential information for the safe and proper operation, maintenance, and troubleshooting of your pressure washer.

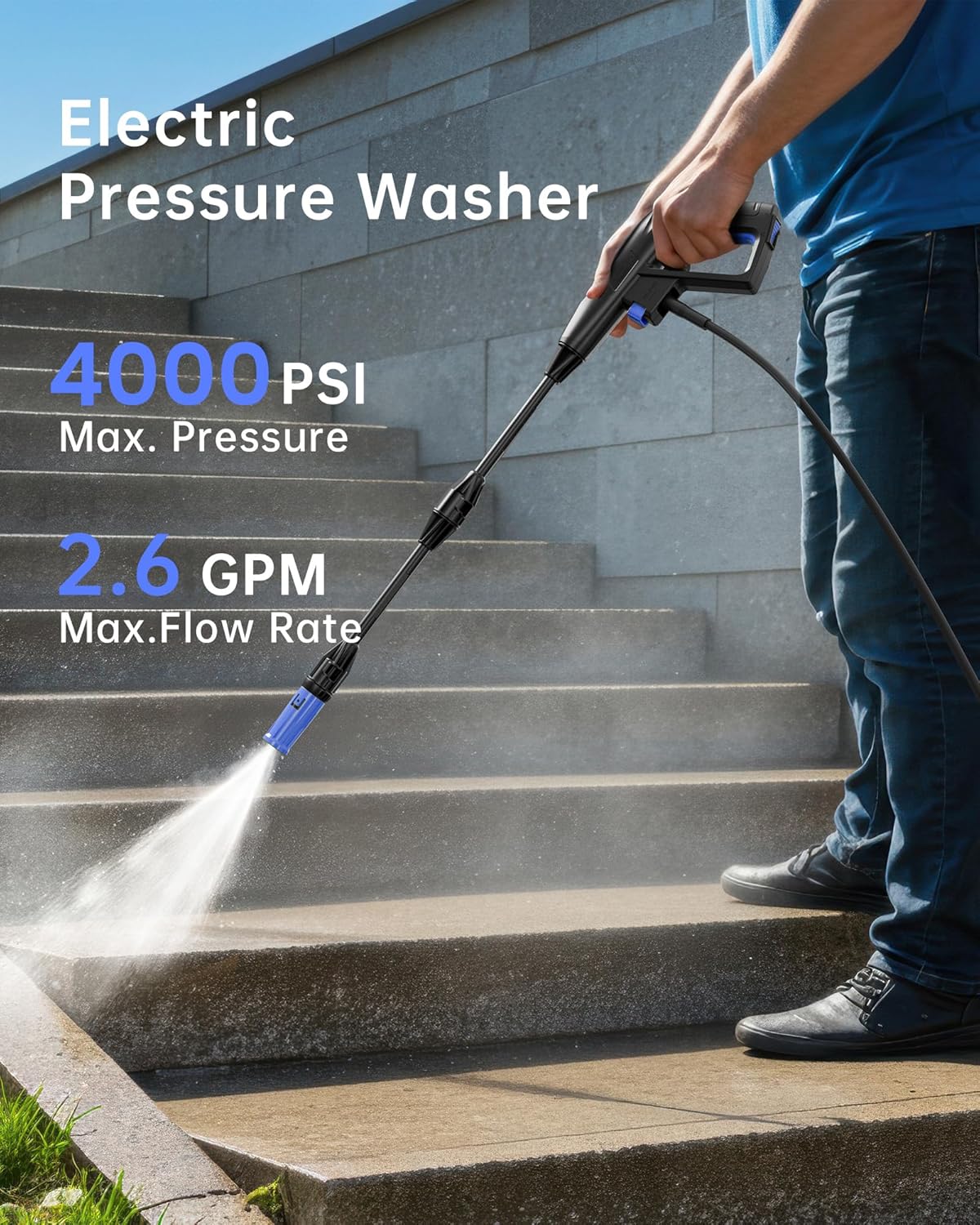

Image: The PATOOLIO Electric Pressure Washer demonstrating its powerful spray, highlighting its 4000 PSI maximum pressure and 2.6 GPM maximum flow rate.
Safety Information
Always read and understand all safety warnings and instructions before operating the pressure washer. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Electrical Safety: Ensure the power outlet is properly grounded. Do not operate the pressure washer in wet conditions or near standing water. Always use a Ground Fault Circuit Interrupter (GFCI) protected outlet.
- Water Connection: Connect the pressure washer only to a cold water supply. Do not use hot water. Ensure all connections are secure to prevent leaks.
- Personal Protective Equipment: Always wear appropriate eye protection (safety goggles), hearing protection, and protective clothing (gloves, long pants, closed-toe shoes) when operating the unit.
- Nozzle Safety: Never point the spray gun at people, pets, or electrical devices. The high-pressure spray can cause serious injury.
- Child Safety Lock: The handle is designed with a child safety lock to prevent accidental activation. Always engage the safety lock when the unit is not in use or unattended.
- Total Stop System (TSS): This unit is equipped with a Total Stop System, which automatically shuts off the pump when the trigger is not activated. This saves energy and prolongs the life of the pump and motor.
Image: Close-up view of the pressure washer handle, illustrating the Total Stop System (TSS) for automatic pump shutdown and the child safety lock mechanism.
Product Overview and Components
Familiarize yourself with the components of your PATOOLIO Electric Pressure Washer.
Image: The PATOOLIO Electric Pressure Washer unit with its main accessories: the spray gun, high-pressure hose, foam cannon, and a cleaning mitt.
Image: Annotated diagram highlighting key features of the pressure washer, including its sturdy wheels for easy dragging, integrated power cord and gun holders, ON/OFF switch, and dedicated foam cannon storage.
Included Components:
- Pressure Washer Unit
- High-Pressure Hose (23 feet)
- Spray Gun with Adjustable Nozzle
- Foam Cannon
- Water Inlet Connector
- Power Cord
Setup
Follow these steps for initial assembly and setup before first use.
- Attach Wheels: If not pre-assembled, attach the sturdy wheels to the base of the pressure washer unit.
- Connect High-Pressure Hose: Securely connect one end of the 23-foot high-pressure hose to the high-pressure outlet on the pressure washer unit. Connect the other end to the inlet on the spray gun. Ensure connections are hand-tightened to prevent leaks.
- Connect Water Supply: Attach your garden hose (not included) to the water inlet connector on the pressure washer. Ensure the garden hose is free of kinks and has a steady water supply. The unit can also draw water directly from a bucket.
- Connect Power: Plug the power cord into a properly grounded GFCI-protected electrical outlet.
- Purge Air: Before turning on the power, turn on the water supply and squeeze the trigger on the spray gun to allow water to flow through the system and purge any air. Continue until a steady stream of water emerges from the nozzle.
Operating Instructions
Learn how to effectively use your pressure washer for various cleaning tasks.
Starting the Pressure Washer:
- Ensure all connections are secure and the water supply is on.
- Turn the ON/OFF switch to the "ON" position. The motor will start.
- Squeeze the trigger on the spray gun to begin spraying. The Total Stop System (TSS) will engage when the trigger is released.
Adjusting the Spray Angle (All-in-one Nozzle):
The PATOOLIO pressure washer features a convenient one-piece nozzle design that allows for easy adjustment of the spray angle from 0° to 40° without needing to change nozzles.
Image: Visual guide to the adjustable nozzle, demonstrating various spray angles (0°, 15-25°, 25-60°, 60-120°) suitable for different cleaning tasks, from concentrated stain removal to wide-area cleaning.
- 0° (Pencil Jet): For stubborn stains on solid surfaces. Use with extreme caution.
- 15-25° (Fan Spray): Ideal for outdoor furniture cleaning and general washing.
- 25-60° (Wider Fan Spray): Suitable for surface clearing and larger areas.
- 60-120° (Wide Spray/Low Pressure): For extensive pressure cleaning, delicate surfaces, or applying detergent.
Image: Diagram showing the all-in-one nozzle and its rotational mechanism for easily changing spray angles from 0° to 120° without requiring multiple separate nozzles.
Using the Foam Cannon:
The included external foam pot produces a dense foam for effective foam jet cleaning, safe for use with a wide range of detergents.
- Fill the foam cannon reservoir with appropriate pressure washer detergent.
- Attach the foam cannon to the spray gun.
- Adjust the nozzle to a wider spray setting (e.g., 60-120°) for optimal foam application.
- Spray the desired surface, allowing the foam to dwell for a few minutes before rinsing.
Image: A person using the pressure washer with the external foam cannon attachment to apply a thick layer of foam to a car, illustrating the intensive foam spraying capability.
Length Adjustments:
The spray gun features three length adjustments to meet different cleaning needs and provide comfortable operation.

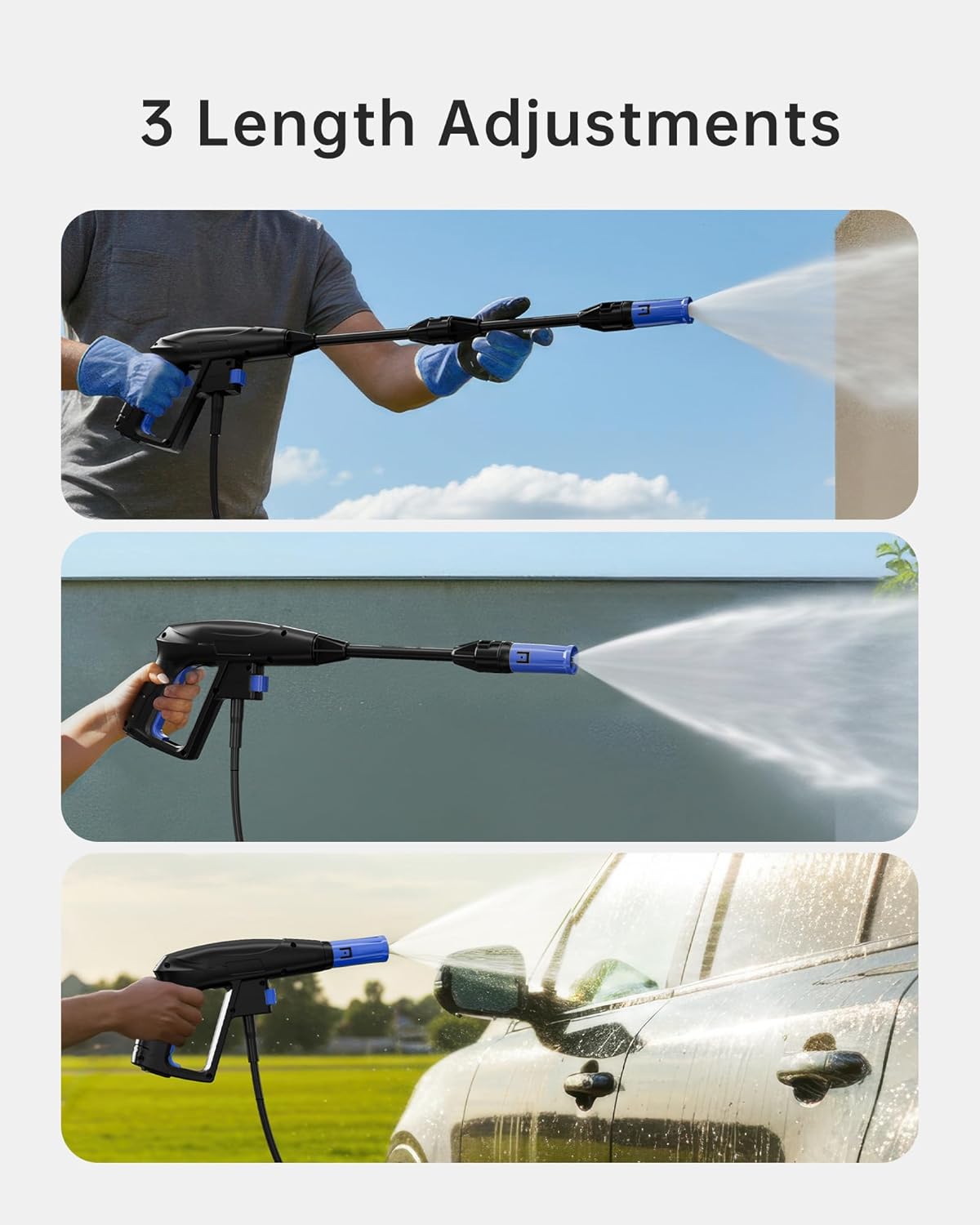

Image: Depiction of the spray gun's three adjustable lengths, allowing users to customize the reach for various cleaning tasks and ergonomic comfort.
Image: Diagram illustrating the mechanism for adjusting the length of the pressure washer wand, showing how components connect and extend.
Typical Applications:
Image: A collage showcasing the versatility of the pressure washer, with examples of it being used for car washing, stair cleaning, fence cleaning, and patio cleaning.
- Car Washing: Use a wide spray angle and foam cannon for effective and safe vehicle cleaning.
- Patio & Deck Cleaning: Adjust to a fan spray for efficient removal of dirt and grime from hard surfaces.
- Fence & Siding Cleaning: Use a moderate fan spray to clean vertical surfaces without damage.
- Driveway & Walkway Cleaning: For tough stains, use a narrower spray angle, but always test on an inconspicuous area first.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your pressure washer.
- After Each Use:
- Turn off the pressure washer and water supply.
- Squeeze the trigger to release any remaining pressure in the system.
- Disconnect the garden hose and high-pressure hose.
- Drain all water from the pump, hoses, and spray gun to prevent freezing damage.
- Clean the exterior of the unit with a damp cloth.
- Nozzle Cleaning: If the nozzle becomes clogged, use a small wire or needle to clear any debris from the nozzle opening.
- Storage: Store the pressure washer in a dry, frost-free environment. Utilize the integrated power cord and gun holders for tidy storage.
- No Maintenance Required: This electric pressure washer is designed for minimal maintenance, offering a hassle-free user experience.
Image: A comparison highlighting the PATOOLIO Pressure Washer's benefits, including no emissions, all-in-one storage, lightweight and portable design, and the advantage of requiring no maintenance.
Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power supply; GFCI tripped; ON/OFF switch off. | Check power connection; Reset GFCI; Turn ON/OFF switch to "ON". |
| Low pressure | Insufficient water supply; Clogged nozzle; Air in pump. | Ensure full water flow; Clean nozzle; Purge air from system (squeeze trigger with water on). |
| Motor stops frequently (TSS) | Normal operation of Total Stop System. | This is normal. The motor stops when the trigger is released and restarts when squeezed. |
| Water leaks | Loose connections; Damaged O-rings. | Tighten all connections; Inspect and replace O-rings if damaged. |
Specifications
- Brand: Patoolio
- Model Number: W6-1 (PA4000-B)
- Maximum Pressure: 4000 PSI
- Maximum Flow Rate: 2.6 GPM
- Power Source: Electric
- Hose Length: 23 Feet
- Product Dimensions: 43.18 x 33.02 x 17.78 cm
- Item Weight: 6.28 kg
- Color: Blue
Warranty and Support
PATOOLIO is committed to providing customers with the best shopping experience and professional after-sales service. If you encounter any product issues or have questions, please contact our customer service team. Product installation videos are available to assist with assembly.
For support, please refer to the contact information provided with your purchase or visit the official Patoolio website.
Return Policy: This product typically includes a 30-day refund/replacement policy. Please refer to your purchase details for specific terms.
