Introduction
This user manual provides essential information for the installation, operation, and maintenance of your TreasureCave Electric Scooter Controller. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of the product.
Product Overview
The TreasureCave Electric Scooter Controller is a vital component designed to manage the power delivery to your scooter's motor, ensuring smooth and efficient operation. This specific model is compatible with the Hitway H5 Electric Scooter and features a robust metal housing for durability.

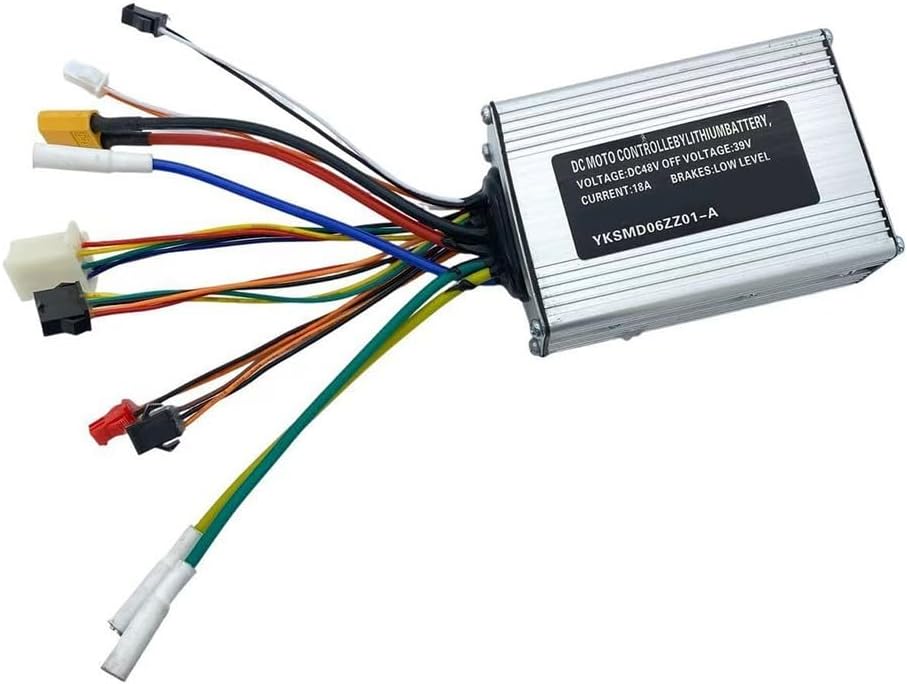

Figure 1: Front view of the Electric Scooter Controller, showing the main unit and various connection wires.
Features
- Lightweight and Easy to Replace: The compact design allows for effortless replacement, minimizing downtime.
- Designed for Electric Scooters: Tailored specifically for electric scooters, ensuring seamless integration and optimal functionality.
- Robust Metal Construction: Built with a sturdy metal housing that resists wear and tear, suitable for long-term use under various conditions.
- Includes Headlight Connections: Features 10 wires in total, including 3 dedicated wires for headlight connections, providing comprehensive electrical system support.
Setup and Installation
Installation of the scooter controller requires careful attention to wiring. It is recommended that installation be performed by an individual with experience in electrical components for electric scooters.
- Safety First: Ensure the scooter's power is completely off and the battery is disconnected before beginning any installation work.
- Access the Controller Compartment: Locate and open the compartment where the existing scooter controller is housed. This may require removing screws or panels.
- Disconnect Old Controller: Carefully disconnect all wires from the old controller, noting their positions and colors if possible. Take photos for reference if needed.
- Connect New Controller: Connect the wires from the scooter to the new TreasureCave controller. This controller features 10 wires, including specific connections for headlights. Match the wire functions (e.g., motor, battery, throttle, brakes, headlights) to the corresponding connectors on the new controller.
- Secure the Controller: Once all connections are made, securely place the new controller within its compartment. Ensure no wires are pinched or strained.
- Test Functionality: Reconnect the battery and carefully test the scooter's functions, including acceleration, braking, and headlights, before fully reassembling the scooter.

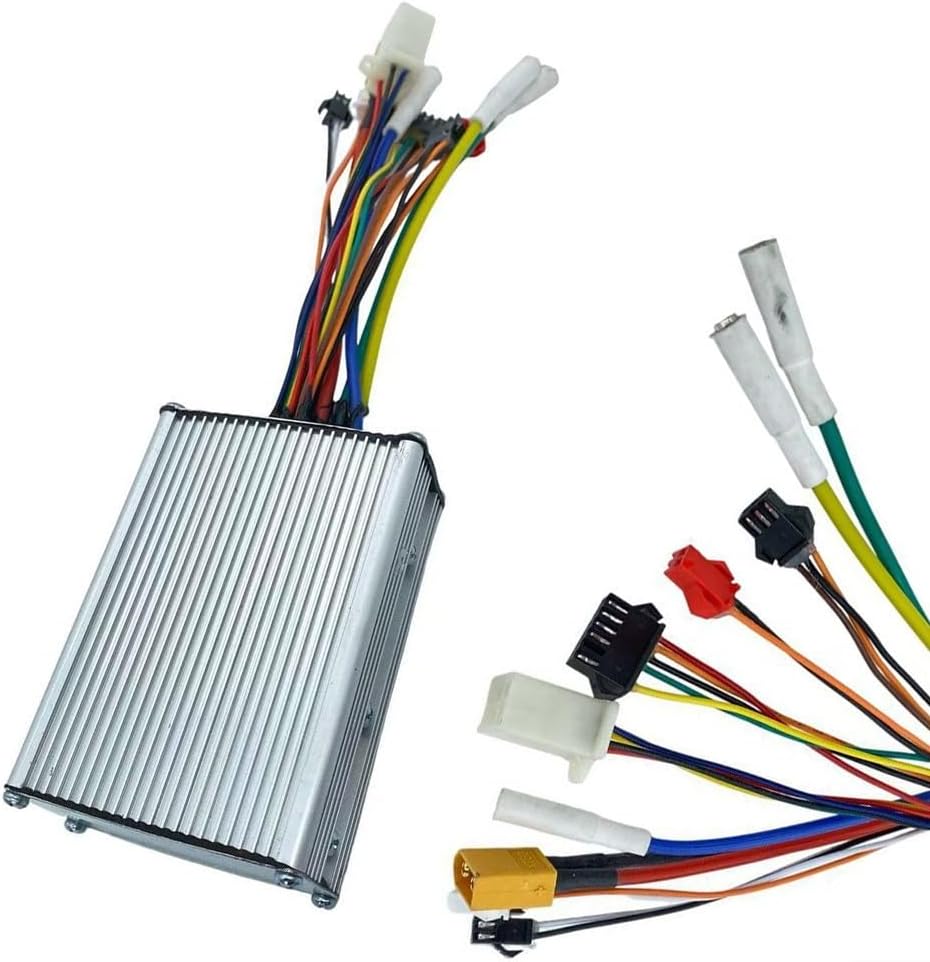

Figure 2: The controller with its array of connection wires, illustrating the complexity of the wiring harness.

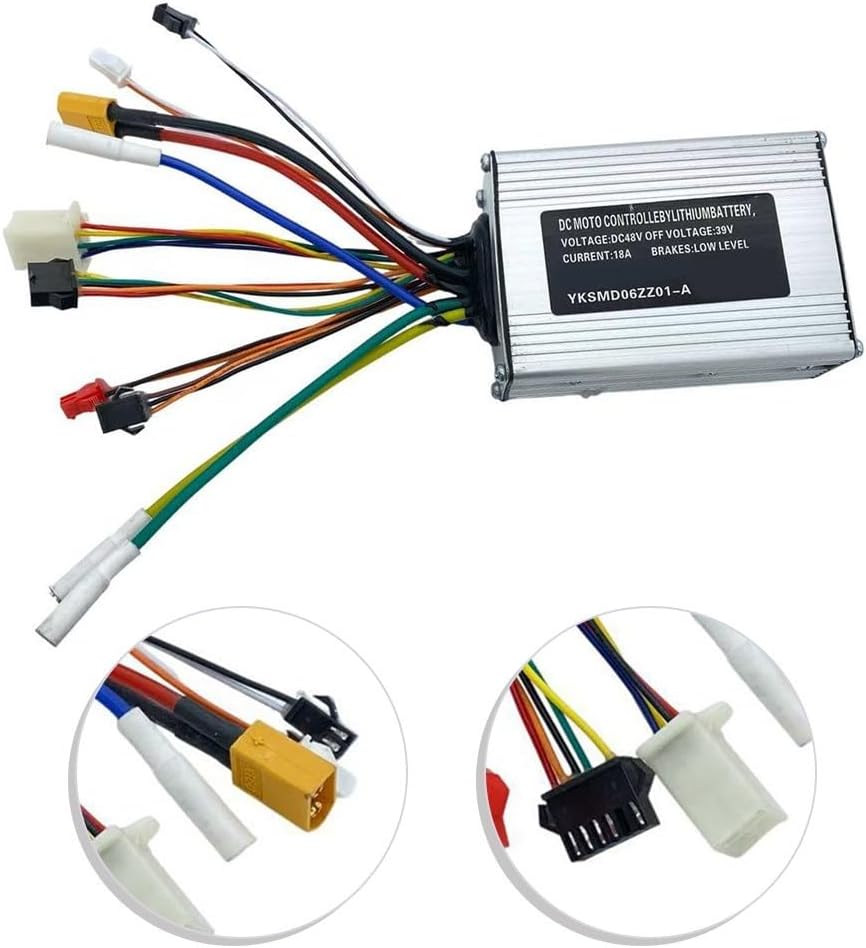

Figure 3: Detail of various wire connectors, including those for headlights and other scooter components.
Operating Principles
The TreasureCave Electric Scooter Controller operates by receiving signals from various scooter components such as the throttle, brake levers, and battery. It then translates these signals into precise power delivery to the brushless motor, controlling the scooter's speed and acceleration. The integrated headlight connections allow the controller to manage the scooter's lighting system directly.
This intelligent brushless motor controller ensures efficient energy conversion, contributing to the overall performance and battery life of your electric scooter.
Maintenance
To ensure the longevity and reliable operation of your scooter controller, follow these maintenance guidelines:
- Keep Dry: Avoid exposing the controller to water or excessive moisture. While the metal housing offers protection, prolonged exposure can lead to internal damage.
- Clean Regularly: Periodically clean the exterior of the controller and its connections to prevent dust and debris buildup. Use a dry, soft cloth.
- Inspect Connections: Routinely check all wire connections for looseness or corrosion. Secure any loose connections and clean corroded terminals.
- Avoid Physical Damage: Protect the controller from impacts or drops, as this can damage the internal circuitry or the metal housing.
- Temperature Control: Ensure the controller is installed in a location that allows for adequate ventilation to prevent overheating during operation.
Troubleshooting
If you encounter issues with your electric scooter after installing the controller, consider the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Loose battery connection, faulty power switch, or controller not receiving power. | Check battery connections. Ensure the power switch is functional. Verify power input to the controller. |
| Motor not responding to throttle. | Loose throttle connection, faulty throttle, or motor wire disconnection. | Inspect throttle wiring to the controller. Test the throttle unit. Check motor phase wire connections. |
| Headlights not working. | Loose headlight wire connection, faulty headlight, or incorrect wiring. | Verify the 3 headlight wires are correctly connected to the controller. Test the headlight unit. |
| Intermittent power or erratic behavior. | Loose or corroded wire connections, or internal controller issue. | Check all wire connections for secure fit and cleanliness. If issues persist, professional inspection may be required. |
If troubleshooting steps do not resolve the issue, please contact customer support or a qualified technician.
Specifications
| Attribute | Detail |
|---|---|
| Product Name | Scooter Controller |
| Material | Metal |
| Compatibility | Hitway H5 Electric Scooter |
| Wire Configuration | 10 wires total, including 3 for headlight connection (Type B) |
| Product Dimensions | 7.87 x 3.94 x 2.36 inches |
| Item Weight | 9.7 ounces |
| Manufacturer | TreasureCave |
| Model Number | K54311TK2997OCWW2V40X9 |
| Country of Origin | China |
Warranty Information
Specific warranty details for this product may vary. Please refer to the official TreasureCave website or contact your retailer for comprehensive warranty terms and conditions. Retain your proof of purchase for any warranty claims.
Customer Support
For technical assistance, troubleshooting guidance beyond this manual, or inquiries regarding your TreasureCave Electric Scooter Controller, please contact the manufacturer or your point of purchase. Have your model number (K54311TK2997OCWW2V40X9) ready when contacting support.
