VEVOR Macerating Sewage Pump User Manual

Product Overview

The VEVOR Macerating Sewage Pump (Model FLO300) is a powerful and efficient solution designed for wastewater management in various household and commercial settings. Equipped with a 350W copper motor, it offers a maximum flow rate of 6000 L/h and a maximum head lift of 7 meters (23 feet), making it ideal for basements, kitchens, showers, and other areas where traditional gravity drainage is not feasible.

This pump is engineered for durability and hygiene, featuring an oil-injected motor for enhanced heat resistance, allowing it to withstand continuous 75°C water and 90°C water for up to 4 hours. The integrated silver ion water tank provides effective antimicrobial properties, inhibiting bacterial growth and preventing odors, ensuring a low-maintenance experience.

Image: Front view of the VEVOR Macerating Sewage Pump, showcasing its compact design and the VEVOR branding.

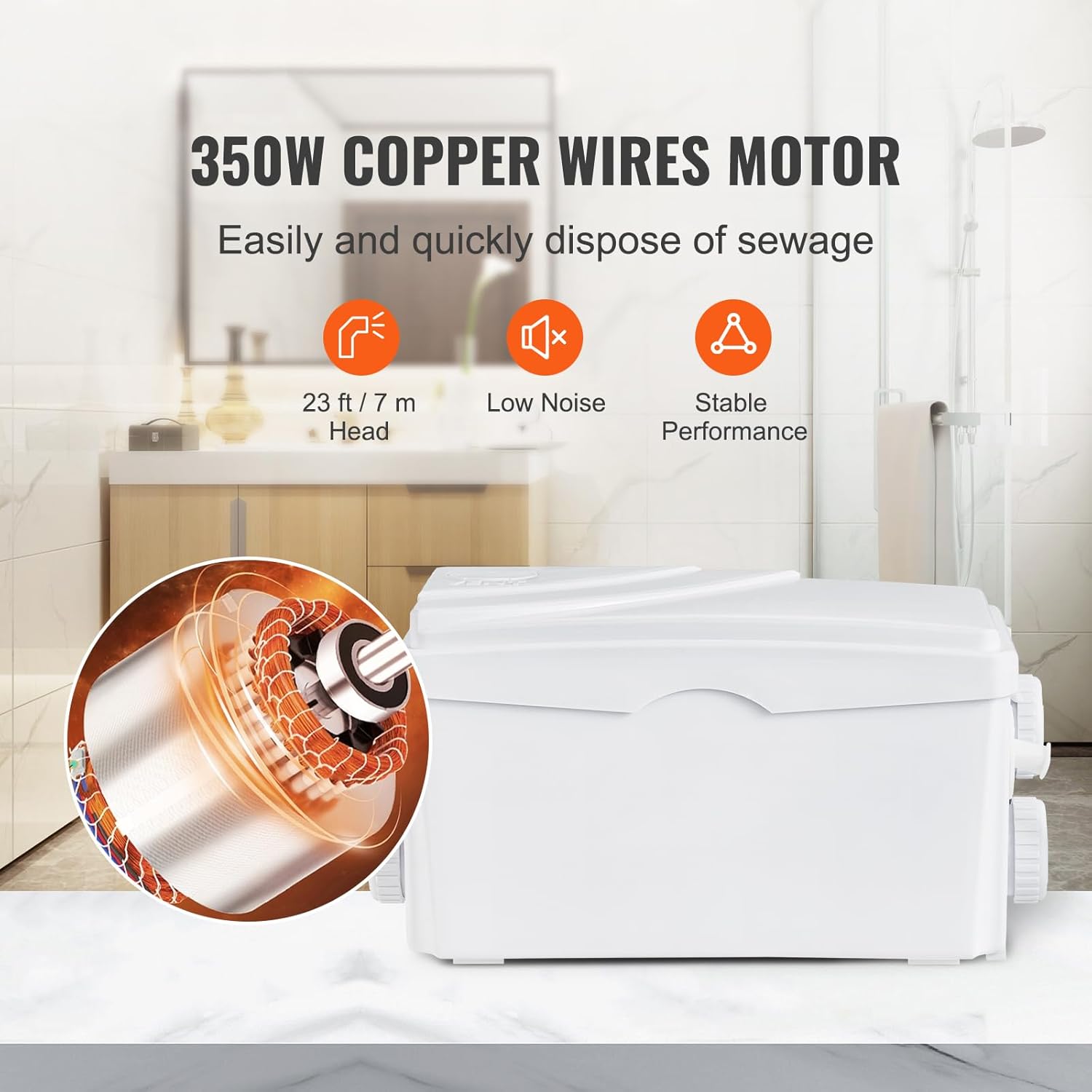

Image: Diagram illustrating the 350W copper motor, highlighting its 23 ft/7 m head, low noise operation, and stable performance.

Setup and Installation

Proper installation is crucial for the optimal performance and longevity of your VEVOR Macerating Sewage Pump. Please follow these guidelines carefully.

Connection Requirements:

• The unit is designed for horizontal toilets with a standard European 18 cm outlet at the center of the floor outlet.
• All other inlets (e.g., from sinks, showers, washing machines) must be gravity-fed into the unit.
• The unit comes standard with a 32 mm connection; a 22 mm reducer can be used if needed.
• The pump features three integrated water inlets, providing sufficient capacity for various appliances. Blanking covers are provided for unused inlets.

Piping Guidelines:

• Always use radius bends for piping. Do not use 90-degree (right-angle) elbows, as this can lead to blockages.
• If the water outlet is discharged horizontally, the discharge pipe must have a minimum inclination of 1%.
• If wastewater is discharged upwards, the horizontal pipe section after the vertical rise should not exceed 30 cm.

Image: Illustration of the pump's compact design, showing its suitability for installation under kitchen sinks, washbasins, in shower rooms, and for laundry appliances.

Image: The macerating pump displayed with its included accessories, such as the elbow assembly with check valve, inlet hoses, and clamps.

Operating Instructions

The VEVOR Macerating Sewage Pump operates automatically when wastewater enters the unit. Observe the following for safe and effective operation:

Thermal Protection:

This appliance is equipped with thermal protection that will cut off the power supply for approximately 2 hours in case of overheating. This is a safety feature. Only reconnect the appliance once the installation is complete and the unit has cooled down.

Temperature Limits:

Do not expose the appliance to temperatures below 0°C (32°F) or above 50°C (122°F) for continuous operation. The motor is designed to resist continuous 75°C water and 90°C water for 4 hours.

Image: Visual representation of the pump's oiling feature, indicating its ability to withstand continuous 75°C water and 4-hour 90°C water, protecting the motor.

Proper Use and Prohibited Items:

Use the macerating pump only for human excrement and soluble toilet paper. Damage to the unit due to improper use is not covered by the warranty.

Do NOT flush or allow the following items to enter the unit:

• Cotton, tampons, sanitary towels, panty liners
• Food waste
• Condoms
• Towels, hair
• Rinsing liquids, solvents, or oils

In case of prolonged absence (e.g., holidays), the water supply to the appliance should be turned off.

Maintenance

The VEVOR Macerating Sewage Pump is designed for minimal maintenance. Its specially designed silver ion water tank effectively inhibits bacterial growth and prevents odor generation, with an inhibition rate of up to 99%. This feature allows for long-term use without the need for frequent cleaning of the tank itself.

Image: Diagram illustrating the antimicrobial silver ion water tank, highlighting its 99% inhibition rate against bacteria and its role in preventing odors.

For general cleanliness, ensure the exterior of the unit is wiped clean as needed. Regularly check for any leaks in connected pipework and address them promptly to prevent issues.

Troubleshooting

Some malfunctions of the macerating pump are not severe and can often be resolved by the user. Refer to the table below for common issues and their solutions. For other malfunctions, contact your supplier or a qualified professional.

Specifications

Detailed technical specifications for the VEVOR Macerating Sewage Pump (Model FLO300):

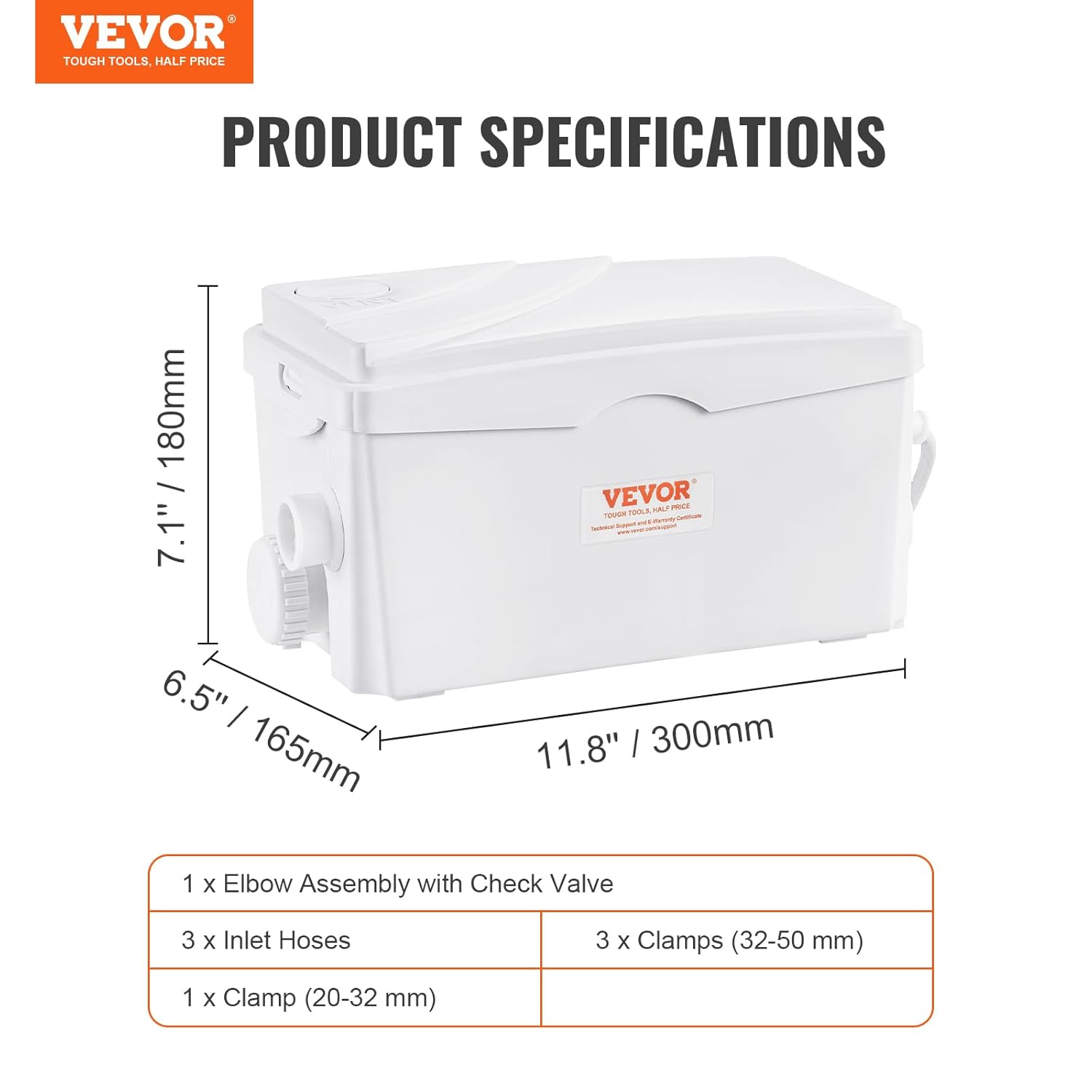

Image: Diagram showing the dimensions and key specifications of the VEVOR Macerating Sewage Pump, along with a list of included components.

Package Contents:

• 1 x Wastewater Pump
• 1 x Elbow Assembly with Check Valve
• 3 x Inlet Hoses
• 1 x Clamp (20-32 mm)
• 3 x Clamps (32-50 mm)

Warranty and Support

VEVOR products are designed for reliability and performance. While specific warranty details are not provided in this manual, please note that material damage resulting from improper use (e.g., flushing prohibited items) is typically not covered under warranty.

For any issues not covered in the troubleshooting section, or for professional assistance, please contact your product supplier or a qualified service professional. Ensure to provide your product model number (FLO300) and any relevant purchase information when seeking support.

For more information and support, you may visit the official VEVOR website or contact their customer service.
