1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your GarveeHome 12000 BTU Mini Split Air Conditioner Heat Pump System. This system is designed to provide efficient cooling and heating for spaces up to 750 square feet, featuring WiFi connectivity and Alexa compatibility for enhanced control.
The GarveeHome Mini Split system offers five distinct operating modes: Auto, Cool, Dry, Heat, and Fan. It incorporates innovative inverter technology for energy efficiency and operates quietly, with noise levels below 42 decibels. The system is engineered to perform effectively in a wide range of outdoor temperatures, from 5°F to 118°F.
2. Safety Information
Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, personal injury, or death.
- Professional Installation Required: This system requires professional installation by a qualified HVAC technician to ensure proper function, safety, and warranty validity.
- Electrical Safety: Ensure the power supply matches the unit's specifications (208V/230V). All electrical wiring must comply with local and national electrical codes.
- Refrigerant Handling: The system contains R32 refrigerant. Handling of refrigerant should only be performed by certified personnel.
- Clearances: Maintain adequate clearances around both indoor and outdoor units for proper airflow and maintenance.
- Children and Pets: Keep children and pets away from the outdoor unit and ensure they do not tamper with the indoor unit or remote control.
3. Package Contents
Your GarveeHome Mini Split System is shipped in two separate packages and may arrive at different times. Verify all components are present upon delivery.
Image: Package contents for the GarveeHome Mini Split AC system, showing items included in the outdoor and indoor unit boxes.
Box 1 - Outdoor Unit (Unit 55.1 lb)
- Outdoor unit
- 2x2m drain hose
- 1x sealing putty
- 1x insulation tape
- 1x wall sleeve (for pipe penetration)
- 1x aperture sleeve
- 1x copper tube (φ9.0×3000mm)
- 1x copper tube (φ6.0×3000mm)
Box 2 - Indoor Unit (Unit 18.7 lb)
- Indoor unit
- 1x remote controller
- 1x user manual (this document)
- 1x wall mounting bracket
4. Specifications
Image: Technical parameters and dimensions of the GarveeHome Mini Split Air Conditioner.
| Feature | Specification |
|---|---|
| Brand | GarveeHome |
| Model Number | XoIH2EIt0XCHCL8RSeVK9wK3y |
| Cooling Power | 12000 British Thermal Units (BTU) |
| Heating Capacity | 12300 British Thermal Units (BTU) |
| Seasonal Energy Efficiency Ratio (SEER2) | 20 |
| Heating Seasonal Performance Factor (HSPF2) | 9.1/8.0 |
| Voltage | 208V/230V |
| Coverage Area | Up to 750 Square Feet |
| Noise Level | Below 42 Decibels |
| Operating Temperature Range | 5°F to 118°F |
| Product Dimensions (Outdoor Unit) | 34.84 x 27.72 x 32.6 inches |
| Item Weight (Total) | 26.4 pounds |
| Included Components | Outdoor unit, indoor unit, multifunctional remote control, installation kit |
| Special Features | Heating & Cooling Function, WiFi Enabled, Alexa Compatible, Automatic Defrosting, Self-Diagnosis/Cleaning, iFEEL mode, 24-hour timer, Sleep Mode, Energy-Saving Mode |
5. Setup and Installation
Professional installation is required for this system. Attempting to install the unit without proper training and tools can lead to damage, improper operation, and void the warranty. Consult a qualified HVAC professional for installation.
Key Installation Considerations:
- Location: Select appropriate locations for both the indoor and outdoor units, ensuring adequate airflow and accessibility for maintenance.
- Electrical Connection: The unit requires a dedicated 208V/230V electrical circuit.
- Refrigerant Lines: Proper connection and vacuuming of refrigerant lines are critical for system performance and longevity.
- Drainage: Ensure proper condensate drainage from the indoor unit.

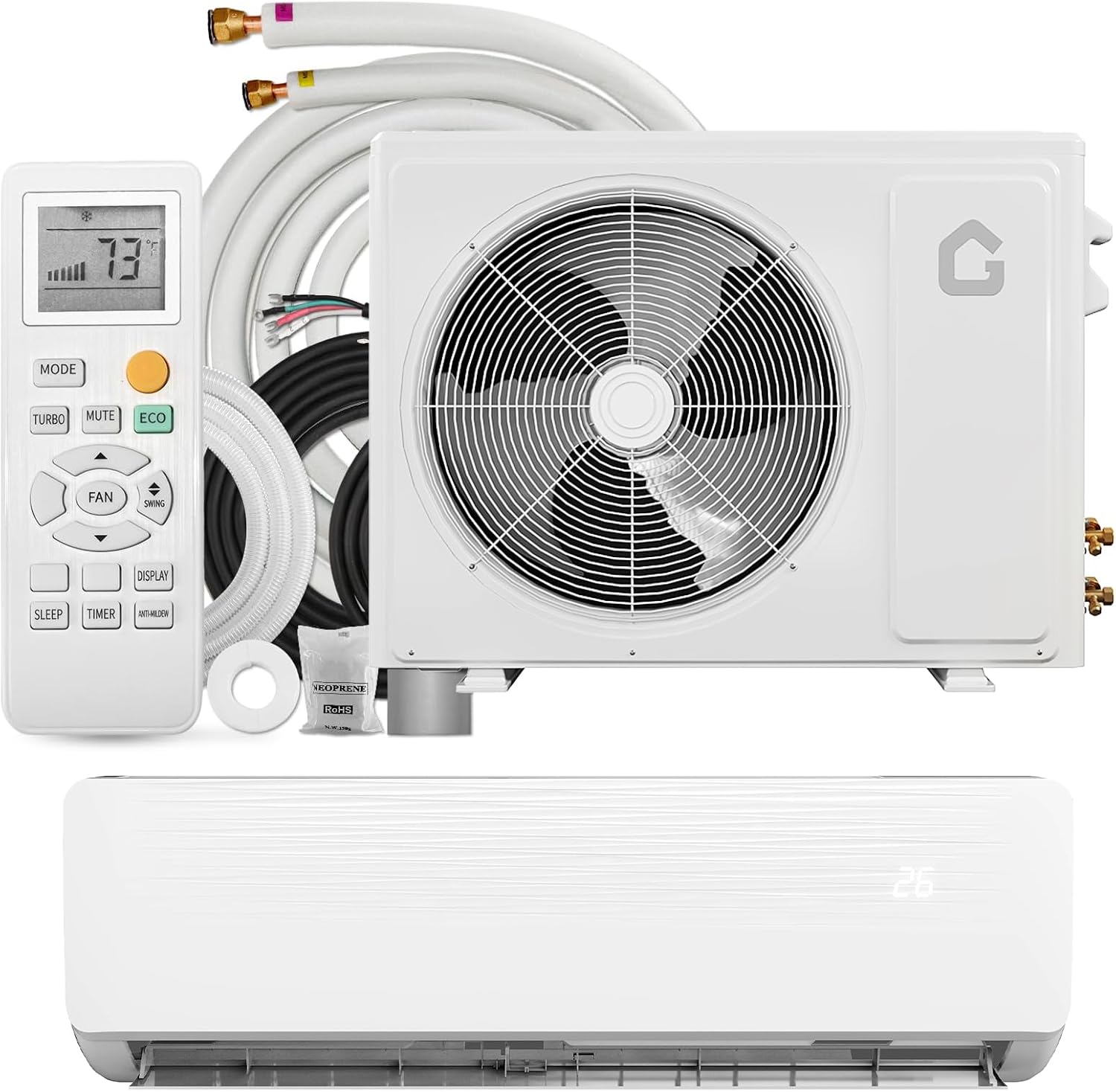

Image: Overview of the GarveeHome Mini Split AC system components.
6. Operating Instructions
Your GarveeHome Mini Split system is controlled via the included multifunctional remote control and can also be managed through WiFi and Alexa integration.
Image: Remote control and various functions of the GarveeHome Mini Split AC.
Remote Control Functions:
- ON/OFF: Powers the unit on or off.
- MODE: Cycles through operating modes: Auto, Cool, Dry, Heat, Fan.
- TEMP ▲/▼: Adjusts the desired temperature (61℉ to 88℉).
- FAN: Adjusts fan speed (Turbo, High, Med, Low, Mute).
- SWING: Activates or deactivates the automatic louver swing for even air distribution.
- SLEEP: Activates sleep mode for quiet operation and optimized temperature control during sleep.
- TIMER: Sets a timer for automatic on/off operations.
- ECO: Engages energy-saving mode.
- QUIET/MUTE: Reduces operational noise.
- LED: Turns the display LED on or off.
- iFEEL Mode: (Refer to full manual for specific activation) This mode senses the temperature at the remote control's location for more precise comfort.
WiFi and Alexa Compatibility:
Follow the instructions provided with your unit for connecting to your home WiFi network and integrating with Alexa for voice control. This allows for remote management of settings and modes.
Image: The GarveeHome Mini Split AC providing comfort in a living space, highlighting its multiple functions.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your GarveeHome Mini Split system.
User Maintenance:
- Air Filter Cleaning: The air filter is washable and easy to clean. Regularly remove and clean the air filter to maintain air quality and system efficiency. Frequency depends on usage and environmental conditions.
- Exterior Cleaning: Wipe the exterior of the indoor and outdoor units with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
Advanced Features for System Health:
Image: Smart Self-Clean and Smart Defrost functions of the GarveeHome Mini Split AC.
- Automatic Defrosting: The system features automatic defrosting to prevent ice buildup on the outdoor coil during heating operation in cold weather.
- Self-Diagnosis/Cleaning: The unit includes self-diagnosis capabilities to identify potential issues and self-cleaning functions to maintain internal hygiene. Refer to the full manual for how to activate these features.
Professional Maintenance:
It is recommended to have the system inspected and serviced by a qualified technician annually to ensure all components are functioning correctly and to perform deeper cleaning of coils and other internal parts.
8. Troubleshooting
Before contacting customer support, review the following common issues and solutions.
- Unit Not Turning On: Check power supply, circuit breaker, and ensure the remote control batteries are functional.
- Insufficient Cooling/Heating: Verify correct mode selection and temperature setting. Clean air filters. Ensure no obstructions to airflow for both indoor and outdoor units.
- Unusual Noises: Minor operational noises are normal. If loud or unusual noises occur, power off the unit and contact a professional.
- Remote Control Not Responding: Check battery levels and ensure there are no obstructions between the remote and the indoor unit's receiver.
- Error Codes: If an error code appears on the display, consult the full manual for specific code meanings and recommended actions.
For persistent issues or complex problems, contact a qualified HVAC technician or GarveeHome customer support.
9. Warranty and Support
Your GarveeHome Mini Split Air Conditioner Heat Pump System comes with a 3-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use and service.
For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your purchase documentation or visit the official GarveeHome website.
