Introduction
Thank you for choosing the HOMCOM Swivel Recliner Chair with Ottoman. This manual provides essential information for the safe assembly, operation, and maintenance of your new recliner. Please read these instructions thoroughly before use and retain them for future reference.
Image: The HOMCOM Swivel Recliner Chair with Ottoman, showcasing its dark brown faux leather upholstery and wooden base.
Safety Information
Important Safety Instructions:
- Always assemble the chair according to the provided instructions.
- Do not exceed the maximum weight capacity of 330 lbs (150 kg) to ensure stability and safety.
- Keep the chair on a stable, flat surface to prevent tipping.
- Do not leave the chair unattended while in the reclined position to prevent accidents.
- Keep children and pets away from the chair during assembly and operation.
- Ensure all bolts and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
Image: A cardboard package indicating "1x PACKAGE" for the HOMCOM recliner chair.
Your package should contain the following components:
- Recliner Chair Backrest
- Recliner Chair Seat with Armrests
- Chair Base (Wood and Metal Frame)
- Ottoman Cushion
- Ottoman Base (Wood and Metal Frame)
- Hardware Pack (Bolts, Washers, Allen Wrench)
- Assembly Instructions Manual
Assembly Instructions
Assembly is required for this product. It is recommended to have two people for assembly. Please follow these steps carefully:
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratches. Verify all components against the package contents list.
- Attach Chair Base: Secure the chair's metal frame to the wooden base using the provided bolts and Allen wrench. Ensure the swivel mechanism is correctly oriented.
- Connect Seat and Backrest: Attach the chair backrest to the seat frame. Align the pre-drilled holes and insert the bolts, tightening them securely. Note: Some users have reported minor alignment challenges; ensure careful positioning before tightening.
- Assemble Ottoman: Attach the ottoman cushion to its wooden base using the designated hardware.
- Final Check: Once assembled, gently rock the chair and ottoman to ensure stability. Re-tighten all bolts if any wobbling is detected.
Image: A diagram illustrating the dimensions of the recliner chair and ottoman, useful for understanding component sizes during assembly.
Operating Instructions
Your HOMCOM Swivel Recliner Chair with Ottoman offers several features for enhanced comfort:
- 360° Swivel: The chair is designed to swivel a full 360 degrees on its base. Simply rotate the chair to your desired direction.
- Reclining Function: To recline, locate the lever on the side of the chair (typically on the right). Pull the lever and lean back gently to adjust the backrest to your preferred angle, up to 130 degrees. Release the lever to lock the position. To return to an upright position, push the lever and lean forward.
- Ottoman Use: The separate ottoman provides comfortable leg support. Position it in front of the recliner as desired.
Image: A detailed view of the chair's base, highlighting its 360-degree swivel capability.
Image: A person demonstrating the reclined position of the chair, with feet comfortably resting on the ottoman.
Maintenance
Proper care will extend the life and appearance of your recliner:
- Cleaning: Wipe clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the faux leather.
- Spills: Blot spills immediately with a clean, dry cloth. Do not rub.
- Inspection: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten as needed.
- Sunlight Exposure: Avoid prolonged exposure to direct sunlight to prevent fading and material degradation.
- Lubrication: If the swivel mechanism becomes stiff or noisy, a small amount of silicone-based lubricant can be applied to the moving parts of the base.
Image: A close-up view of the chair's padded armrest, illustrating the faux leather material.
Troubleshooting
If you encounter any issues with your recliner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair wobbles or feels unstable. | Loose bolts or uneven surface. | Ensure all assembly bolts are securely tightened. Move the chair to a flat, even surface. |
| Difficulty reclining or returning upright. | Reclining mechanism obstruction or stiffness. | Check for any obstructions around the mechanism. Ensure the lever is fully engaged. If stiff, apply a small amount of lubricant to moving parts. |
| Swivel mechanism is noisy or not smooth. | Lack of lubrication or debris in the swivel base. | Clean any debris from the swivel base. Apply a silicone-based lubricant to the rotating components. |
| Parts do not align during assembly. | Minor manufacturing variations or incorrect orientation. | Loosen all bolts slightly, adjust the parts to align, then re-tighten. Ensure parts are oriented correctly as per diagrams. |
Specifications
Detailed specifications for the HOMCOM Swivel Recliner Chair with Ottoman:
- Brand: HOMCOM
- Model Name: Recliner with Ottoman
- Model Number: 83B-291V00DR
- Color: Brown
- Material: Faux Leather (PU), Foam, Wood, Metal
- Chair Dimensions (Upright): 33.9"W x 32.7"D x 42.1"H (86 x 83 x 107 cm)
- Chair Dimensions (Reclined): 33.9"W x 43.3"D x 37.4"H
- Ottoman Dimensions: 19.3"W x 17.3"D x 16.1"H
- Seat Height: 17.7 Inches
- Seat Depth: 20.9 Inches
- Seat Back Interior Height: 27.2 Inches
- Maximum Weight Capacity: 330 lbs (150 kg)
- Swivel: 360 degrees
- Reclining Angle: Up to 130 degrees
- Item Weight: 46 lbs (20.9 kg)
- Assembly: Required
- Care Instructions: Wipe Clean

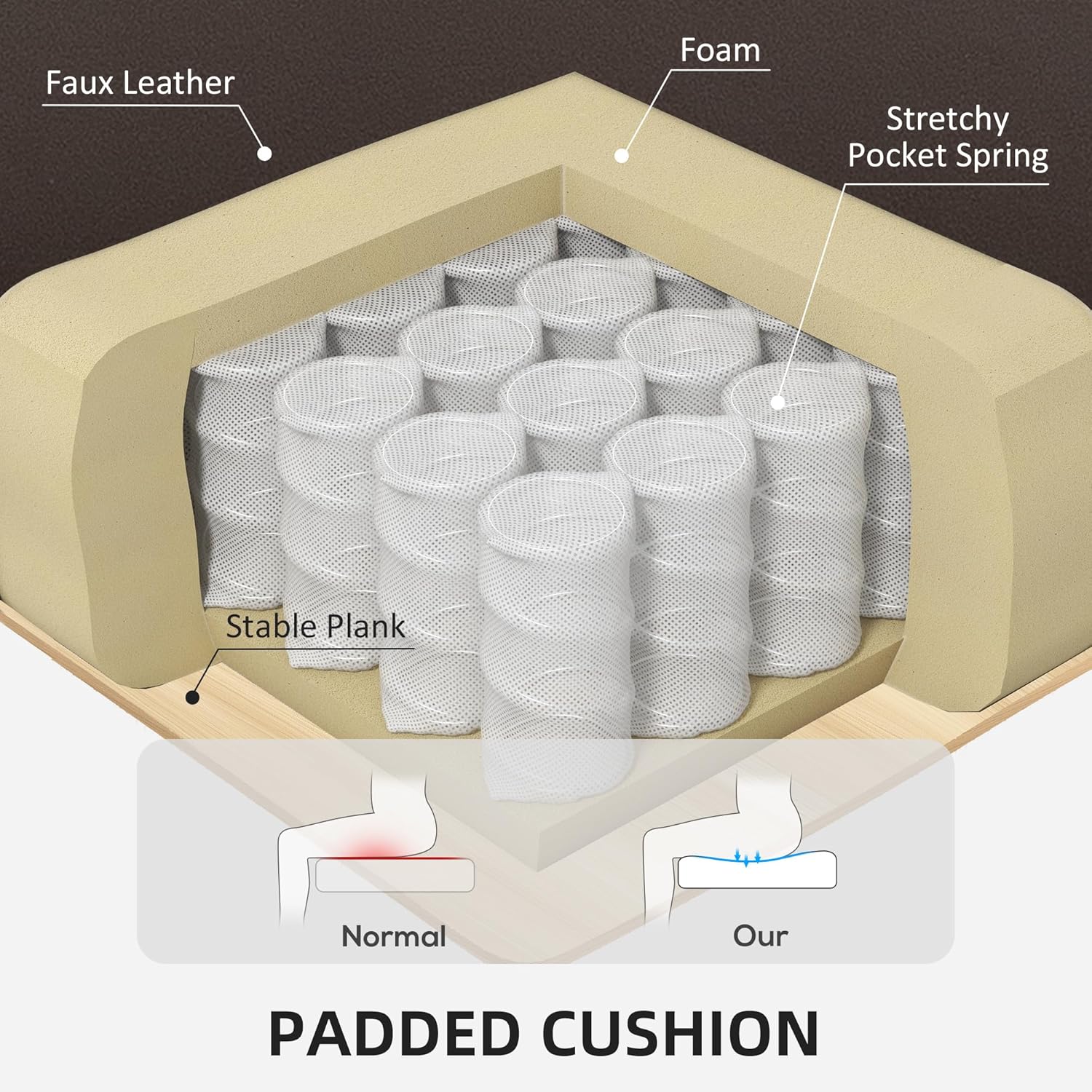

Image: An exploded view illustrating the layered construction of the chair's padded cushion, including faux leather, foam, and pocket springs for enhanced comfort.
Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact your retailer. HOMCOM products typically come with a manufacturer's warranty covering defects in materials and workmanship.
If you require assistance with assembly, parts, or have any questions regarding your HOMCOM Swivel Recliner Chair with Ottoman, please contact HOMCOM customer support or the retailer from whom you purchased the product. Please have your model number (83B-291V00DR) and purchase date available when contacting support.
You can often find support contact details on the HOMCOM Brand Store on Amazon or the manufacturer's official website.
