Product Overview
The GOTICAL Kenmore Clean Water Filter 9990 is designed to remove contaminants from your water supply, providing cleaner and better-tasting water. This filter is compatible with various refrigerator models and is recommended for replacement every six months with average use to maintain optimal performance.
Image: The GOTICAL Kenmore Clean Water Filter 9990, shown both in its retail packaging and as two individual filter units. This illustrates the product as it would appear upon purchase and ready for installation.
Key Features
- Removes contaminants for cleaner, better-tasting water.
- Recommended replacement every 6 months for optimal performance.
- Compatible with a wide range of refrigerator models.
- Constructed from durable resin material.
Setup and Installation
Proper installation ensures the filter functions correctly and provides clean water. Always refer to your refrigerator's specific user manual for detailed instructions on filter replacement, as procedures may vary by model.
Before You Begin
- Ensure you have the correct replacement filter (Model: 469990 Water Filter).
- Turn off the water supply to your refrigerator, if possible, to prevent leaks during installation.
- Have a towel or shallow pan ready to catch any residual water.
Installation Steps
- Locate the existing water filter in your refrigerator. This is typically found in the upper right corner of the fresh food compartment, or in the base grille.
- Carefully twist the old filter counter-clockwise to unlock and remove it. Some water may drip out.
- Remove the protective cap from the new GOTICAL Kenmore Clean Water Filter 9990.
Image: A detailed view of the filter's connection end, highlighting the O-rings and internal structure. This part connects directly into the refrigerator's water line.
- Insert the new filter into the filter housing.
- Twist the filter clockwise until it locks securely into place. You may feel a slight click or resistance.
Image: An illustrative diagram depicting a bottom freezer refrigerator. An arrow indicates the direction to turn the water filter for installation, typically a clockwise motion to secure it.
- Turn the water supply back on to the refrigerator.
- Run water through the dispenser for approximately 3-5 minutes (about 2-3 gallons) to flush out any air and carbon fines from the system. This is crucial for optimal filter performance and taste.
- Check for any leaks around the filter housing.
- Reset the "Change Filter" indicator light on your refrigerator, if applicable. Refer to your refrigerator's manual for specific instructions on resetting the indicator.
Operating Instructions
Once installed, the GOTICAL Kenmore Clean Water Filter 9990 operates automatically as water flows through your refrigerator's dispenser and ice maker. No manual operation is required.
Filter Functionality
The filter utilizes advanced filtration technology to reduce various contaminants. Water passes through multiple layers designed to trap impurities.

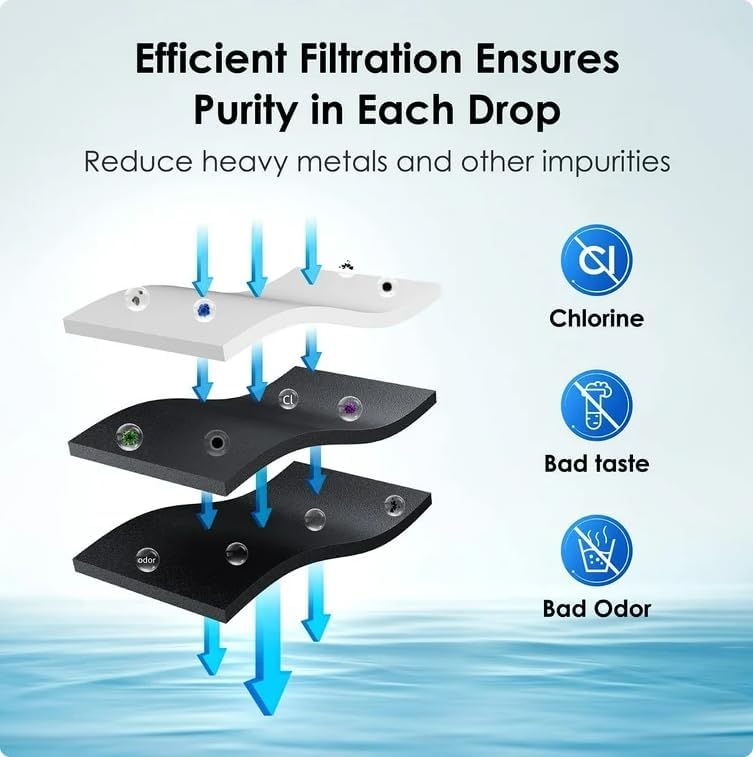

Image: A diagram illustrating the multi-stage filtration process. It shows water flowing downwards through different layers, effectively reducing substances like chlorine, elements causing bad taste, and sources of bad odor, resulting in purified water.
Maintenance
Regular maintenance, primarily filter replacement, is essential for the continued effectiveness of your water filtration system.
Filter Replacement Schedule
It is recommended to replace your GOTICAL Kenmore Clean Water Filter 9990 every six months or sooner if you notice a decrease in water flow or taste/odor issues. The filter's lifespan can vary based on water quality and usage volume.
Storage
Store unused filters in a cool, dry place away from direct sunlight and extreme temperatures. Do not remove the protective caps until ready for installation.
Troubleshooting
This section addresses common issues you might encounter with your water filter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Water Flow |
|
|
| Bad Taste or Odor in Water |
|
|
| Water Leaks from Filter Area |
|
|
Specifications
| Attribute | Detail |
|---|---|
| Brand | Gotical |
| Model Number | 469990 Water Filter |
| Equivalent Part Numbers | C L S - 30320001, 5231 JA 2006 E, 5231 JA 2005 A |
| Material | Resin |
| Product Dimensions | 2"D x 2"W x 2"H |
| Item Weight | 1.57 pounds |
| Filter Lifespan | Up to 6 months (with average use) |
| Product Benefits | Removes contaminants for cleaner, better-tasting water, compatible with various refrigerator models. |
Compatible Refrigerator Models (Partial List)
This filter is compatible with numerous Kenmore refrigerator models. A partial list includes:
- 27931, 51072, 51073, 51074, 51076, 51079, 51082, 51083, 51086, 51089, 51092, 51093, 51099, 51372, 51373, 51374, 51376, 51379, 75192, 75193, 75194, 75196, 75199, 75542, 75543, 75544, 75546, 75549, 75552, 75553, 75554, 75556, 75559, 77192, 77193, 77194, 77242, 77243, 77244, 77249, 77252, 77253, 77572, 77573, 77579, 78342, 78349, 78402, 78403, 78406, 78409, 78412, 78413, 78416, 78419, 79012, 79013, 79014, 79019, 79304, 79309.
Warranty and Support
For information regarding product warranty or technical support, please contact GOTICAL customer service. Details may be available on the product packaging or the official GOTICAL website.
Note: This manual provides general guidance. Always refer to your refrigerator's specific manual for model-specific instructions and safety information.
