1. Introduction
Thank you for choosing the HEADNMORE Bundle. This package includes the Parkside 20V PAAS 20 cordless pruning shears and a HEADNMORE keychain bottle opener. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new tools. Please read it thoroughly before first use and keep it for future reference.
2. Safety Instructions
General Safety Warnings:
- Before initial operation, carefully read the original manufacturer's instruction manual for the Parkside 20V PAAS 20 pruning shears.
- Follow all safety and usage instructions to ensure correct and safe use of the device.
- This product is intended exclusively for its intended applications within a domestic environment.
- Always wear appropriate personal protective equipment, such as safety glasses and gloves, when operating the pruning shears.
- Keep hands and body parts clear of the cutting blade during operation.
- Ensure the work area is clear of obstructions and bystanders.
- Do not operate the tool in wet conditions or near flammable liquids or gases.
- Store the tool in a secure place, out of reach of children, when not in use.
- The pruning shears require a 20V Parkside X 20V Team series battery and charger, which are not included in this bundle. Ensure you use compatible and fully charged batteries.
3. Product Overview
3.1 Parkside 20V Cordless Pruning Shears PAAS 20
The Parkside cordless pruning shears are designed for efficient pruning in your garden. They feature a robust gearbox, an ergonomic soft-grip handle, and an interchangeable bypass blade.

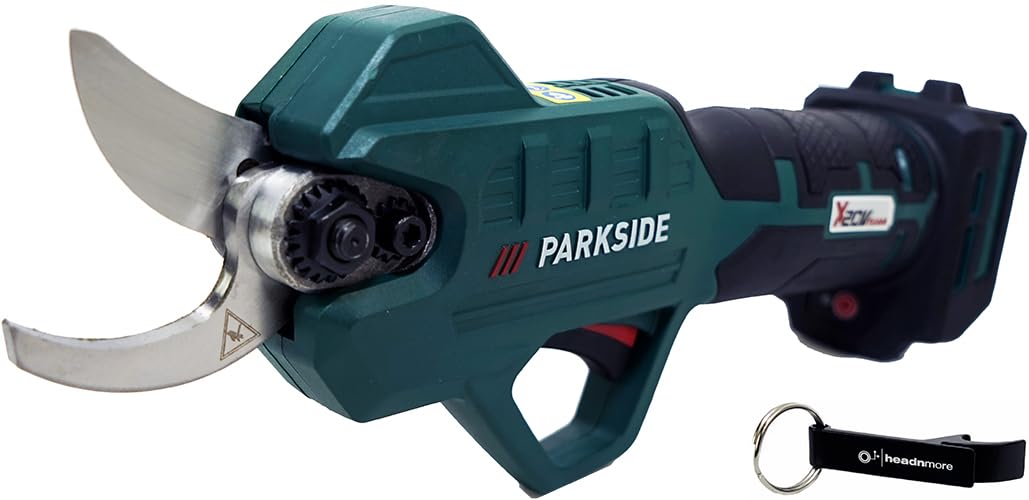

Image 1: Parkside 20V Cordless Pruning Shears PAAS 20. This image shows the pruning shears with their ergonomic handle and cutting blade.
Key Components:
- Cutting Blade: Interchangeable bypass blade for clean cuts.
- Ergonomic Handle: With soft grip for comfortable use.
- On/Off Switch: With integrated safety button.
- LED Standby Indicator: Two-tone indicator for operational status.
- Battery Compartment: For Parkside X 20V Team series batteries (battery not included).
3.2 HEADNMORE Keychain Bottle Opener
The HEADNMORE keychain bottle opener is a compact and durable accessory made from aluminum, designed to open bottles and cans with tabs.
Image 2: HEADNMORE Keychain Bottle Opener. This image displays the black aluminum keychain with the HEADNMORE logo and bottle opener functionality.
4. Setup
4.1 Parkside 20V Cordless Pruning Shears PAAS 20
- Unpack: Carefully remove all components from the carrying case. Ensure all accessories (Allen key, wrench, blade protective cover) are present.
- Battery Installation (Battery Not Included):
- Ensure the pruning shears are switched off and the safety button is engaged.
- Insert a fully charged Parkside X 20V Team series battery into the battery compartment until it clicks into place.
- To remove the battery, press the release button on the battery and pull it out.
- Blade Protection Removal: Remove the blade protective cover before use. Always reattach it after use for safety.
4.2 HEADNMORE Keychain Bottle Opener
No specific setup is required for the keychain bottle opener. It is ready for use upon unpacking.
5. Operating Instructions
5.1 Parkside 20V Cordless Pruning Shears PAAS 20
- Power On:
- Ensure a charged battery is correctly installed.
- Press and hold the safety button, then press the on/off switch to activate the shears. The two-tone LED indicator will show the operational status.
- Pruning:
- Position the branch to be cut between the blades.
- Press the trigger to close the blades and make a clean cut.
- The shears are suitable for branches up to 28 mm in soft wood and 15 mm in hard wood. Do not force the tool on thicker branches.
- Power Off: Release the on/off switch. The safety button will automatically engage. Always remove the battery when not in use or before performing any maintenance.
5.2 HEADNMORE Keychain Bottle Opener
- Opening Bottles: Place the opener's hook under the bottle cap and lift upwards.
- Opening Cans with Tabs: Use the designated slot to lift the tab on cans.
6. Maintenance
6.1 Parkside 20V Cordless Pruning Shears PAAS 20
- Cleaning: After each use, clean the blades and housing with a dry cloth. Remove any sap or debris. Do not use harsh chemicals or abrasive cleaners.
- Blade Care:
- Regularly inspect the blade for sharpness and damage.
- Sharpen the blade as needed using appropriate sharpening tools, or replace it if severely damaged. The blade is interchangeable.
- Apply a thin layer of rust-preventative oil to the blades after cleaning, especially before long-term storage.
- Storage: Store the pruning shears in their carrying case with the blade protective cover attached, in a dry, secure place out of reach of children. Remove the battery before storage.
6.2 HEADNMORE Keychain Bottle Opener
Clean with a damp cloth if necessary. No other specific maintenance is required.
7. Troubleshooting
7.1 Parkside 20V Cordless Pruning Shears PAAS 20
| Problem | Possible Cause | Solution |
|---|---|---|
| Shears do not turn on. | Battery not inserted correctly or not charged. Safety button not pressed. | Ensure battery is fully charged and correctly inserted. Press and hold the safety button before pressing the on/off switch. |
| Blades do not cut cleanly or get stuck. | Dull or damaged blade. Branch too thick. Debris in blades. | Sharpen or replace the blade. Do not attempt to cut branches exceeding the specified maximum diameter. Clean blades of any debris. |
| Tool stops during operation. | Battery low. Overload protection activated. | Recharge or replace the battery. Reduce the load on the tool; avoid cutting excessively thick or hard materials. Allow the tool to cool down if it overheats. |
If problems persist after attempting these solutions, please refer to the original manufacturer's manual or contact customer support.
8. Specifications
8.1 Parkside 20V Cordless Pruning Shears PAAS 20
- Operating Mode: Battery-operated
- Battery Voltage: 20 V (Battery not included)
- Max. Branch Diameter: 28 mm (soft wood), 15 mm (hard wood)
- Material (Housing): Plastic
- Material (Blade): Steel alloy
- Dimensions (without battery): Approx. 290 x 115 x 70 mm
- Weight (without battery): Approx. 957 g
- Handle Material: Plastic
- Blade Type: Bypass
- Hand Orientation: Ambidextrous
- Special Features: Robust gearbox, ergonomic soft-grip handle, interchangeable bypass blade, integrated safety switch, two-tone LED standby indicator, practical storage case.
- Included Components: 1 x Parkside 20V Cordless Pruning Shears, 1 x Allen key with Phillips screwdriver, 1 x wrench, 1 x blade protective cover, 1 x carrying case. (Battery and charger not included).
8.2 HEADNMORE Keychain Bottle Opener
- Material: Aluminum
- Type: Bottle opener
- Function: Opens bottles and cans with tabs
- Length: 55 mm
- Width: 10 mm
- Height: 15 mm
- Weight: 14 g
9. Warranty and Support
This bundle is marketed under the HEADNMORE brand. The included device (Parkside 20V Cordless Pruning Shears) is a product of the PARKSIDE brand. There is no cooperation, license, or commercial relationship between HEADNMORE and the PARKSIDE brand.
For warranty information and support regarding the Parkside 20V Cordless Pruning Shears, please refer to the original manufacturer's documentation provided with the product or contact PARKSIDE customer service directly.
For inquiries related to the HEADNMORE keychain bottle opener or the bundle as a whole, please contact HEADNMORE customer support through your point of purchase.
