KikkaBoo i-Aid Car Seat User Manual

Introduction

The KikkaBoo i-Aid car seat is designed to provide safety and comfort for children during travel. This forward-facing car seat is suitable for children from 100 to 150 cm in height, approximately 3.5 to 12 years of age (15-36 kg). It complies with the latest i-Size standards (UN R129/03), ensuring high levels of protection. This manual provides essential information for proper installation, operation, and maintenance of your i-Aid car seat.

Image: The KikkaBoo i-Aid car seat in grey, showcasing its full form and a smaller inset image of the seat without the backrest, highlighting its adaptability.

Safety Information

Always prioritize your child's safety. Read and understand all instructions before using the car seat. Failure to follow these instructions can result in serious injury or death.

• Ensure the car seat is correctly installed using the vehicle's 3-point seat belt system.
• Never leave your child unattended in the car seat.
• Do not use the car seat if it has been involved in an accident, even if there is no visible damage. Replace it immediately.
• Always secure your child properly with the vehicle's seat belt, ensuring it passes through the designated guides.
• The car seat is designed for forward-facing use only.
• Regularly check all components for wear and tear.

Image: The KikkaBoo i-Aid car seat with text indicating "CRASH TEST APPROVED" and compliance with Regulation No. R129/03 by ATS San Marino, emphasizing its safety certification.

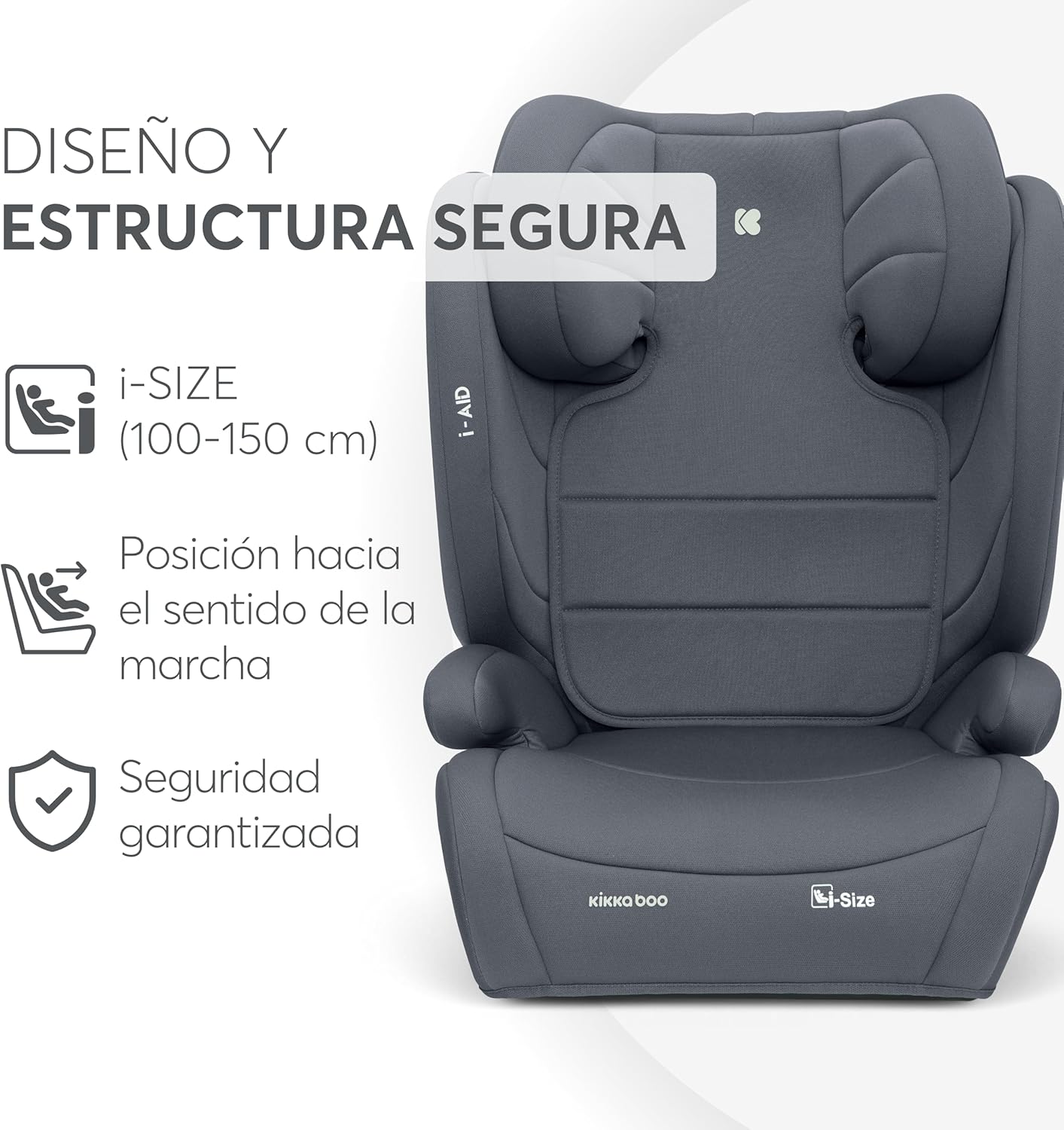

Image: A close-up of the KikkaBoo i-Aid car seat highlighting its secure design and structure, including i-Size compliance (100-150 cm), forward-facing position, and guaranteed safety features.

Components

The KikkaBoo i-Aid car seat consists of the following main components:

• Adjustable Headrest: Provides head and neck support, adjustable to 13 positions.
• Backrest: Supports the child's back and integrates with the headrest.
• Seat Base: The main seating area for the child.
• Seat Belt Guides: Designated slots for routing the vehicle's 3-point seat belt.
• Soft, Breathable Fabrics: Covers the seat for comfort and can be removed for cleaning.

Image: An annotated view of the KikkaBoo i-Aid car seat, pointing out key features such as the adjustable headrest, installation with the car's seat belt, and the soft, comfortable cushion.

Setup and Installation

The i-Aid car seat is installed using the vehicle's 3-point seat belt. Follow these steps carefully:

1. Position the Car Seat: Place the i-Aid car seat on the vehicle's rear seat, ensuring it is stable and flush against the vehicle's backrest. The car seat is designed for forward-facing installation only.
2. Route the Lap Belt: Pull out the vehicle's 3-point seat belt. Route the lap portion of the seat belt through the designated red belt guides on the seat base. Ensure the belt lies flat and is not twisted.
3. Route the Shoulder Belt: Route the shoulder portion of the seat belt through the red shoulder belt guide located on the headrest. The shoulder belt guide should be positioned just above your child's shoulder.
4. Buckle the Seat Belt: Insert the seat belt buckle tongue into the vehicle's buckle until it clicks securely.
5. Tighten the Seat Belt: Pull the shoulder belt upwards to remove any slack from both the lap and shoulder portions of the belt. Ensure the car seat is firmly secured and does not move excessively (no more than 1 inch or 2.5 cm) from side to side or front to back at the belt path.
6. Check Belt Positioning: Once your child is seated, ensure the shoulder belt lies across the middle of their shoulder and chest, and the lap belt is low across their hips, touching the upper thighs.

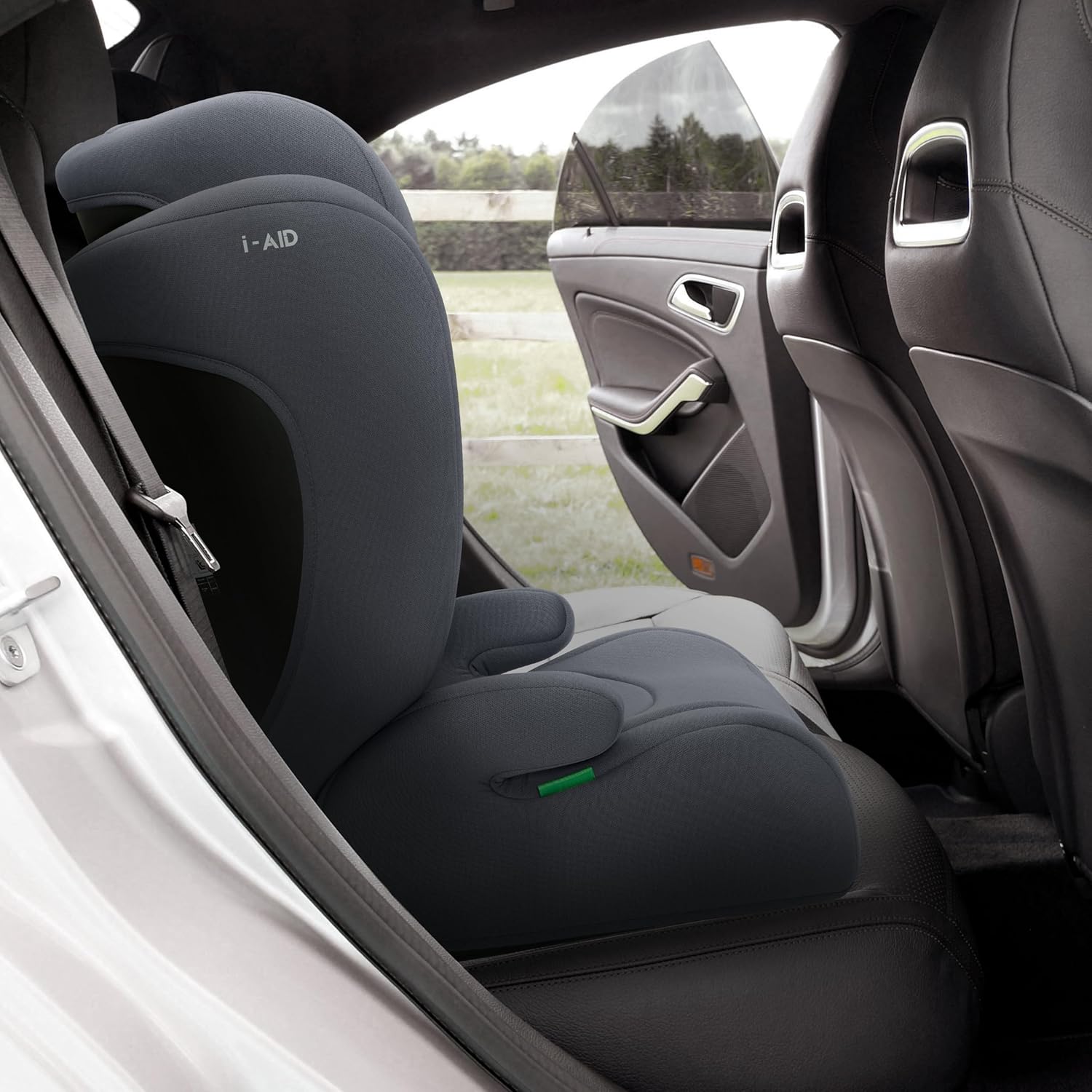

Image: The KikkaBoo i-Aid car seat correctly installed in the rear seat of a vehicle, demonstrating its fit and how the vehicle's seat belt is used for securing it.

Operating Instructions

Using the KikkaBoo i-Aid car seat involves adjusting it to fit your growing child and properly securing them for each journey.

Adjusting the Headrest (Easy Grow System)

The i-Aid features an adjustable headrest with 13 positions to accommodate your child's growth from 100 cm to 150 cm.

1. Locate the headrest adjustment lever, typically at the top or back of the headrest.
2. Squeeze or pull the lever to release the locking mechanism.
3. Slide the headrest up or down to the desired height. The shoulder belt guide should be just above your child's shoulder when they are seated.
4. Release the lever to lock the headrest into position. Ensure it is securely locked before placing your child in the seat.

Image: A visual representation of the KikkaBoo i-Aid car seat's adjustable headrest, showing its 13 positions for comfort and how it adapts to the child's height, along with a close-up of the padded headrest.

Image: Three views of the KikkaBoo i-Aid car seat demonstrating its adaptability for children from 100 cm to 150 cm, showing the headrest in its lowest, middle, and highest positions.

Securing Your Child

Once the car seat is installed, secure your child using the vehicle's 3-point seat belt:

1. Seat your child firmly in the car seat.
2. Pull the vehicle's seat belt over your child and buckle it.
3. Ensure the shoulder belt passes through the red shoulder belt guide on the headrest and lies flat across your child's shoulder and chest.
4. Ensure the lap belt passes through the red lap belt guides on the seat base and lies low across your child's hips, touching the upper thighs.
5. Remove any slack from the seat belt by pulling the shoulder portion upwards. The belt should be snug but not uncomfortably tight.

Maintenance

Proper maintenance ensures the longevity and hygiene of your KikkaBoo i-Aid car seat.

Cleaning the Fabric Cover

• The fabric cover is removable for cleaning.
• It can be washed by hand or machine washed at 30°C.
• Do not bleach, tumble dry, iron, or dry clean the fabric cover.
• Allow the cover to air dry completely before reattaching it to the car seat.

Cleaning the Plastic Parts

• Wipe plastic parts with a damp cloth and mild soap.
• Do not use abrasive cleaners or solvents.

General Care

• Store the car seat in a cool, dry place away from direct sunlight when not in use.
• Regularly inspect the car seat for any signs of damage, wear, or loose parts.

Troubleshooting

If you encounter any issues with your KikkaBoo i-Aid car seat, refer to the following common problems and solutions:

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact KikkaBoo customer service directly. Keep your proof of purchase for any warranty claims.

KikkaBoo Official Website: https://kikkaboo.com/

For specific inquiries or assistance, please reach out to the retailer where the product was purchased or visit the official KikkaBoo website for contact details.
