YITAHOME 12x16FT Metal Hardtop Gazebo Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your YITAHOME 12x16FT Metal Hardtop Gazebo. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct installation and to maximize the lifespan of your product. Retain this manual for future reference.

Figure 1: YITAHOME 12x16FT Metal Hardtop Gazebo in a patio environment.

2. Safety Information

Always follow the assembly instructions carefully. Use appropriate tools and ensure the gazebo is securely anchored to the ground. Keep children and pets away from the gazebo during assembly and disassembly. Do not use the gazebo in windy conditions or during severe weather. Regularly inspect the gazebo for any signs of damage or wear and tear, and perform necessary maintenance to ensure its safety and longevity.

3. Product Features

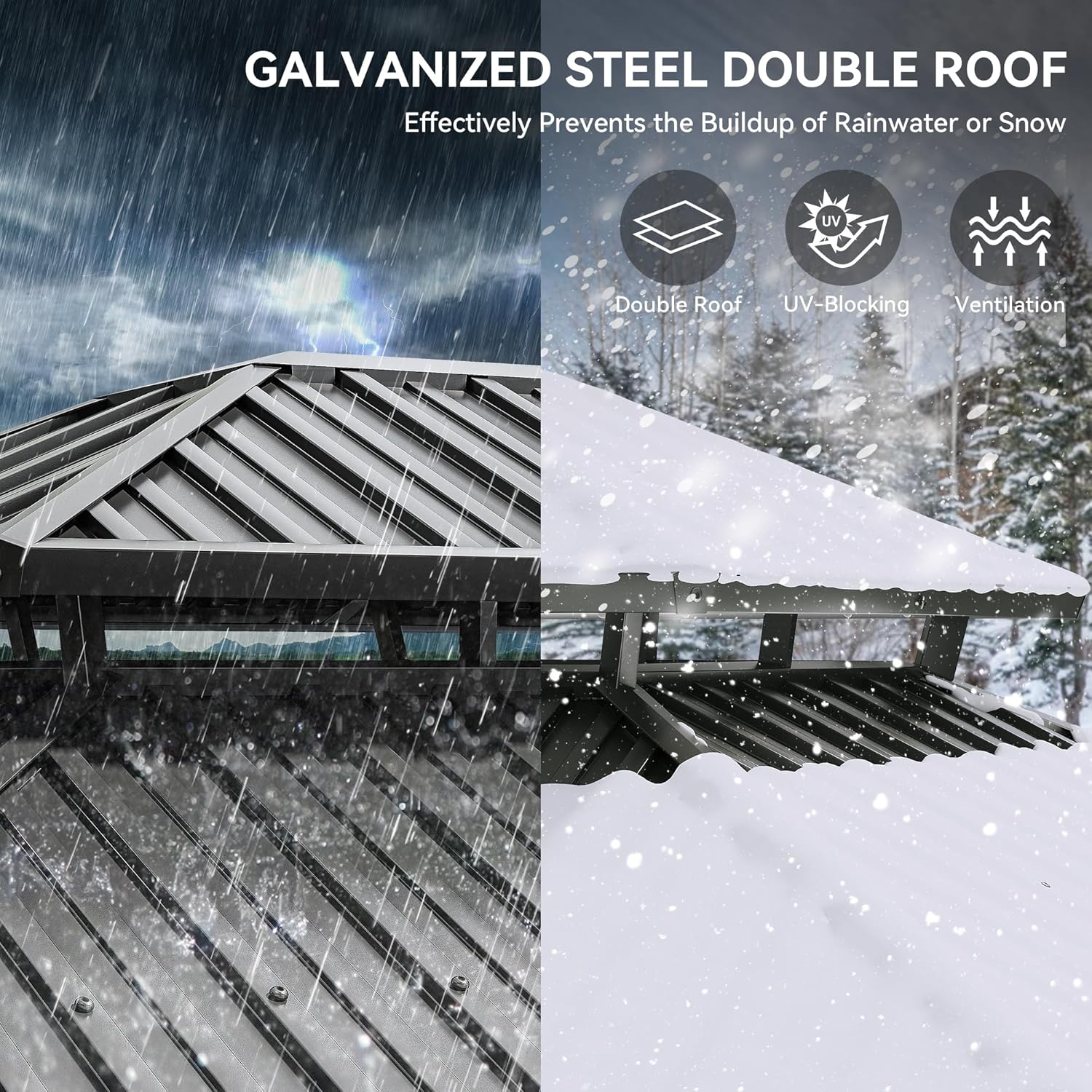

• Optimal Airflow Design: Features a double-top vented galvanized iron sheet roof for enhanced air circulation, preventing heat buildup and providing comfort. An integrated hook is located at the center for hanging lights or fans.
• Durable Construction: Constructed with a robust black powder-coated aluminum frame, designed to resist weather elements, fading, rust, and corrosion. Stability is reinforced by ground stakes and corner supports.
• Privacy and Protection: Includes fully enclosed double-sided zippers with a double trail system, offering grey polyester cloth and black mesh sidewalls. These provide protection from rain and UV rays while maintaining ventilation and privacy.
• Spacious Design: Offers ample space, suitable for accommodating 8-10 people, making it ideal for various outdoor gatherings.
• Enhanced Column Strength: Features columns with a wider width (4.7"x4.7") compared to standard designs, contributing to improved strength and durability.

4. Components List

Please refer to the detailed components list provided in your product packaging. Verify all parts are present and undamaged before beginning assembly. If any parts are missing or damaged, contact YITAHOME customer support immediately.

5. Setup and Assembly Instructions

The product arrives in separate packages. Detailed instructions and installation videos are typically included with the product. We recommend assembly by 2-4 people, taking approximately 2-4 hours.

1. Preparation: Unpack all components and lay them out. Verify against the parts list. Ensure you have all necessary tools.
2. Frame Assembly: Assemble the main frame structure first. It is crucial to ensure the entire frame is securely constructed and stable before proceeding to roof panel installation.
3. Roof Panel Installation: Carefully install the roof panels. Pay close attention to alignment to ensure bolt holes line up correctly with the frame. Some users have found it beneficial to complete the entire frame before installing roof panels to prevent panels from sliding off.
4. Curtain and Netting Installation: Attach the grey polyester cloth and black mesh sidewalls to the double trail system.
5. Anchoring: Securely anchor the gazebo to the ground using the provided ground stakes.

Figure 8: Gazebo dimensions for planning and installation.

6. Operating Instructions

• Double Roof Ventilation: The double-top vented roof is designed for continuous airflow. No specific operation is required for this feature.
• Curtains and Netting: The gazebo features a double trail system for both the mesh netting and fabric curtains. Use the double-sided zippers to open or close them as desired for privacy, insect protection, or weather shielding.
• Ceiling Hook: The integrated 'J' shaped hook in the center of the roof can be used to hang electric lights or fans. Ensure any hung items do not exceed the weight capacity specified in the product documentation.

7. Maintenance

• Regular Cleaning: Clean the frame and roof panels periodically with a mild soap solution and water. Rinse thoroughly and dry.
• Fabric Care: The polyester cloth and mesh sidewalls can be cleaned with a damp cloth and mild detergent. Allow them to air dry completely before storing or closing for extended periods.
• Inspection: Regularly inspect all bolts, screws, and anchoring points to ensure they remain tight and secure. Check for any signs of rust, damage, or wear on the frame and roof panels.
• Winterization: In areas with heavy snow, it is recommended to remove accumulated snow from the roof to prevent structural damage. Consider disassembling and storing the fabric components during harsh winter months.

8. Troubleshooting

• Misaligned Holes: If some bolt holes do not align perfectly during assembly, gently adjust the frame components. Avoid forcing parts, as this can cause damage. Ensure the frame is square before tightening all fasteners.
• Missing Parts: If you discover missing components, refer to the parts list in your packaging and contact YITAHOME customer support for assistance.
• Roof Panel Installation Difficulty: Ensure the main frame is fully assembled and stable before attempting to slide in roof panels. Some users find it easier to secure the entire frame first, then carefully position the roof panels.
• Stability Concerns: Verify that all ground stakes are properly installed and that the gazebo is anchored to a level surface. Re-tighten all frame connections.

9. Specifications

10. Warranty and Support

For warranty information, protection plans, or customer support, please refer to your purchase documentation or visit the official YITAHOME store. Protection plans, such as 2-Year or 3-Year options, may be available for purchase separately. The product typically includes a 30-day return policy.

Visit the YITAHOME Store for additional products and support.
