FGJDFD PC17005-3 Fan PCB Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the FGJDFD PC17005-3 Printed Circuit Assembly (PCA) Fan PCB. This component is designed as a replacement part for specific Daikin VRV outdoor units. Please read this manual thoroughly before attempting any installation or service.

2. Safety Information

WARNING: Risk of Electric Shock and Equipment Damage.

• Installation and service should only be performed by qualified HVAC technicians.
• Always disconnect power to the outdoor unit before beginning any work on the PCB. Verify power is off using a multimeter.
• Wear appropriate personal protective equipment (PPE), including safety glasses and insulated gloves.
• Handle the PCB by its edges to avoid damaging sensitive electronic components or introducing static discharge.
• Ensure proper grounding procedures are followed.
• Do not attempt to repair a damaged PCB. Replace it with a new, compatible unit.

3. Product Overview

The FGJDFD PC17005-3 is a durable printed circuit assembly specifically designed for fan control within Daikin VRV outdoor units. It ensures reliable performance and efficient operation of the fan system.

Key Features:

• Designed for Daikin VRV outdoor units.
• Compatible with models: RXQ8AY14, REYQ10U7Y1B, RXYQ10U7Y1B, RYMA5A7Y1B, RYMQ(8.10.12)U(5.7)Y1B.
• Utilizes high-quality materials for long-lasting operation.
• Part Numbers: PC17005-3, 5022312, 4020522, 4023777.

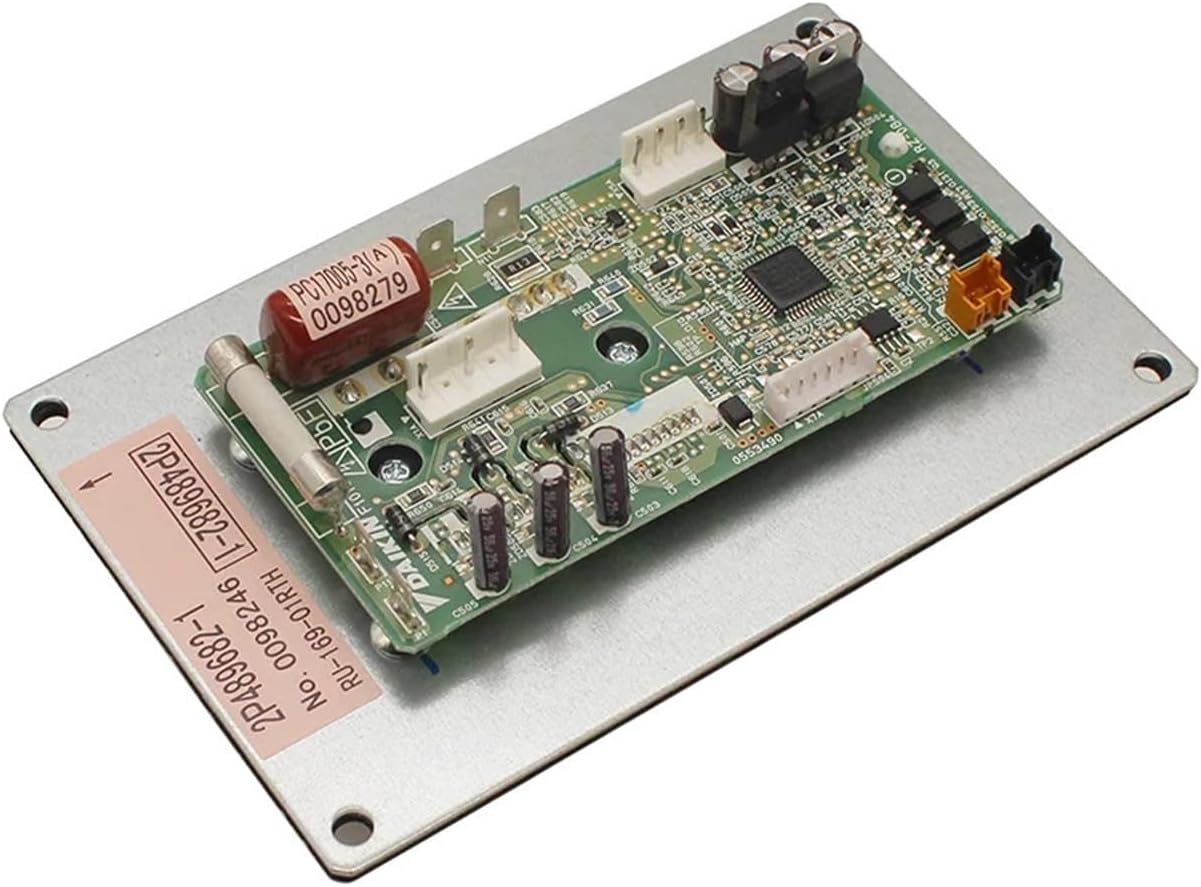

Figure 3.1: Top view of the PC17005-3 Fan PCB showing various electronic components and connectors.

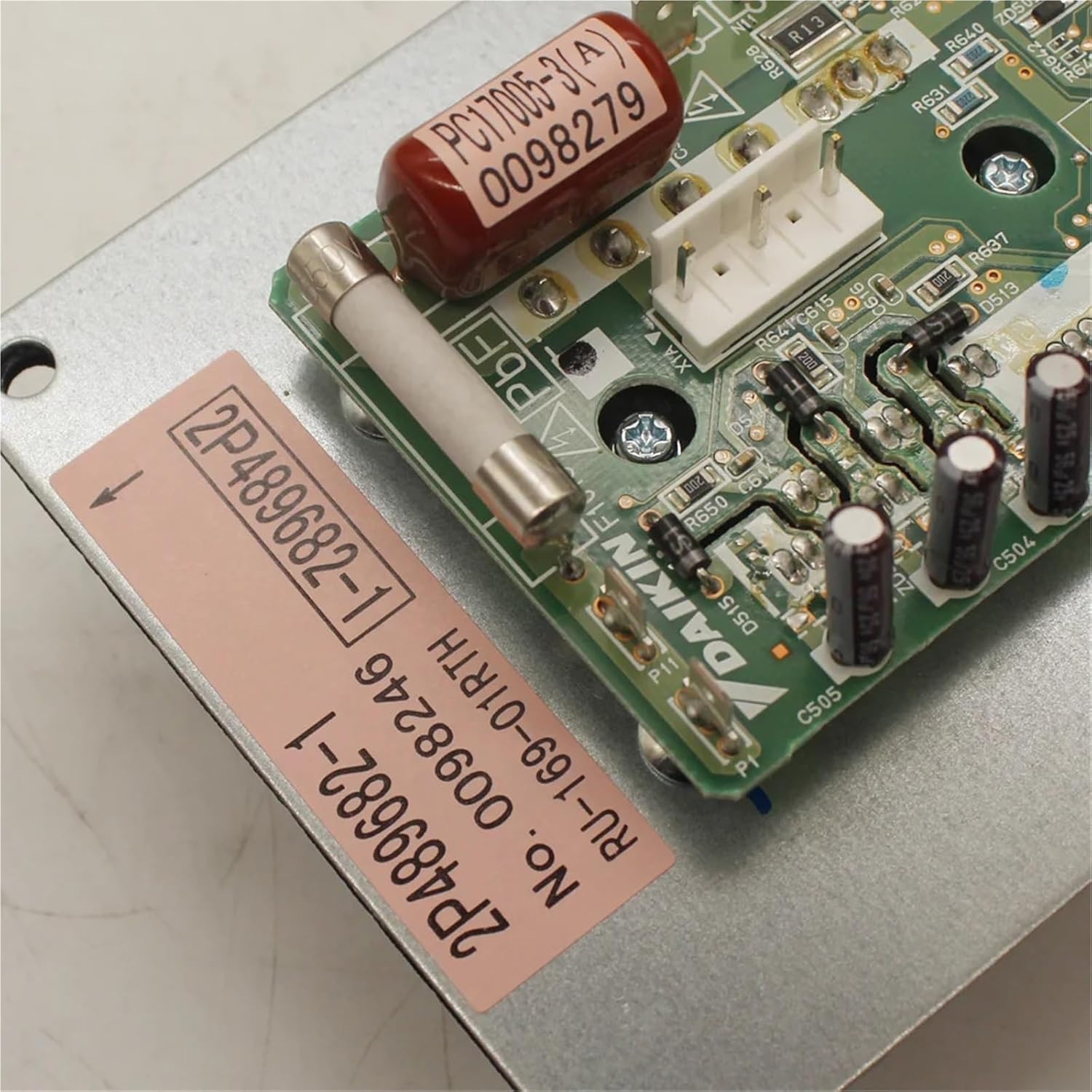

Figure 3.2: Close-up view of the PC17005-3 Fan PCB, highlighting the product identification label and specific components.

4. Setup and Installation

Professional installation is highly recommended for this component.

1. Preparation:
   • Ensure the Daikin VRV outdoor unit is completely powered off and locked out.
   • Gather necessary tools: screwdrivers, multimeter, anti-static wrist strap, replacement PCB.
2. Access the Existing PCB:
   • Carefully open the outdoor unit's access panel to expose the existing fan PCB. Refer to the Daikin unit's service manual for specific access procedures.
   • Take photographs of all wiring connections before disconnecting anything. This will aid in correct reassembly.
3. Disconnect and Remove Old PCB:
   • Using an anti-static wrist strap, carefully disconnect all wiring harnesses and connectors from the old PCB.
   • Unscrew any mounting hardware securing the old PCB and remove it from the unit.
4. Install New PC17005-3 PCB:
   • Position the new FGJDFD PC17005-3 PCB in the designated location.
   • Secure it with the appropriate mounting hardware. Do not overtighten.
   • Reconnect all wiring harnesses and connectors, referring to your photographs taken during disassembly. Ensure all connections are firm and correctly seated.
5. Final Checks:
   • Double-check all connections for accuracy and security.
   • Ensure no tools or debris are left inside the unit.
   • Close and secure the outdoor unit's access panel.
6. Power Up and Test:
   • Restore power to the outdoor unit.
   • Monitor the unit's operation to confirm the fan PCB is functioning correctly and the fan operates as expected. Check for any error codes or unusual behavior.

Figure 4.1: Bottom view of the PC17005-3 Fan PCB, showing the heatsink for thermal management.

5. Operating Principles

The PC17005-3 Fan PCB serves as a critical control board for the fan motor(s) within the Daikin VRV outdoor unit. It receives signals from the main control board and regulates the fan speed and operation to maintain optimal system performance and temperature control. Its function is integrated into the overall HVAC system's operation and does not require direct user interaction.

6. Maintenance

The FGJDFD PC17005-3 Fan PCB is designed for long-term reliability and typically requires minimal maintenance. However, periodic inspection during routine HVAC system servicing is recommended.

• Visual Inspection: During system maintenance, visually inspect the PCB for any signs of overheating (discoloration), corrosion, loose connections, or physical damage.
• Cleaning: If dust accumulation is observed, gently clean the PCB using compressed air. Do not use liquids or abrasive materials.
• Environmental Control: Ensure the outdoor unit's enclosure remains sealed to protect the PCB from moisture, pests, and extreme environmental conditions.

7. Troubleshooting

If the Daikin VRV outdoor unit experiences fan-related issues after PCB replacement, consider the following troubleshooting steps. Always ensure power is disconnected before inspecting components.

• Fan Not Operating:
  • Verify all wiring connections to the PCB and fan motor are secure.
  • Check for proper power supply to the outdoor unit and the PCB.
  • Consult the Daikin VRV unit's service manual for specific fan error codes.
  • Inspect the fan motor itself for mechanical issues or damage.
• Incorrect Fan Speed:
  • Ensure the correct PCB model (PC17005-3) was installed for the specific Daikin unit.
  • Check for any loose or corroded signal wires between the main control board and the fan PCB.
• Unit Displaying PCB-Related Error Codes:
  • Refer to the Daikin VRV unit's service manual for detailed explanations of error codes and recommended actions.
  • If the PCB is suspected to be faulty, replacement may be necessary.

If issues persist, contact a qualified HVAC technician or the product supplier for further assistance.

8. Specifications

9. Warranty and Support

For warranty information regarding the FGJDFD PC17005-3 Fan PCB, please refer to the terms and conditions provided by your point of purchase or contact the seller directly. Specific warranty periods and coverage may vary.

For technical support or assistance with installation and troubleshooting, please contact your certified HVAC technician or the supplier of this product. When contacting support, please have your product model number (PC17005-3) and the Daikin VRV unit model information readily available.
