Introduction
Thank you for choosing the TVTAU T10 Pro Cordless Vacuum Cleaner. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
The TVTAU T10 Pro is designed for efficient home cleaning, featuring a powerful 620W brushless motor, 55KPa suction, and a long 75-minute runtime. Its self-standing design, 1.8L dust cup, LED display, anti-tangle brush, and 8-stage filtration system ensure a comprehensive cleaning experience for various surfaces, including hardwood floors and carpets, and is effective for pet hair removal.
1. Setup
1.1 Unboxing and Assembly
Carefully remove all components from the packaging. Refer to the videos below for detailed unboxing and assembly instructions.
Video: This video demonstrates the unboxing and contents of the TVTAU T10 Pro Cordless Vacuum Cleaner package.
Video: Watch this video for a step-by-step guide on how to assemble your TVTAU T10 Pro Cordless Vacuum Cleaner.
1.2 Initial Charging
Before first use, fully charge the vacuum cleaner's battery. The TVTAU T10 Pro supports wall-mounted fast charging.
- Connect the power adapter to the charging port on the battery or the wall-mounted docking station.
- Plug the adapter into a power outlet.
- The LED display will indicate charging status. A full charge typically takes approximately 4 hours.
Image: TVTAU T10 Pro Cordless Vacuum Cleaner charging on its wall-mounted docking station.
2. Operating Instructions
2.1 Powering On/Off and Suction Modes
Press the power button to turn the vacuum cleaner on or off. The TVTAU T10 Pro offers 3 adjustable power modes for various cleaning tasks:
- Standard Mode: For general cleaning and maximum runtime.
- Mid Mode: Balanced power for everyday dirt.
- Max Mode: For intensive spot cleaning and stubborn debris.
Adjust the suction mode using the controls on the handle, as indicated on the LED display.
Image: Intelligent LED display showing current settings and status.
2.2 Self-Standing Feature
The vacuum cleaner is designed to stand upright on its own, providing hands-free convenience during cleaning breaks or when storing.
Image: The TVTAU T10 Pro utilizing its self-standing feature.
2.3 Using Attachments

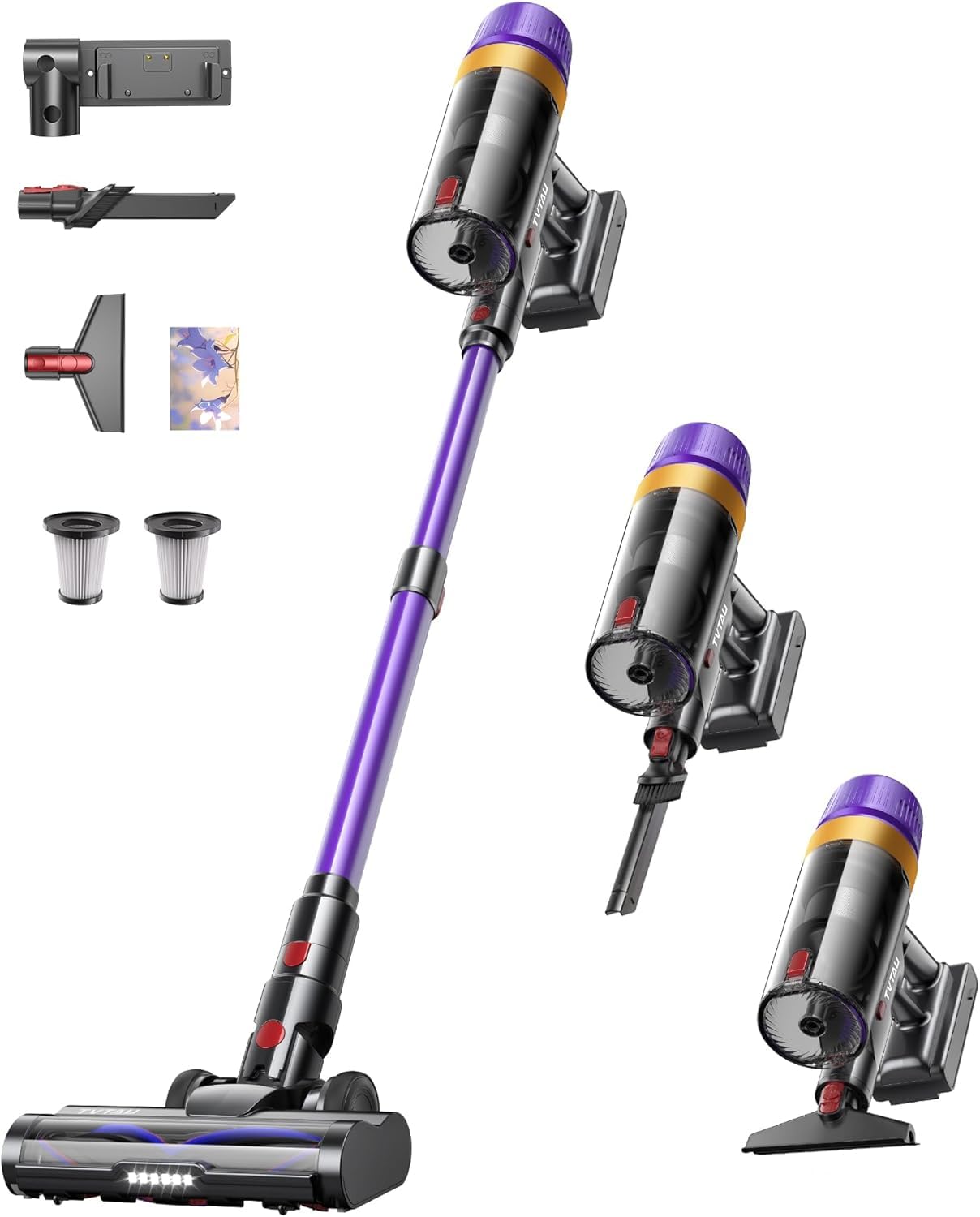

The TVTAU T10 Pro comes with various attachments for versatile cleaning:
- Long Crevice Tool: Ideal for narrow gaps, corners, and hard-to-reach areas.
- Soft Dusting Brush (2-in-1): For delicate surfaces, curtains, and removing pet hair from upholstery.
- Sofa Brush: Designed for cleaning sofas, cushions, and other fabric surfaces.
Attach the desired tool to the main unit or the telescopic wand as needed.
Image: Demonstrating the versatility of the TVTAU T10 Pro with different attachments.
2.4 Runtime
The 8-cell high-capacity lithium battery provides up to 75 minutes of runtime, allowing you to clean large areas on a single charge. The battery is detachable and replaceable (additional batteries sold separately).
Image: Visual representation of the vacuum's 75-minute battery runtime.
Video: This video illustrates the effective use of the TVTAU T10 Pro Cordless Vacuum Cleaner on various floor types.
3. Maintenance
3.1 Dust Cup Cleaning
Regularly empty and clean the 1.8L dust cup to maintain optimal suction performance. The LED display will provide a "dust full reminder" when necessary.
- Detach the dust cup from the main unit.
- Empty the contents into a waste bin.
- Rinse the dust cup and internal components with water if needed, ensuring they are completely dry before reassembly.
Video: Learn how to properly clean and empty the dust cup of your TVTAU T10 Pro vacuum cleaner with this instructional video.
3.2 Filter System Maintenance
The 8-layer high-efficiency filtration system, including HEPA filters, traps 99.99% of fine dust and allergens. Clean or replace filters as recommended to maintain air quality and vacuum performance.
- Refer to the user manual for specific instructions on accessing and cleaning the HEPA filters.
- Ensure filters are completely dry before reinstalling.
Image: Detailed view of the 8-layer cone fine filtration system.
3.3 Roller Brush Cleaning
The anti-tangle V-roller brush is designed to minimize hair wrapping. However, periodic cleaning is recommended to ensure optimal performance, especially when the LED display shows a "brush roller blocking reminder".
- Turn off and unplug the vacuum cleaner before attempting to clean the brush roll.
- Remove the brush roll from the floor head.
- Use the provided hair cleaning tool or scissors to remove any tangled hair or debris.
- Reinstall the brush roll securely.
Image: Close-up of the anti-tangle V-roller brush.
Video: This video provides instructions on how to clean the roller brush of your TVTAU T10 Pro to maintain optimal performance.
4. Troubleshooting
If you encounter any issues with your TVTAU T10 Pro, please refer to the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum not turning on | Battery depleted; Battery not properly installed. | Charge the battery; Ensure battery is securely clicked into place. |
| Loss of suction | Dust cup full; Filters clogged; Obstruction in nozzle/hose. | Empty dust cup; Clean or replace filters; Remove any obstructions. |
| Brush roll not spinning | Hair/debris tangled in brush roll; Brush roll blocked. | Clean the brush roll (refer to Section 3.3); Check for obstructions in the floor head. |
| Short runtime | Battery not fully charged; Battery degradation. | Ensure battery is fully charged; Consider replacing the battery if it's old. |
If the problem persists after trying these solutions, please contact TVTAU customer support.
5. Specifications
| Feature | Detail |
|---|---|
| Brand | TVTAU |
| Model Name | T10 Pro |
| Special Features | Cordless, Detachable Battery, Headlight, Rechargeable, Self-Standing |
| Motor Power | 620W |
| Suction Power | Up to 55KPa |
| Filter Type | HEPA Filter (8-Layer Filtration) |
| Dust Cup Capacity | 1.8 liters |
| Battery Life / Runtime | Up to 75 minutes |
| Number of Suction Modes | 3 |
| Surface Recommendation | Dual Action (Hardwood Floor, Carpet) |
| Recommended Uses | Pet Hair, Home Cleaning |
| Included Components | Accessory Kit, Adapter, Charging Dock, Crevice Tool, User Manual, Sofa Brush, Anti-tangle Brushroll Head, HEPA*2, Aroma Tablet, Hair Cleaning Brush |
| Item Dimensions (L x W x H) | 11"L x 7"W x 16.8"H |
6. Warranty and Support
TVTAU is dedicated to providing reliable service and support for your product. Your TVTAU T10 Pro Cordless Vacuum Cleaner comes with the following:
- 2 Years Warranty Service
- 7*24H Customer Support
- 30 Days Return & Exchange
- 90 Days Free Parts Replacement
- Lifetime Technical Support
For any inquiries or support, please contact us at: support@tvtau.com
