1. Introduction
Thank you for choosing Danson Décor LED Outdoor String Lights. This manual provides essential information for the safe installation, operation, and maintenance of your new string lights. Please read these instructions thoroughly before use and retain them for future reference.

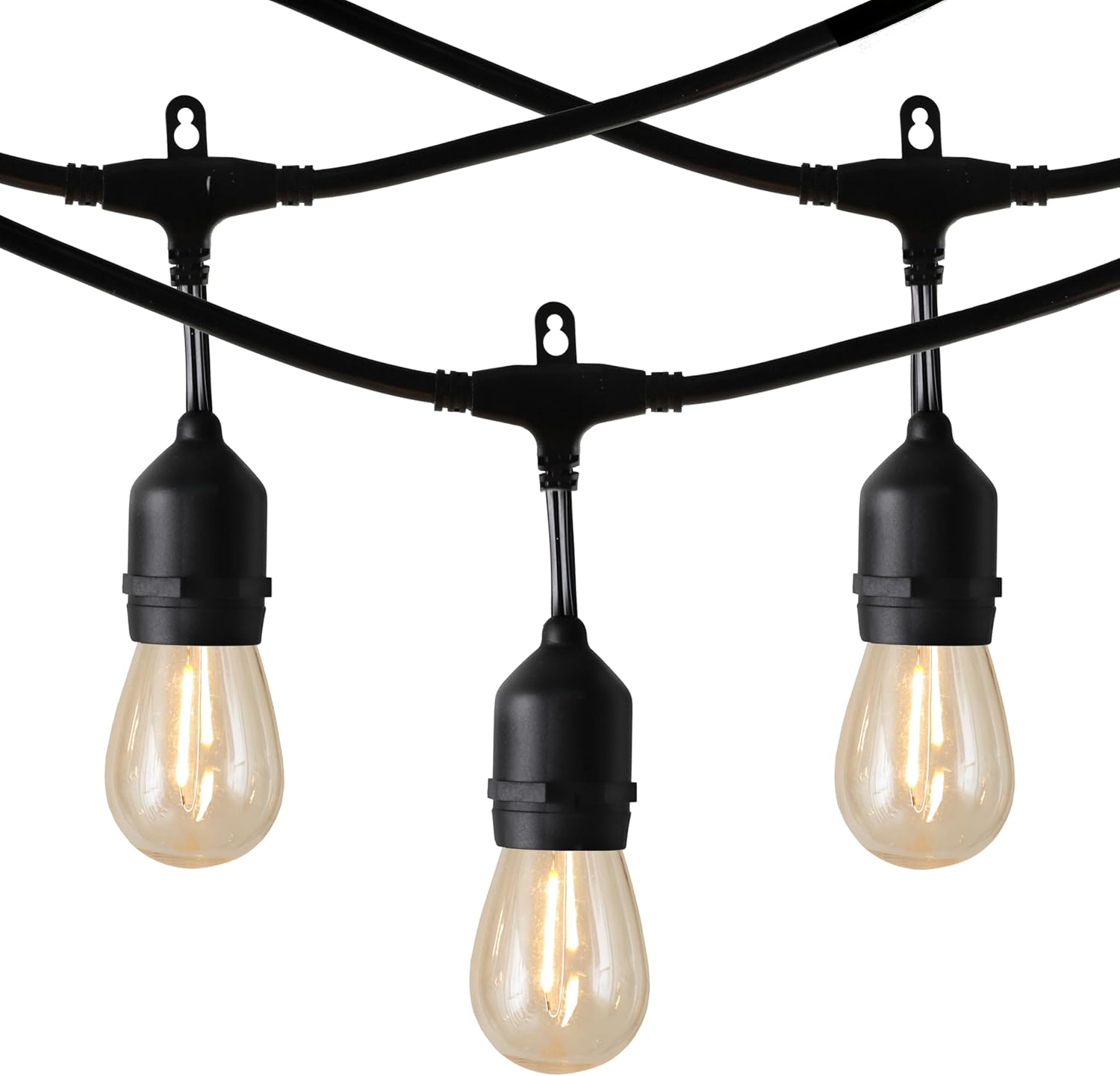

This image shows a close-up of three S14 Edison-style LED bulbs attached to the black string light cable, highlighting their design.
2. Product Overview
The Danson Décor LED Outdoor String Lights are designed to provide warm, inviting illumination for various outdoor spaces. Key features include:
- Vintage Glow: S14 Edison LED bulbs create a warm, inviting ambiance.
- Commercial Grade Durability: Heavy-duty, weather-resistant wire designed for long-term outdoor use.
- Weatherproof: IP44 certified for resistance against water and dust.
- Shatterproof Bulbs: Durable S14 bulbs are designed to withstand impacts.
- Energy-Efficient LED: Uses significantly less power than traditional incandescent bulbs, offering a longer lifespan and reduced energy consumption.
- Dimmable: Compatible with external dimmers (not included) for adjustable brightness.
- Expandable: Features end-to-end connectors, allowing up to 36 sets to be linked.
- Includes: 12 warm white shatterproof bulbs (2200 Kelvin) + 2 replacement bulbs.
This image displays three scenarios: lights in rain (waterproof IP44), lights in snow (-20°C winter resistant), and a comparison showing a shatterproof bulb next to a broken traditional glass bulb, emphasizing durability.
Three icons visually communicate key product benefits: weather resistance (raindrop), shatterproof construction (brick wall impact), and energy efficiency (light bulb with percentage saving).
A collage showcasing diverse applications of the string lights in different outdoor environments such as patios, gardens, pergolas, and social gatherings, illustrating their versatility.
3. Safety Information
Please observe the following safety precautions to prevent injury or damage:
- Outdoor Use Only: These lights are designed for outdoor use. Ensure all connections are secure and protected from direct water exposure where possible, despite their weatherproof rating.
- Electrical Safety: Always plug the string lights into a Ground Fault Circuit Interrupter (GFCI) protected outlet. Do not overload electrical circuits.
- Bulb Voltage: The bulbs operate at a specific low voltage (e.g., 8V). Do not attempt to use these bulbs in standard 120V household sockets, as this can cause damage to the bulb or create a fire hazard.
- Installation: Ensure the string lights are securely mounted to prevent them from falling or swaying excessively in wind. Do not use staples or nails that could damage the wire insulation.
- Inspection: Before each use, inspect the string lights for any damage to the cord, bulbs, or sockets. Do not use if any damage is present.
- Disconnect Power: Always unplug the string lights from the power source before installing, removing, or replacing bulbs, or performing any maintenance.
4. Setup and Installation
Follow these steps for proper installation:
- Plan Your Layout: Determine the desired path for your string lights. Ensure the power outlet is within reach of the plug or use an appropriate outdoor-rated extension cord.
- Secure Mounting Points: Install hooks, zip ties, or guide wires at regular intervals along your desired path. Ensure mounting points are sturdy enough to support the weight of the lights.
- Hang the String Lights: Carefully hang the string lights onto the pre-installed mounting points. Ensure the bulbs are facing downwards. Avoid excessive tension on the wire.
- Install Bulbs: If bulbs are not pre-installed, carefully screw each S14 LED bulb into its socket until snug. Do not overtighten.
- Connect Multiple Sets (Optional): If connecting multiple sets, align the end-to-end connectors and push them firmly together. Ensure the connection is secure. You can link up to 36 sets.
- Plug In: Once all lights are securely installed and bulbs are in place, plug the string lights into a GFCI-protected outdoor power outlet.
This diagram illustrates the S14 bulb type, its dimensions (60mm / 2.36 inches), the total string length (7.3 meters / 24 feet), and the ability to connect up to 36 sets, with 61 cm (2 ft) spacing between bulbs.
5. Operation
Operating your Danson Décor LED Outdoor String Lights is straightforward:
- Power On/Off: Plug the lights into a power outlet to turn them on. Unplug them to turn them off.
- Dimming: These lights are dimmable. If you wish to adjust the brightness, connect the string lights to a compatible outdoor-rated dimmer switch (sold separately). Follow the dimmer's instructions for operation.
The string lights are strung above an outdoor patio with a dining table and chairs, providing warm, inviting illumination. The image also indicates 2200K color temperature and 12 watts total.
6. Maintenance
Regular maintenance ensures the longevity and performance of your string lights:
- Cleaning: Disconnect power before cleaning. Wipe bulbs and cords with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Bulb Replacement: If a bulb needs replacement, ensure the string lights are unplugged. Carefully unscrew the old bulb and screw in a new S14 LED replacement bulb. Two replacement bulbs are included with your set.
- Storage: If storing the lights for an extended period, clean them thoroughly, coil the string neatly, and store in a cool, dry place away from direct sunlight.
7. Troubleshooting Common Issues
If you encounter problems with your string lights, refer to the following table:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power to the outlet; loose plug; faulty bulb; tripped GFCI. | Check power outlet; ensure plug is fully inserted; replace faulty bulb; reset GFCI. |
| Some bulbs are not lighting up. | Loose or faulty bulb. | Ensure bulbs are screwed in tightly; replace faulty bulb with a spare. |
| Lights flicker. | Loose connection; incompatible dimmer (if applicable). | Check all bulb connections and end-to-end connectors; ensure dimmer is compatible and properly installed. |
| Lights are too dim. | Dimmer setting too low; environmental factors. | Adjust dimmer to a higher setting; ensure ambient light conditions are not overpowering the string lights. |
8. Product Specifications
- Model Number: J56955
- Brand: Danson Décor
- Total String Length: 7.3 meters / 24 feet
- Bulb Type: S14 Edison LED
- Number of Bulbs: 12 (plus 2 spare)
- Bulb Spacing: 61 cm / 2 feet
- Color Temperature: 2200 Kelvin (Warm White)
- Power Source: Corded Electric
- Wire Gauge: 18-gauge black wire
- Special Features: Dimmable, Energy Efficient, Shatterproof, Waterproof (IP44), Winter Resistant (-20°C)
- Indoor/Outdoor Usage: Outdoor
- Material: Plastic (bulbs)
- Expandability: Connect up to 36 sets
9. Warranty and Support
One Year Warranty: This product is covered by a one-year manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
For warranty claims or technical support, please contact Danson Décor customer service through the retailer where the product was purchased or visit the official Danson Décor website for contact information.
