1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Comely Modern Gold LED Dimmable Ceiling Light. Please read this manual thoroughly before installation and retain it for future reference.

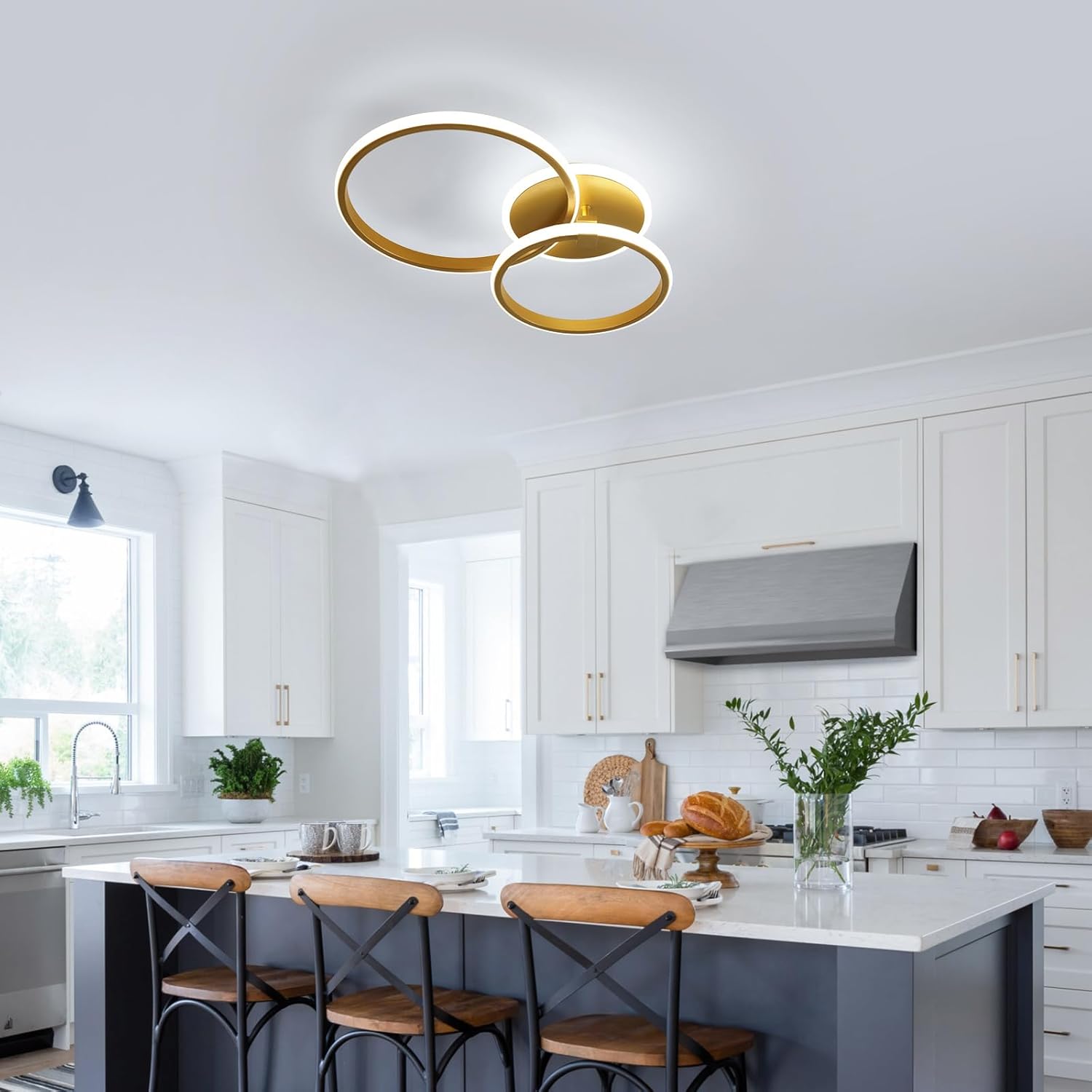

Image 1: The Comely Modern Gold LED Dimmable Ceiling Light, showcasing its illuminated rings and golden base.
2. Safety Information
- Always disconnect power before installation or maintenance.
- Installation should be performed by a qualified electrician if you are unsure.
- Ensure the mounting surface can support the weight of the fixture.
- Do not use abrasive cleaners on the light fixture.
- This product is designed for indoor use only.
3. Package Contents
Verify that all components are present before beginning installation:
- Comely LED Ceiling Light Fixture
- Remote Control
- Mounting Hardware (screws, anchors)
- User Manual (this document)
4. Setup and Installation
The internal wiring of this ceiling light is pre-completed. Follow these steps for installation:
- Prepare for Installation: Turn off the main power supply at the circuit breaker before starting any electrical work.
- Assemble the Fixture Body: Carefully assemble the main body of the light fixture according to the diagram. The hollow rings can be rotated to adjust their position.
- Mount the Bracket: Secure the mounting bracket to the ceiling using the provided mounting hardware. Ensure the bracket is firmly attached to a joist or suitable anchor points.
- Connect Electrical Wires: Connect the household electrical wires to the fixture's wires. Typically, this involves connecting live to live, neutral to neutral, and ground to ground. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- Attach the Fixture to the Ceiling: Carefully lift the assembled light fixture and attach it to the mounting bracket, securing it with the provided screws. Ensure all connections are tight and the fixture is stable.
- Restore Power: Once the fixture is securely installed, restore power at the circuit breaker.
Image 2: Dimensions of the ceiling light: 56cm (22.04in) length, 31cm (12.20in) width, and 9.5cm (3.74in) height.
Image 3: Detailed view of the light's components, including high brightness LED chips, durable aluminum body, and translucent acrylic lampshade.
5. Operating Instructions
Your Comely LED Ceiling Light comes with a remote control for easy adjustment of light settings.
5.1. Power On/Off
Press the ON/OFF button on the remote control to turn the light on or off.
5.2. Adjusting Color Temperature (3000K-6500K)
Use the dedicated buttons or slider on the remote control to cycle through or select your desired color temperature:
- Warm Light (3000K): Provides a cozy, inviting ambiance.
- Neutral Light (4500K): A balanced light suitable for general tasks.
- White Light (6500K): Bright, cool light ideal for focused activities.

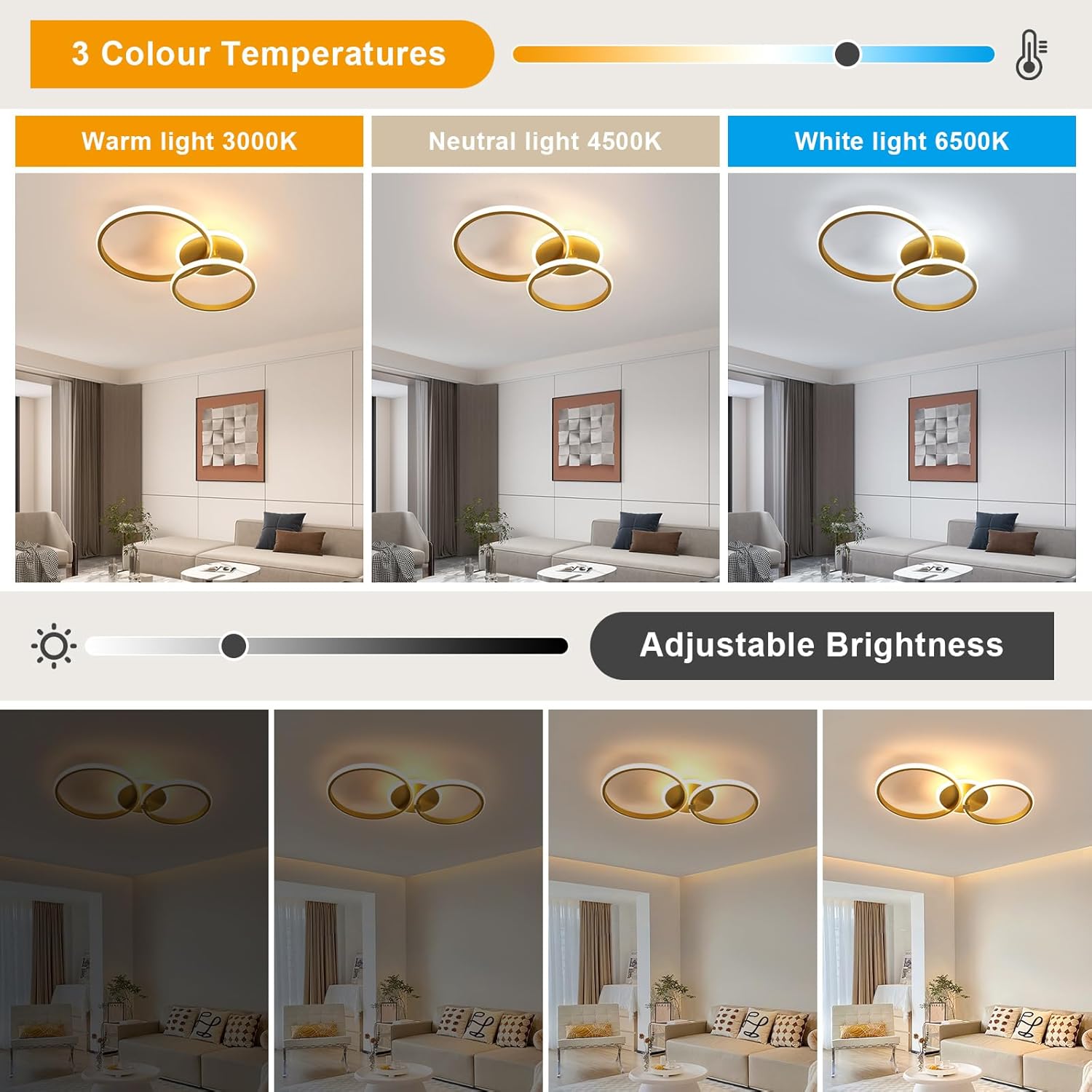

Image 4: Visual representation of the three adjustable color temperatures: 3000K (warm), 4500K (neutral), and 6500K (white).
5.3. Adjusting Brightness (10%-100%)
The brightness can be adjusted from 10% to 100% using the dimmer buttons or slider on the remote control. This allows you to create the perfect lighting for any scene or need.
Image 5: Demonstration of adjustable brightness levels, from 10% to 100%, suitable for various activities and times of day.
5.4. Special Functions (Remote Control)
- Night Light Mode: Activates a soft, low-brightness light (default 5% brightness, 3 color temperatures) ideal for nighttime use, especially for children, pregnant women, or the elderly.
- Memory Function: The light remembers your last brightness and color temperature setting when turned off and on again.
- Timer Function: Set the light to turn off automatically after a specified period.
Image 6: The night light function, providing a gentle illumination suitable for a nursery or bedroom.
Image 7: The remote control highlighting its memory, nightlight, and timer functions for enhanced user convenience.
6. Maintenance
To ensure the longevity and optimal performance of your Comely LED Ceiling Light, follow these maintenance guidelines:
- Cleaning: Before cleaning, ensure the power supply to the light is disconnected. Use a soft, dry, or slightly damp cloth to wipe the surface of the fixture. Do not use harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish and acrylic lampshade.
- Inspection: Periodically check the fixture for any loose connections or signs of wear. If any damage is observed, disconnect power and contact customer support.
- Bulb Replacement: This fixture uses integrated LED chips and does not require traditional bulb replacement. If the LEDs malfunction, the entire fixture may need servicing or replacement.
7. Troubleshooting
If you encounter issues with your Comely LED Ceiling Light, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; loose wiring; remote control battery low. | Check circuit breaker. Ensure all wire connections are secure. Replace remote control batteries. |
| Light flickers or dims unexpectedly. | Unstable power supply; loose connection; incompatible dimmer switch (if not using provided remote). | Verify stable power. Check wiring connections. Ensure only the provided remote control is used for dimming. |
| Remote control not responding. | Batteries depleted; remote out of range; obstruction between remote and light. | Replace remote control batteries. Ensure remote is within effective range and pointed towards the light. Remove any obstructions. |
| Mounting hardware issues (e.g., anchors not holding). | Incorrect anchor type for ceiling material; improper installation. | Use appropriate anchors for your ceiling type (e.g., drywall, concrete). Ensure anchors are installed correctly. Consult a professional if needed. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Comely |
| Model | Modern Gold LED Dimmable Ceiling Light |
| Product Dimensions (L x W x H) | 56 x 31 x 9.5 cm (22.04 x 12.20 x 3.74 inches) |
| Weight | 1 Kilogram |
| Style | Modern |
| Color | Gold |
| Material | Acrylic, Metal |
| Power | 42 Watts |
| Luminous Flux | 4700 Lumen |
| Voltage | 220 Volts |
| Special Features | Dimmable, Remote Control Included, Adjustable Color Temperature (3000K-6500K), Night Light Mode, Memory Function, Timer Function |
| Light Source Type | LED |
| Installation Type | Ceiling Mount (Semi-flush) |
| Energy Efficiency Rating | E |
| EPREL Product Database Link | View EPREL Data |
Image 8: EU Energy Label indicating an efficiency rating of E for the Comely LED Ceiling Light.
9. Warranty and Support
Comely products are manufactured to high-quality standards. For warranty information or technical support, please refer to your purchase documentation or contact Comely customer service through the retailer where the product was purchased.
You can also visit the official Comely store for more information and contact options: Comely Store on Amazon
