Introduction
This manual provides instructions for the AuySier Garden Hose Repair Kits. These kits are designed to repair damaged garden hoses, specifically those with 3/4-inch and 5/8-inch diameters, by replacing the male end fitting. The components are made from solid brass and zinc for durability and resistance to corrosion.
Product Contents
Each AuySier Garden Hose Repair Kit package includes the following items:
- 2 x Brass Male Hose Repair Connectors
- 2 x Zinc Alloy Clamps
- 2 x Rubber Washers (extra)
Image: Two AuySier brass male hose repair connectors with their zinc clamps and two additional rubber washers, as included in the kit.

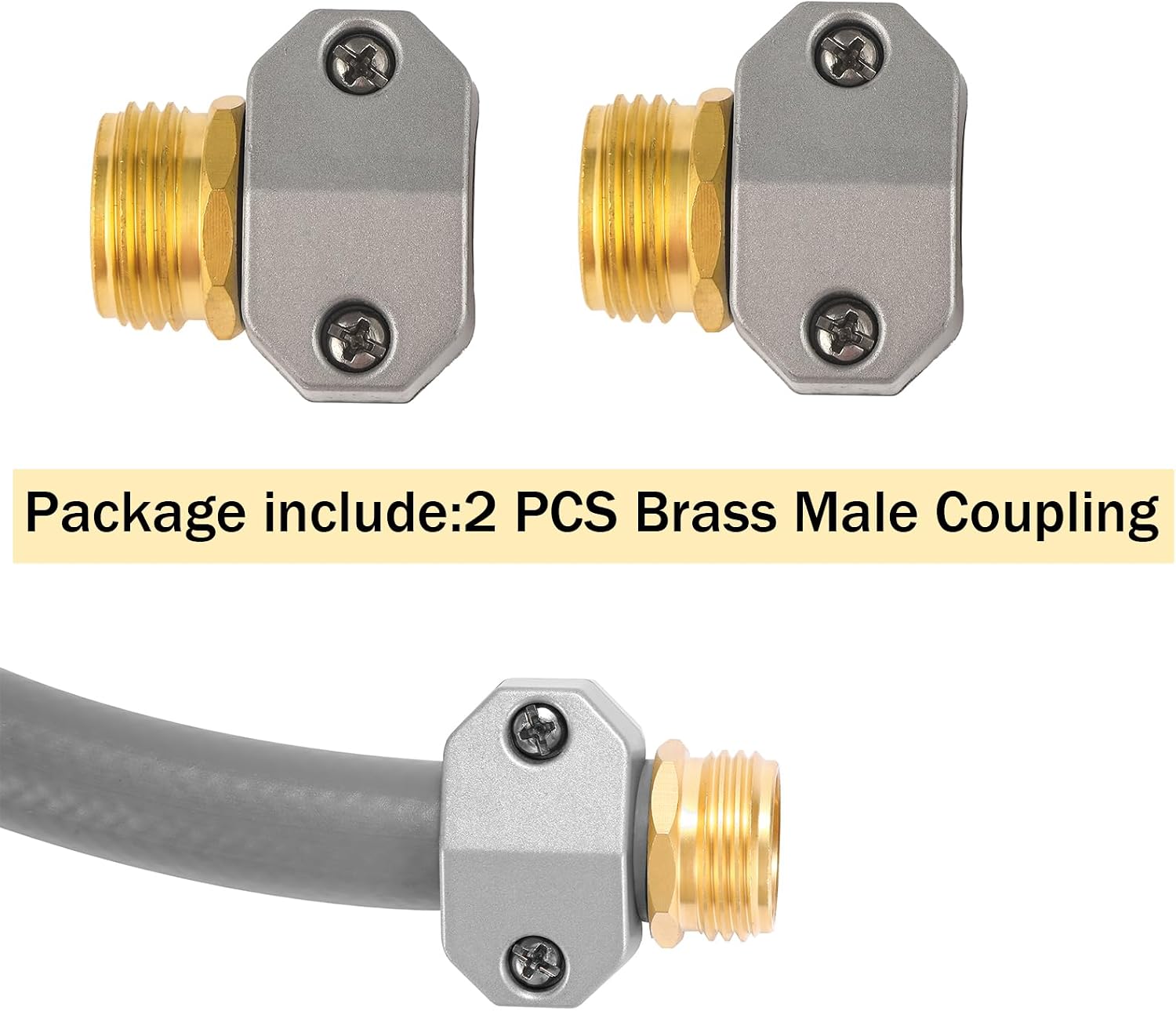

Image: The complete package contents, featuring two brass male couplings. Below, one of the couplings is shown securely attached to a gray garden hose, demonstrating its intended use.
Safety Information
Attention: This product contains lead (Pb). All brass materials contain lead to varying degrees. If lead content is a concern, please consider alternative materials.
Product Features
- Versatile Compatibility: Suitable for both 5/8-inch and 3/4-inch garden hoses.
- Durable Construction: Comprised of solid brass male coupling, zinc clamp, and stainless steel screws for long-lasting performance and rust resistance.
- Leak-Free Connection: Designed for a tight, secure connection to prevent water wastage.
Image: A visual comparison highlighting the material difference between AuySier's brass connector and a typical aluminum connector from another brand, emphasizing the brass construction.
Installation Instructions (Setup)
Follow these steps to repair your garden hose using the AuySier repair kit:
- Prepare the Hose: Cut off the damaged section of your garden hose cleanly and squarely. Ensure the cut end is smooth.
- Disassemble the Connector: Unscrew the two screws on the zinc clamp of the repair connector to separate the clamp from the brass fitting.
- Insert Hose into Clamp: Slide the zinc clamp over the cut end of the garden hose.
- Attach Brass Fitting: Push the brass male coupling firmly into the end of the hose. For easier insertion, you may soak the end of the hose in hot water for a few minutes to make it more pliable. Use gloves if handling hot water.
- Secure the Clamp: Position the zinc clamp over the hose and brass fitting, ensuring the hose is fully seated within the fitting. Tighten the two screws on the clamp securely to create a firm, leak-proof connection. Do not overtighten.
- Add Washer: Insert one of the provided rubber washers into the threaded end of the brass male coupling if not already present.
Image: A detailed diagram illustrating the process of fitting the brass connector into either a 3/4-inch or 5/8-inch garden hose, secured by the zinc clamp. It highlights the male thread and the hose barb.
Usage Guidelines (Operating)
Once the repair kit is installed, your garden hose is ready for use. Connect the male end of the repaired hose to any standard female garden hose fitting, such as those on outdoor faucets, sprinklers, spray nozzles, or other watering equipment. Ensure the connection is hand-tight to prevent leaks.
Maintenance
- Regular Inspection: Periodically check the connection for any signs of wear, damage, or leaks.
- Washer Replacement: If leaks occur at the connection point, replace the rubber washer inside the male coupling.
- Cleaning: Clean the brass and zinc components as needed to remove dirt or mineral buildup, which can affect performance.
- Winter Storage: Disconnect hoses and drain them completely before storing in a frost-free area during winter to prevent damage from freezing water.
Troubleshooting
Leakage at the Connection Point
- Cause: Loose connection, worn washer, or improper hose insertion.
- Solution: Ensure the male coupling is tightly screwed into the female fitting. Check the rubber washer for damage and replace if necessary. Verify that the hose is fully seated within the brass fitting and the zinc clamp screws are tightened securely.
Difficulty Inserting Hose into Fitting
- Cause: Hose material is stiff or cold.
- Solution: Soak the end of the hose in hot water for a few minutes to soften the material, making it easier to push onto the barb of the brass fitting.
Specifications
| Attribute | Detail |
|---|---|
| Product Name | Garden Hose Repair Kit (Male) |
| Brand | AuySier |
| Model Number | 3/4" GHT Garden Hose Adapter |
| Compatibility | 3/4" and 5/8" Garden Hoses |
| Connector Type | Male |
| Thread Type | NPT (National Pipe Taper) |
| Material | Brass (coupling), Zinc (clamp) |
| Item Dimensions (L x W x H) | 2 x 3 x 1 inches |
| Item Weight | 6.7 ounces (approx. per kit) |
| UPC | 607601672478 |

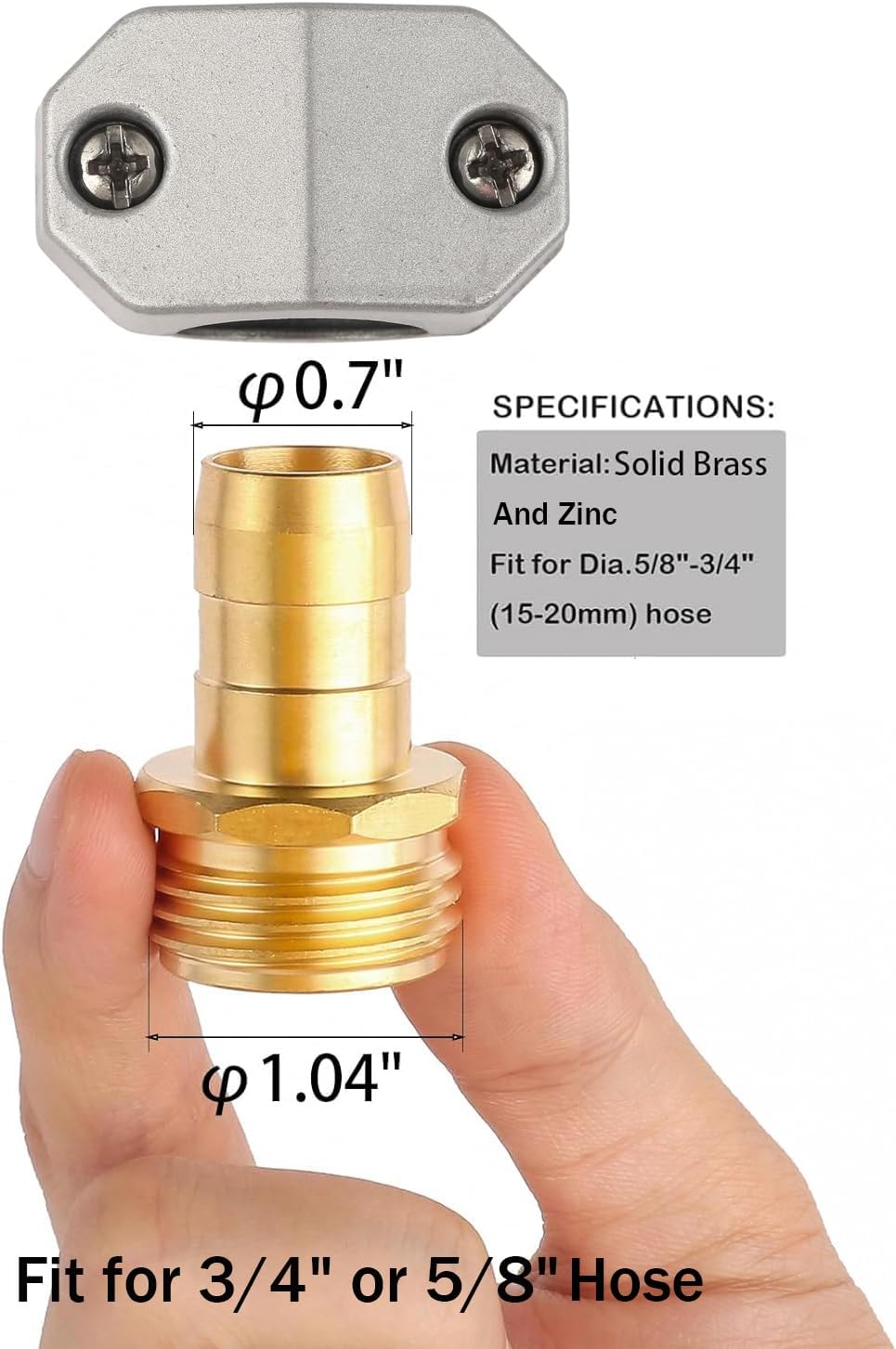

Image: A diagram detailing the dimensions of the brass hose connector, including its diameter and length, and confirming its compatibility with 5/8-inch to 3/4-inch hoses.
Warranty & Support
Warranty and specific support contact information are not available in the provided product data. Please refer to the product packaging or the seller's information on the purchase platform for details regarding warranty coverage and customer support.
