1. Introduction
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your SummerCool 20-inch Mulching Mower Blade. This blade is designed as a replacement for various 20-inch lawn mowers, including specific Hyper Tough, Murray, and Daye models. Please read this manual thoroughly before installation and use to ensure proper function and safety.

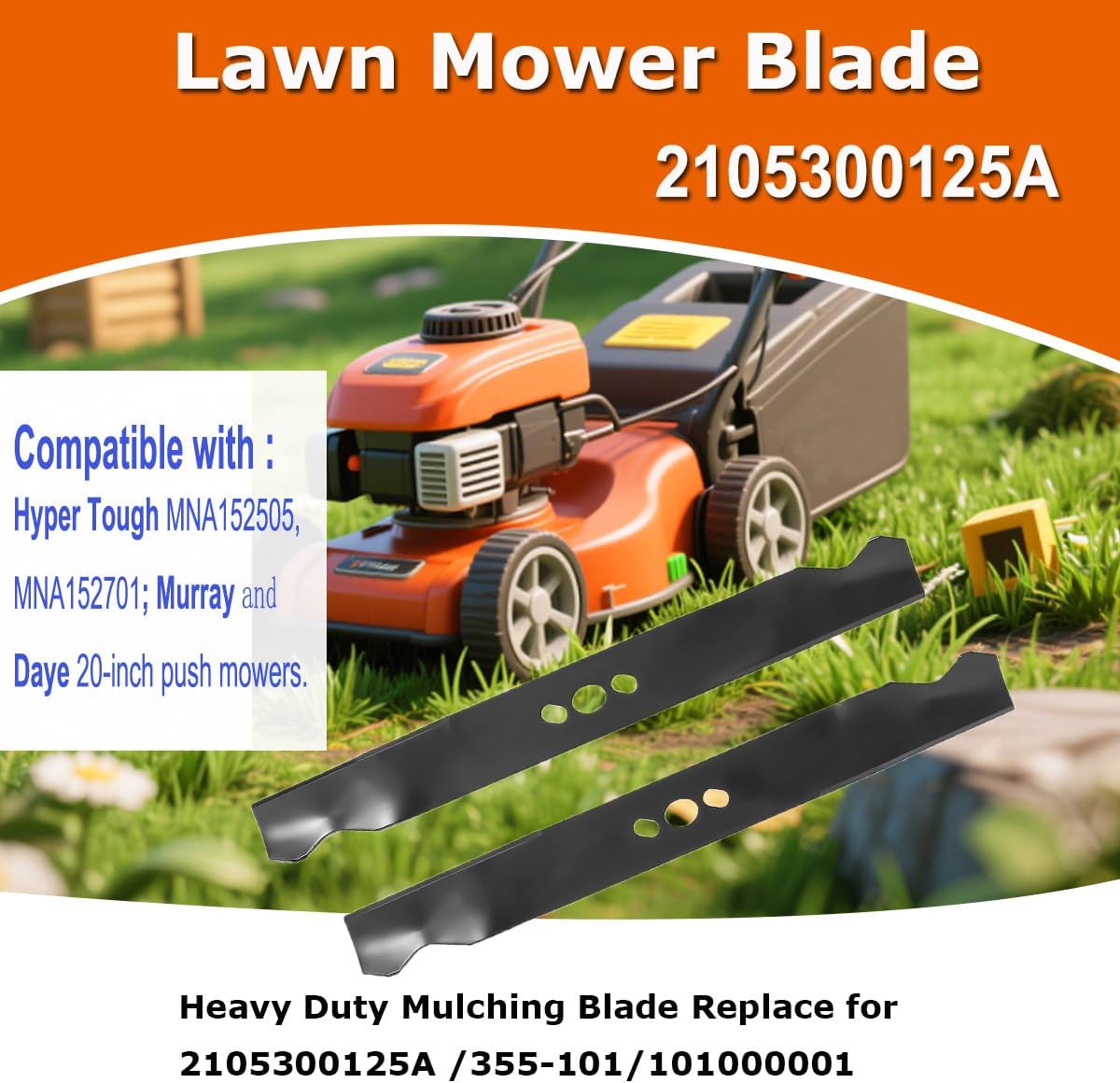

Image 1: SummerCool 20-inch Mulching Mower Blade. This image displays the blade itself, highlighting its design and indicating compatibility with Hyper Tough MNA152701, MNA152505, Murray, and Daye 20-inch push mowers.
2. Safety Information
Always prioritize safety when working with lawn mower blades. Failure to follow these safety guidelines can result in serious injury.
- Disconnect Power: Before performing any maintenance or installation, ensure the mower's spark plug wire is disconnected to prevent accidental starting.
- Wear Protective Gear: Always wear heavy-duty gloves and eye protection when handling the blade. Blades are sharp and can cause cuts.
- Stable Surface: Work on a flat, stable surface to prevent the mower from tipping.
- Proper Tools: Use appropriate tools for loosening and tightening blade bolts to avoid stripping or damage.
- Inspect Blade: Regularly inspect the blade for damage, cracks, or excessive wear. Replace damaged blades immediately.
3. Setup (Installation)
Follow these steps to safely replace your lawn mower blade:
- Disconnect the Spark Plug: Locate and disconnect the spark plug wire from the spark plug. This prevents the engine from accidentally starting.
- Position the Mower: Tilt the mower onto its side, ensuring the carburetor and air filter are facing upwards to prevent fuel or oil leaks.
- Remove Blade Bolts: Using a wrench, carefully remove the blade bolts that secure the old blade to the mower deck. You may need to brace the blade with a block of wood to prevent it from turning.
- Clean Mounting Area: Clean any dirt, grass clippings, or debris from around the blade mounting area on the mower deck.
- Install New Blade: Align the new SummerCool mulching blade with the mounting holes on the mower deck. Ensure the blade is installed with the cutting edges facing the correct direction (usually indicated by an arrow or curve on the blade).
- Secure Blade: Reinstall the blade bolts and tighten them securely according to your mower's manufacturer specifications.
- Reconnect Spark Plug: Once the new blade is securely installed, reconnect the spark plug wire.
Image 2: Easy Installation Guide. This image illustrates the four key steps for blade replacement: disconnecting the spark plug, removing blade bolts, cleaning the mounting area, and replacing the old blade with a new one.
4. Operating
The SummerCool 20-inch Mulching Mower Blade is designed to finely chop grass clippings, returning valuable nutrients to your lawn. This mulching action promotes healthier lawn growth and reduces the need for bagging clippings.
Image 3: Mulching Blade Design. This image highlights the unique curves of the mulching blade, which are engineered to cut and re-cut grass into smaller pieces, recycling nutrients back into the soil. It also notes that cutting edges are painted for safety, and the paint will wear off during use.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your mower blade.
- Cleaning: After each use, clean grass clippings and debris from the blade and underside of the mower deck.
- Inspection: Periodically inspect the blade for signs of wear, nicks, bends, or cracks. A damaged blade can cause vibration and an uneven cut.
- Sharpening: The blade comes pre-sharpened and powder-coated for safety. The coating will wear off with use, maintaining sharpness. While designed for long-lasting sharpness, if you notice a decline in cutting performance, the blade can be sharpened by a professional or with appropriate tools, ensuring proper balance.
- Replacement: Replace the blade if it becomes excessively worn, bent, or damaged beyond repair.
Image 4: Premium Quality Blade. This image provides close-up views of the blade's cutting edge and center hole, highlighting its factory pre-sharpened design for efficient mulching and cutting performance.
6. Troubleshooting
If you encounter issues with your mower blade, consider the following:
- Uneven Cut: Check if the blade is installed correctly, if it's bent, or if it needs sharpening. Ensure the mower deck is level.
- Excessive Vibration: This often indicates an unbalanced or bent blade. Disconnect the spark plug and inspect the blade for damage. Replace if necessary.
- Poor Mulching: Ensure the blade is clean and sharp. Avoid mowing wet or excessively tall grass, which can hinder mulching effectiveness.
7. Specifications
Key specifications for the SummerCool 20-inch Mulching Mower Blade:
- Model Number: 2105300125A
- Replacement for: 2105300125A, 355-101, 101000001, 212-9903
- Compatible with: Hyper Tough MNA152701, MNA152505; Murray 20-inch mowers; Daye 20-inch mowers
- Length: 20 inches
- Width: 2.25 inches
- Thickness: 0.126 inches (3.2mm)
- Center Hole Diameter: 0.95 inches
- Oval Side Holes: 0.69 inches diameter, 2.2 inches center to center
- Material: Heavy-duty alloy steel
- Features: Pre-sharpened, powder-coated, optimized spiral-edge design for mulching
Image 5: Mulching Blade Dimensions. This diagram provides a top, side, and back view of the blade, detailing its length (20 inches), width (2.25 inches), thickness (0.126 inches), center hole diameter (0.95 inches), and side hole dimensions.
8. Warranty Information
SummerCool products are manufactured to high-quality standards. For specific warranty details regarding your 20-inch Mulching Mower Blade, please refer to the product packaging or contact SummerCool customer support. This blade is designed for durability and performance under normal operating conditions.
9. Support
If you have any questions, require assistance with installation, or need further troubleshooting, please contact SummerCool customer support. Ensure you have your product model number (2105300125A) available when contacting support for efficient service.
